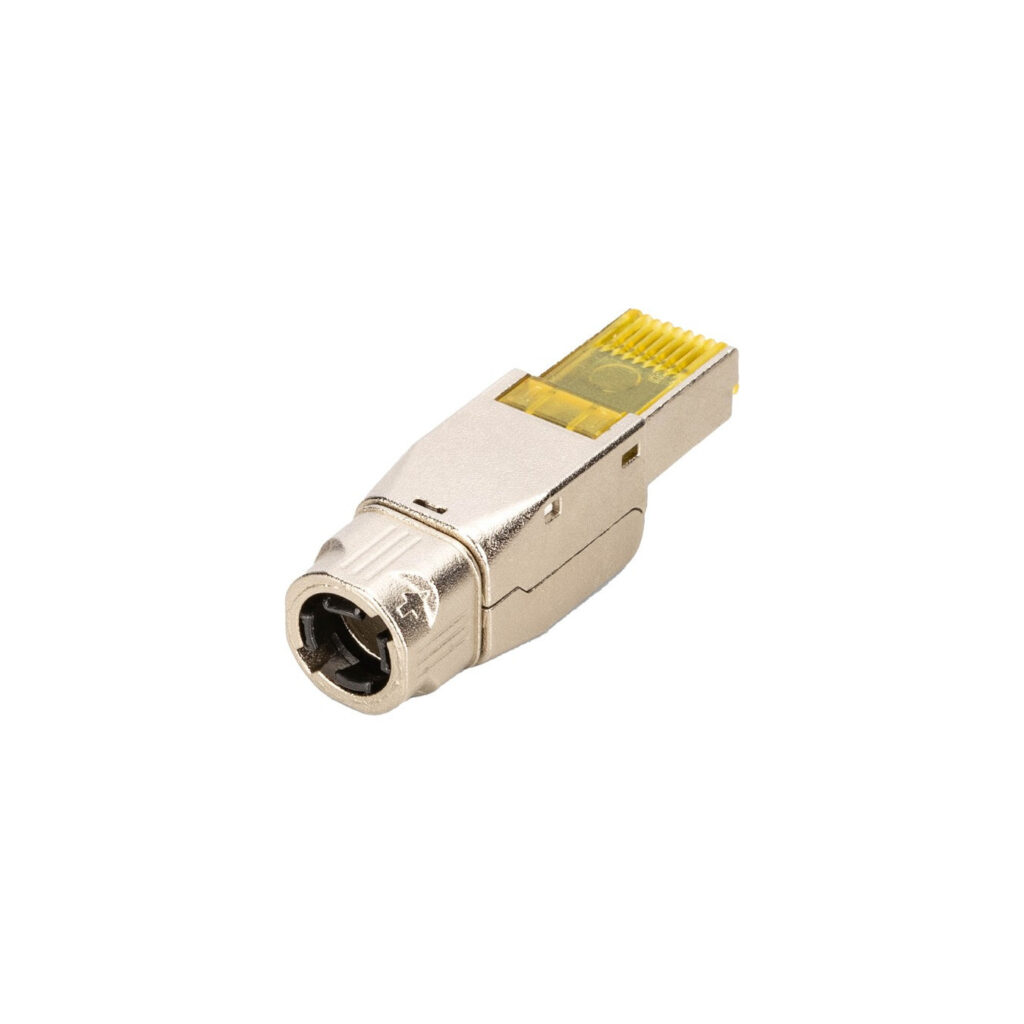

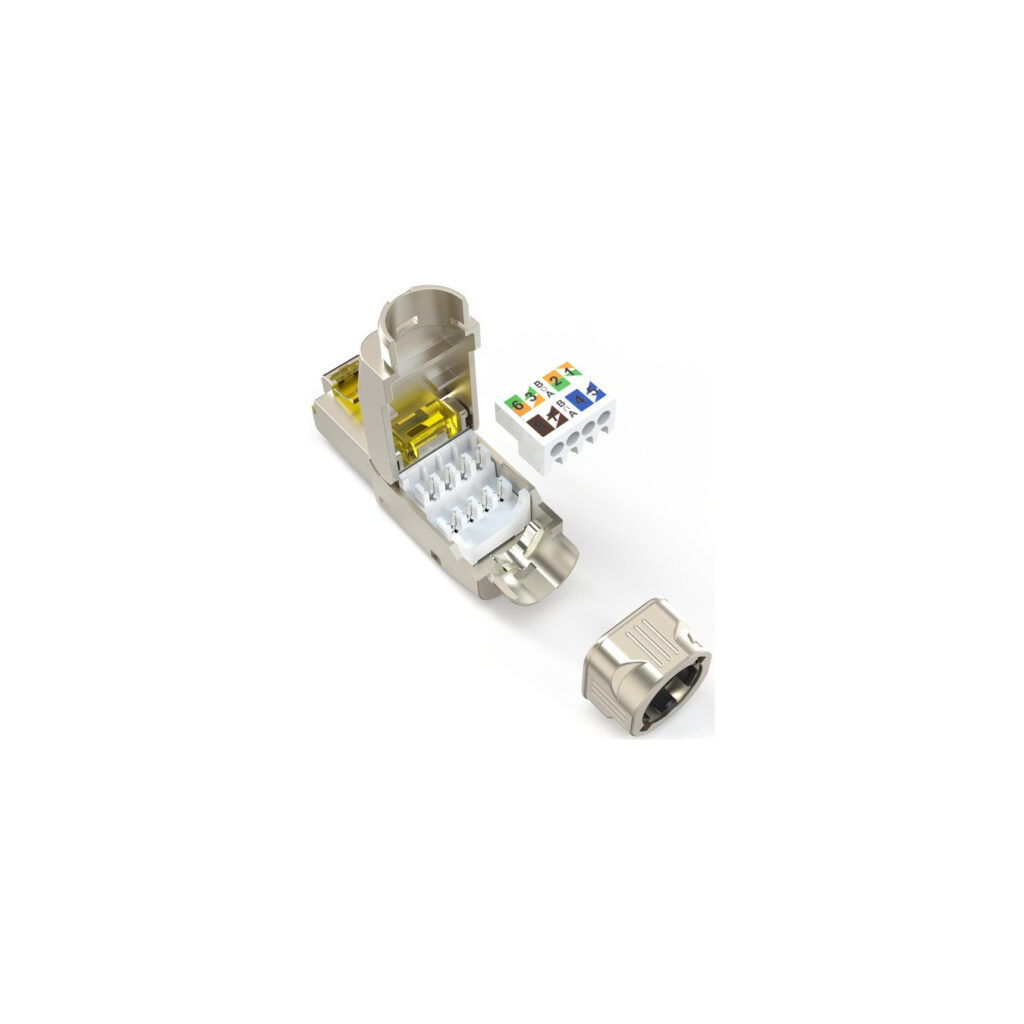

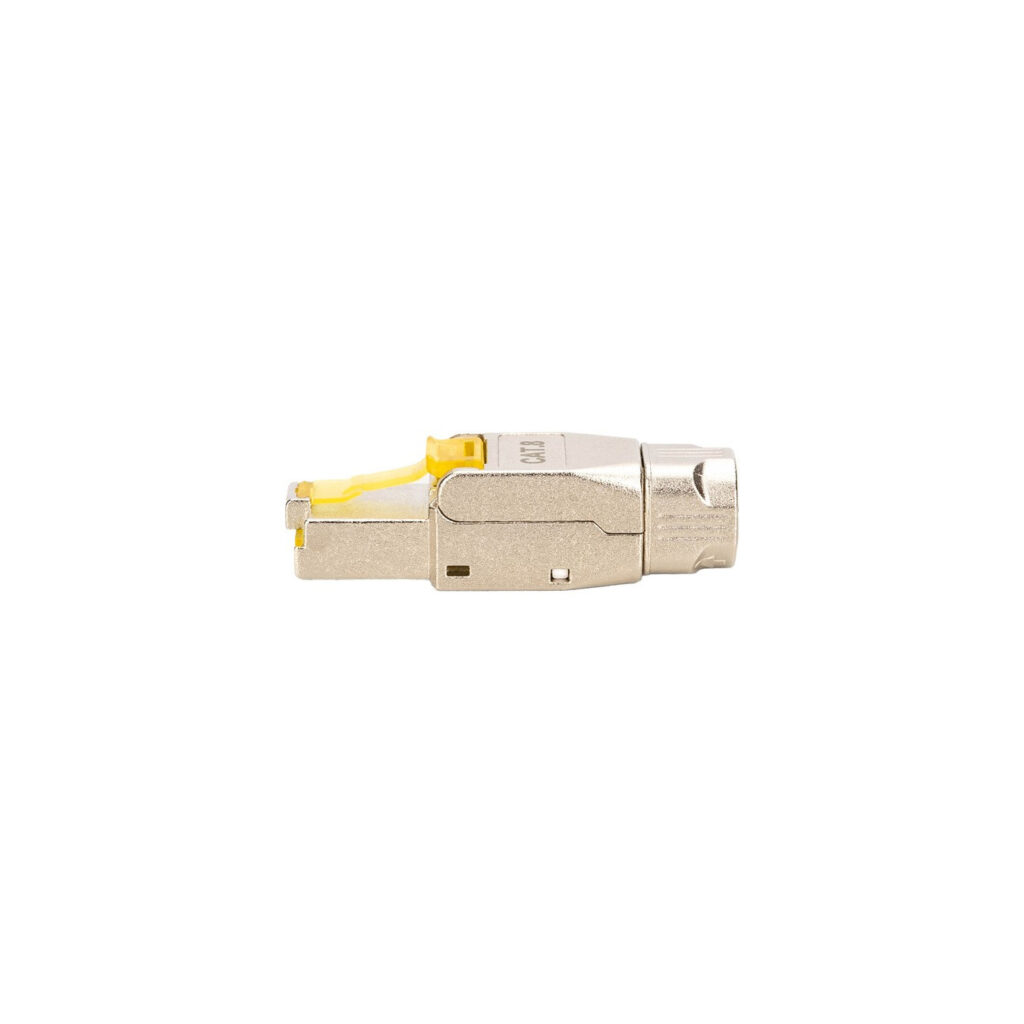

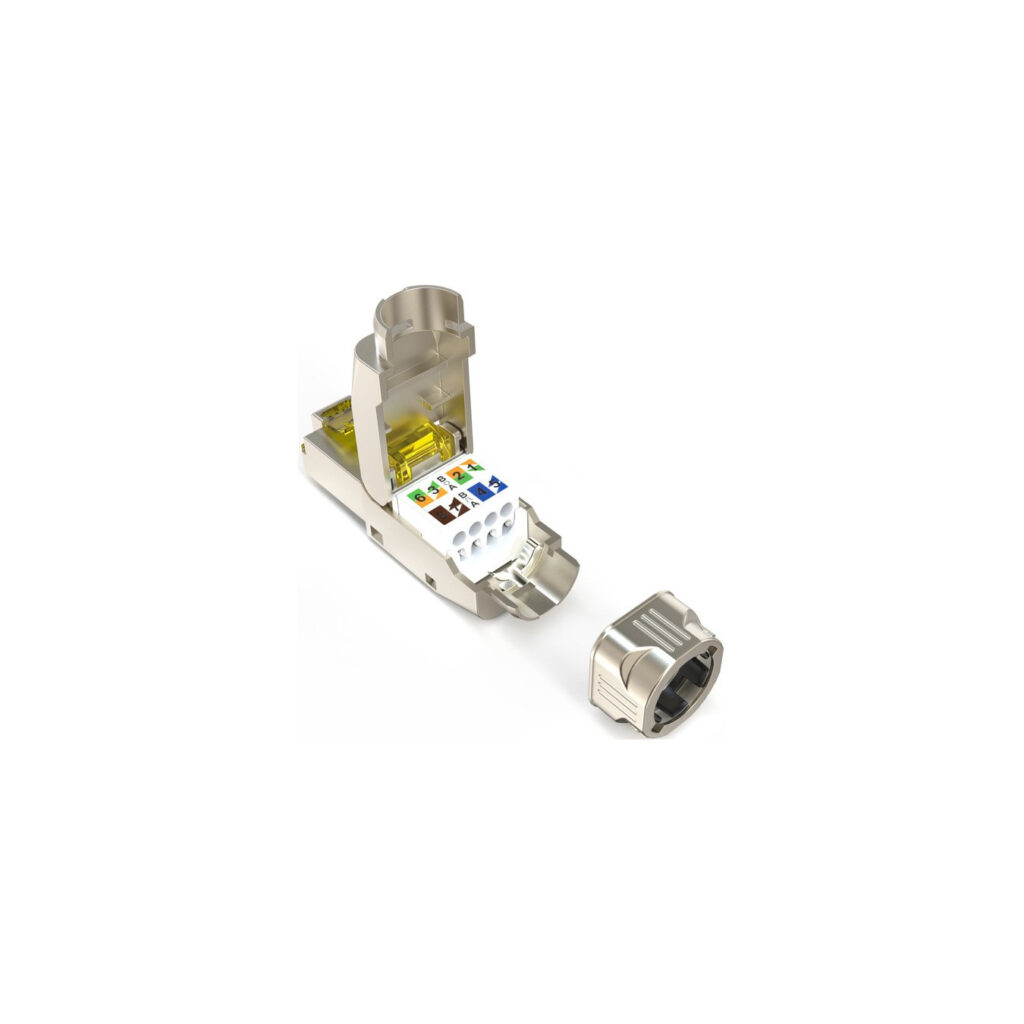

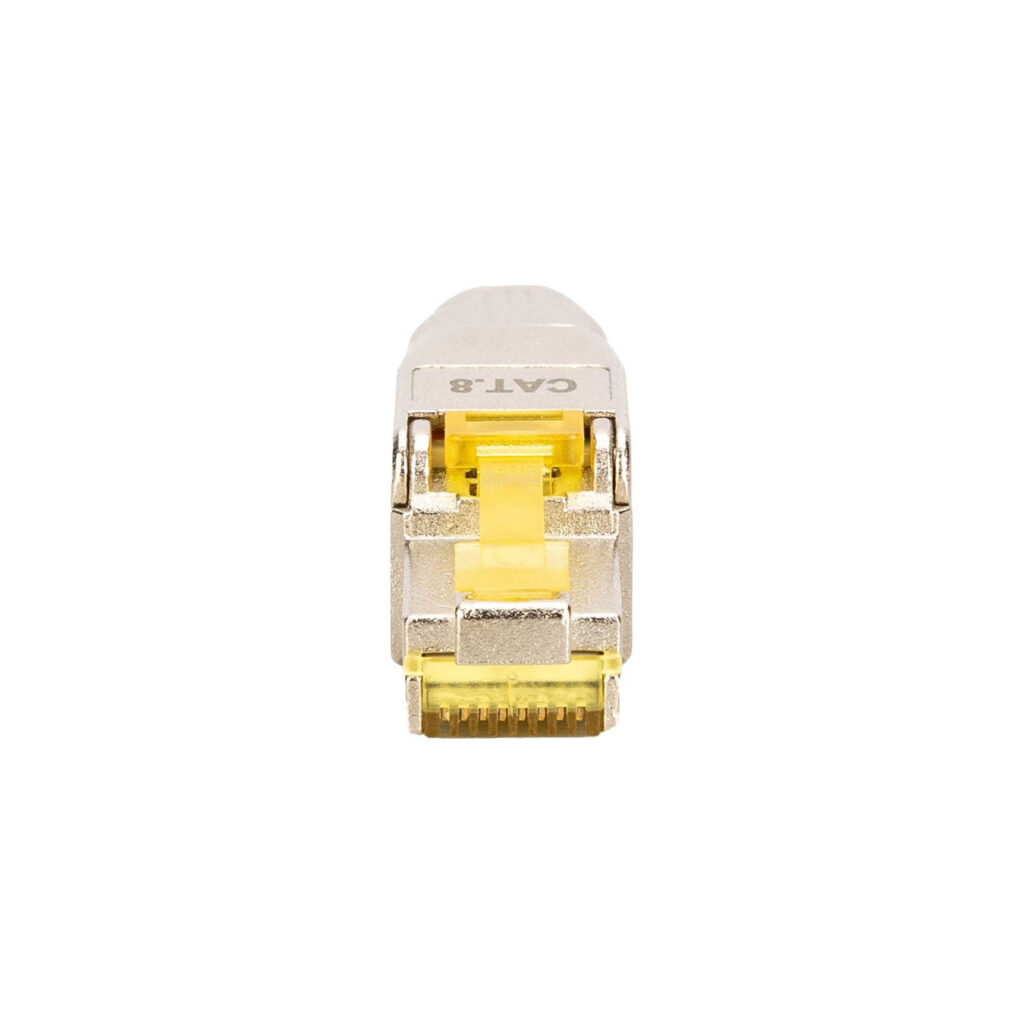

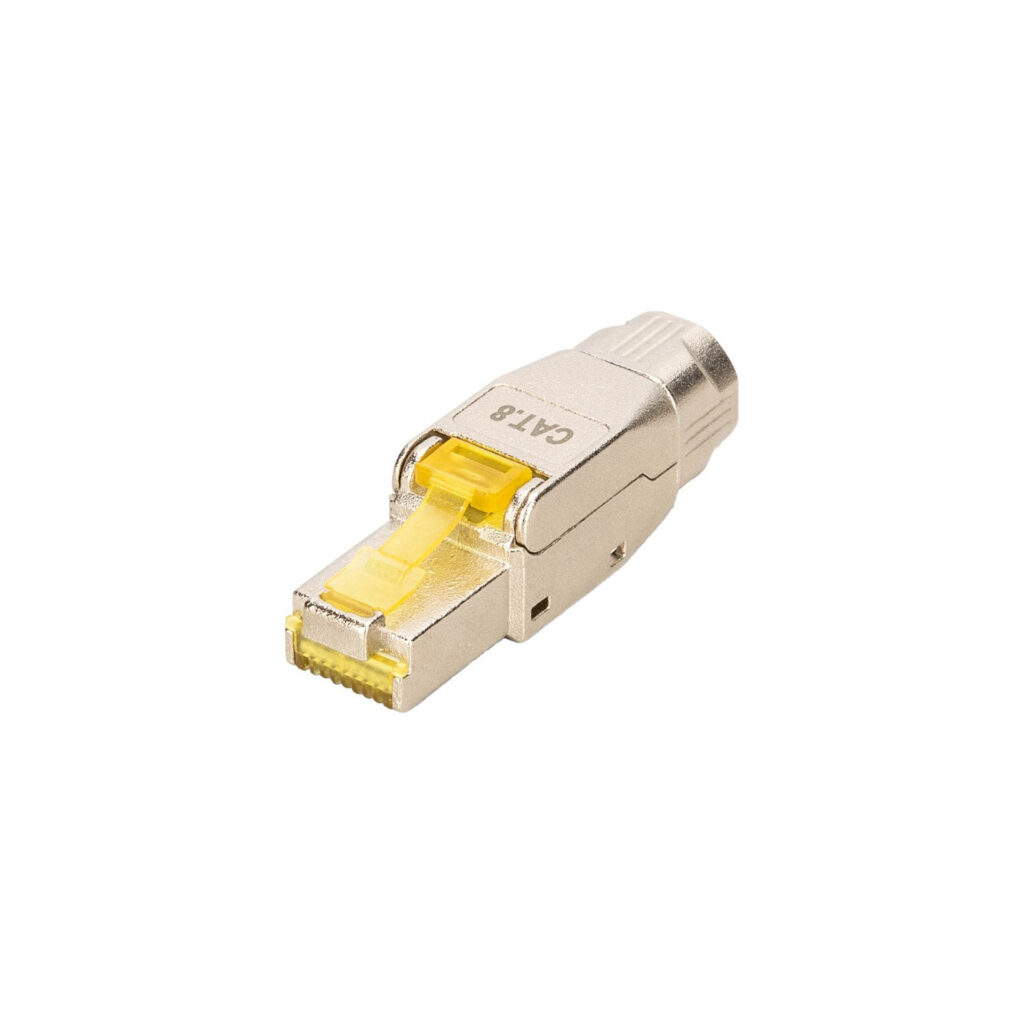

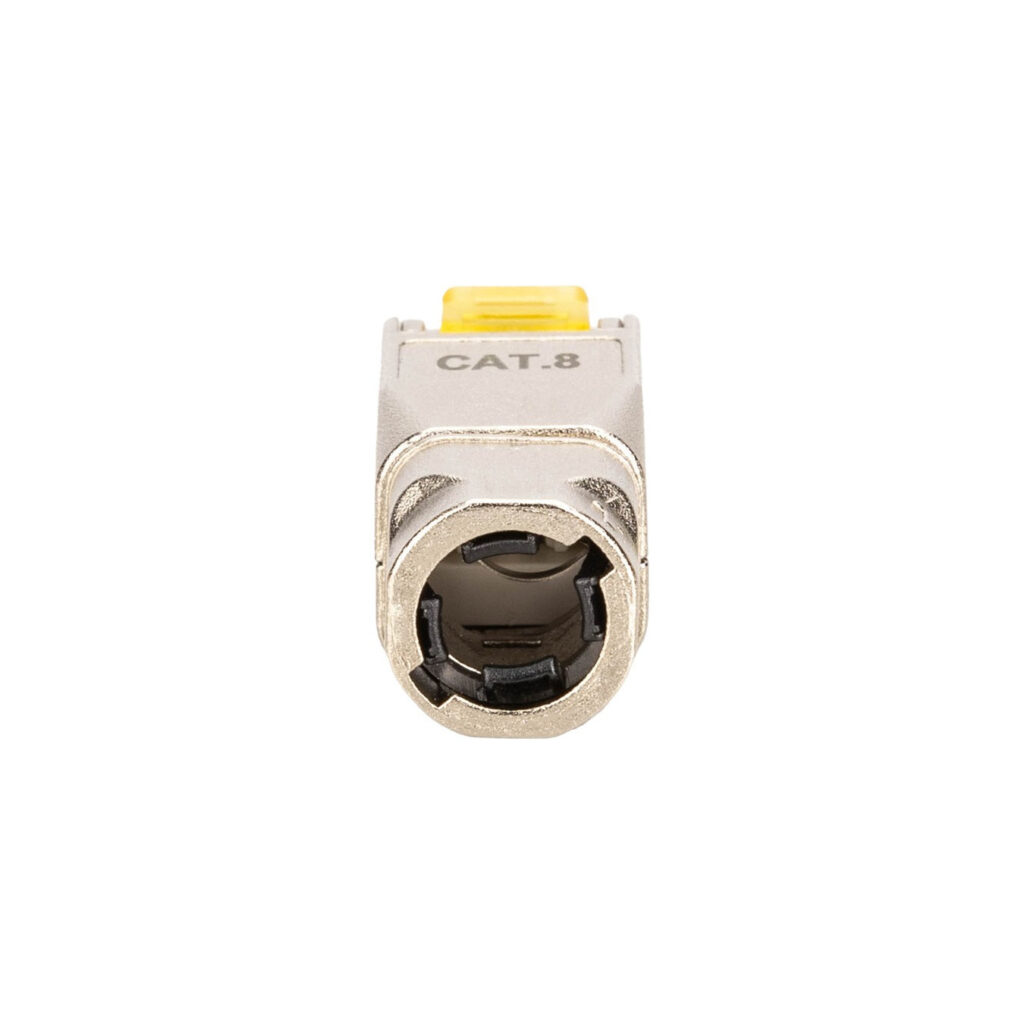

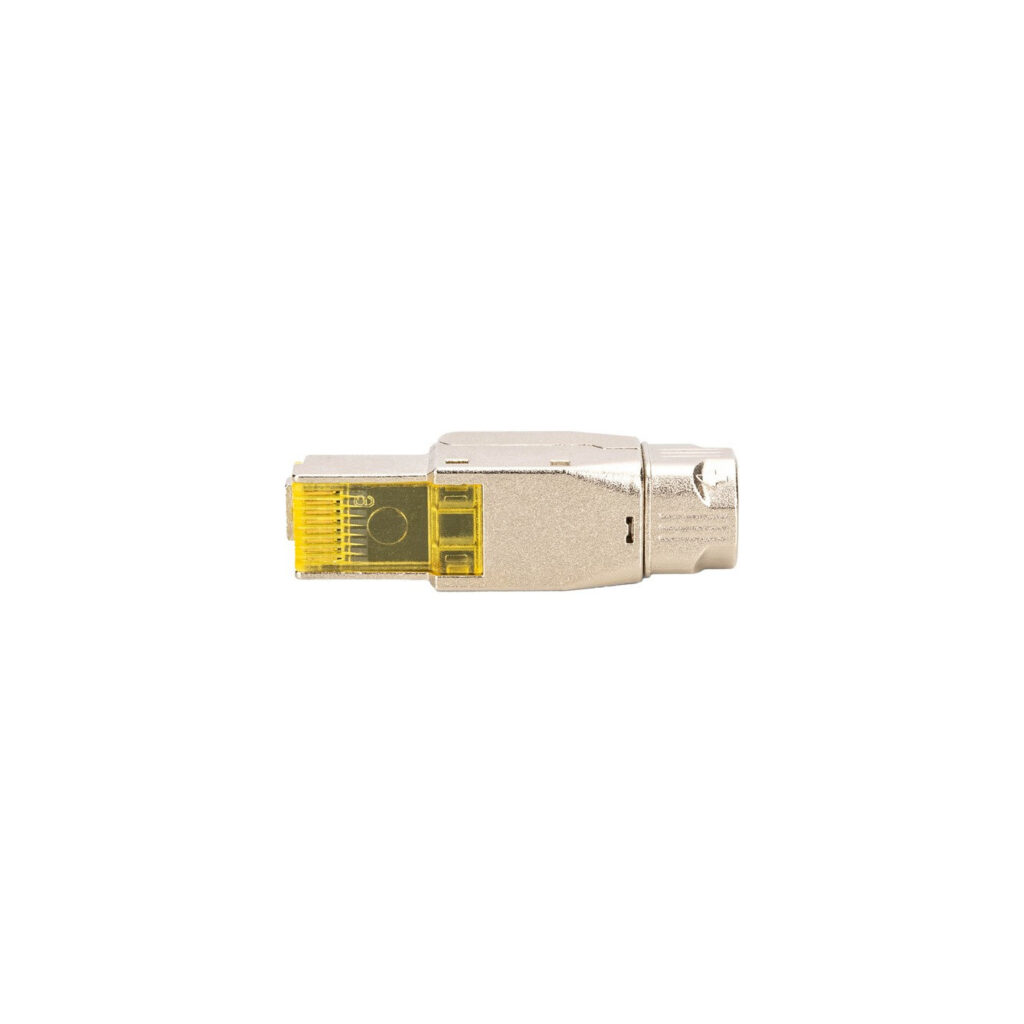

CAT 8.1 field connector, shielded, tool-free
The CAT 8.1 RJ-45 connector DN-93838 for field assembly with a tool-free assembly connection impresses with its future-oriented standards and high-end quality for the network. The …
Доступно для заказа: 100 шт. (6–10 рабочих дней)Заказ сегодня20 нояб.В нашем магазине30 нояб. – 4 дек.Доставка к вам2–9 дек.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Вопросы? Звоните 22 270068
- 100 шт.Доступно для заказа
- 8–13 рабочих днейдоставка к вам
- 6–10 рабочих днейв нашем магазине в Никосии
- Удобная оплатакарта, Apple Pay, Google Pay или в магазине
Основные характеристики
Коротко о главном
- PlugTyp
- ChinaManufactured in
- RJ-45 (plug), Cat.8.1Connection
- 1 pieceNumber
- networkArea
- externCharacteristics
Информация о товаре
Подробности
The CAT 8.1 RJ-45 connector DN-93838 for field assembly with a tool-free assembly connection impresses with its future-oriented standards and high-end quality for the network. The field connector is suitable for patch cable assembly with solid and stranded conductor cables. It is compliant with Category 8.1 / 25/40GBase-T ISO/IEC 11801, IEC 60603-7-81. The robust metal housing ensures long-lasting, stable connections. The quick assembly without special tools makes this field connector the optimal choice for installation, repair and maintenance.
| Typ | Plug |
| EAN | 4016032499381 |
| Manufacturer no. | DN-93838 |
| Manufactured in | China |
| Connection | RJ-45 (plug), Cat.8.1 |
| use | For patch cable AWG (26/7 - 22/1) |
| Number | 1 piece |
| Area | network |
| Characteristics | extern |
| Feature | Robust die-cast zinc housing, 360° shield contact, gold-plated contacts, strain relief and cable fixation using a screw cap, suitable for PoE/ PoE+/ 4PPoE (IEEE 802.3af, 3at, 3bt) |
| More information | For conductor cross-sections AWG 26/7 - 22/1, stranded and solid wire, 25/40 GBase-T, 2,000 MHz, operating temperature -20°C to +70°C, cable installation via LSA insulation displacement terminal, color-coded according to EIA/TIA 568 A&B, mating cycles > 1,500 (ISO/IEC 11801, IEC 60603-7-81) |
