CAT.6a Feldstecker, bis 4PPoE, IEEE802.3bt

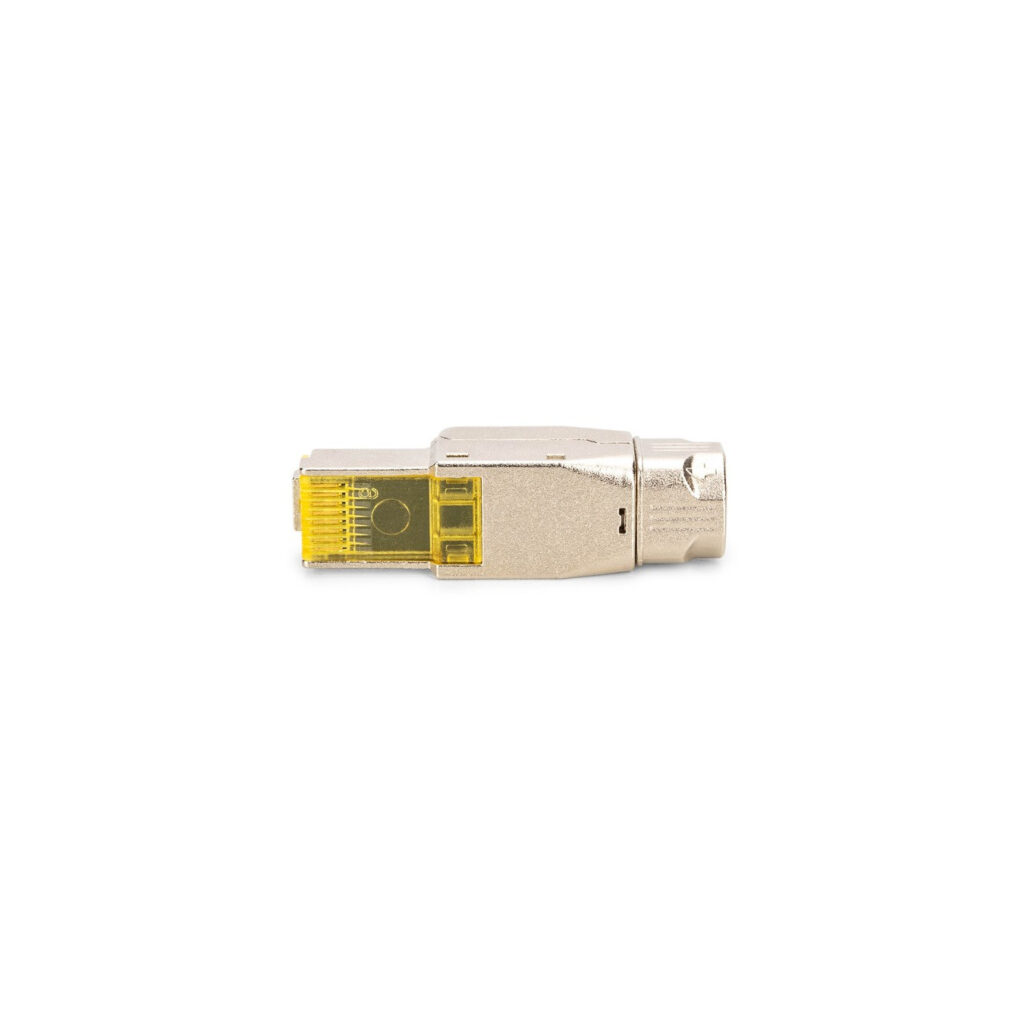

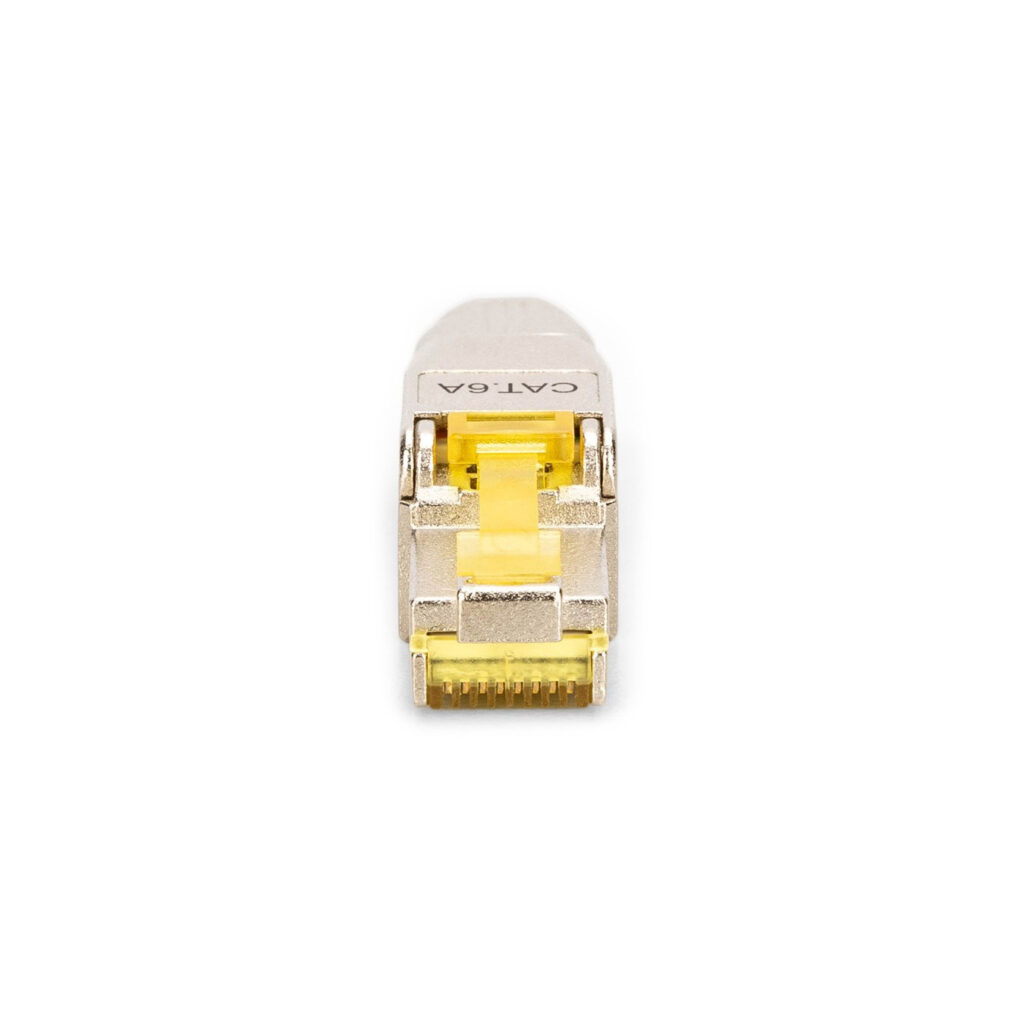

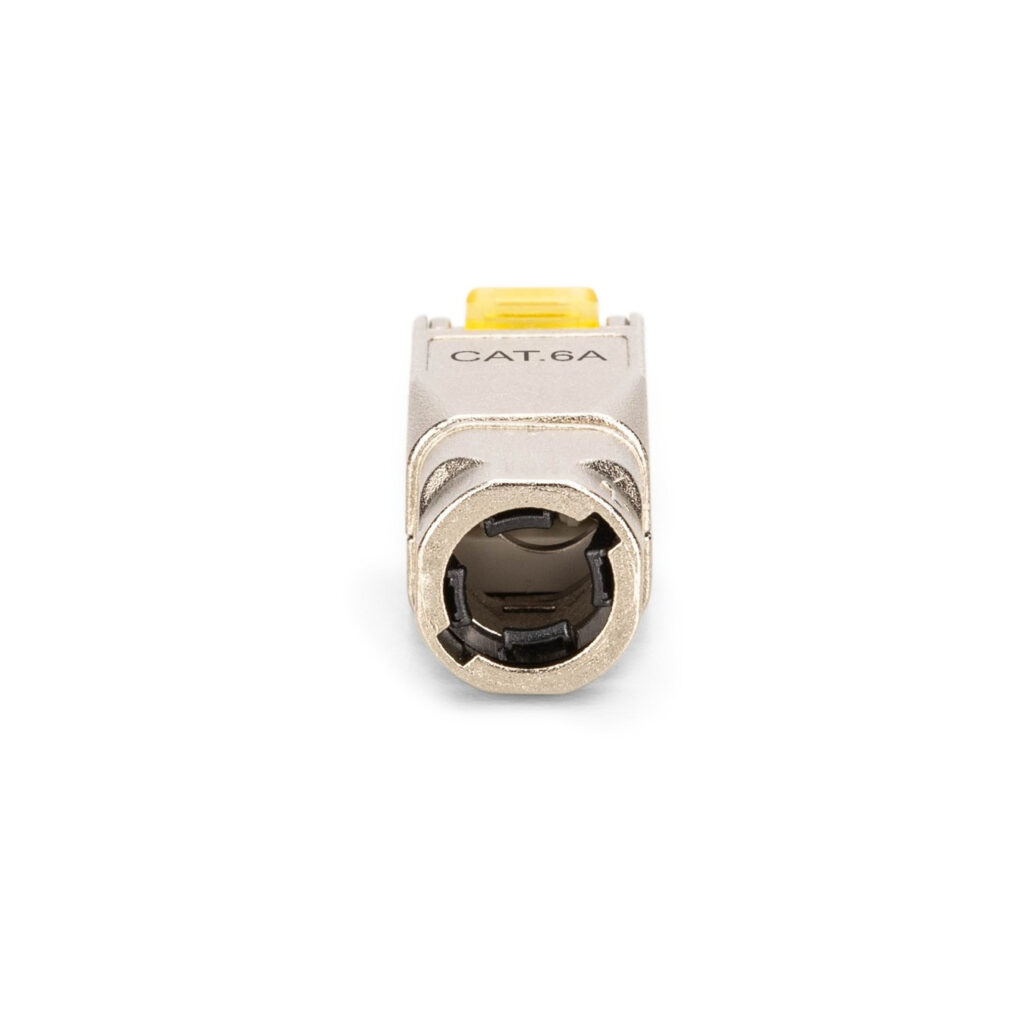

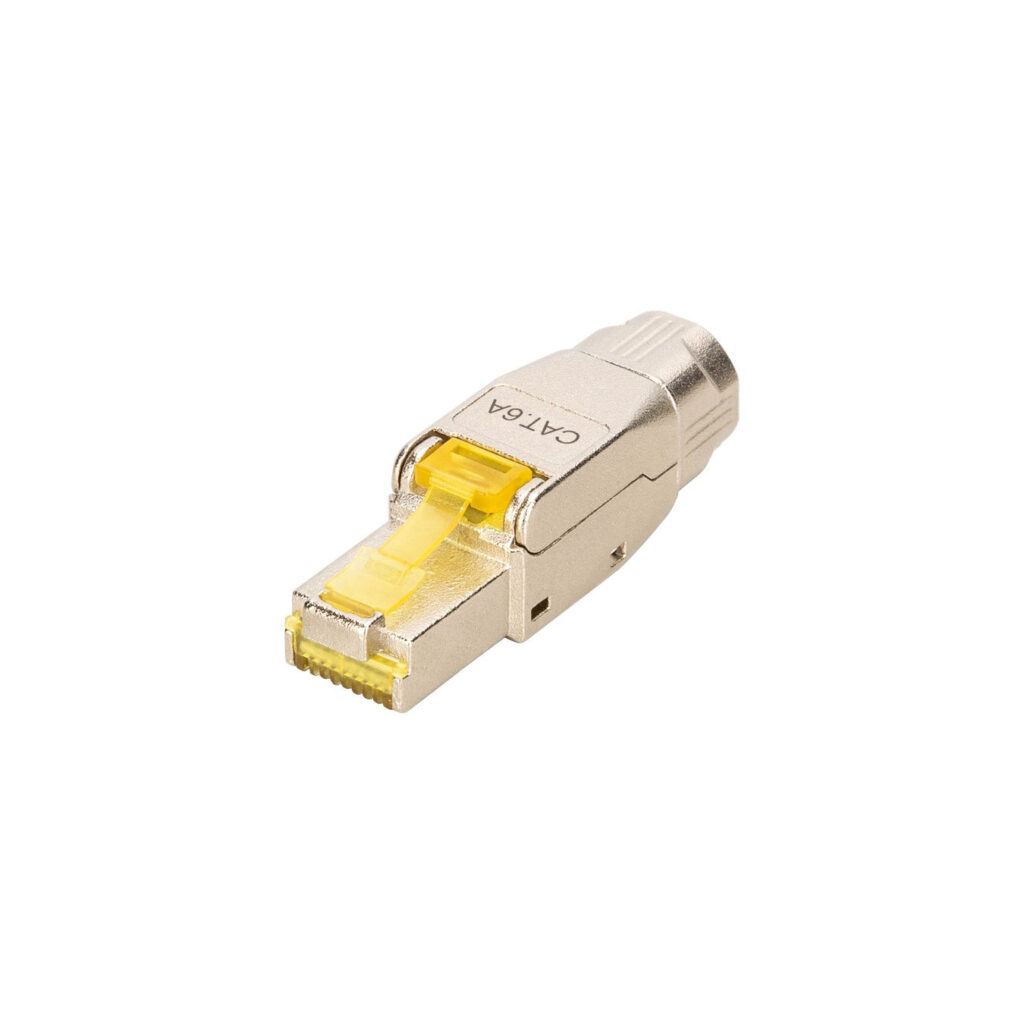

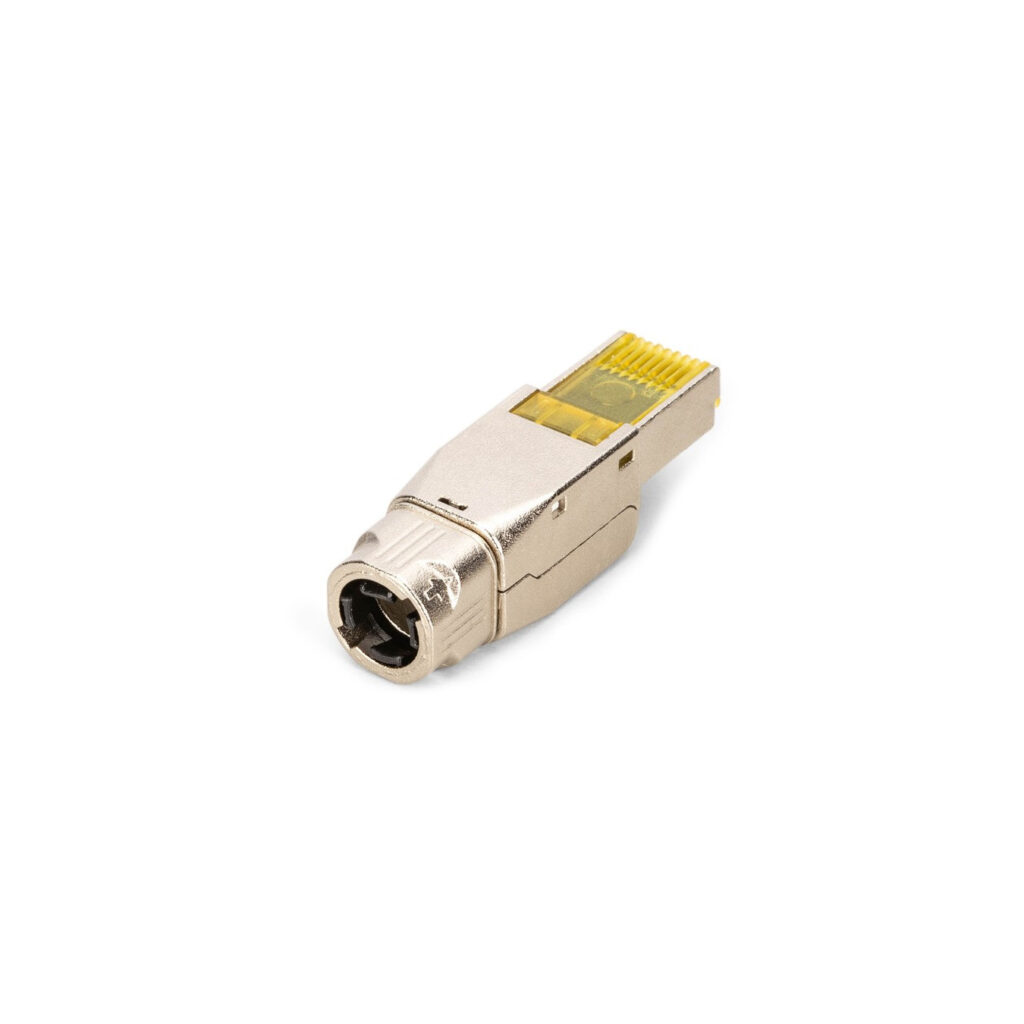

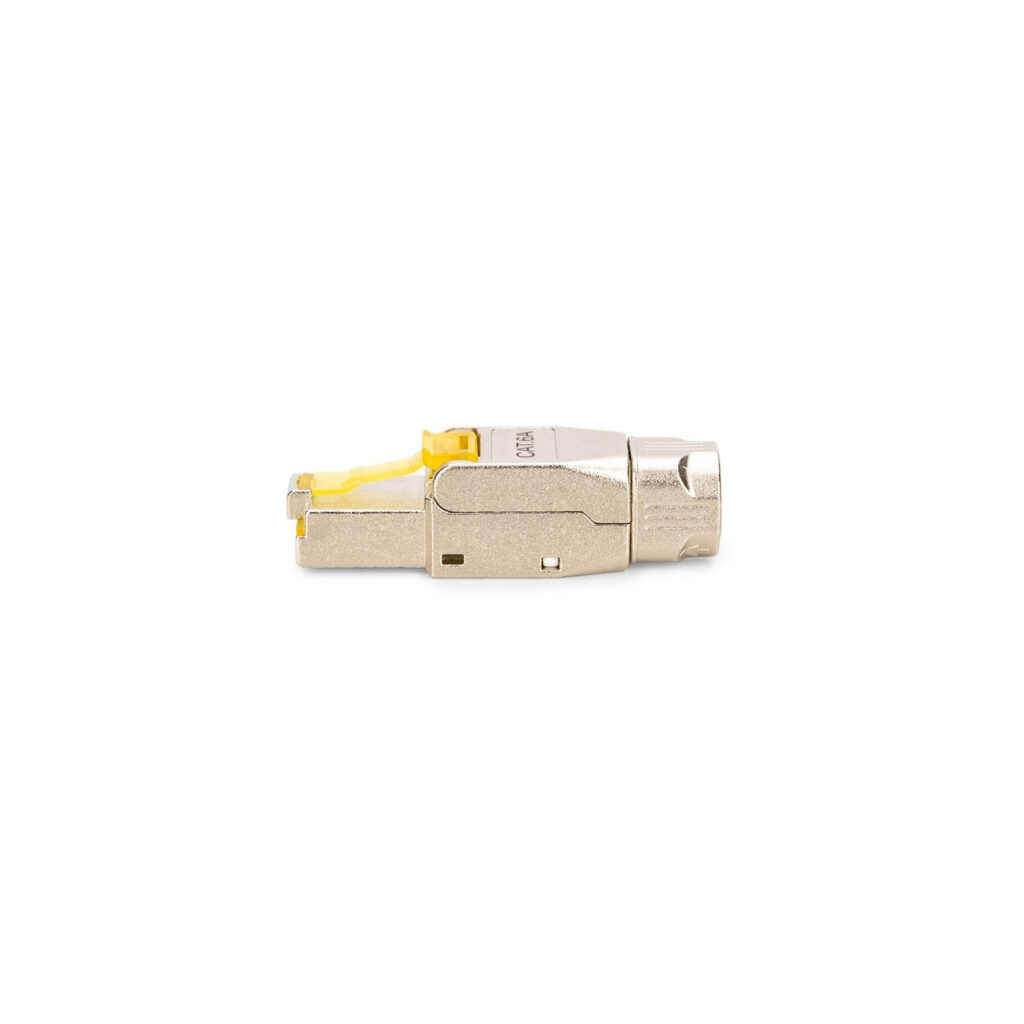

The CAT.6a RJ-45 connector DN-93638 for field assembly is a modern and high-quality connector from DIGITUS that is not only characterized by its ease of use, but also always provid…
Доступно через 6–10 рабочих дней : 45 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The CAT.6a RJ-45 connector DN-93638 for field assembly is a modern and high-quality connector from DIGITUS that is not only characterized by its ease of use, but also always provides reliable and time-saving support to the field assembly engineer in every use. The quick assembly in just 60 seconds without any special tools and the enormous flexibility make it the perfect choice for all locations. The connector is suitable for all networks, from voice to 10 Gigabit Ethernet. The robust materials are designed to last and withstand use in demanding environments.
| Typ | Plug |
| EAN | 4016032499367 |
| Manufacturer no. | DN-93638 |
| Manufactured in | China |
| Connection | RJ-45 (Stecker), Cat.6a |
| use | For patch cable AWG (27/7 - 22/1) |
| Number | 1 piece |
| Area | network |
| Characteristics | extern |
| Feature | Robust die-cast zinc housing, 360° shield contact, strain relief and cable fixation using a screw cap, suitable for PoE/ PoE+/ 4PPoE (IEEE 802.3af, 3at, 3bt) |

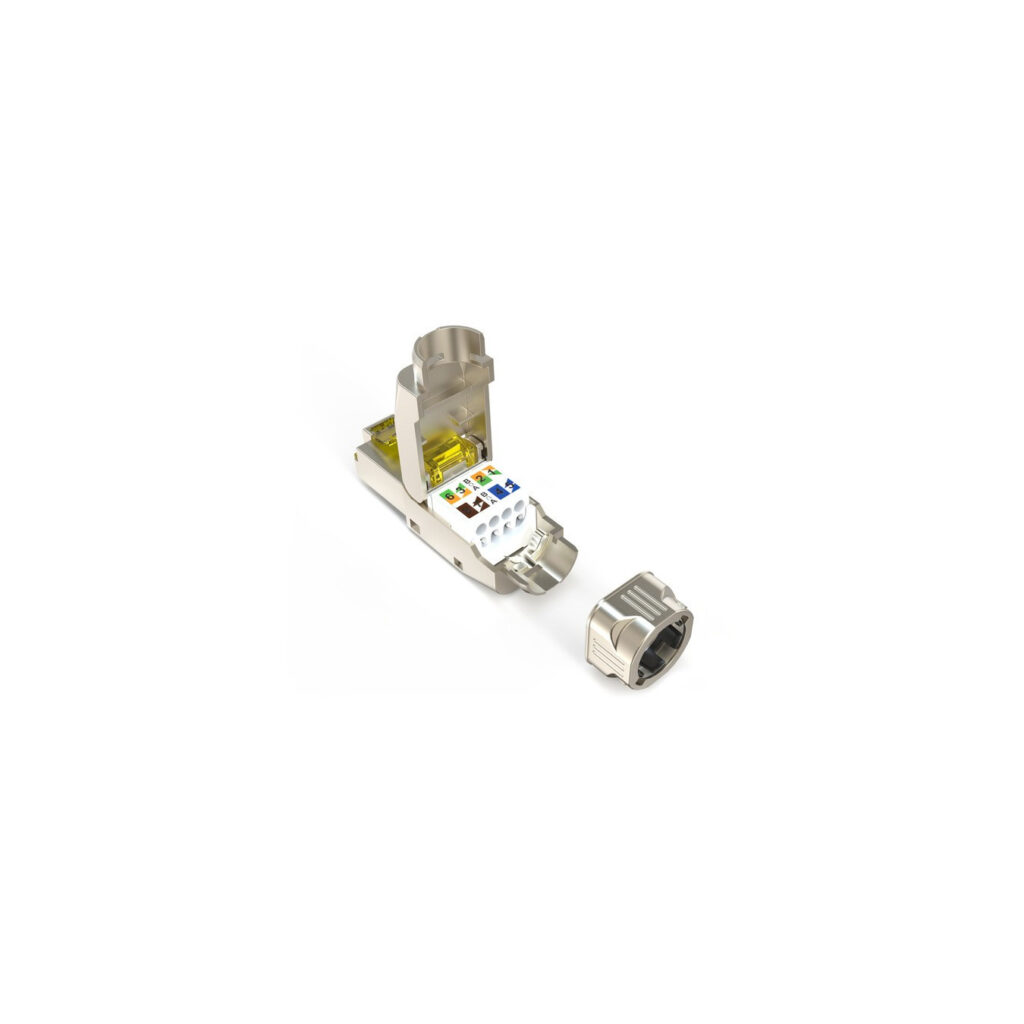

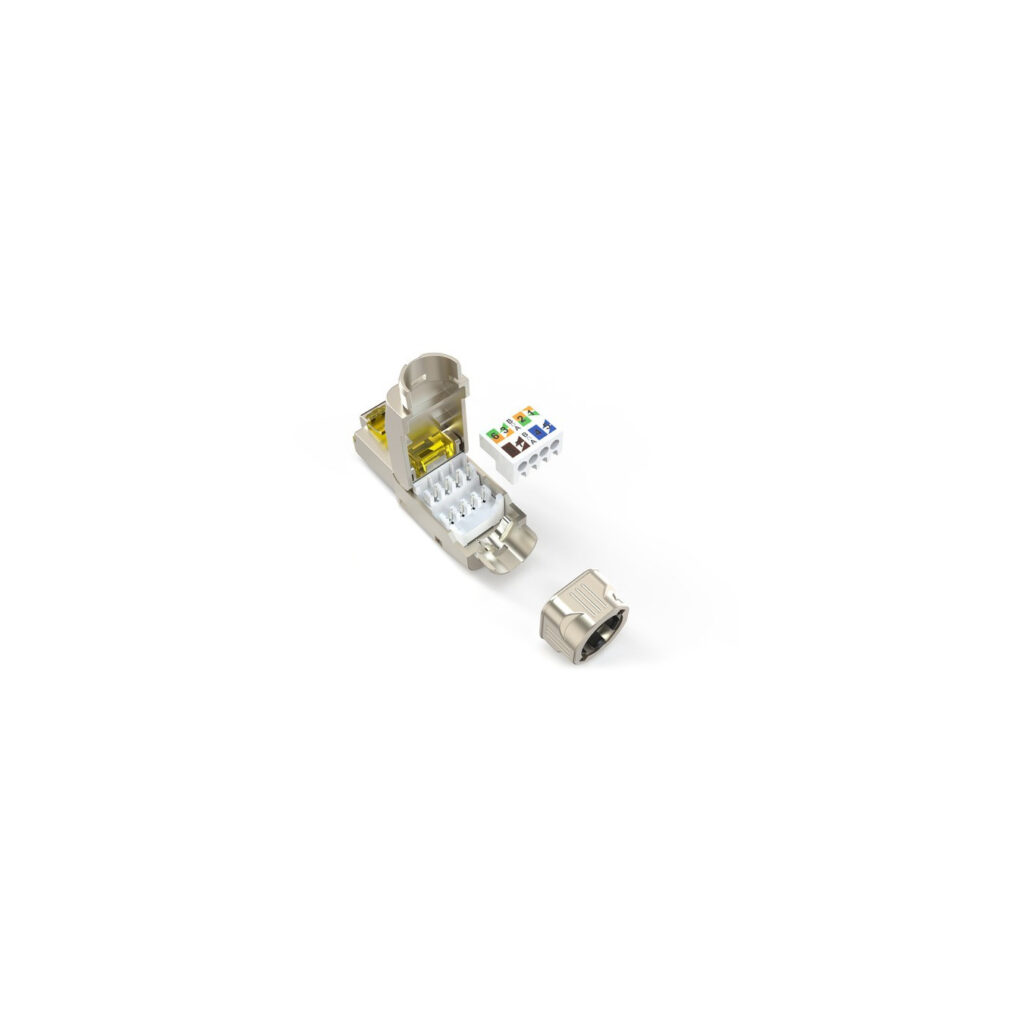

| More information | For conductor cross-sections AWG 27/7 - 22/1, stranded and solid wire, 10 Gigabit Ethernet, 500 MHz, 10GBaste-T, operating temperature -20°C to +70°C, cable installation via LSA insulation displacement terminal, color coded according to EIA/TIA 568 A&B |
| Accessories - available | Anti-kink grommet, wire manager with wiring information, cable ties, assembly instructions |
