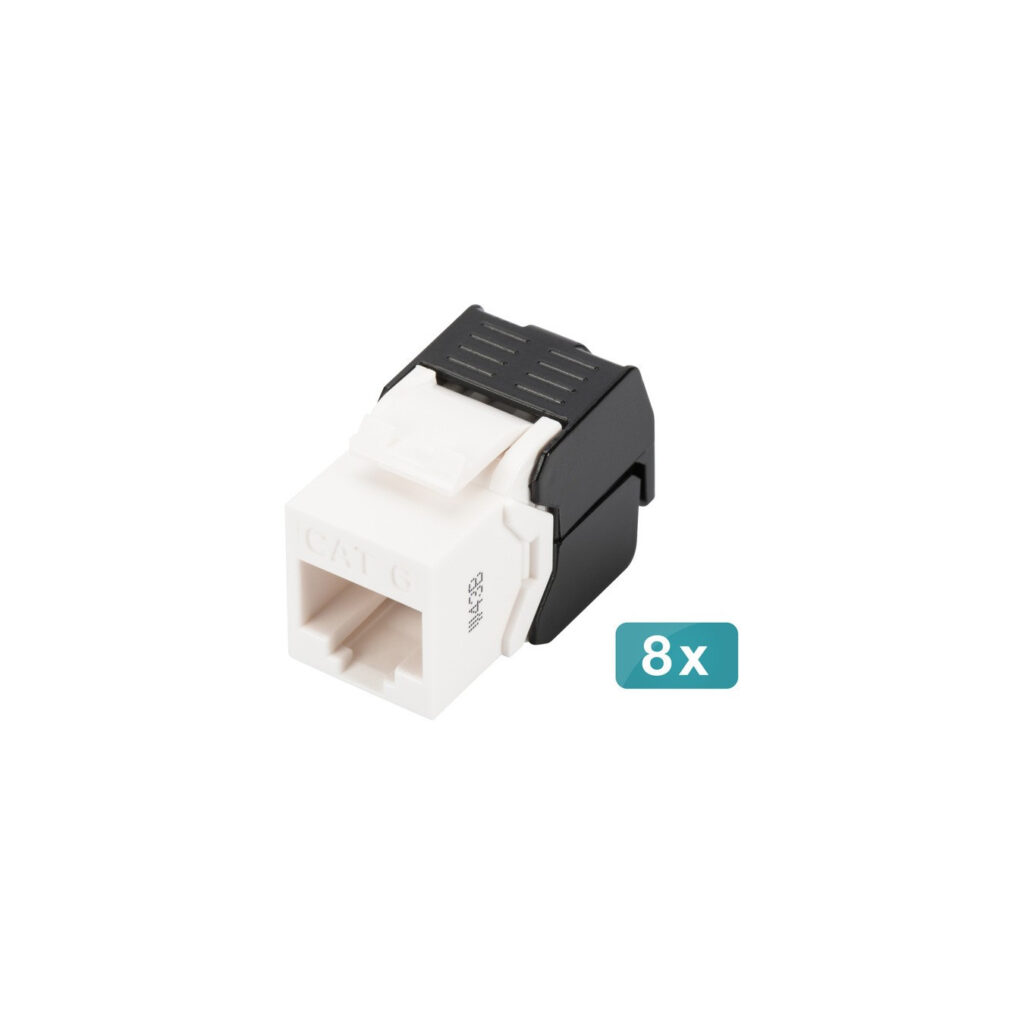

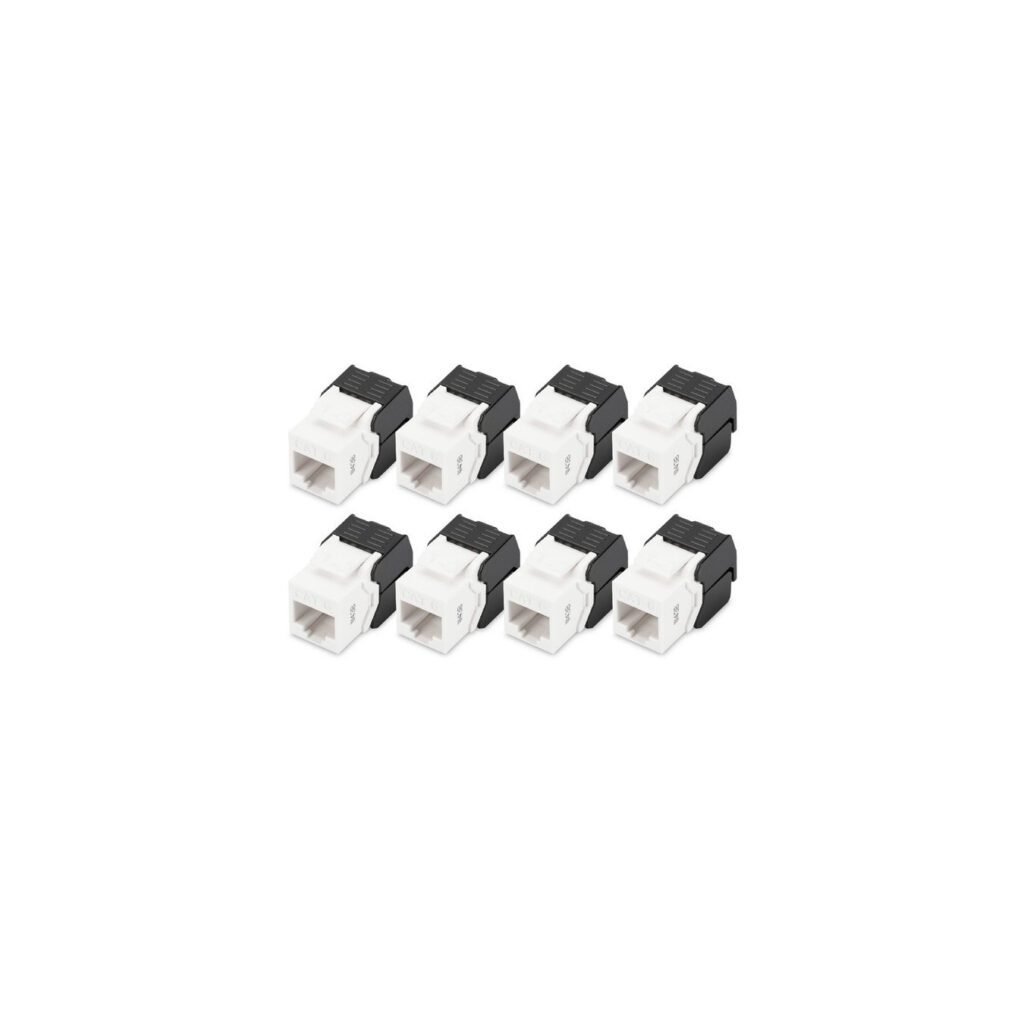

CAT 6 Keystone module, unshielded - 8 pieces, keystone module
21.50 €
The item «DN-93603-8» from DIGITUS® is an unshielded keystone module with a tool-free assembly connection, which offers you excellent performance and connection quality for your ne…
Нет в наличии
Товара сейчас нет в наличии. Мы можем предложить аналоги или попробовать найти его для вас. Позвоните нам: 22 270068 или email [email protected].
The item «DN-93603-8″ from DIGITUS® is an unshielded keystone module with a tool-free assembly connection, which offers you excellent performance and connection quality for your network. Its compact design allows 24 units to be installed in series in 483 mm (19») 1U panels.
| Typ | Keystone-Modul |
| EAN | 4016032495178 |
| Manufacturer no. | DN-93603-8 |
| Area | network |
| Connection - from | 1x RJ-45 (socket) |
| Category - Plugs | Cat.6 |
| Feature | Areas of application: Up to 250 MHz, 1GBase-T | Standards: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C | Suitable for 483 mm (19") cabinet mounting | RJ45 sockets, 8P8C | Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B | Cable fixation using quick snaps | Tool-free assembly connection | RJ45 socket material: ABS UL 94V-0 | LSA insulation displacement terminal: Krone LSA+, UL 94V-2, galvanized phosphor bronze |
| More information | PCB: FR4, UL 94V-0 | Physical properties: Insertion force: 30N max. (IEC 60603-7-5) | Tensile load: 7.7 kg between socket and plug | Operating temperature: -20°C to +70°C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) | Socket mating cycle: > 750 according to ISO/IEC 11801, IEC 60603-7-5 | Terminal: > 200 according to ISO/IEC 11801, IEC 60603-7-5 | Core intake: 22-26 AWG solid and stranded conductors | Insulation resistance: > 500 MOhm | Contact resistance: < 20 MilliOhm | Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground) |
