Cat.5e modular coupling, shielded
8.50 €
The modular Cat.5e coupling DN-93513 from DIGITUS consists of two shielded RJ-45 sockets. Occupancy is 1:1. It is used to quickly and easily extend patch cables and is suitable for…
Доступно через 6–10 рабочих дней : 32 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068

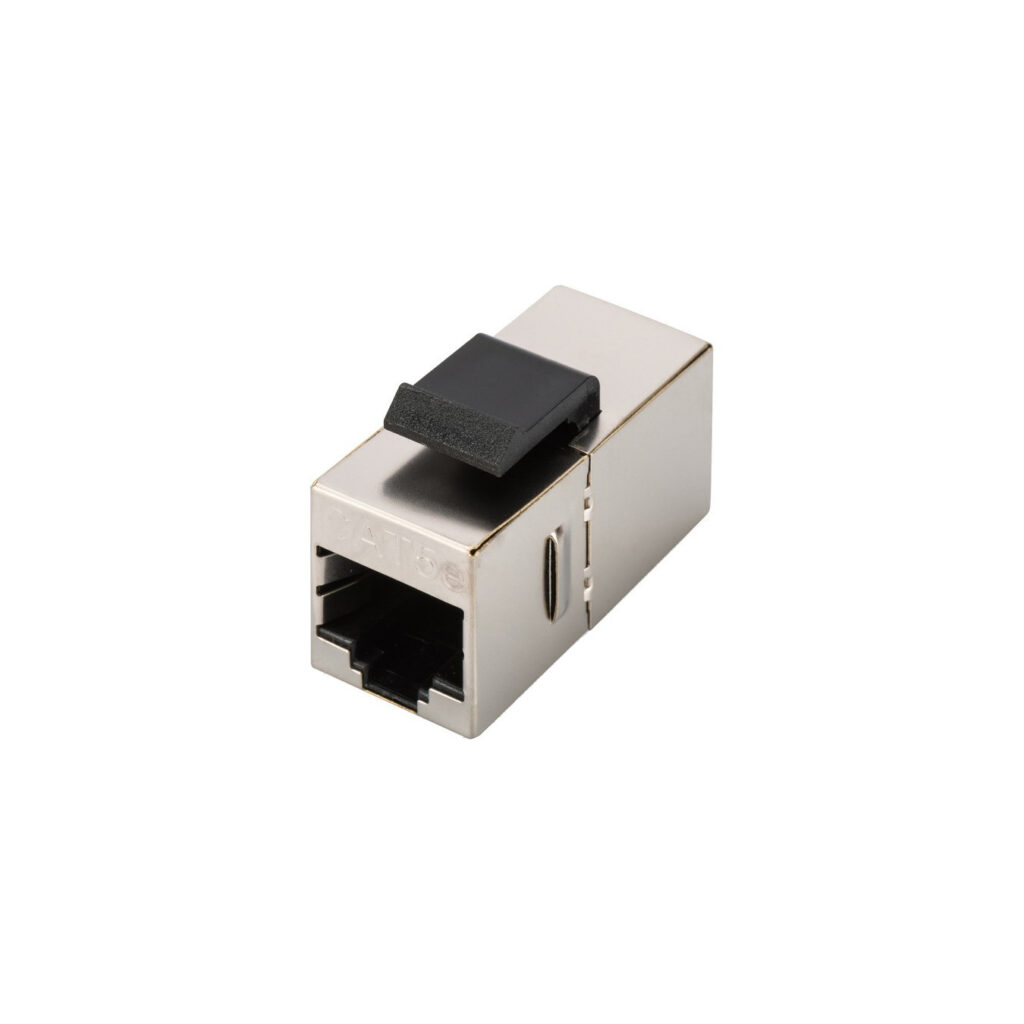

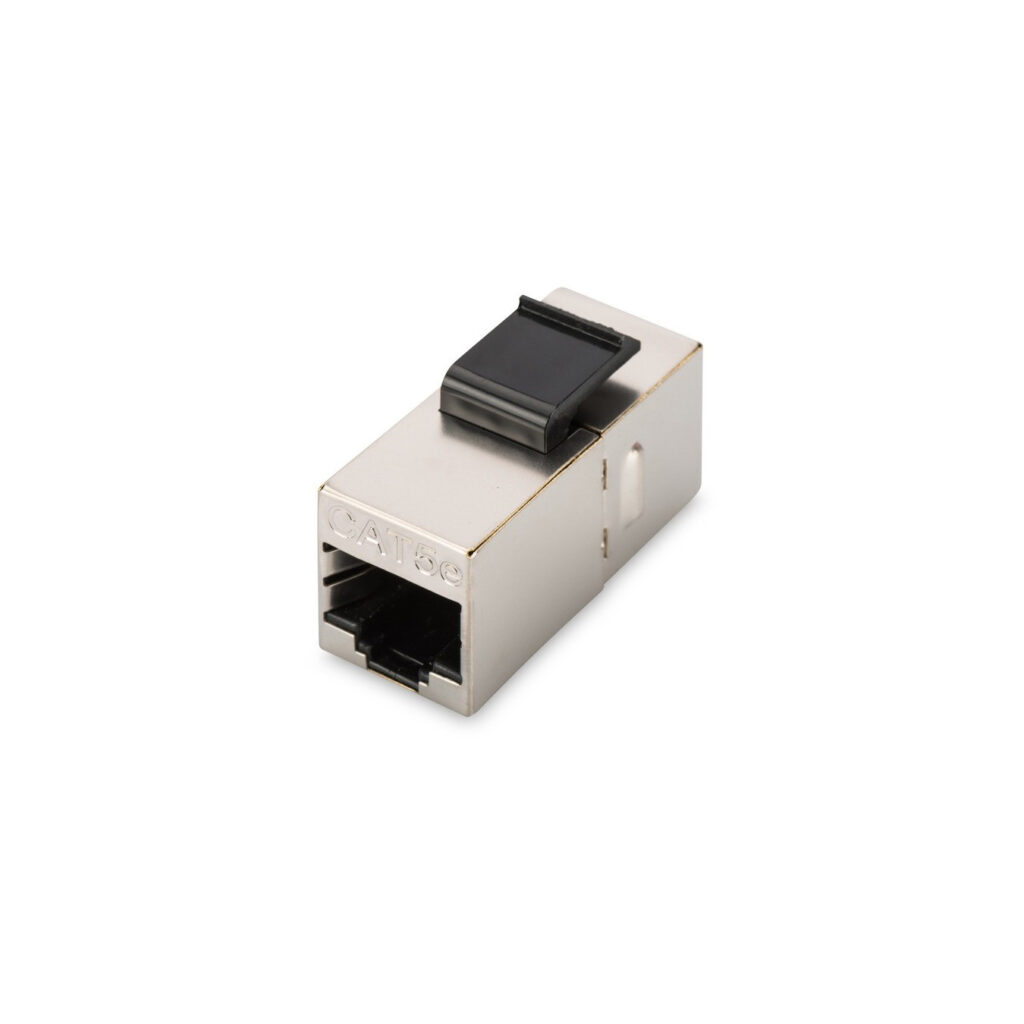

The modular Cat.5e coupling DN-93513 from DIGITUS consists of two shielded RJ-45 sockets. Occupancy is 1:1. It is used to quickly and easily extend patch cables and is suitable for patch panel mounting. The RJ-45 sockets are shielded and offer optimal security. The coupling offers a long service life (mating cycles).
| Typ | coupling |
| EAN | 4016032245179 |
| Manufacturer no. | DN-93513 |
| Manufactured in | China |
| Application example | Quick, easy extension of patch cables for patch panels |
| Area | network |
| Connection - from | 1x RJ-45 (socket) |
| taps | 2 |
| Category - Plugs | Cat.5e |
| Characteristics | Adapter, extern |
| Feature | Up to 100 MHz, 10/100Base-T, 1GBase-T, suitable for 483mm (19") cabinet mounting |
| More information | 2x RJ-45 sockets 8P8C, 360° shield contact, 1:1 occupied, nickel-plated zinc die-cast housing, insertion force 30N max. (IEC 60603-7-5), tensile load 7.7kg between socket and plug, socket mating cycle > 750, insulation resistance > 500 Mohm, contact resistance < 20 MilliOhm |
