CANYON C-20B03, PD 30W/QC3.0 18W Pocket size car charger with 1-USB A+ 1-USB-C Input: DC12V-24V, Output: USBC: PD30W( 5V3A/9V3A/12V2.5A/15V2A/20V1.5A),USB-A:QC3.0 18W (5V3A
12.00 €
Доступно через 14–18 рабочих дней : 5 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
CANYON C-20B03, PD 30W/QC3.0 18W Pocket size car charger with 1-USB A+ 1-USB-C Input: DC12V-24V, Output: USBC: PD30W( 5V3A/9V3A/12V2.5A/15V2A/20V1.5A),USB-A:QC3.0 18W (5V3A

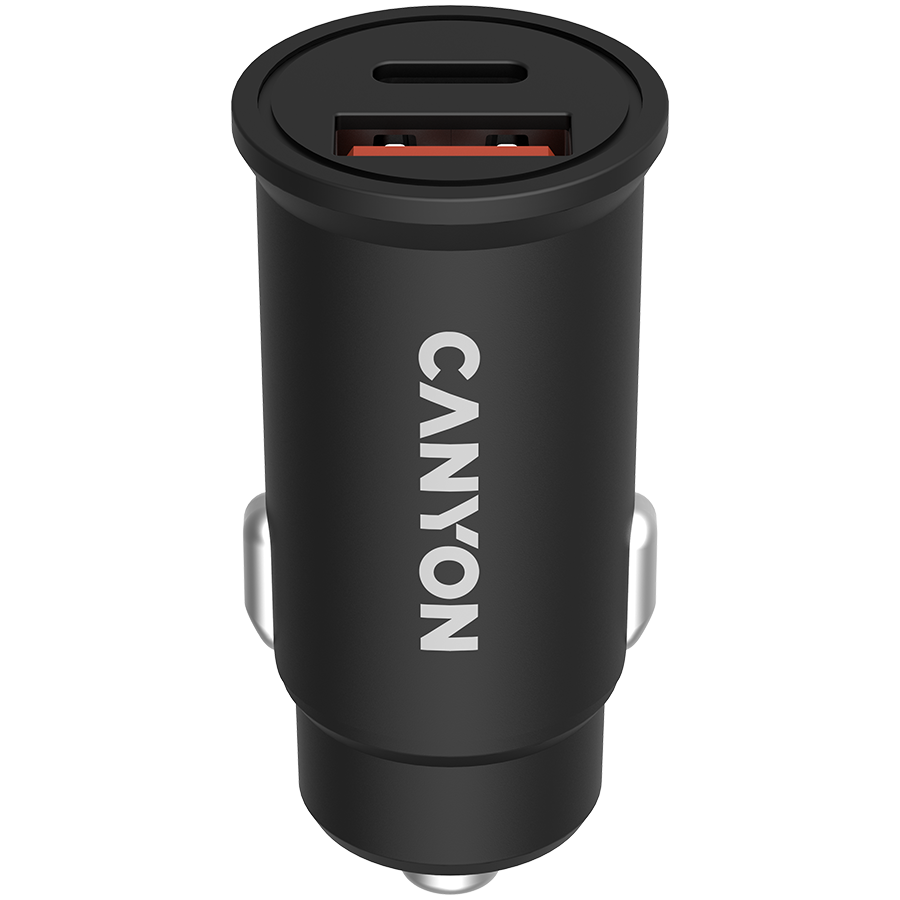

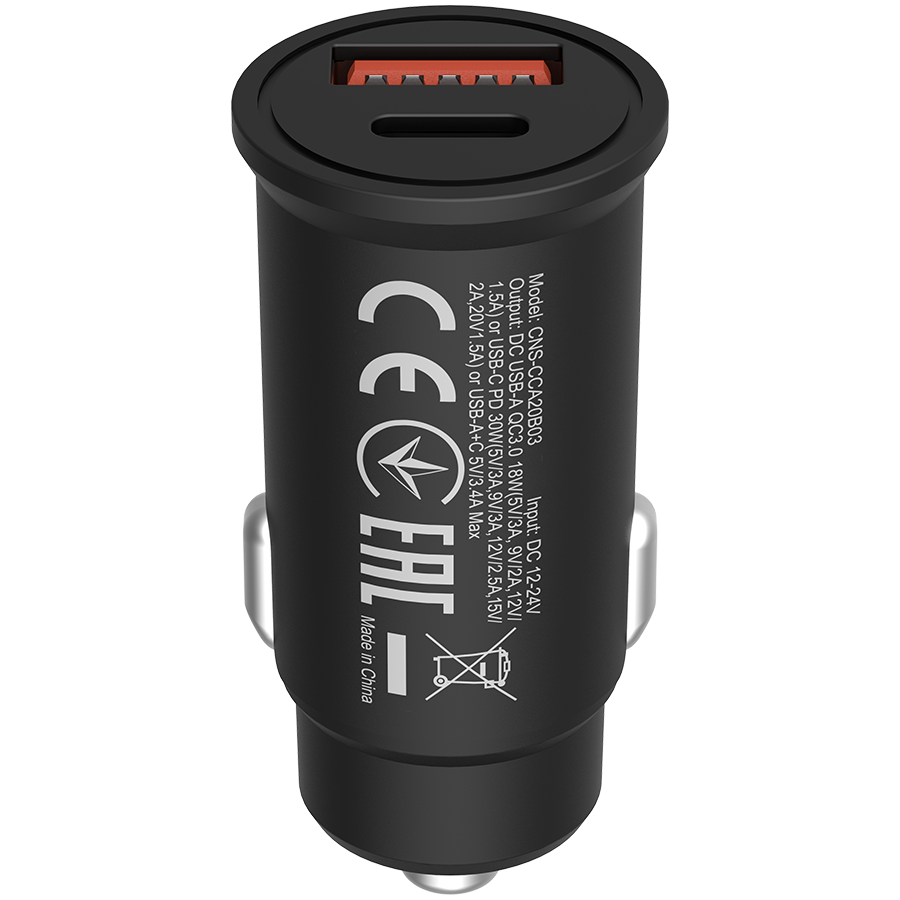

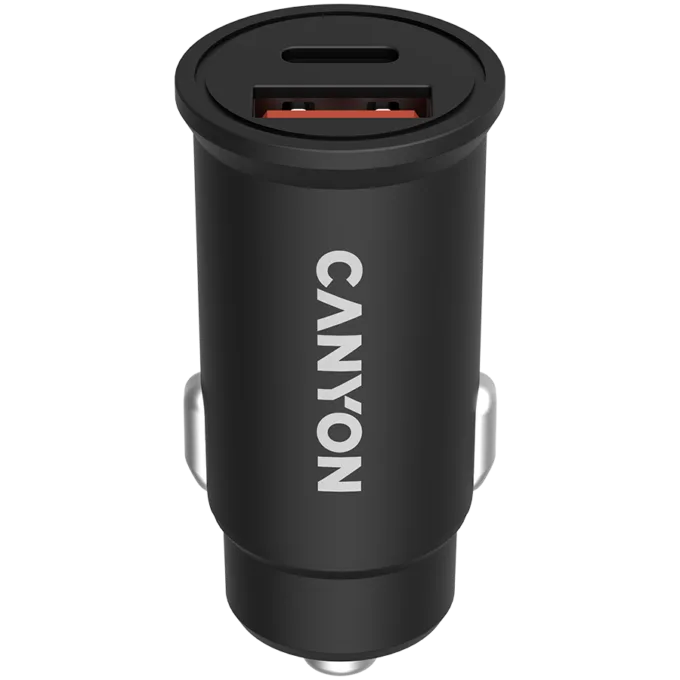

Car Charger С-20B03
The C-20B03 car charger model can charge two mobile devices with different connectors at the same time. One port is designed for USB-C gadgets and provides fast and safe charging using PD protocol. The second one with Quick Charge 3.0 protocol is intended for the USB-A connector. The adapter is protected from short circuits, overheating, and overcurrent.
Features:
- Fast charging adapter
- USB-C port, protocol PD — 30W
- USB-A port, protocol QC 3.0 — 18W
- 4 types of protection
- Input voltage: 12-24V
- Output 1: USB-C PD port, DC 5V/3A, 9V/3A, 12V/2.5A, 15V/2A, 20V/1.5A
- Output 2: USB-A port, DC 5V/3A, 9V/2A, 12V/1.5A
- Compatible with most smartphones, mobile phones, tablets, PSP, GPS, cameras, MP3, MP4, PDA, etc.
- Certifications: CE, RoHS
Specifications
| Marketing Model Name | C-20B03 |
|---|---|
| Commercial Name | CANYON car charger C-20-03 PD 30W QC 3.0 18W USB-C USB-A black |
| Power Device Type | Car Adapter |
| Power Device Location | External |
| Input Power Connectors Quantity | 1 |
| Input Power Connectors Type | Cigarette Lighter Receptacle |
| Rated Current | 5 A |
| Maximum Output Power | 30 W |
| Output Power Connectors Quantity | 2 |
| Output Power Connectors Type | USB/USB-C |
| Power Adapter and Power Supply Features | Qualcomm Quick Charge 3.0 Power Delivery |
| USB Type A | 5V 3A 18W (Quick Charge 3.0) |
| USB Type C | DC 5/9/12/15/20V 5A 30W |
| External Color | Black |
| Included Documentation | Quick Start Guide Warranty Card |
| Depth (mm) | 50.6 mm |
| Height (mm) | 23.4 mm |
| Width (mm) | 23.4 mm |
| Nominal Weight | 0.014 kg |
| Warranty Products Returnable | Yes |
| Warranty Term (month) | 24 month(s) |
| Warranty Validation Criteria | Serial Number |
| Color box dimensions (mm) | 28x127x81 mm |
| Single pack gross weight (kg) | 0.026 kg |
| Carton weight (kg) | 2.94 kg |
| Quantity of the boxes per pallet (by air)(pcs) | 45 |
| Quantity of the packs per pallet (by air)(pcs) | 4050 |
| Dimensions of pallet (by air) | 1000x1490x1200 mm |
| Quantity of the boxes per pallet (by sea)(pcs) | 63 |
| Quantity of the packs per pallet (by sea)(pcs) | 5670 |
| Dimensions of pallet (by sea) | 1000x2026x1200 mm |
