be quiet! Pure Power 12 M 1200W (BN346) - ATX 3.1 80+ Gold Fully Modular PSU
1200W fully modular ATX 3.1 PSU, 80+ Gold (93.7% eff.), 12VHPWR + 4x PCIe 6+2, silent 120mm fan, LLC topology. Ideal for PCIe 5.1 GPUs & high-end PCs.
Доступно через 4–6 рабочих дней : 12 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The be quiet! Pure Power 12 M 1200W (BN346) is a premium fully modular ATX 3.1 power supply certified 80 PLUS Gold with up to 93.7% efficiency. It features a native 12VHPWR (PCIe 5.1) connector for next-gen GPUs and 4x PCIe 6+2 pin connectors for current graphics cards, supporting massive power excursions up to 2x rated power.
Equipped with a silence-optimized 120mm rifle bearing fan (0-2700 RPM), LLC resonant topology for rock-solid voltage regulation, and comprehensive protections (OCP/OVP/OPP/OTP/SCP/UVP). Perfect for quiet gaming PCs, workstations, and high-end systems with excellent build quality and 10-year warranty.
- ✅ ATX 3.1 & PCIe 5.1 ready with 12VHPWR 600W cable
- ✅ 80 PLUS Gold efficiency (91.5-93.7%)
- ✅ Fully modular for optimal cable management
- ✅ 6x SATA, 2x PATA, low noise 34.3dB max
- ✅ 1200W continuous / 1250W peak on +12V rails
| Total power | 1200 W |
| Peak power | 1250 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 12 - 6 A |
| Power factor | 0.98 |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 1200 W |
| Combined power (+5V) | 120 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V1) | 55 A |
| Max output current (+12V2) | 50 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Hold time | 19 ms |
| Efficiency | 93.7% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under power, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 6 |
| Number of PATA power connectors | 2 |
| SATA power cable length | 500,650,800,950 mm |
| Peripheral (Molex) power cable length | 800,950 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| PCIe 12VHPWR connectors | 1x 12VHPWR (600W) |
| PCI Express power cable length | 60 cm |
| CPU power cable length | 60 cm |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Supported motherboard form factors | ATX |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| EPS version | 2.92 |
| Noise level | 34.3 dB |
| Bearing technology | Rifle |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 0 - 2700 RPM |
| Operating temperature (T-T) | 0 - 40 °C |

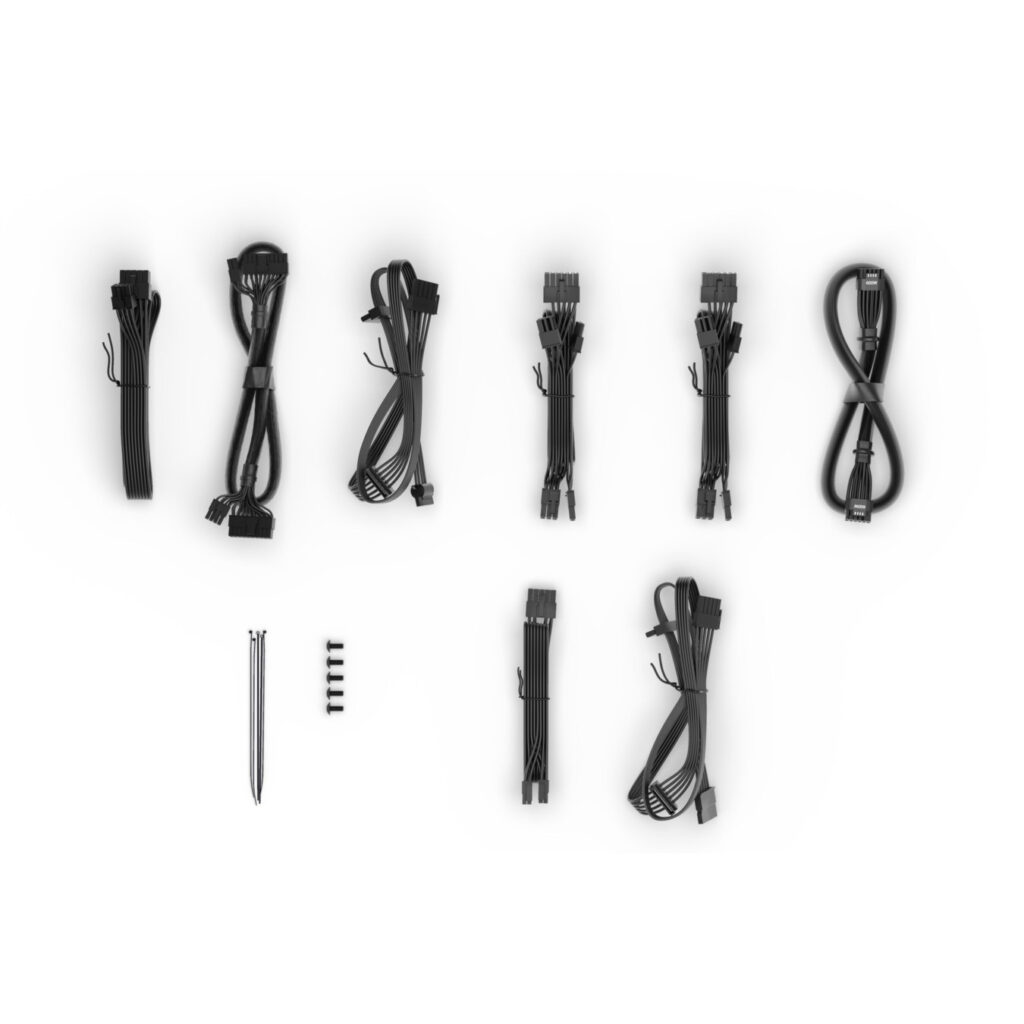

| Cables included | AC, CPU, PATA, PCIe, SATA |
| Compliance certificates | BSMI, CB, CCC, CE, FCC, RoHS, cTUVus, UKCA, WEEE |
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
| Weight | 1.92 kg |
| Package width | 220 mm |
| Package depth | 284 mm |
| Package height | 100 mm |
| Package weight | 3.19 kg |
| Package type | Box |
| Sustainability certificates | ENERGY STAR, ErP, Triman |
