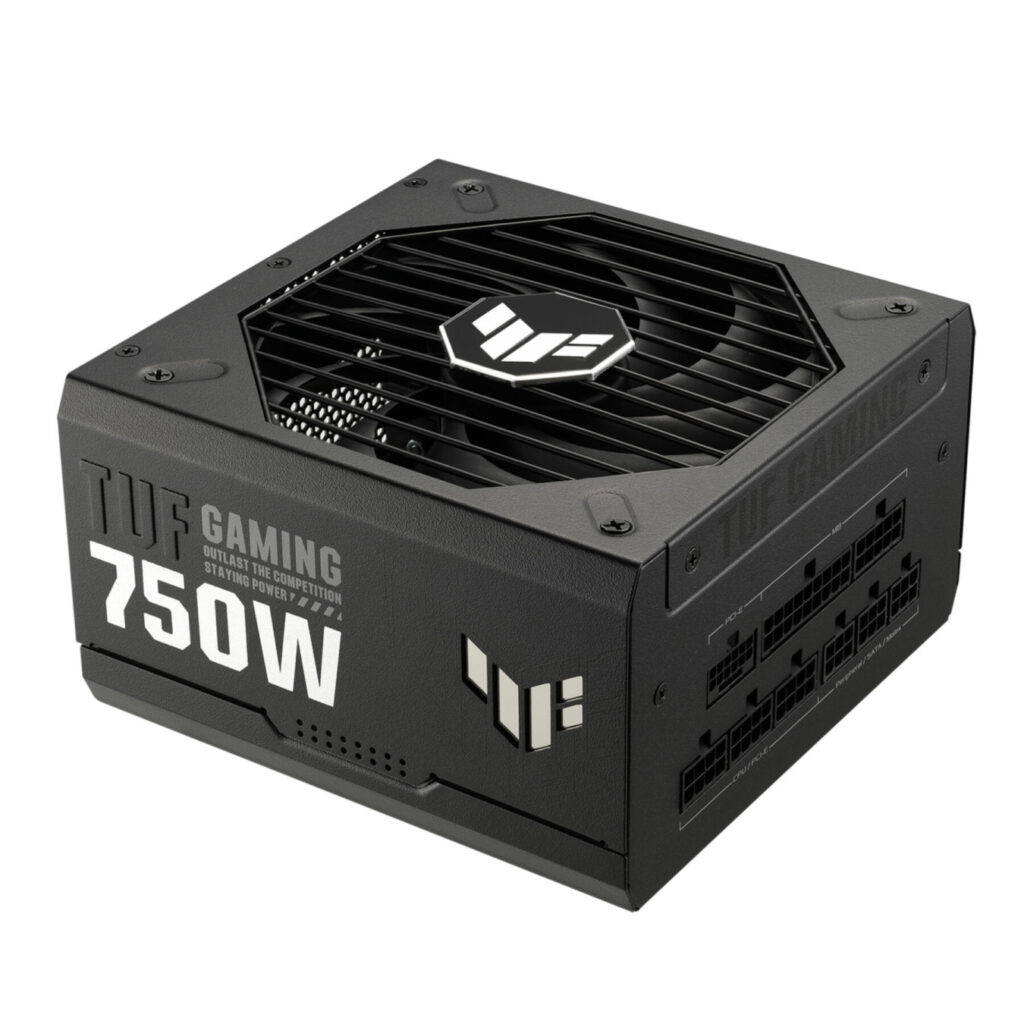

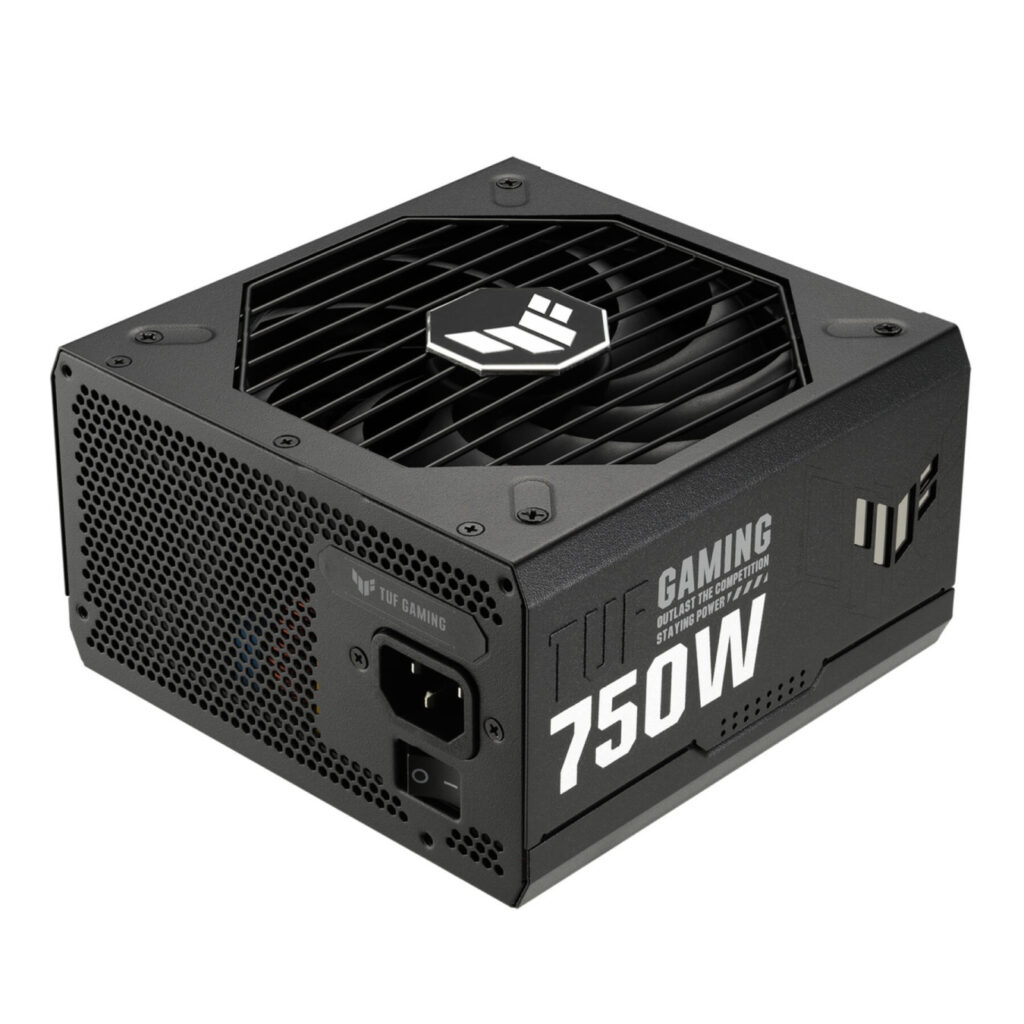

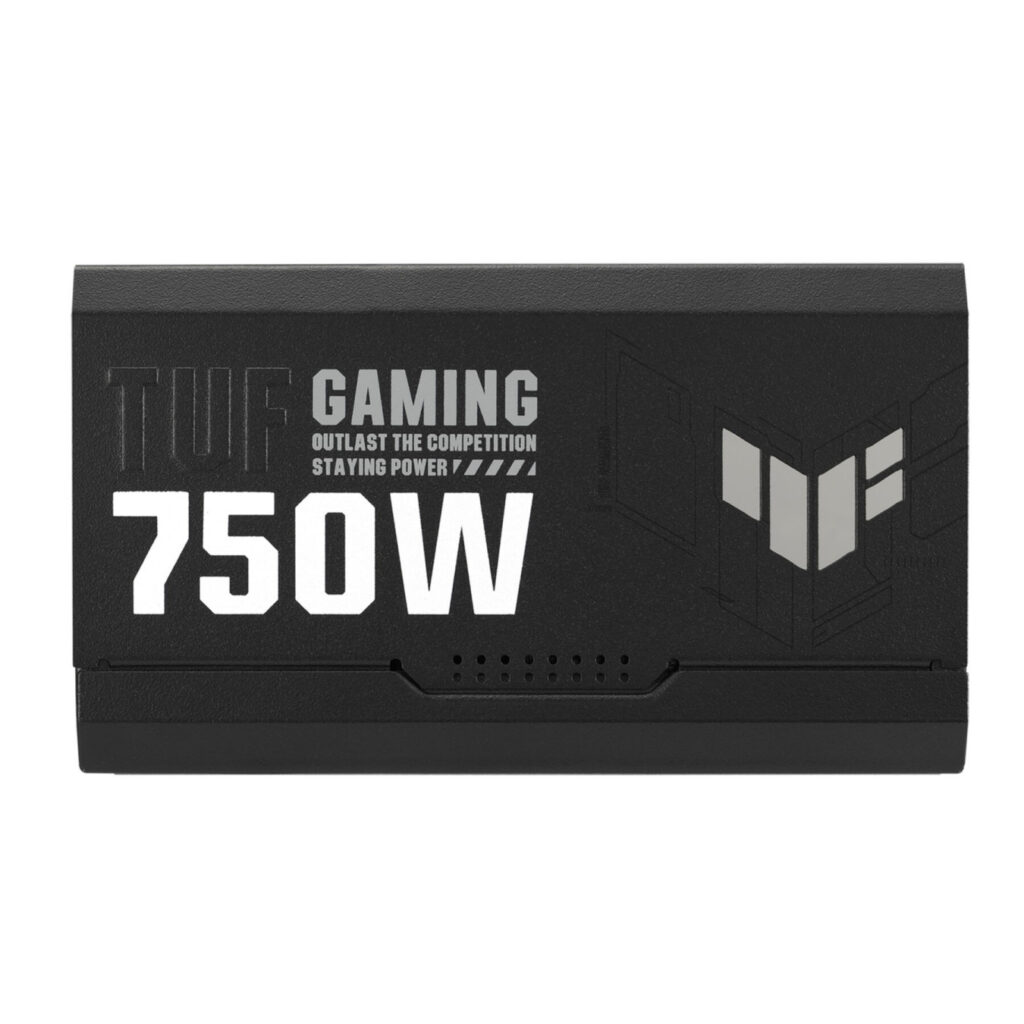

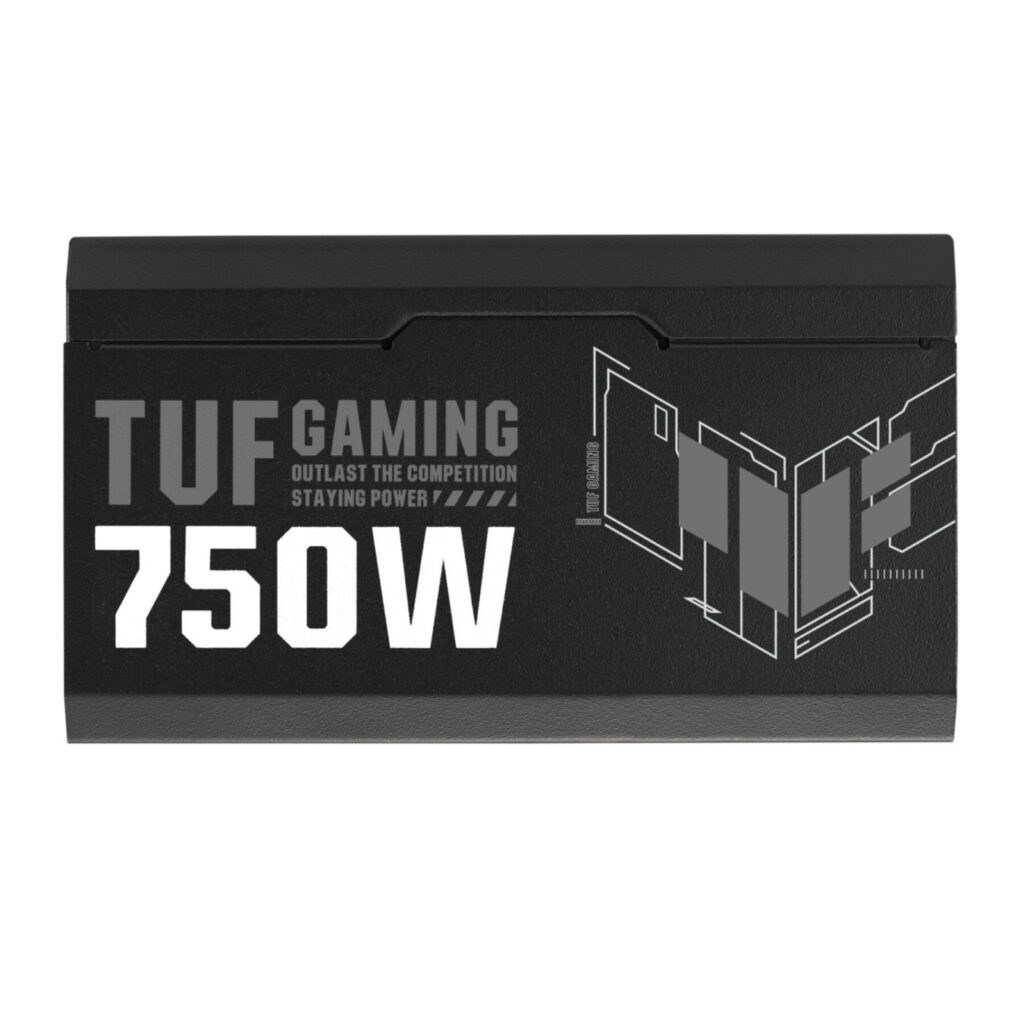

ASUS TUF Gaming 750W Gold PSU - 90YE00S3-B0NA00 - Fully Modular 80+ Gold
750W fully modular ATX 3.1 PSU with 80 PLUS Gold efficiency (92%), 135mm dual-ball bearing Axial-tech fan, 105°C Japanese capacitors, PCB coating, 16-pin PCIe for 600W GPUs, 10-year warranty.
Доступно через 2–3 рабочих дней : 5 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Built For The Long Haul

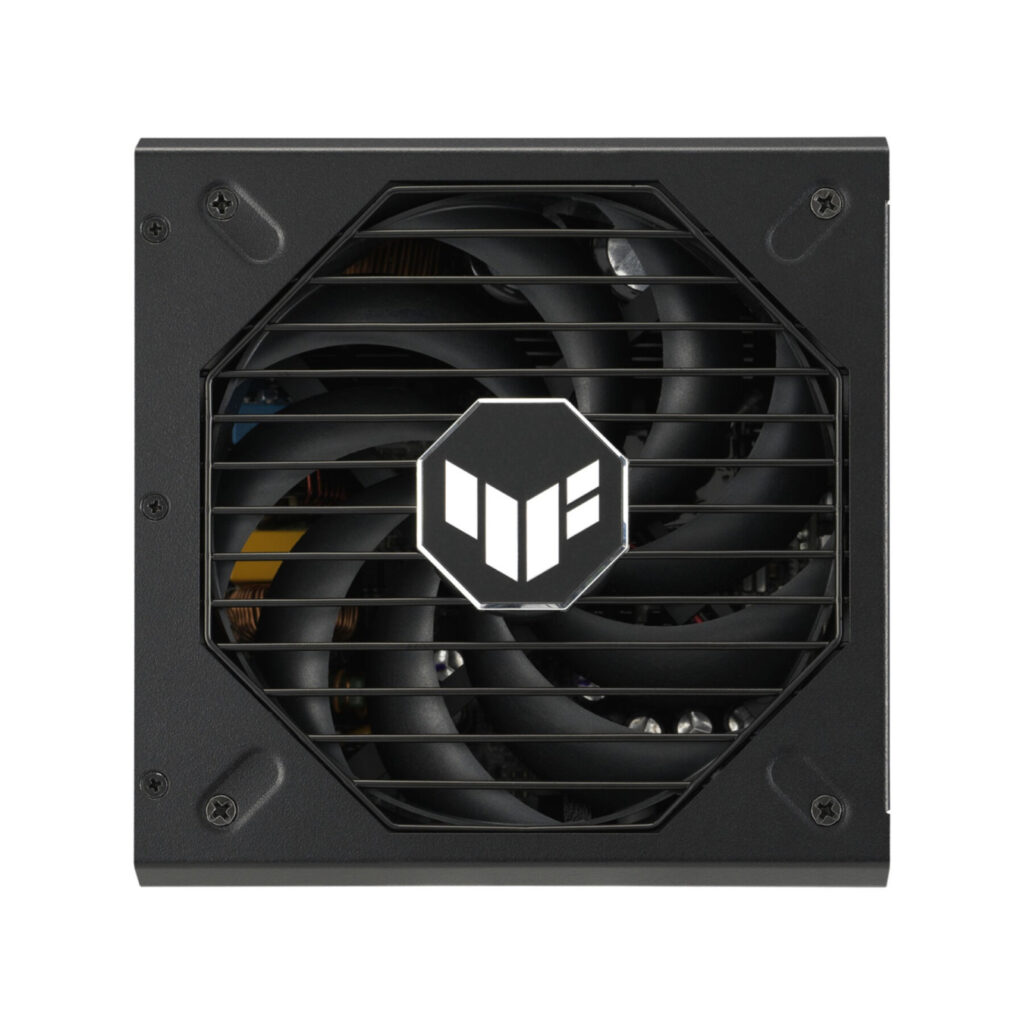

The ASUS TUF Gaming 750W Gold PSU delivers military-grade durability with 105°C Japanese capacitors rated for 170,000 hours, dual ball bearing 135mm Axial-tech fan for 2x longer lifespan, and protective PCB conformal coating against dust, moisture, and debris.
Featuring 80 PLUS Gold certification for up to 92% efficiency, full ATX 3.1 compliance, and a native 16-pin PCIe connector supporting 600W for PCIe Gen 5 GPUs, plus 3x 8-pin PCIe. Fully modular etched cables ensure clean builds. Backed by 10-year warranty.
- 750W total power, 744W on +12V rail

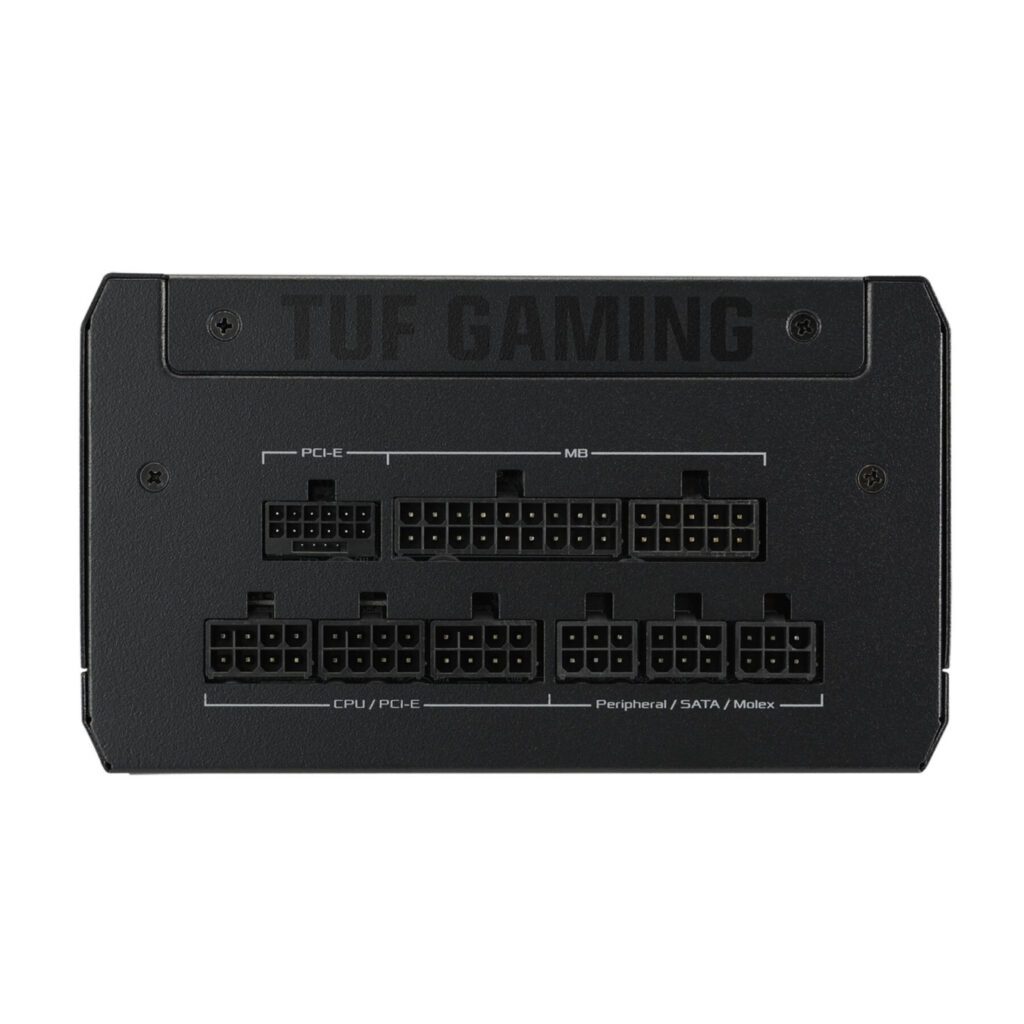

- Connectors: 20+4-pin ATX, 2x 4+4-pin CPU, 1x 16-pin PCIe, 3x 8-pin PCIe, 5x SATA, 4x Molex
- Protections: OPP, OVP, UVP, SCP, OCP, OTP
- Dimensions: 150 x 150 x 86 mm
| Total power | 750 W |

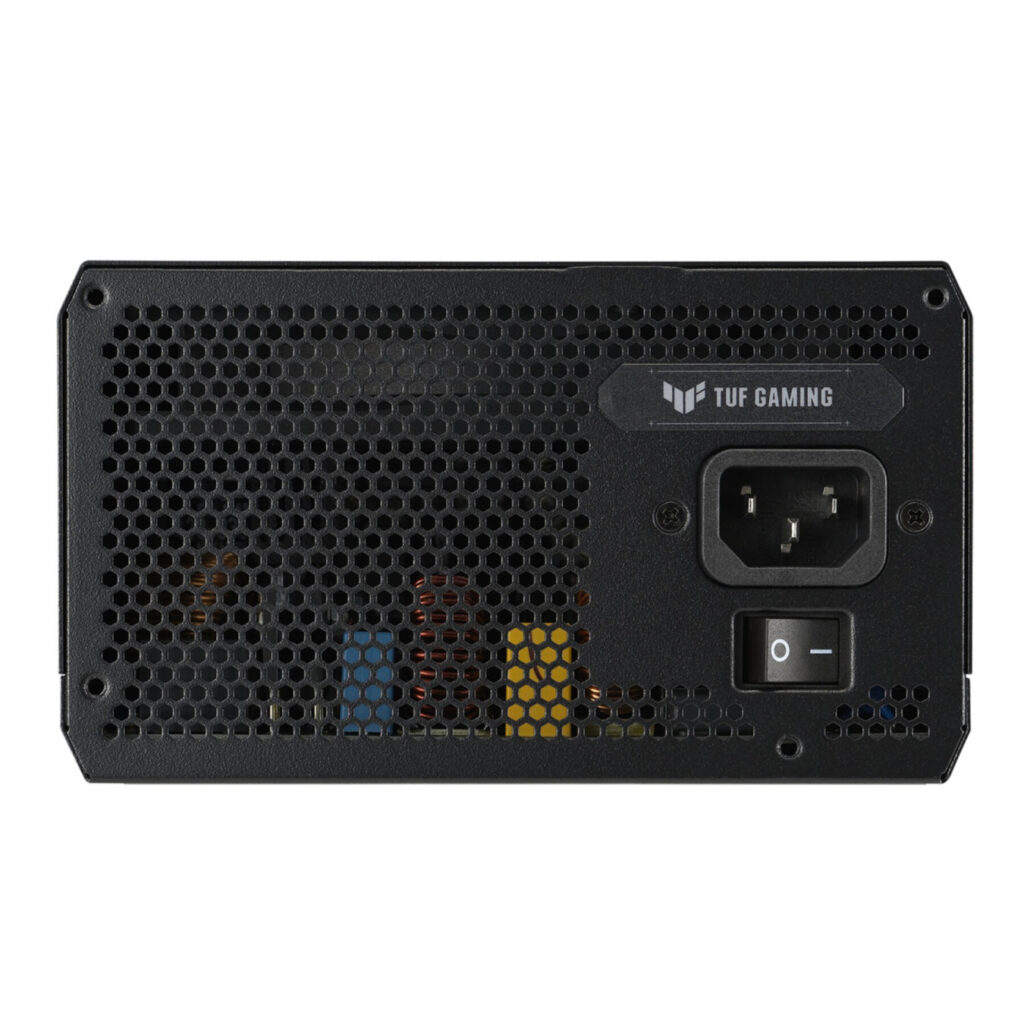

| AC input voltage | 100 - 240 V |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 744 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 9.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 62 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 92% |
| Power protection features | Over power, Over voltage, Under voltage, Short circuit, Over current, Over temperature |
| Motherboard power connector | 20+4 pin ATX |
| CPU power connector (4+4 pin) | 2 |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power connectors (8-pin) | 3 |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.1 |
| Product colour | Black |
| Fan diameter | 13.5 cm |
| Width | 150 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 2.38 kg |
