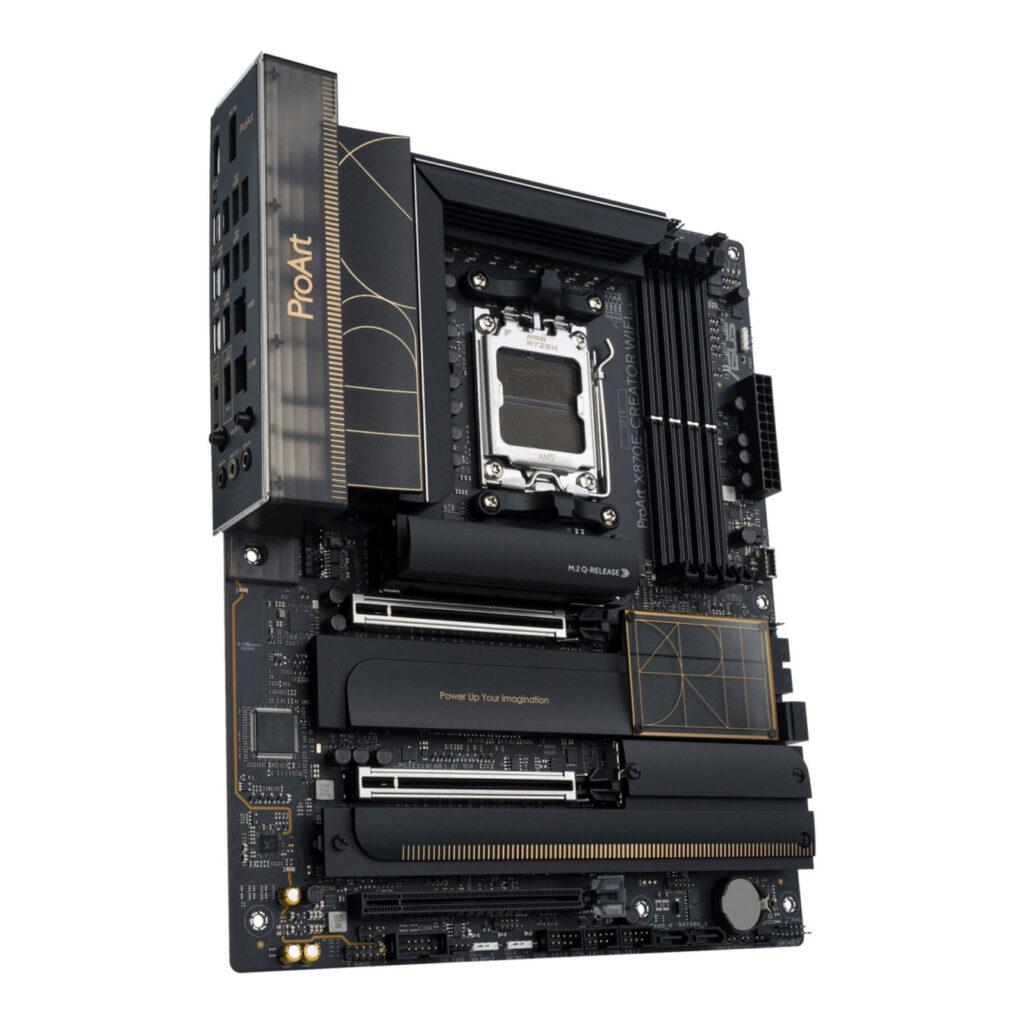

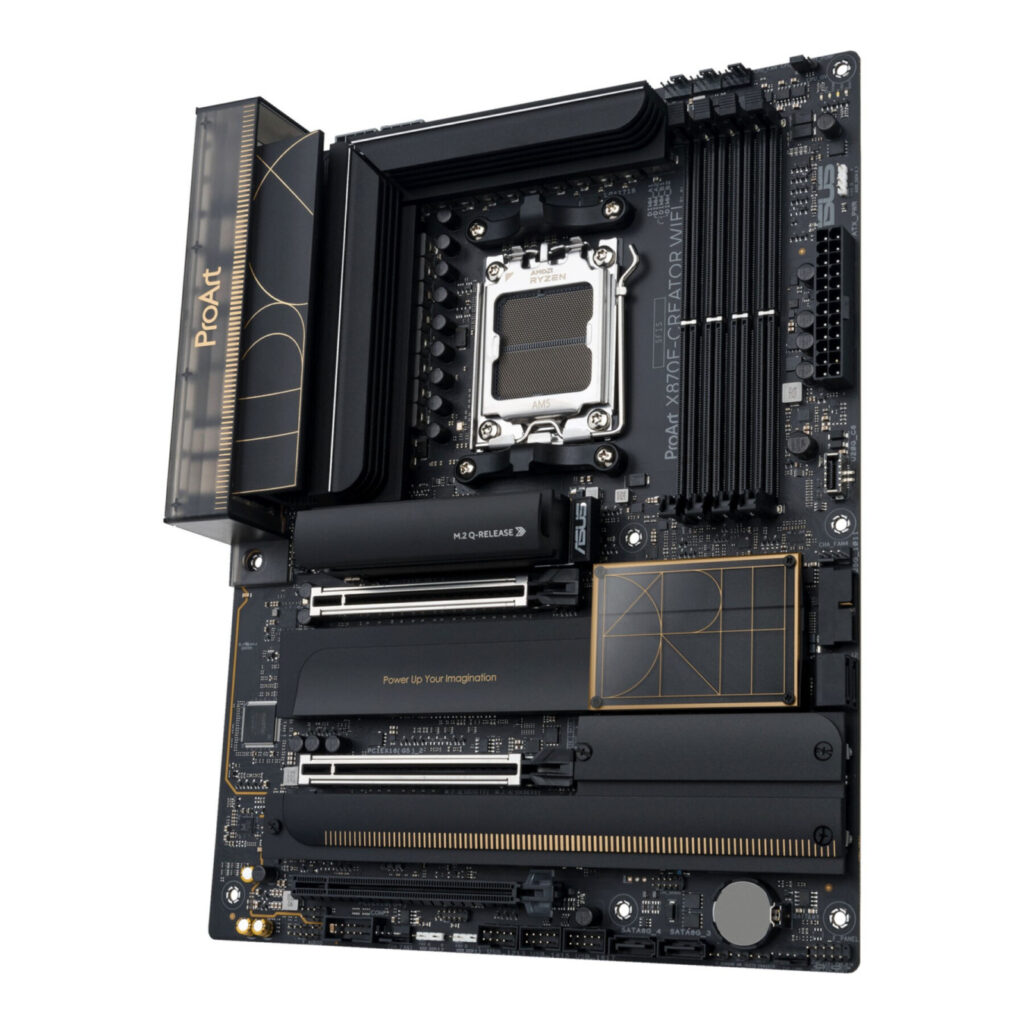

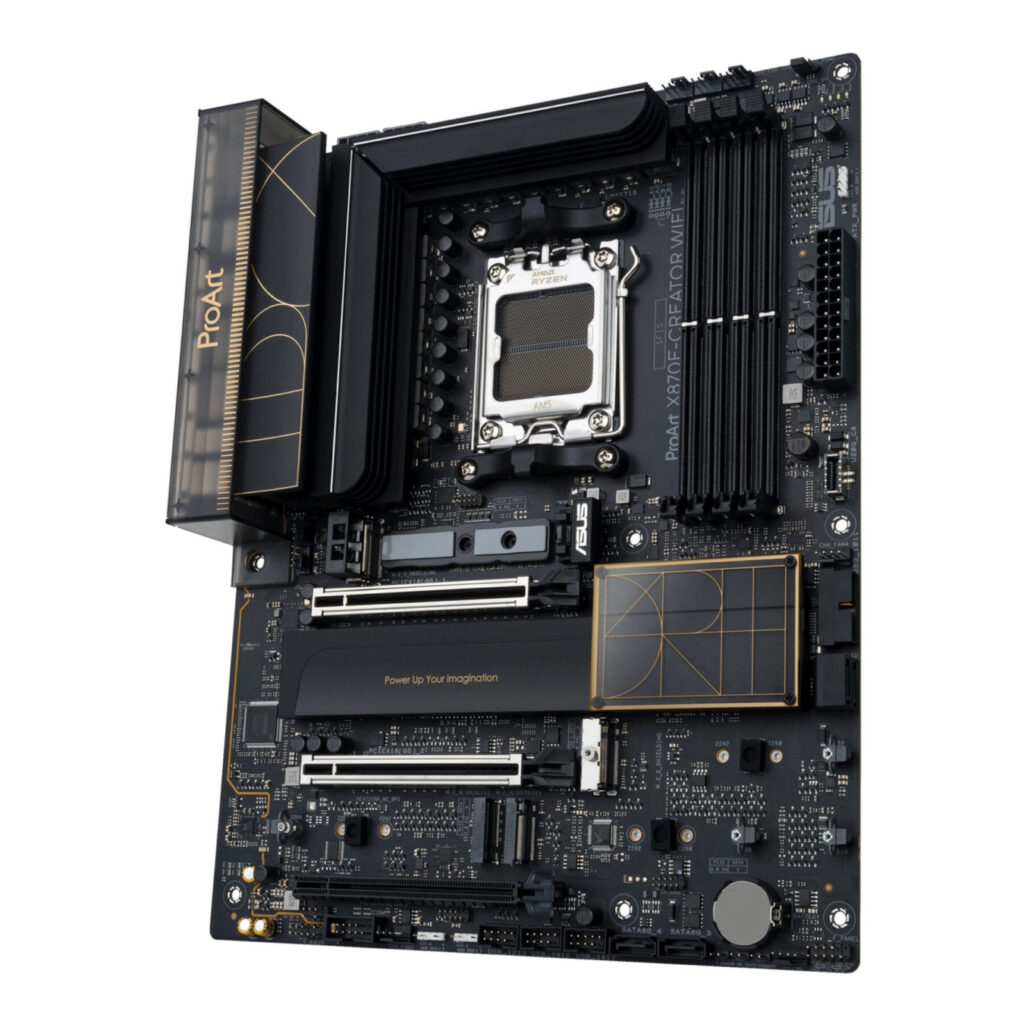

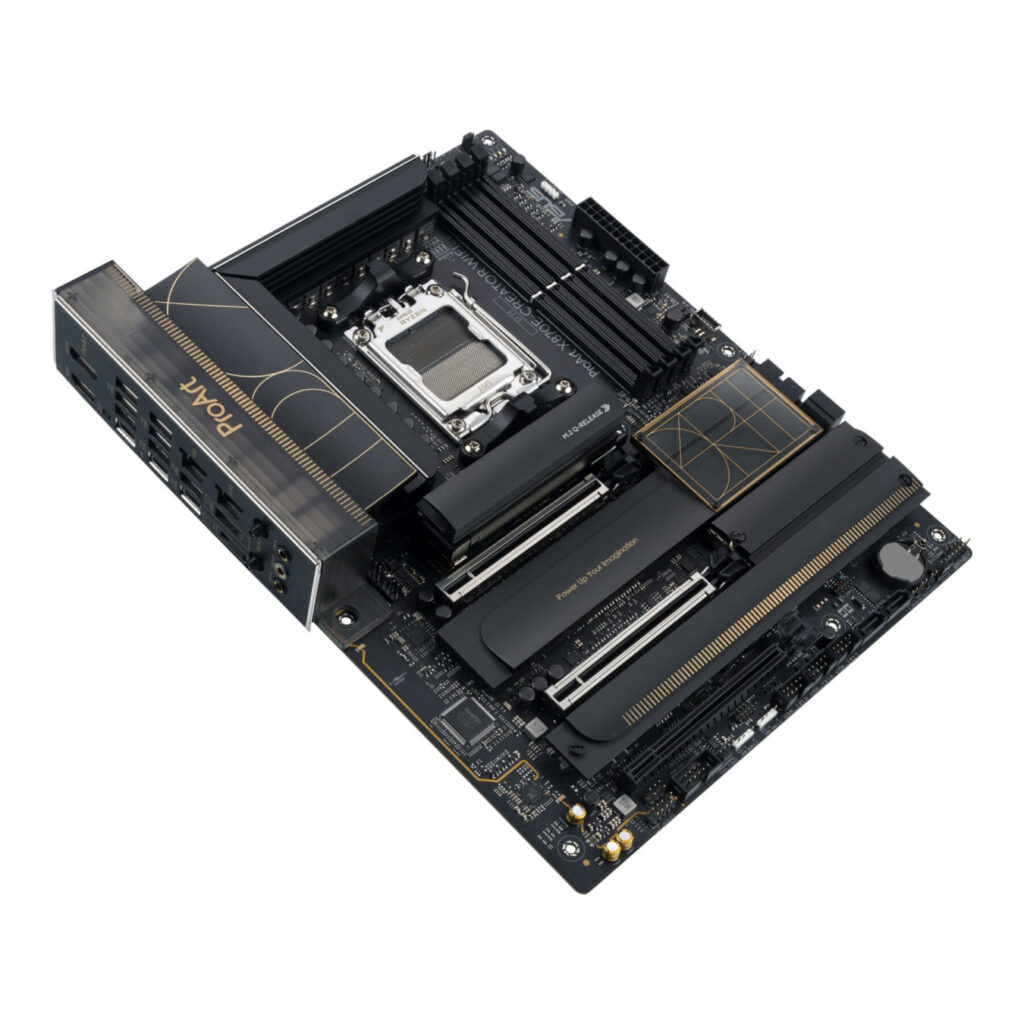

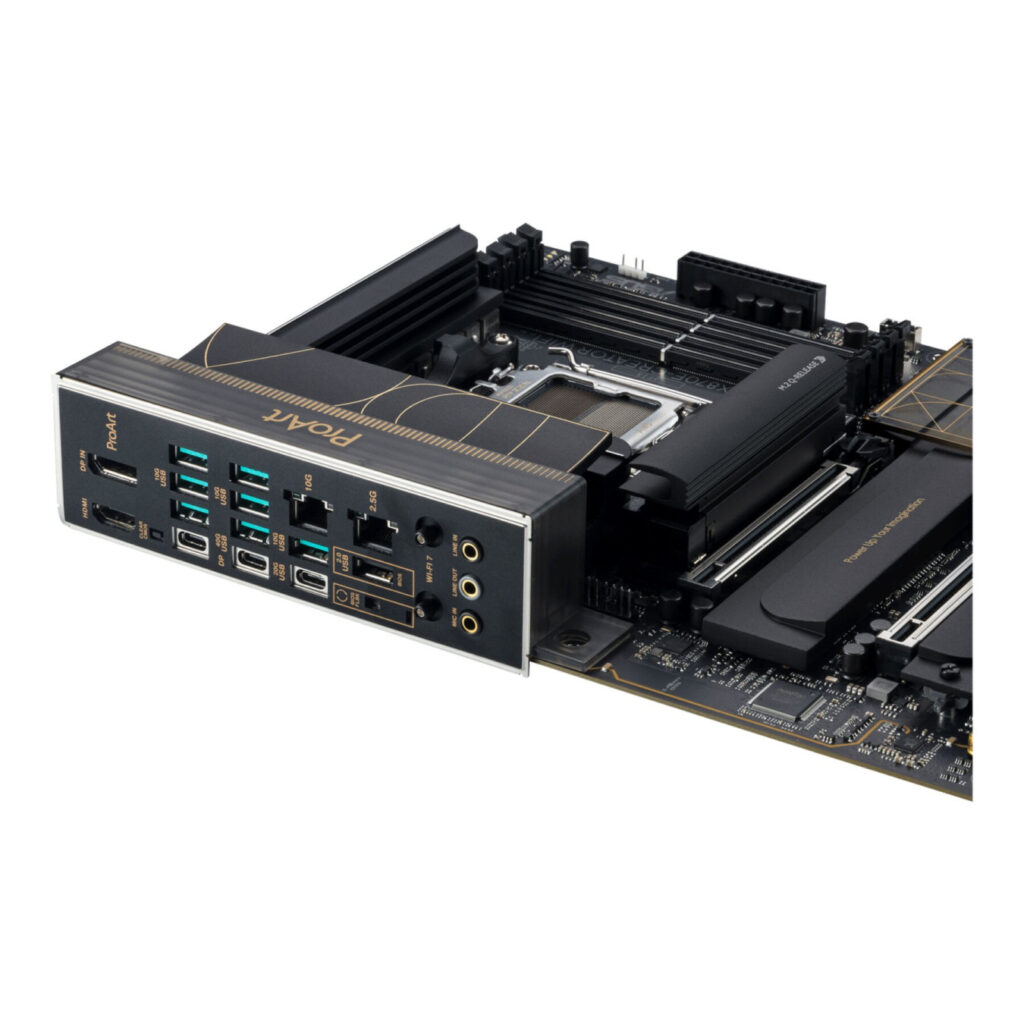

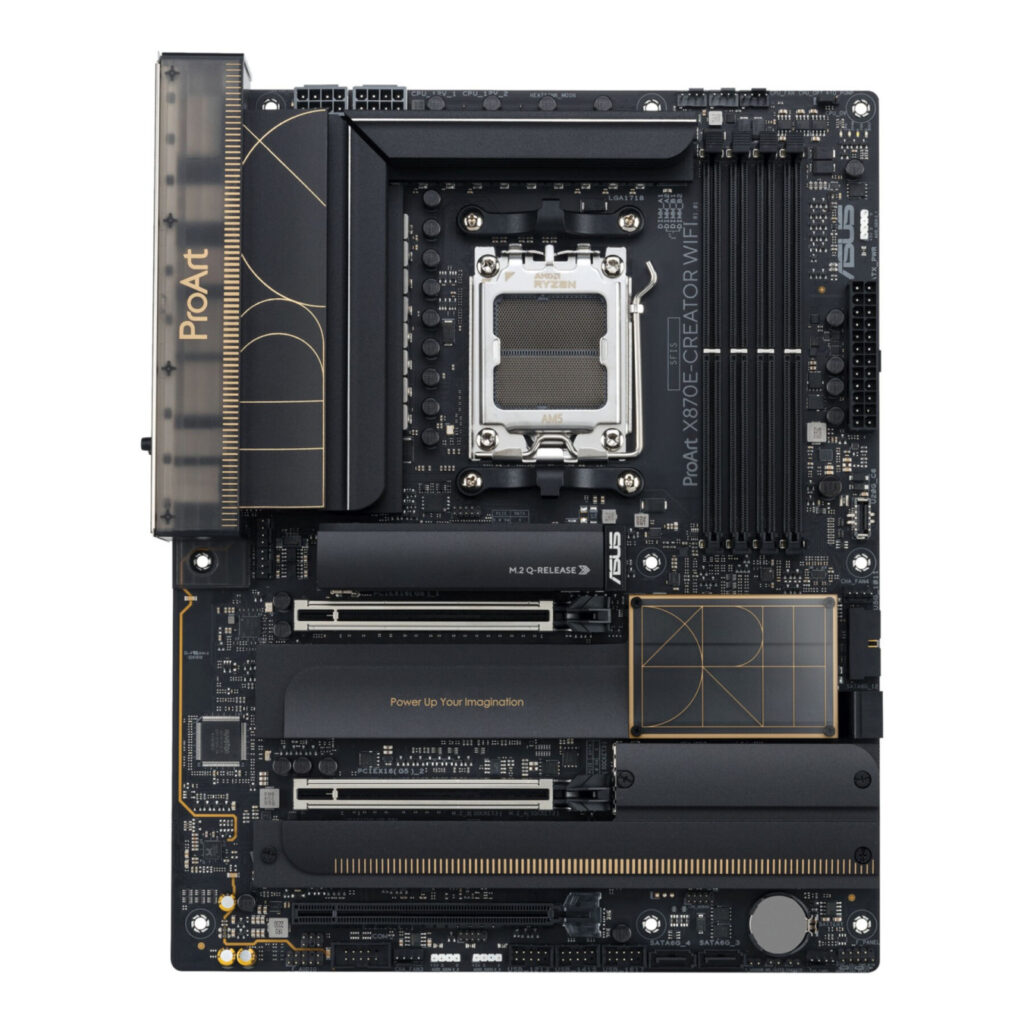

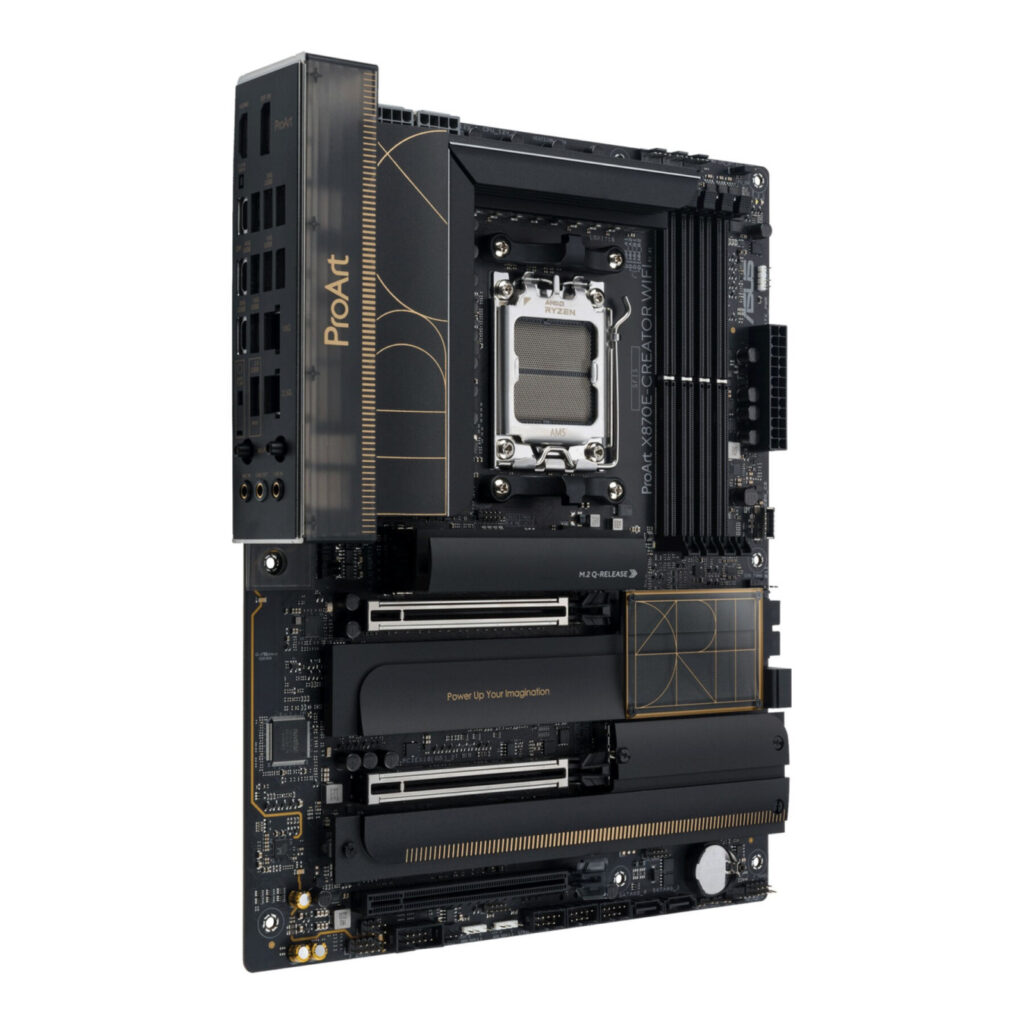

ASUS ProArt X870E-Creator WiFi AM5 ATX MB DDR5 256GB 4xM.2 PCIe5 WiFi7 10G LAN
AM5 ATX motherboard w/ AMD X870E chipset, DDR5 up to 256GB, 4x M.2 (2x PCIe5), PCIe5 x16 slots, dual USB4, WiFi7, BT5.4, 10G+2.5G LAN for creators.
Доступно через 8–10 рабочих дней : 3 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The ASUS ProArt X870E-Creator WiFi is a premium AM5 ATX motherboard designed for content creators, supporting AMD Ryzen 9000/8000/7000 Series processors with robust 16+2+2 (80A) power stages for stability and overclocking. It features 4x DDR5 DIMM slots (max 256GB, 8000+MT/s OC, EXPO/AEMP), dual-channel architecture, ECC/Non-ECC support.
Storage includes 4x M.2 slots (2x PCIe 5.0 x4, 2x PCIe 4.0 x4) + 4x SATA 6Gb/s with RAID 0/1/5/10. Expansion: 2x PCIe 5.0 x16 (x16/x8x8) + 1x PCIe 4.0 x16 (x4). Connectivity shines with dual USB4 (40Gbps Type-C), 7x USB 10Gbps Type-A, WiFi 7 (802.11be 2×2, 320MHz), Bluetooth 5.4, Marvell 10Gb + Intel 2.5Gb Ethernet.
- Professional black/gold aesthetics with translucent I/O cover
- DisplayPort input for GPU-to-USB4 8K/dual 4K monitor output
- Realtek 7.1 audio, Q-Release Slim PCIe, BIOS FlashBack, Clear CMOS
- Windows 11 required for full features; MPN: 90MB1TB0-M0EAY0
| Manufacturer Part Number | 90MB1TB0-M0EAY0 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Motherboard chipset | AMD X870E |
| Motherboard form factor | ATX |
| Width | 305 mm |
| Depth | 244 mm |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Maximum internal memory | 256 GB |
| ECC сompatibility | ECC & Non-ECC |
| Memory Profile Support | AMD EXPO, AEMP |
| Number of M.2 (M) slots | 4 |
| Number of SATA III connectors | 4 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| USB4 Gen 2x2 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 7 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet interface type | 2.5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Bluetooth version | 5.4 |
| Audio chip | Realtek S1220A |
| Audio output channels | 7.1 channels |
| Power Stages | 16+2+2 (80A) |
| RAID levels | 0, 1, 10, 5 |
| Windows operating systems supported | Windows 11 |
