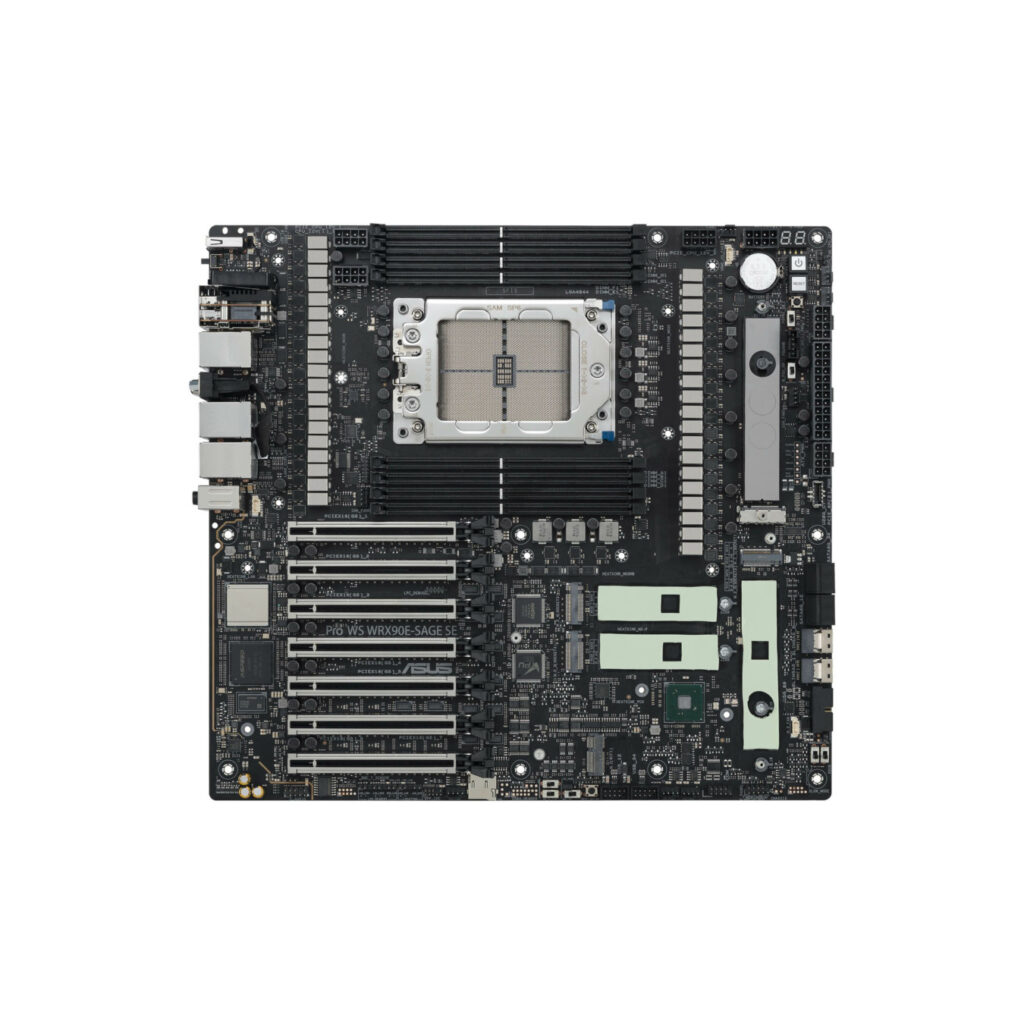

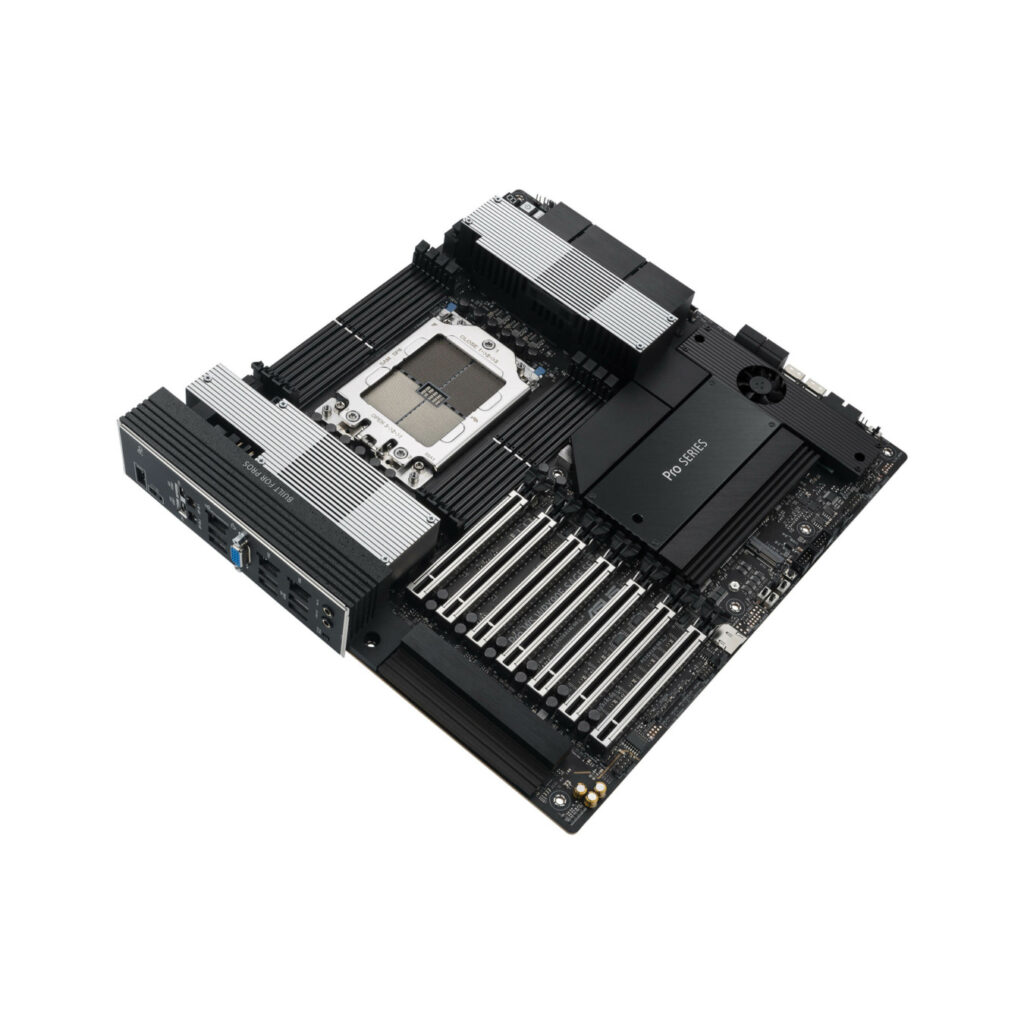

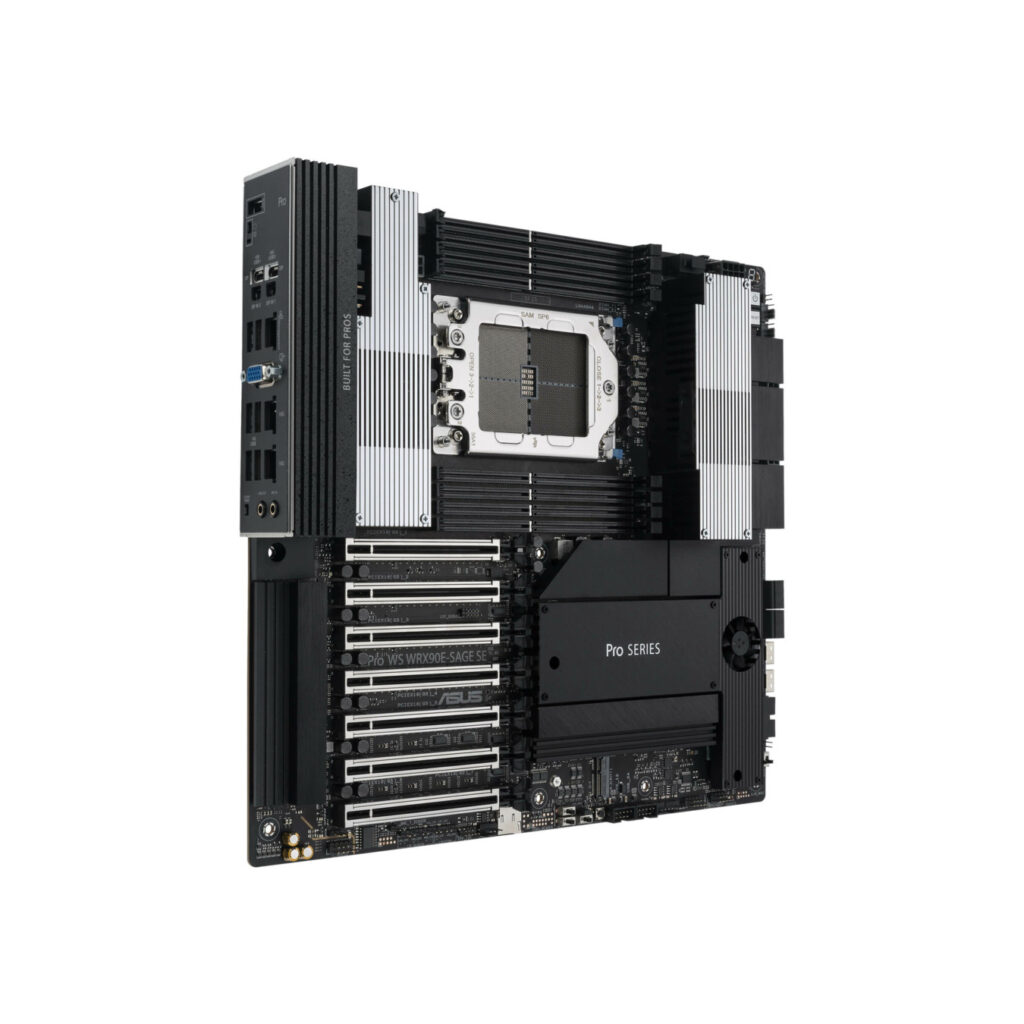

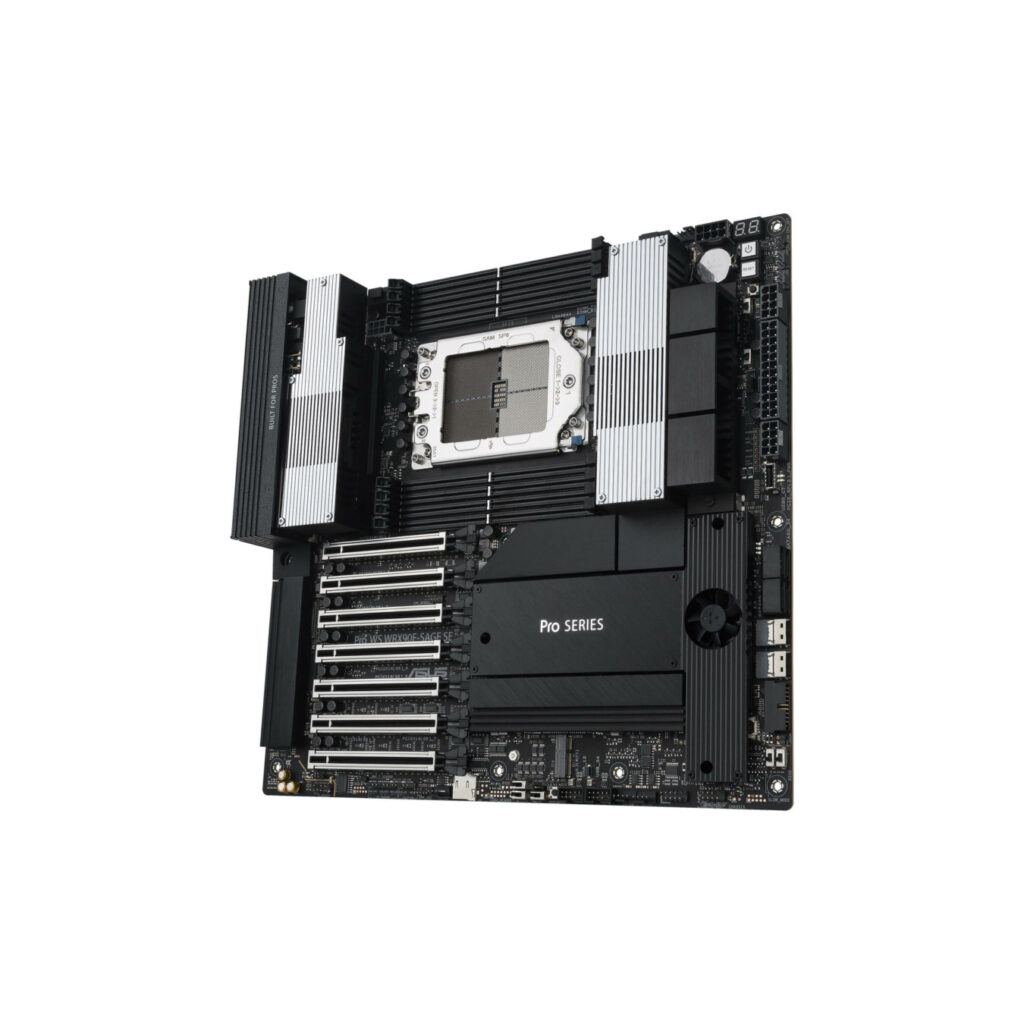

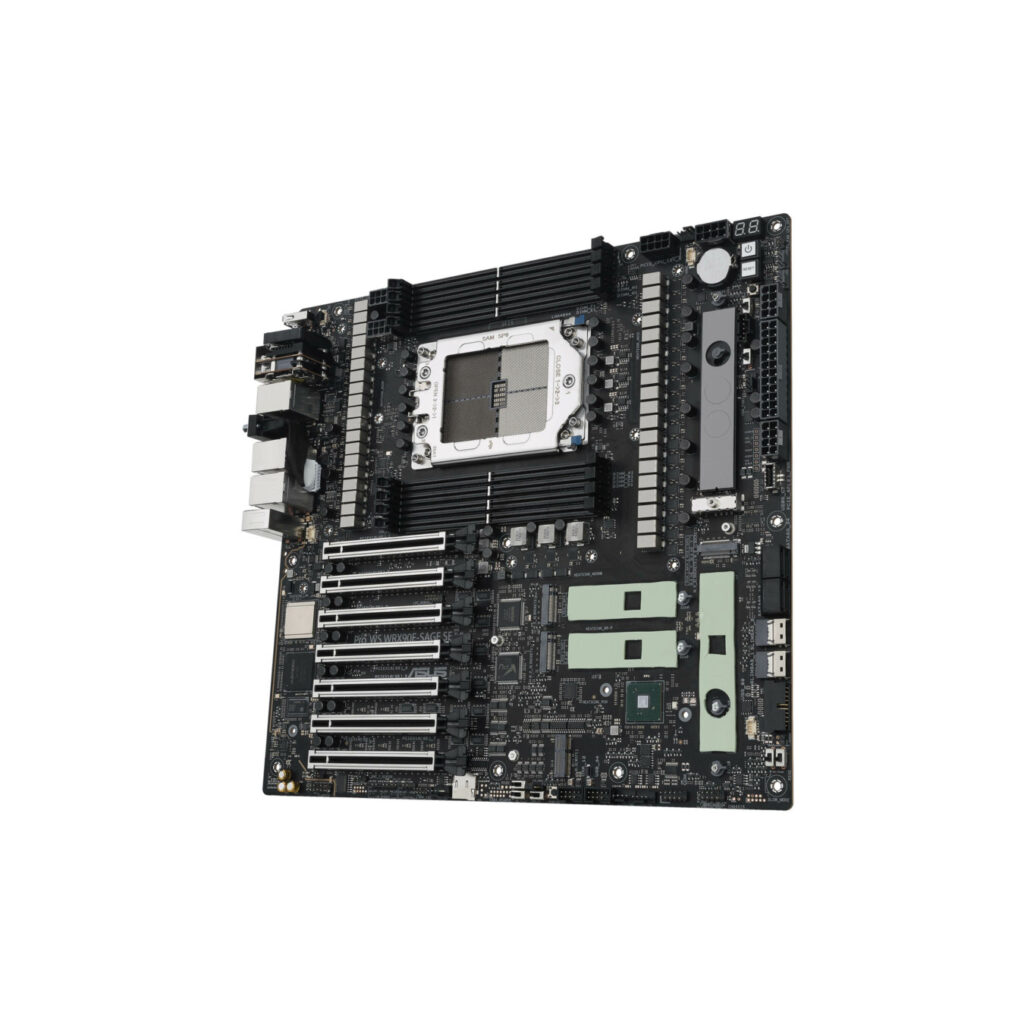

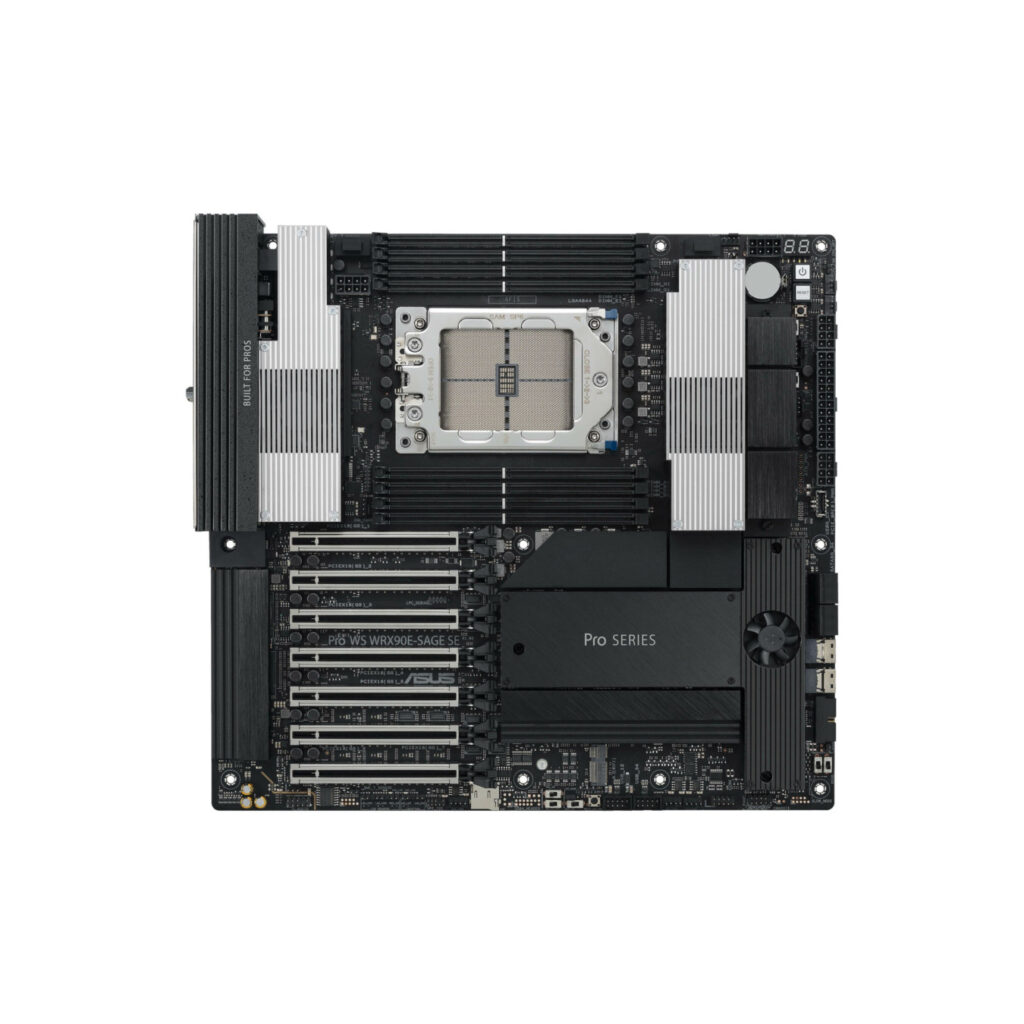

ASUS Pro WS WRX90E-SAGE SE sTR5 WRX90 EEB Workstation MB - 7x PCIe 5.0
sTR5 AMD WRX90 EEB workstation board with 7× PCIe 5.0 x16 slots (6×16 + 1×8), 4× PCIe 5.0 M.2, 8× DDR5 ECC RDIMM (up to 2TB), robust 32+3+3+3 power stages, dual 10GbE + BMC.
Доступно через 6–10 рабочих дней : 82 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The ASUS Pro WS WRX90E-SAGE SE is a premium EEB workstation motherboard designed for AMD Ryzen Threadripper PRO 7000/9000 WX-Series processors with sTR5 socket. Featuring the AMD WRX90 chipset, it delivers exceptional performance for professional workloads with seven PCIe 5.0 x16 expansion slots, support for up to 2TB of 8-channel DDR5 ECC Registered DIMM memory across 8 slots, and robust 32+3+3+3 power stages with dual 8-pin CPU power connectors.
Storage options are comprehensive with four PCIe 5.0 M.2 slots (supporting 2242/2260/2280/22110 sizes), two SlimSAS ports (PCIe 4.0 x4 NVMe), and four SATA 6Gb/s ports with RAID 0/1/5/10 support. Networking includes dual 10Gb Ethernet ports plus a dedicated 1Gb BMC management port via AST2600 for remote server-grade IPMI management. Additional features include rear USB4 Type-C ports, massive VRM and chipset cooling with active fans, and PCIe Q-Release Slim for easy GPU removal.
- ✅ AMD sTR5 socket for up to 96-core Threadripper PRO CPUs
- ✅ 7x PCIe 5.0 x16 slots for multi-GPU configurations
- ✅ 4x PCIe 5.0 M.2 + 2x SlimSAS + 4x SATA storage
- ✅ 8x DDR5 ECC RDIMM slots, 8-channel, up to 2TB
- ✅ Dual 10GbE LAN + 1Gb BMC remote management
- ✅ SSI EEB form factor with professional thermal design
| CPU Socket | AMD sTR5 |
| Chipset | AMD WRX90 |
| Form Factor | SSI EEB |
| Memory Type | 8x DIMM DDR5 ECC Registered Memory |
| Memory Channels | 8 Channel |
| Max Memory | up to 2TB ECC R-DIMM (1DPC) |
| PCIe Slots | 6x PCIe 5.0 x16 + 1x PCIe 5.0 x16 (x8 mode) |
| M.2 Slots | 4x PCIe 5.0 x4 (Key M 2242/2260/2280/22110) |
| SATA Ports | 4x SATA 6Gb/s |
| SlimSAS | 2x SlimSAS PCIe 4.0 x4 NVMe |
| LAN | 2x 10Gb Ethernet + 1x 1Gb BMC |
| Power Stages | 32+3+3+3 |
| RAID Support | PCIe/SATA RAID 0/1/5/10 |

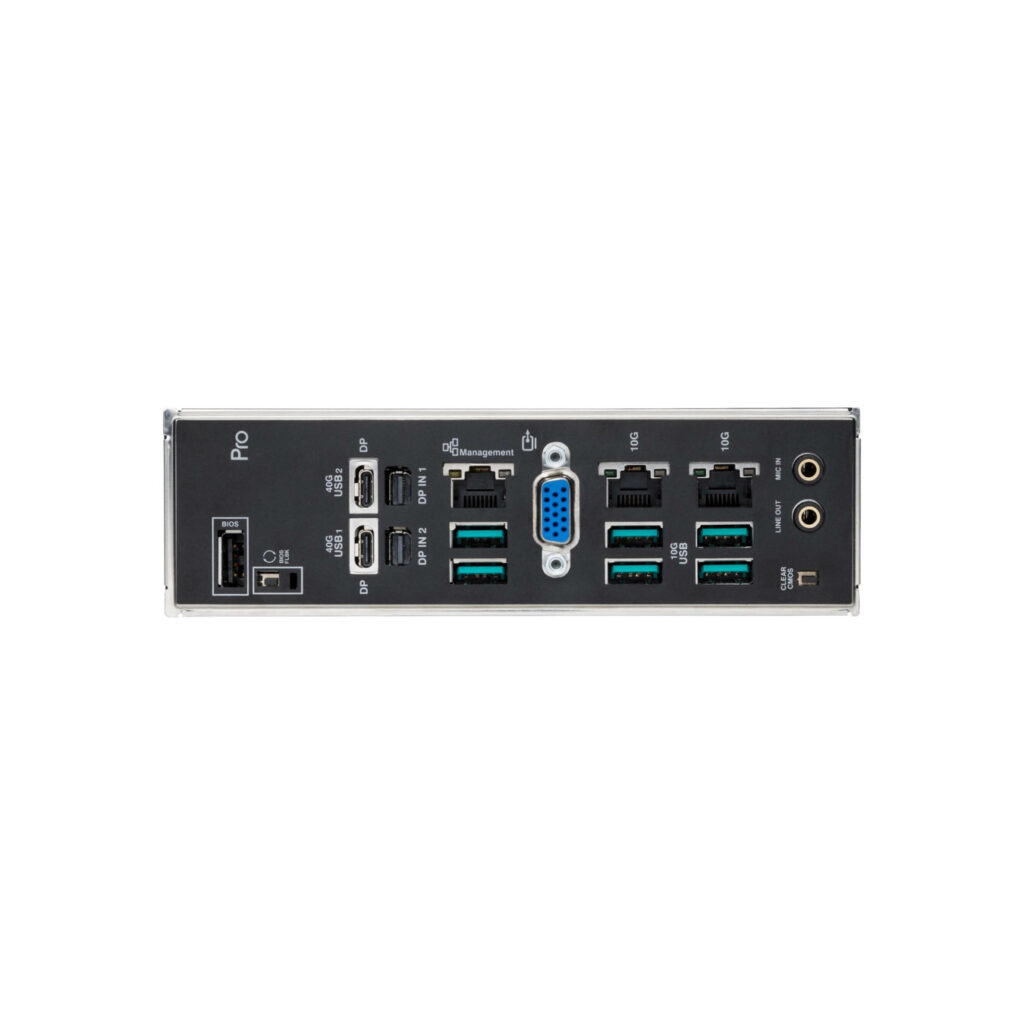

| USB4 | 2x rear USB4 40Gbps Type-C |
| Audio | 5.1 channel |
| BMC | AST2600 IPMI remote management |
