ASUS PRIME H610M-R D4 - LGA1700 Micro-ATX Motherboard - DDR4 up to 64GB
ASUS PRIME H610M-R D4 is a budget Micro-ATX Intel H610 motherboard for LGA1700 (12th/13th/14th Gen). Supports DDR4 up to 64GB, 1x M.2 PCIe 3.0, 4x SATA III, PCIe 4.0 x16, Realtek 1Gb LAN, HDMI/DVI/VGA.
Доступно через 8–10 рабочих дней : 10 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068

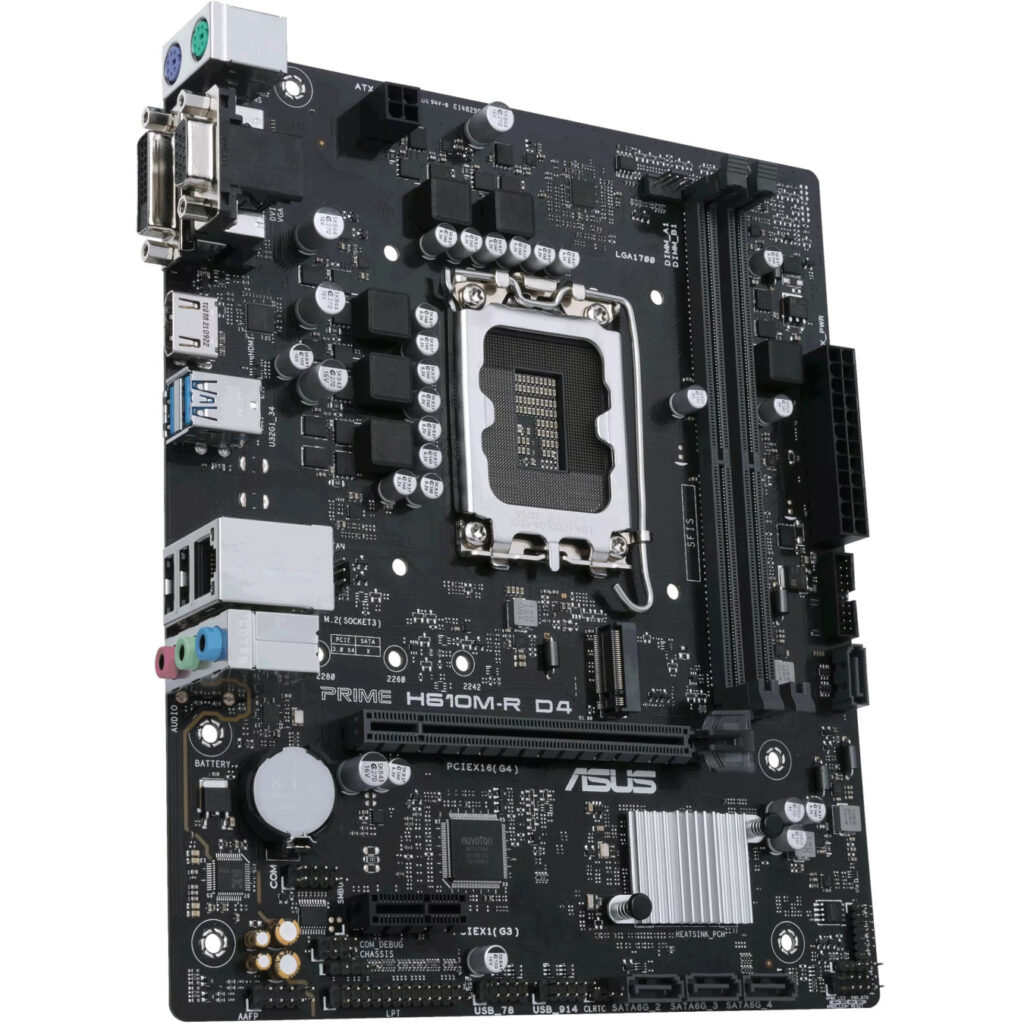

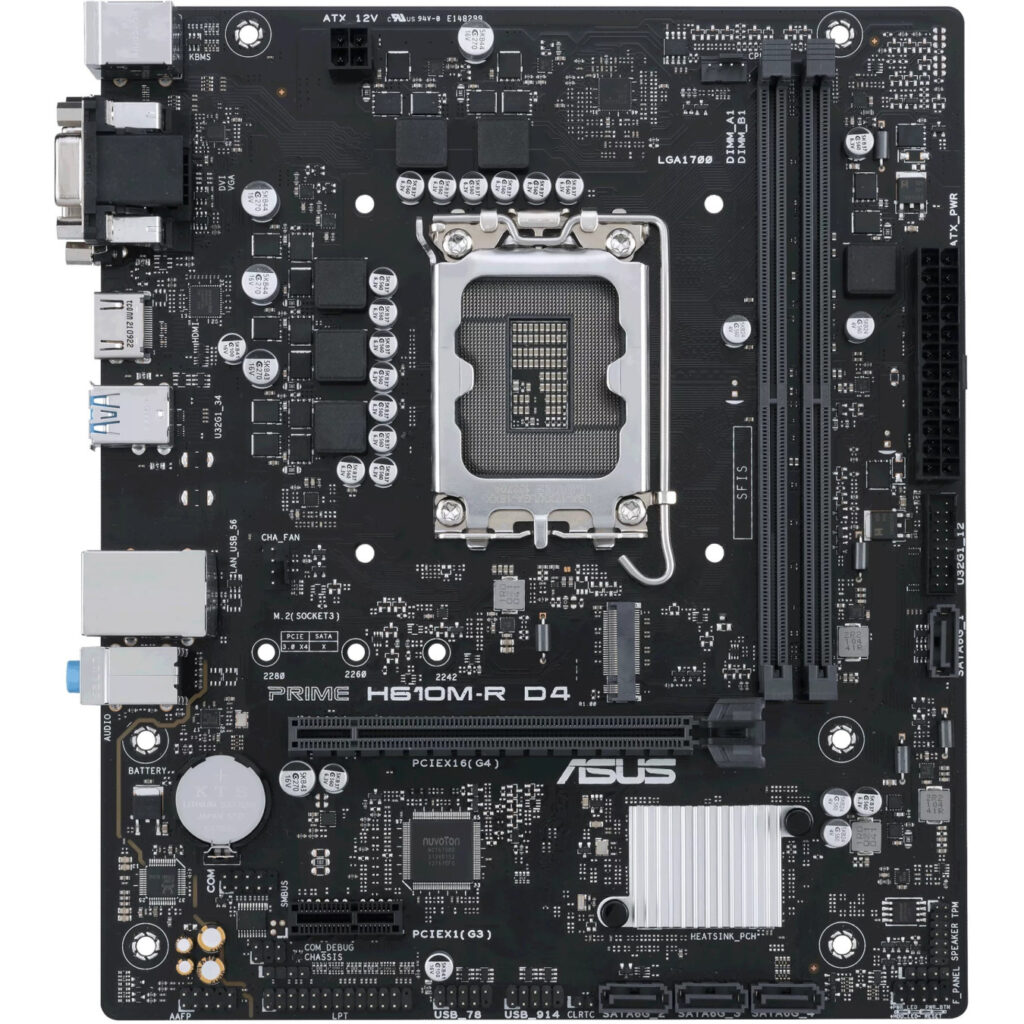

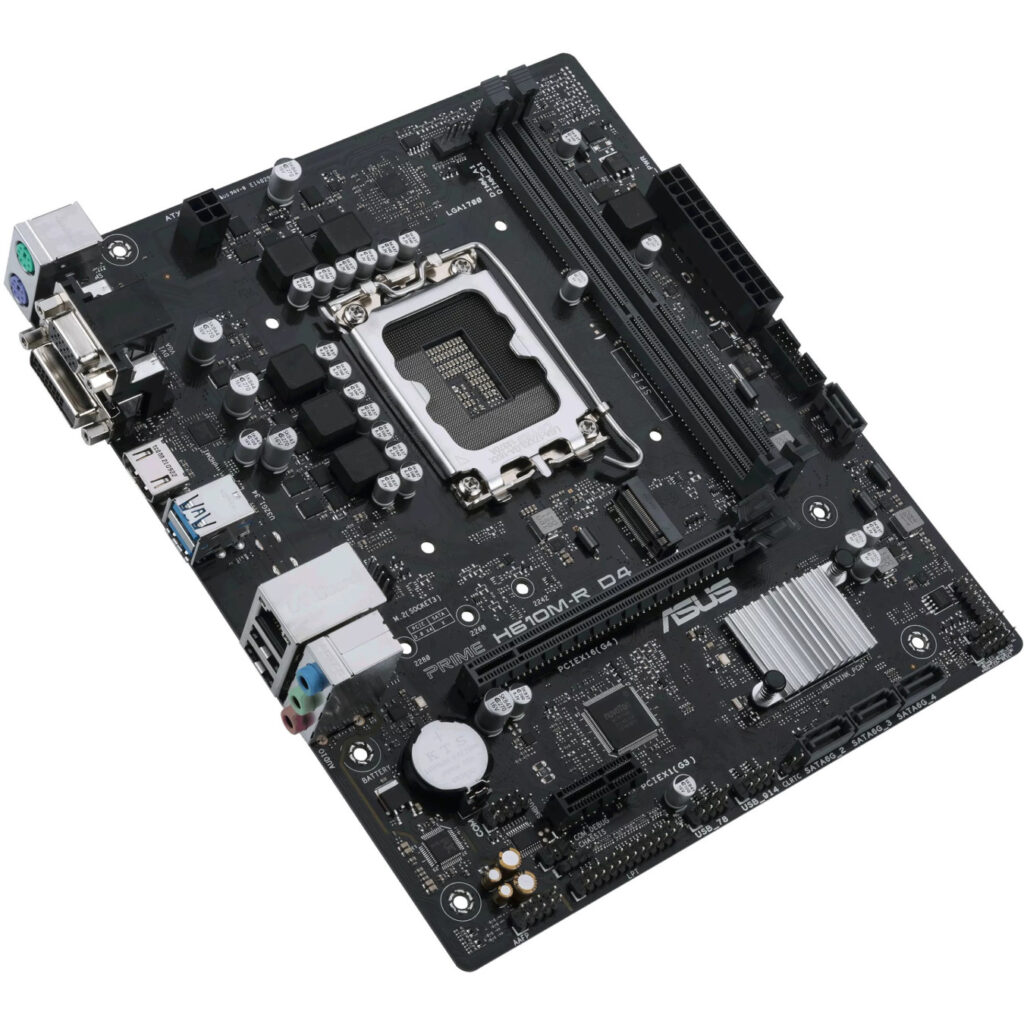

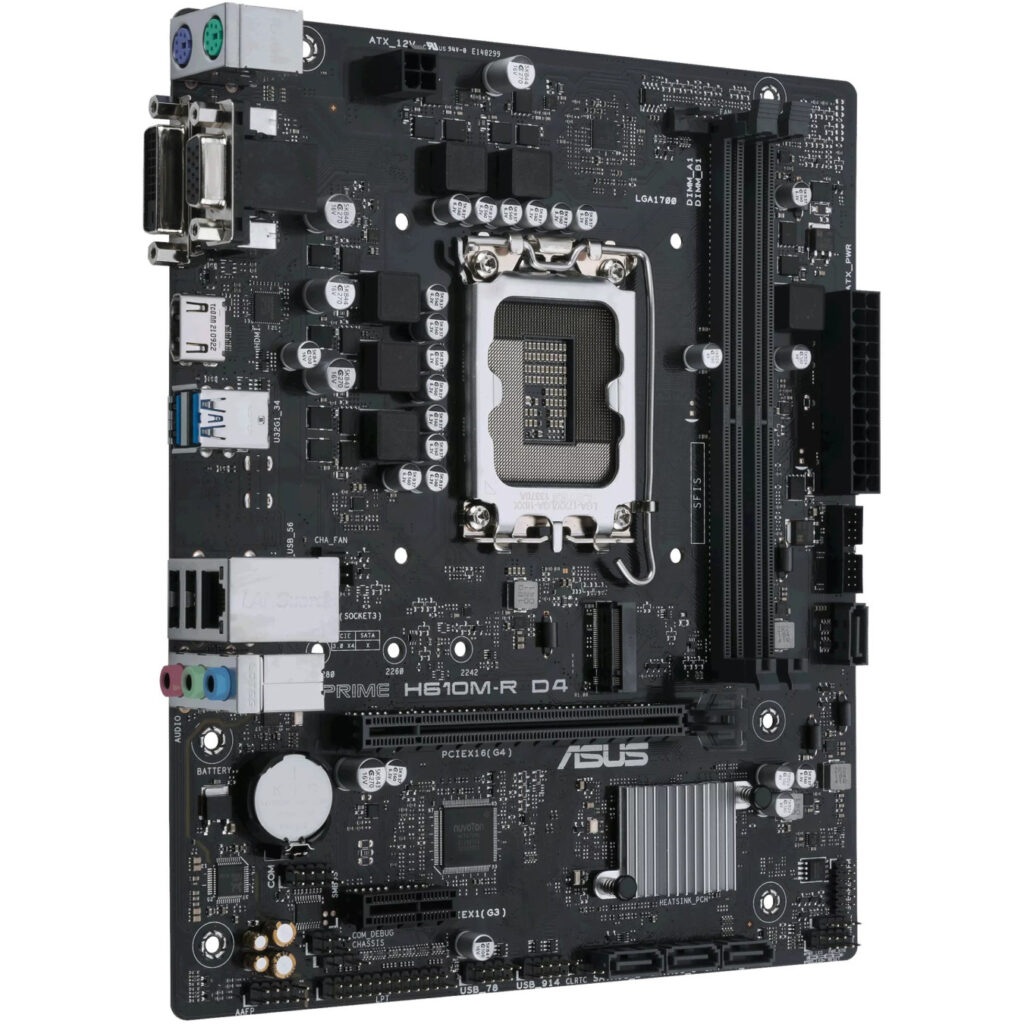

The ASUS PRIME H610M-R D4 is an affordable Micro-ATX motherboard designed for Intel’s 12th, 13th, and 14th Gen Core processors using the LGA 1700 socket. Built on the Intel H610 chipset, it provides essential features for everyday computing, office builds, and light gaming without overkill. It supports DDR4 memory up to 64GB across two DIMM slots (max 3200MHz), making it a cost-effective upgrade path for users with existing DDR4 RAM.
Storage options include one M.2 slot (PCIe 3.0 x4, up to 32Gbps) for fast NVMe SSDs and four SATA III ports for HDDs/SSDs. Expansion is handled by a PCIe 4.0 x16 slot for modern GPUs and one PCIe 3.0 x1 slot. Connectivity features Realtek 1Gb Ethernet, USB 3.2 Gen 1 (2 rear ports), USB 2.0, HDMI 2.1, DVI-D, and VGA for 4K output. It includes a PCH heatsink for thermal stability and 5X Protection III for hardware safeguards.
- ✅ LGA 1700 socket: 12th/13th/14th Gen Intel Core, Pentium, Celeron
- ✅ Memory: 2x DDR4 DIMM, dual-channel, up to 64GB (3200MHz+ OC)
- ✅ Storage: 1x M.2 PCIe 3.0 x4, 4x SATA 6Gbps
- ✅ Expansion: 1x PCIe 4.0 x16, 1x PCIe 3.0 x1

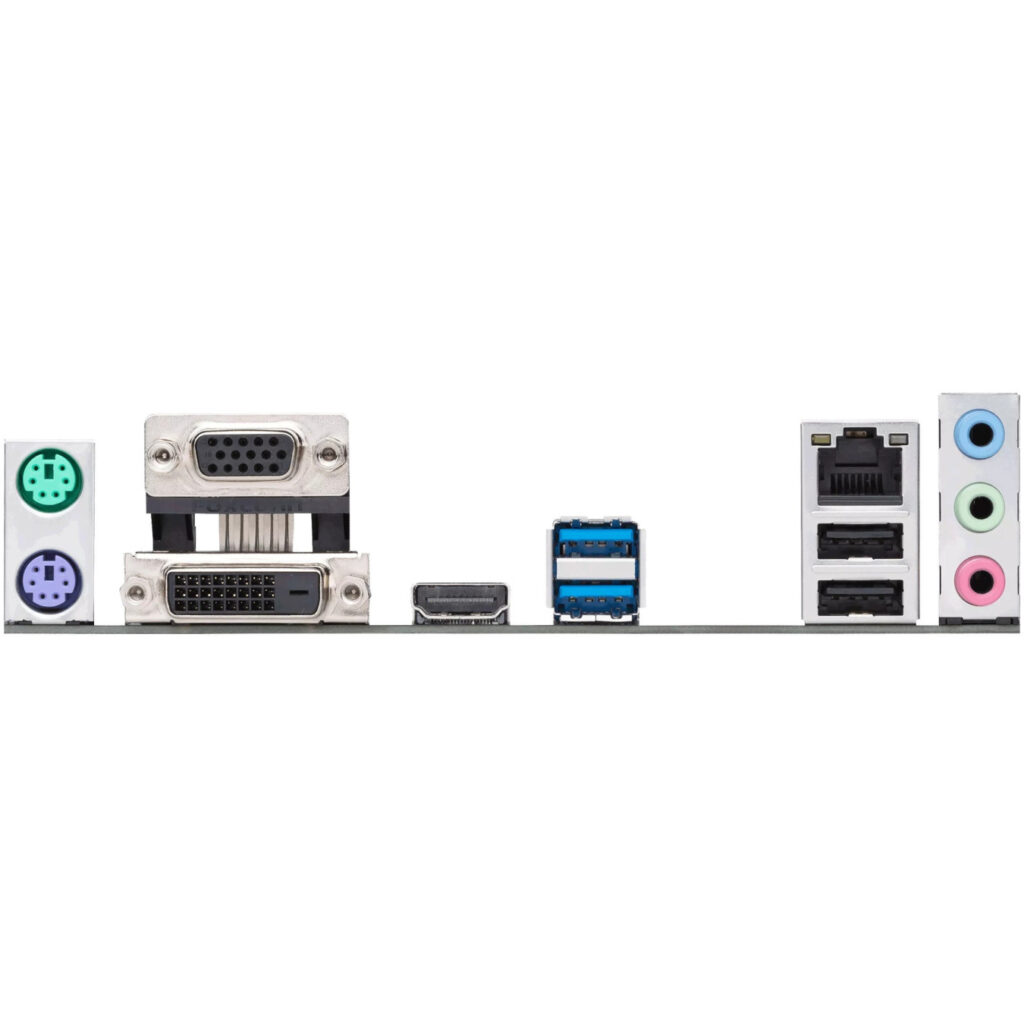

- ✅ I/O: 1Gb LAN, 2x USB 3.2 Gen1, 2x USB 2.0, HDMI/DVI/VGA, PS/2, COM/LPT headers
- ✅ No WiFi, Bluetooth, or RGB headers
- ✅ Form factor: Micro-ATX (226 x 193 mm)
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®. Intel® Core™ i3. Intel® Core™ i5. Intel® Core™ i7. Intel® Core™ i9. Intel Pentium G |
| Motherboard chipset | Intel H610 |
| Motherboard form factor | micro ATX |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Maximum internal memory | 64 GB |
| Supported storage drive interfaces | M.2, SATA III |
| Number of SATA III connectors | 4 |
| Number of M.2 (M) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Gigabit Ethernet |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DVI-D ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Width | 226 mm |
| Depth | 193 mm |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
