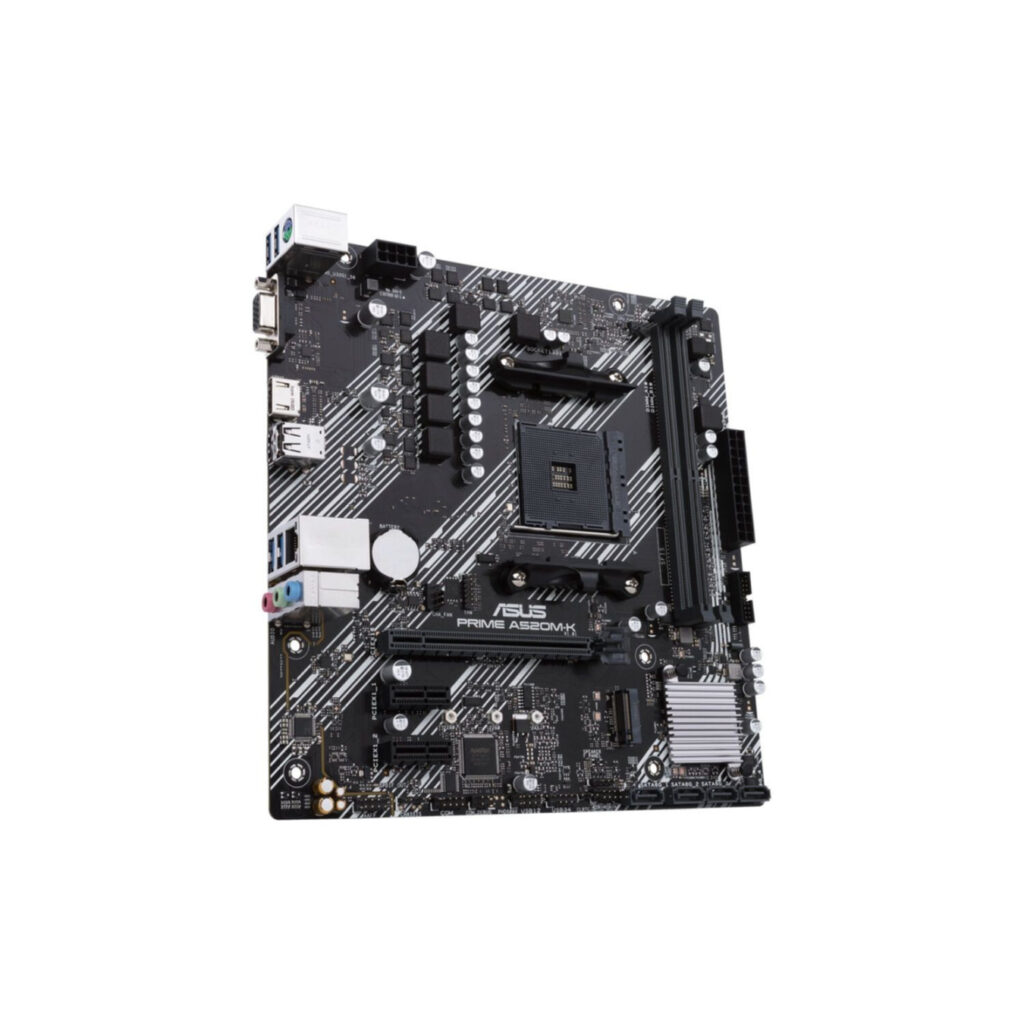

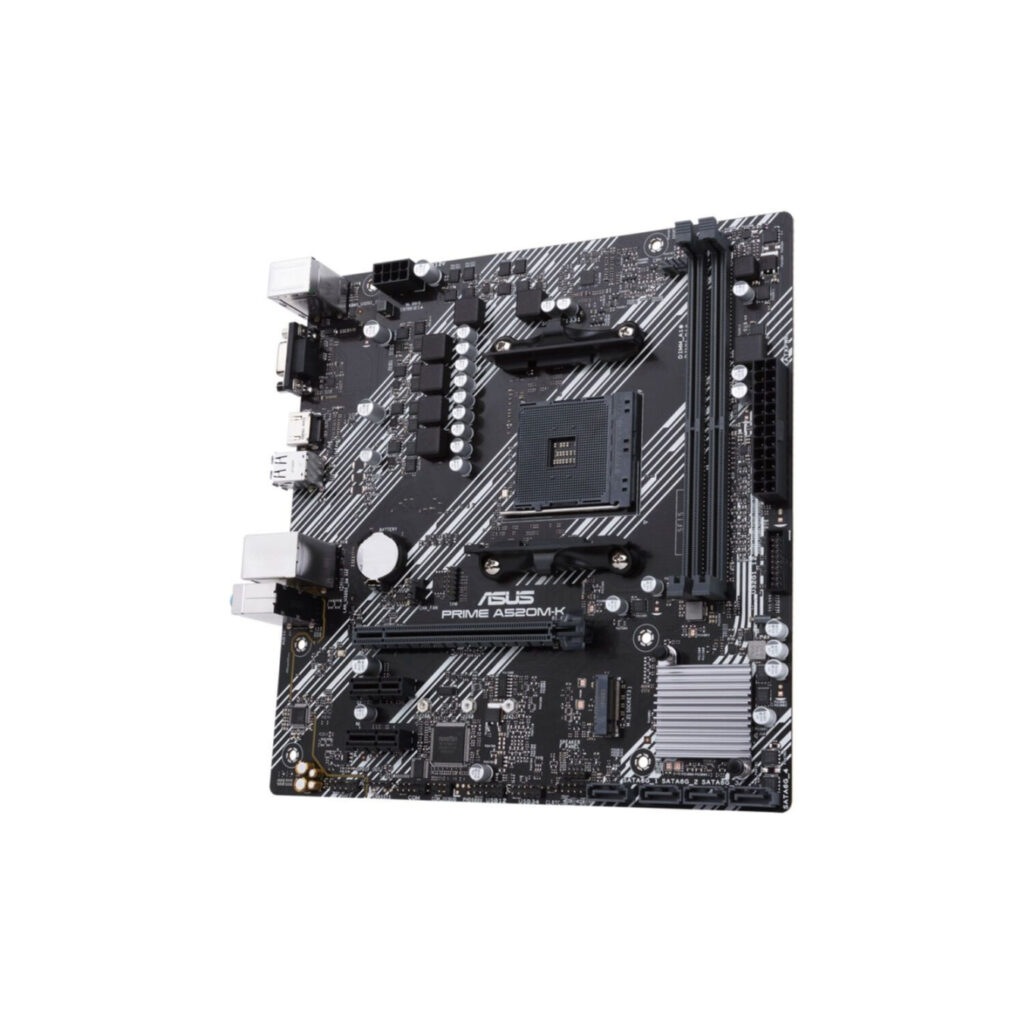

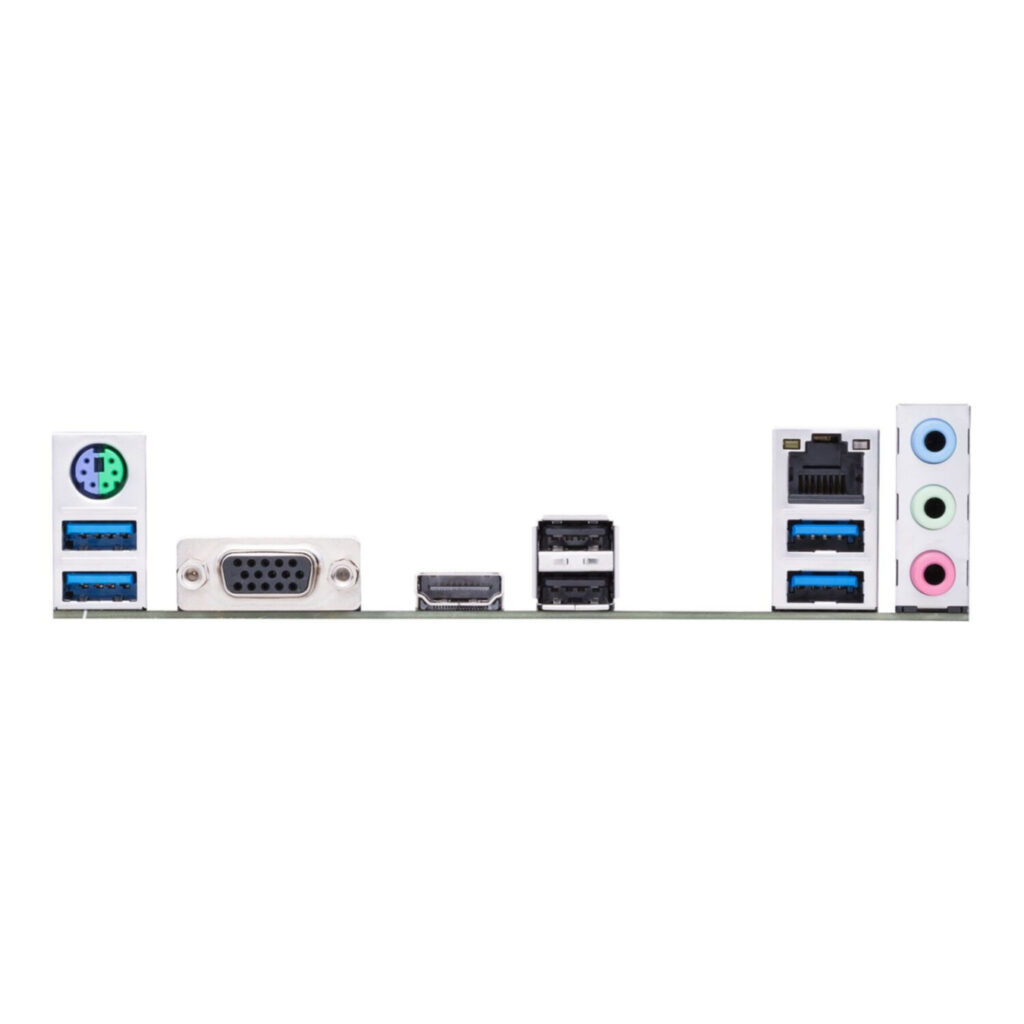

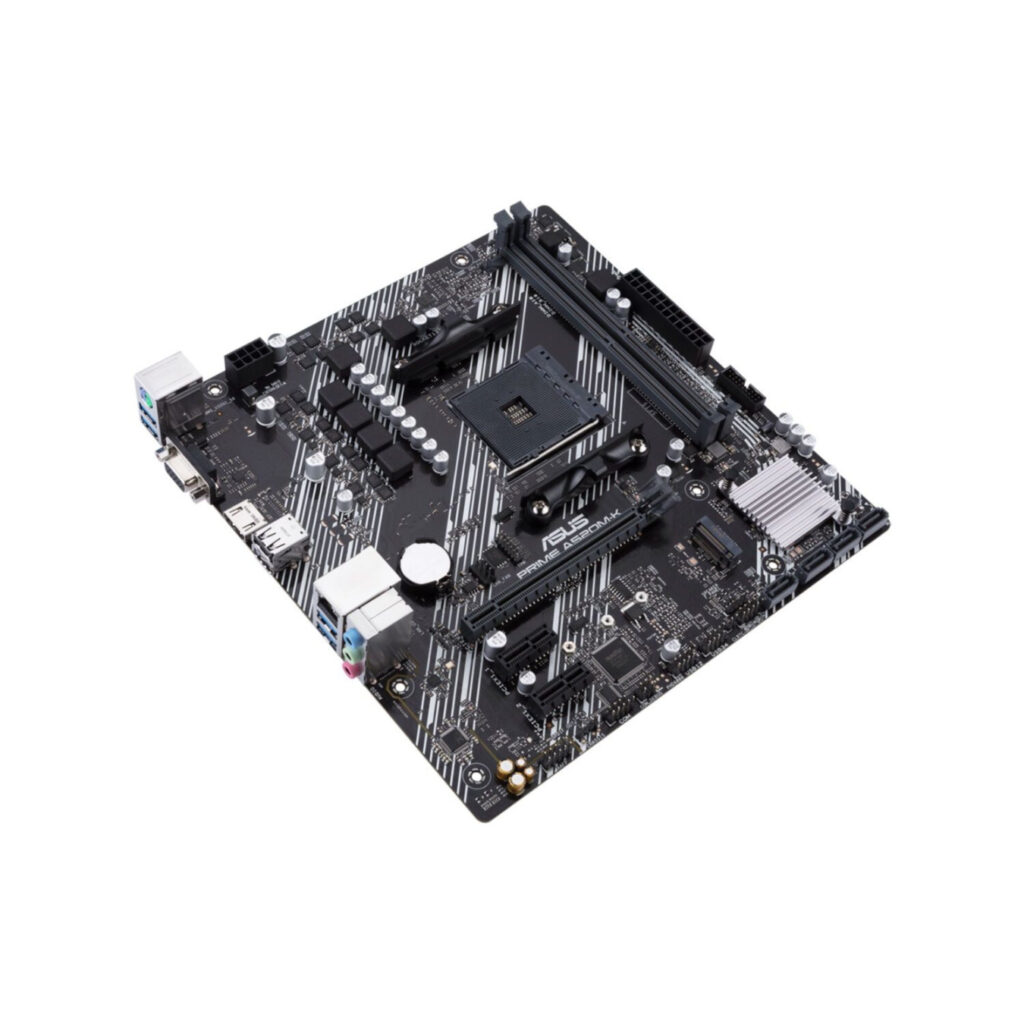

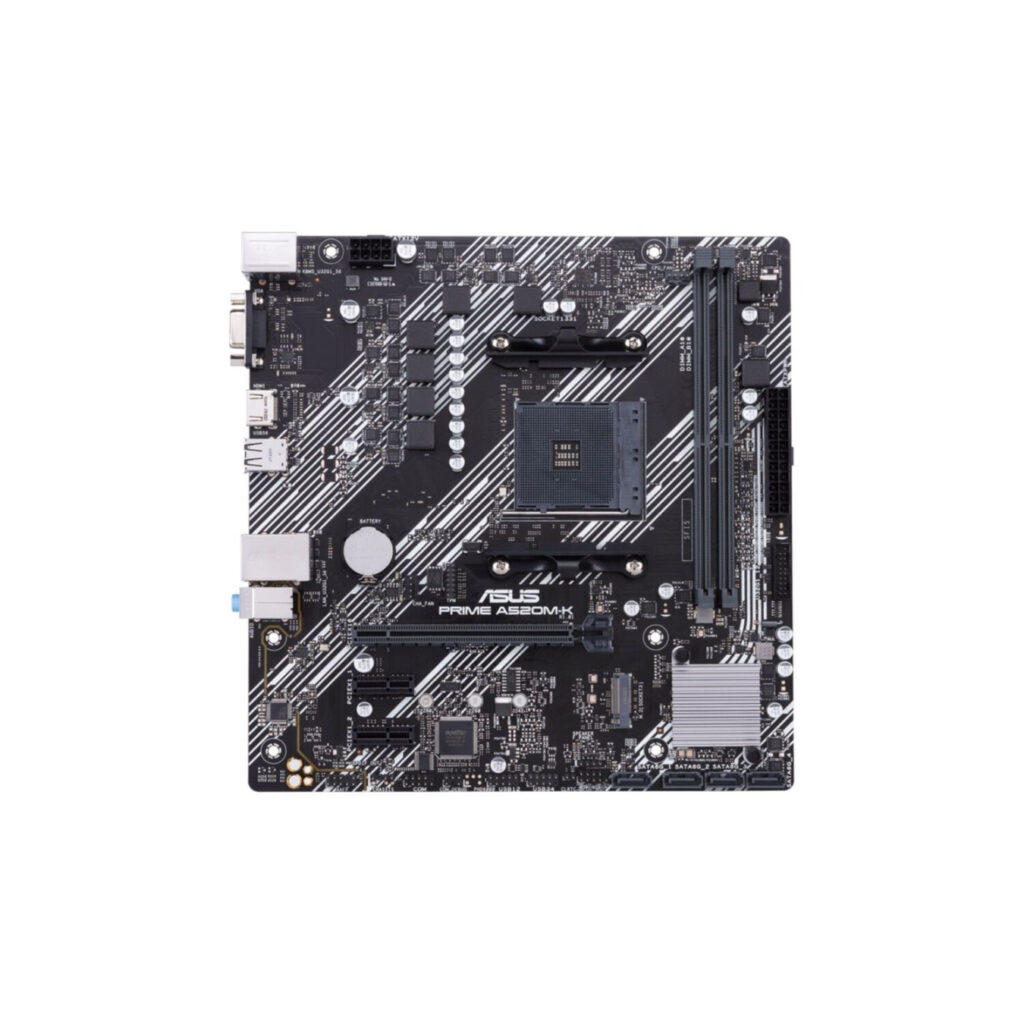

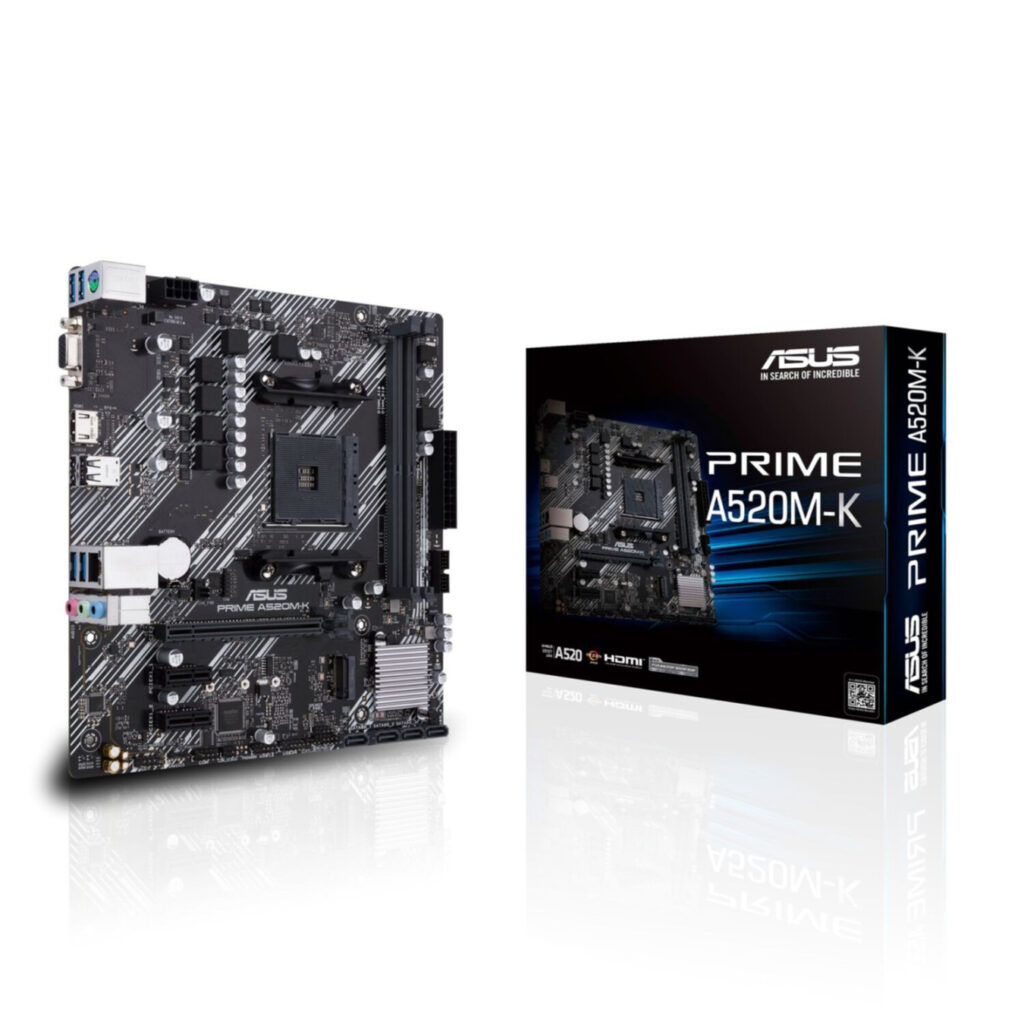

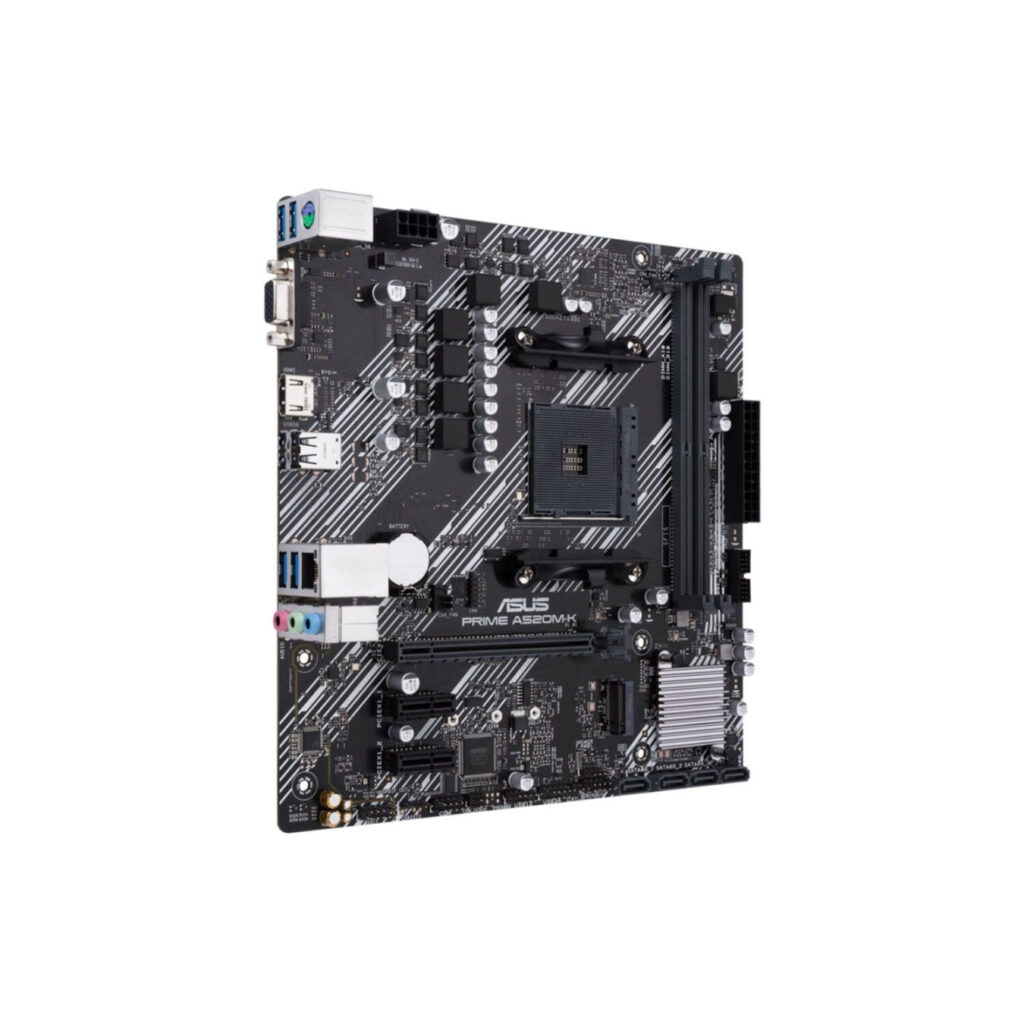

ASUS PRIME A520M-K - AM4 micro-ATX Motherboard - DDR4, 64GB, 1x M.2, HDMI 2.1, Realtek Gigabit LAN
ASUS PRIME A520M-K micro-ATX motherboard (AM4) with AMD A520 chipset. Supports DDR4 up to 64GB (2 DIMM), 1x M.2, 4x SATA III, HDMI 2.1, Realtek audio & Gigabit LAN.
Доступно через 6–10 рабочих дней : 27 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
ASUS PRIME A520M-K. Processor manufacturer: AMD. Processor socket: Socket AM4. Compatible processor series: AMD Ryzen™ 3. AMD Ryzen™ 5. AMD Ryzen™ 7. Supported memory types: DDR4-SDRAM. Maximum internal memory: 64 GB. Memory slots type: DIMM. Supported storage drive interfaces: M.2. SATA III. Supported storage drive types: HDD & SSD. RAID levels: 0. 1. 10. USB connector type: USB Type-A. Ethernet interface type: Gigabit Ethernet. LAN controller: Realtek RTL8111H
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen™ 3. AMD Ryzen™ 5. AMD Ryzen™ 7 |
| Supported processor sockets | Socket AM4 |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC |
| Supported memory clock speeds | 2133.2400.2666.2800.2933.3000.3200.3333.3400.3466.3600.3733.3866.4000.4133.4200.4266.4333.4400.4466.4600.4866 MHz |
| Maximum internal memory | 64 GB |
| Feature | Clear CMOS jumper |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2. SATA III |
| Number of storage drives supported | 5 |
| RAID levels | 0. 1. 10 |
| Parallel processing technology support | Not supported |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of EATX power connectors | 2 |
| Number of chassis fan connectors | 1 |
| Number of COM connectors | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 3 |
| USB connector type | USB Type-A |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Motherboard chipset | AMD A520 |
| Audio chip | Realtek ALC887 / Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Windows operating systems supported | Windows 10 x64. Windows 11 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Harmonized System (HS) code | 84733020 |
| Width | 226 mm |
| Depth | 221 mm |
| Cables included | SATA |
