ASUS B650E MAX GAMING WIFI W - AM5 ATX Motherboard, DDR5, 4x DIMM, 256GB
ASUS B650E MAX GAMING WIFI W is an AM5 ATX motherboard supporting AMD Ryzen 9000/8000/7000 series with DDR5 memory, PCIe 5.0, WiFi 6E, and comprehensive cooling.
Доступно через 2–5 рабочих дней : 1 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068

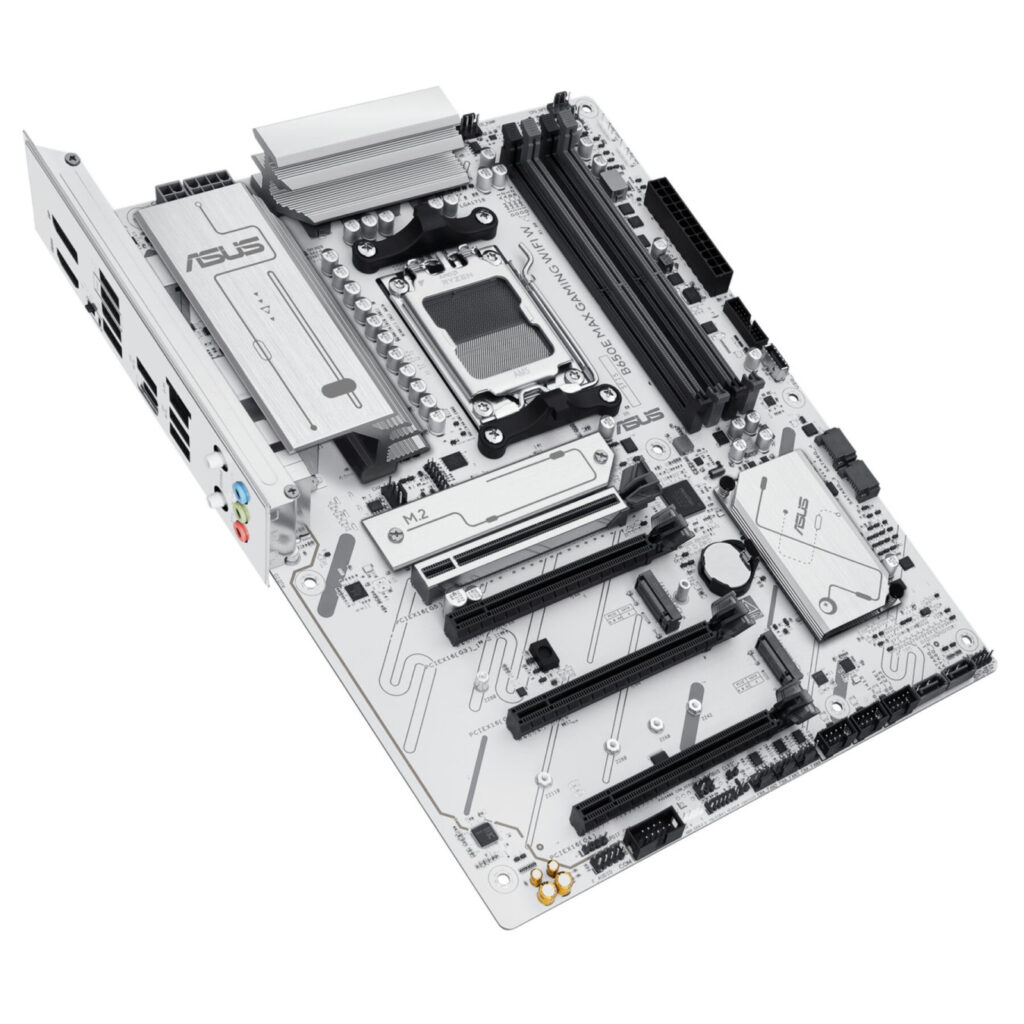

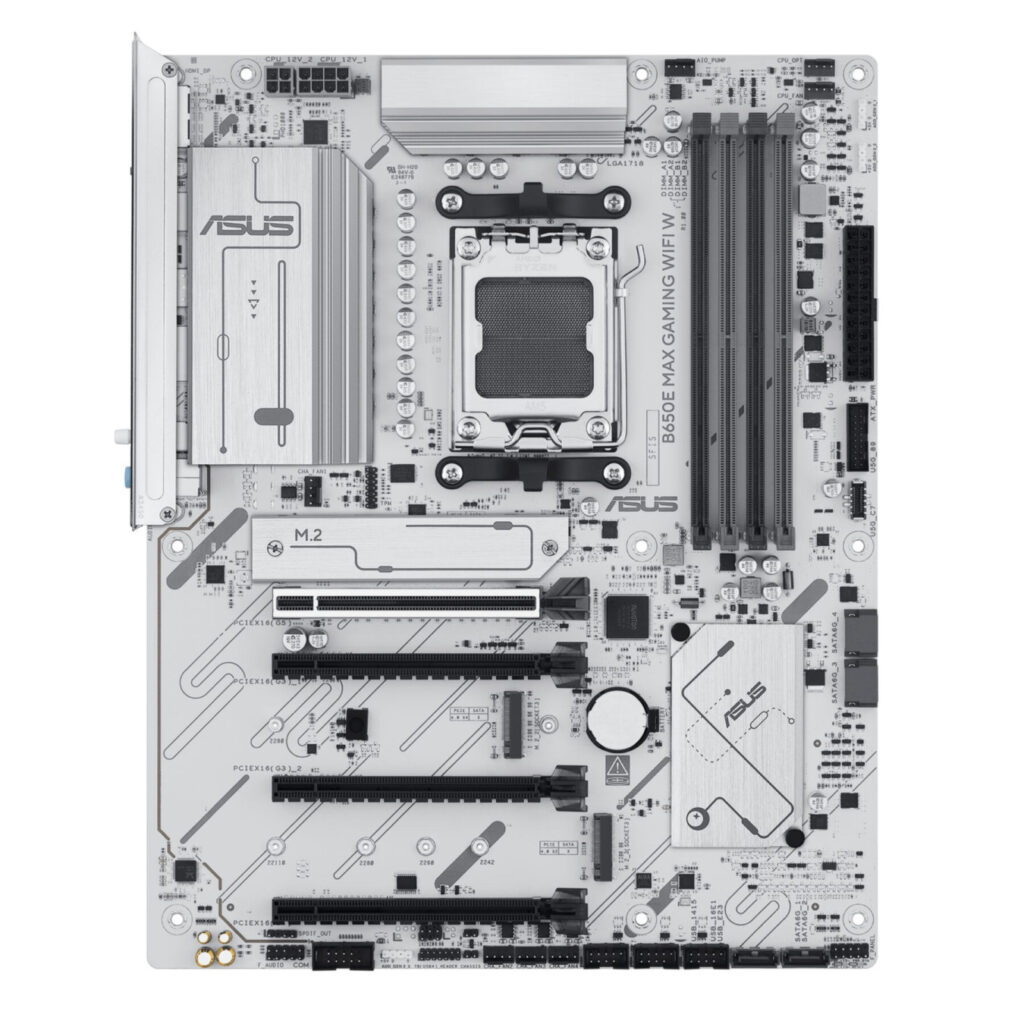

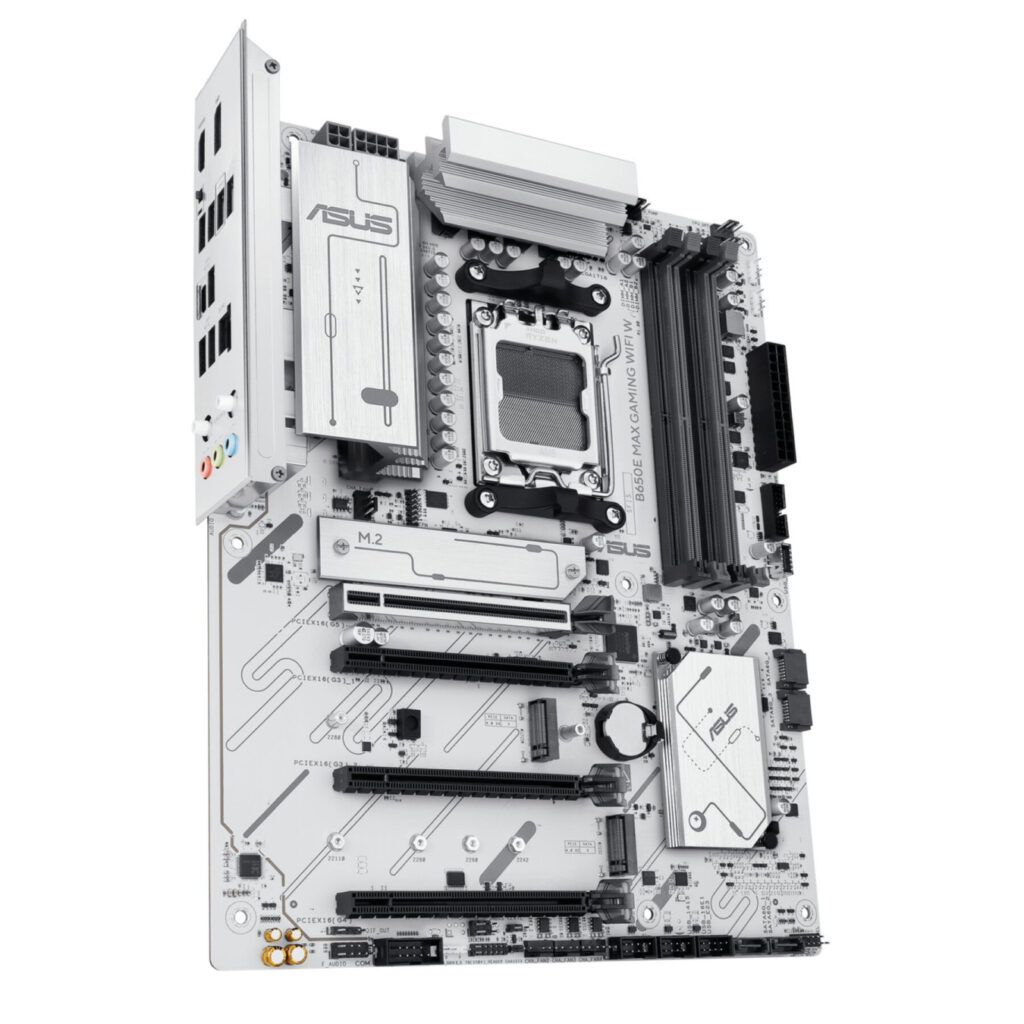

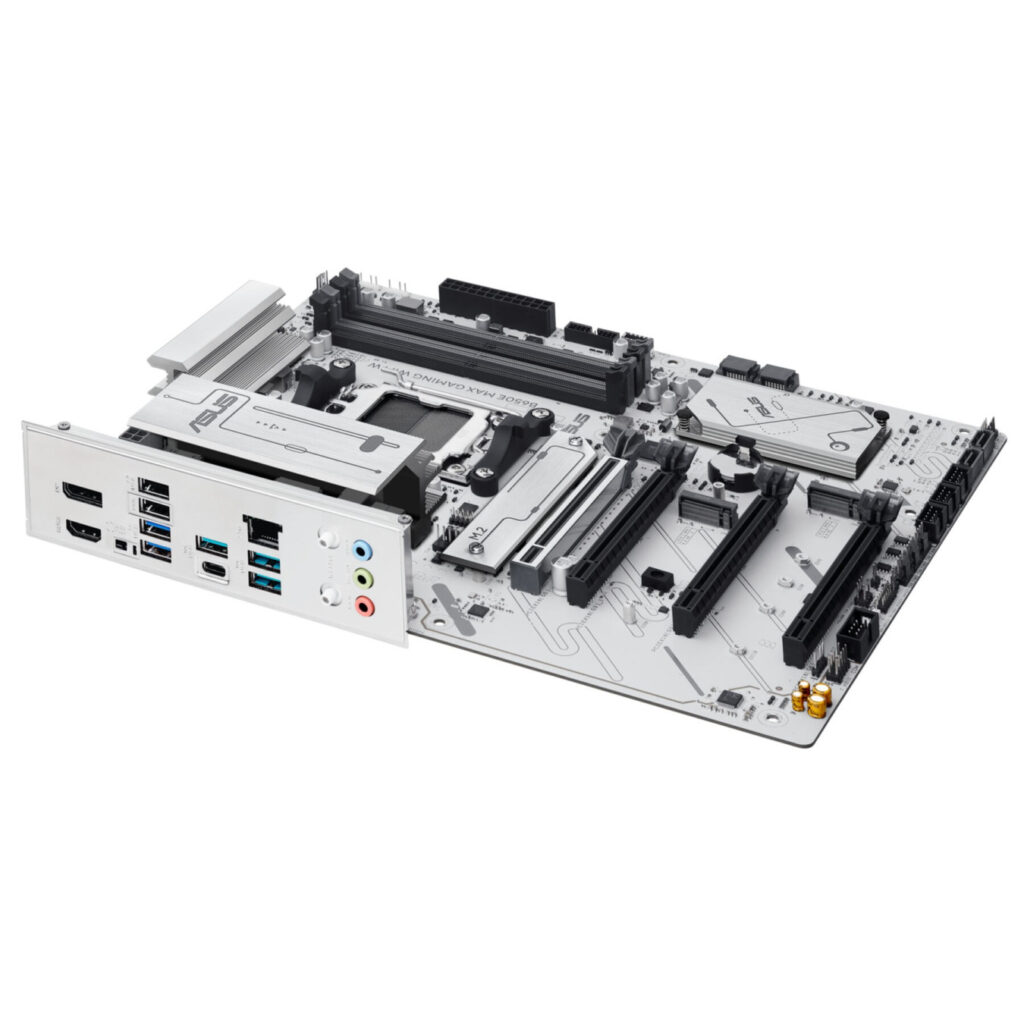

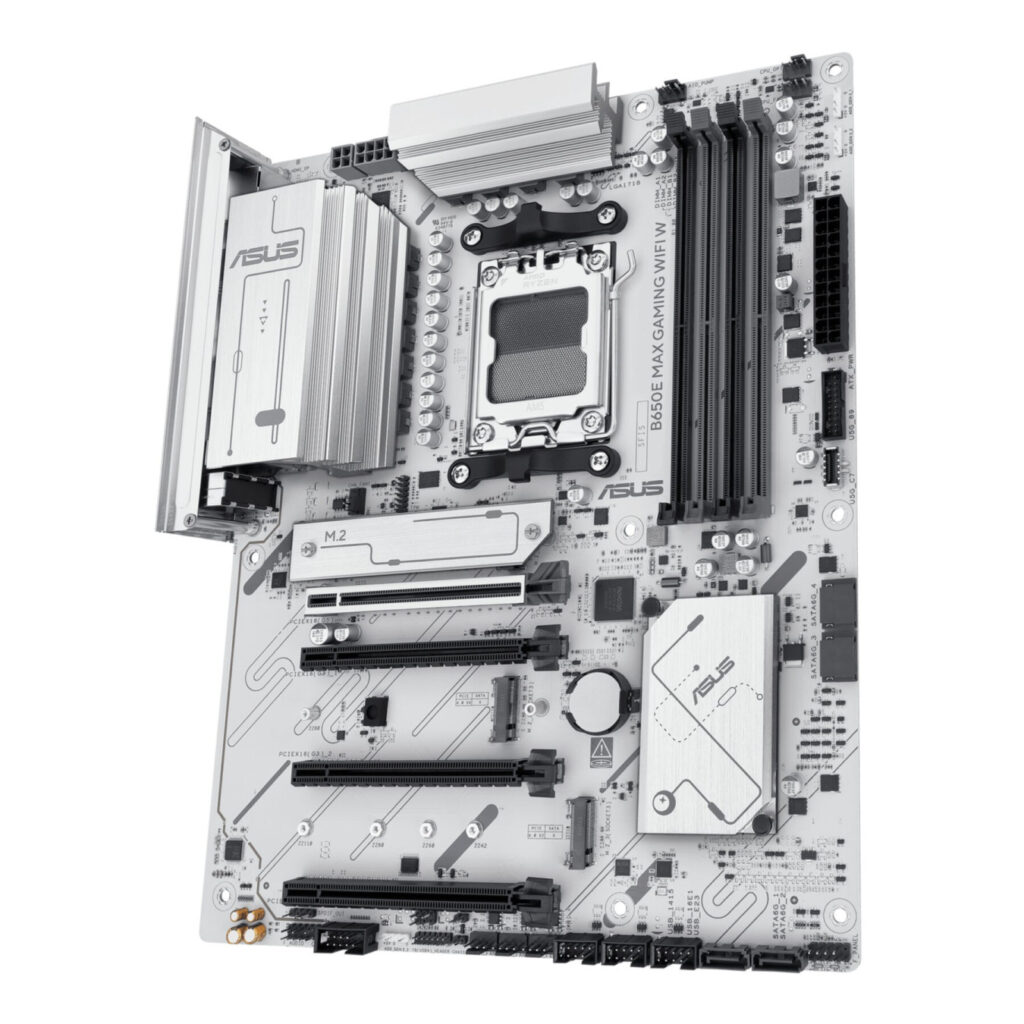

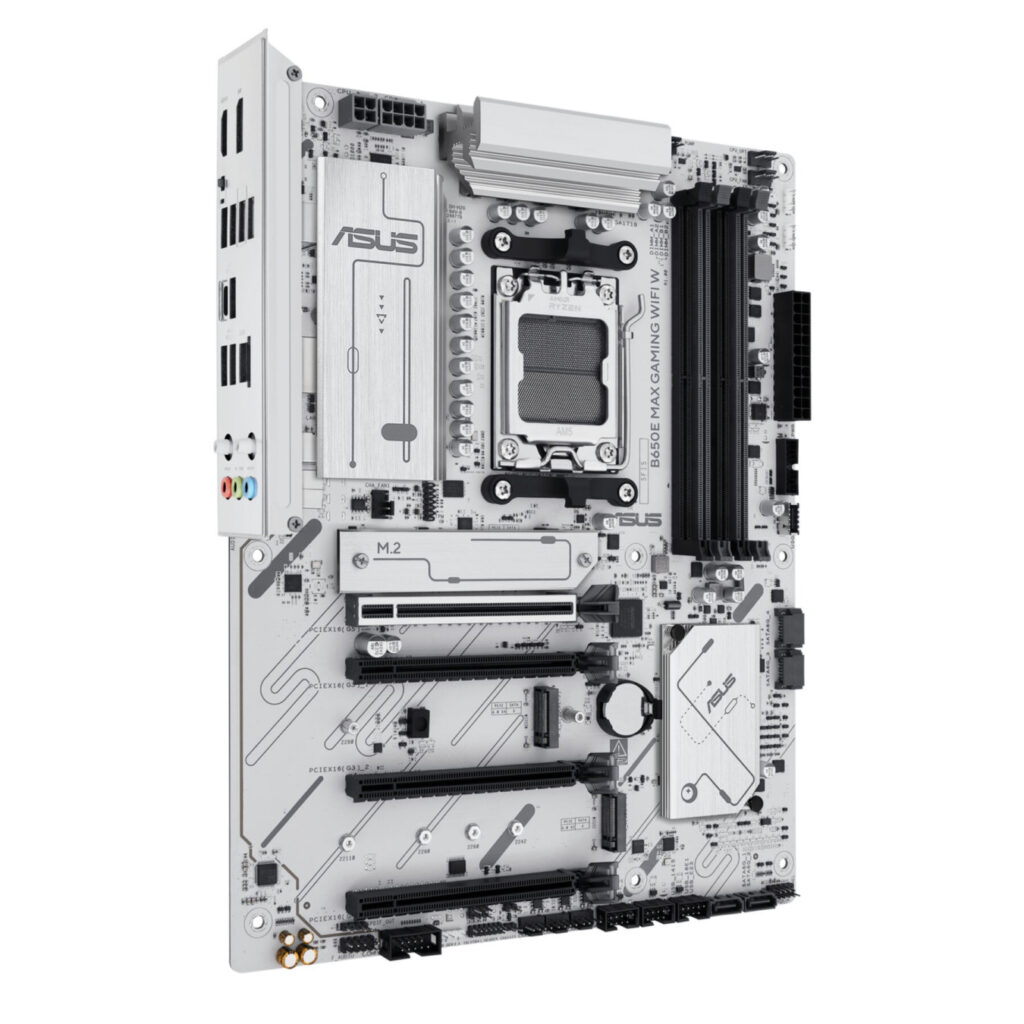

ASUS B650E MAX GAMING WIFI W is a premium AM5 ATX motherboard engineered for AMD Ryzen 9000, 8000, and 7000 series processors. This motherboard combines robust power delivery with modern connectivity standards, featuring an 8+2+1 phase power design with discrete MOSFETs for stable performance. The board supports DDR5 memory with up to 256GB capacity across four DIMM slots, enabling high-speed computing for demanding applications and gaming workloads.
The motherboard excels in storage and connectivity with three M.2 slots (first slot supports PCIe 5.0 at 128Gbps for ultra-fast NVMe drives), four SATA III ports for traditional storage, and comprehensive I/O including WiFi 6E, 2.5Gb Ethernet, USB 10Gbps Type-C and Type-A ports, DisplayPort, and HDMI. Advanced features include ASUS OptiMem II technology for optimized memory bandwidth, comprehensive cooling solutions with VRM and M.2 heatsinks, and customizable RGB lighting via three Addressable RGB Gen 2 headers. The white PCB design and DIY-friendly features like BIOS FlashBack and pre-mounted I/O shield make this an excellent choice for PC builders seeking performance and aesthetics.
- Socket AM5 compatible with AMD Ryzen 9000/8000/7000 series processors
- DDR5 memory support with 4 DIMM slots, up to 256GB capacity
- PCIe 5.0 M.2 slot for next-generation NVMe SSDs at 128Gbps speeds
- WiFi 6E and 2.5Gb Ethernet for ultrafast wireless and wired connectivity
- 8+2+1 phase power design with discrete MOSFETs for stable power delivery
- Three M.2 slots with mixed PCIe generations (5.0, 4.0, 4.0)
- Four SATA III ports for additional storage drives
- USB 10Gbps Type-C and Type-A ports for high-speed peripheral connectivity
- Comprehensive cooling with VRM, M.2, and PCH heatsinks
- Three Addressable RGB Gen 2 headers for customizable lighting
| Processor Socket | Socket AM5 |
| Chipset | AMD B650E |
| Form Factor | ATX |
| Memory Type | DDR5-SDRAM |
| Memory Slots | 4 x DIMM |
| Memory Channels | Dual-channel |
| Maximum Memory | 256 GB |
| M.2 Slots | 3 (1x PCIe 5.0 x4, 2x PCIe 4.0 x4) |
| M.2 Slot 1 Speed | PCIe 5.0 x4 (128 Gbps) |
| M.2 Slot 1 Length | Up to 2280 |
| M.2 Slot 2 Speed | PCIe 4.0 x4 (64 Gbps) |
| M.2 Slot 2 Length | Up to 2280 |
| M.2 Slot 3 Speed | PCIe 4.0 x4 (64 Gbps) |
| M.2 Slot 3 Length | Up to 22110 |
| SATA Ports | 4 x SATA III (6 Gb/s) |
| Power Delivery | 8+2+1 Phase with discrete MOSFETs |
| PCIe Slots | 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (@x4), 2x PCIe 3.0 x16 (@x1) |
| Rear USB Ports | 1x USB 10Gbps Type-C, 3x USB 10Gbps Type-A, 2x USB 5Gbps Type-A, 2x USB 2.0 Type-A |
| Front Panel USB Headers | 2x USB 5Gbps Type-A, 1x USB 5Gbps Type-C, 3x USB 2.0 |
| Video Outputs | 1x HDMI, 1x DisplayPort |
| Ethernet | 2.5 Gigabit Ethernet (Realtek) |
| WiFi | WiFi 6E (802.11ax) with 2x2 MU-MIMO, 2.4/5/6 GHz bands |
| Bluetooth | Bluetooth 5.3 |
| Audio | 7.1 channels with dedicated audio PCB layers |
| RGB Headers | 3x Addressable RGB Gen 2 headers |
| Fan Headers | 1x CPU fan header, 4x chassis fan headers (hybrid) |
| Power Connectors | 1x 24-pin ATX, 1x 8-pin EPS, 1x 4-pin Molex |
| Internal Headers | 1x Thunderbolt (USB4) header, 1x TPM header, 1x COM header, 1x Chassis Intrusion header |
| BIOS | UEFI AMI, 256 Mbit, BIOS FlashBack support |
| Cooling | VRM heatsink, M.2 heatsink, PCH heatsink, passive cooling |
| PCB Color | White |
| Motherboard Dimensions | 305 mm (W) x 244 mm (D) |
| Supported Processors | AMD Ryzen 9000, 8000, 7000 series (up to ~170W TDP) |
| Memory Speed Support | DDR5-6400+ (OC up to 8000+ MHz) |
| RAID Support | RAID 0, 1, 5, 10 |

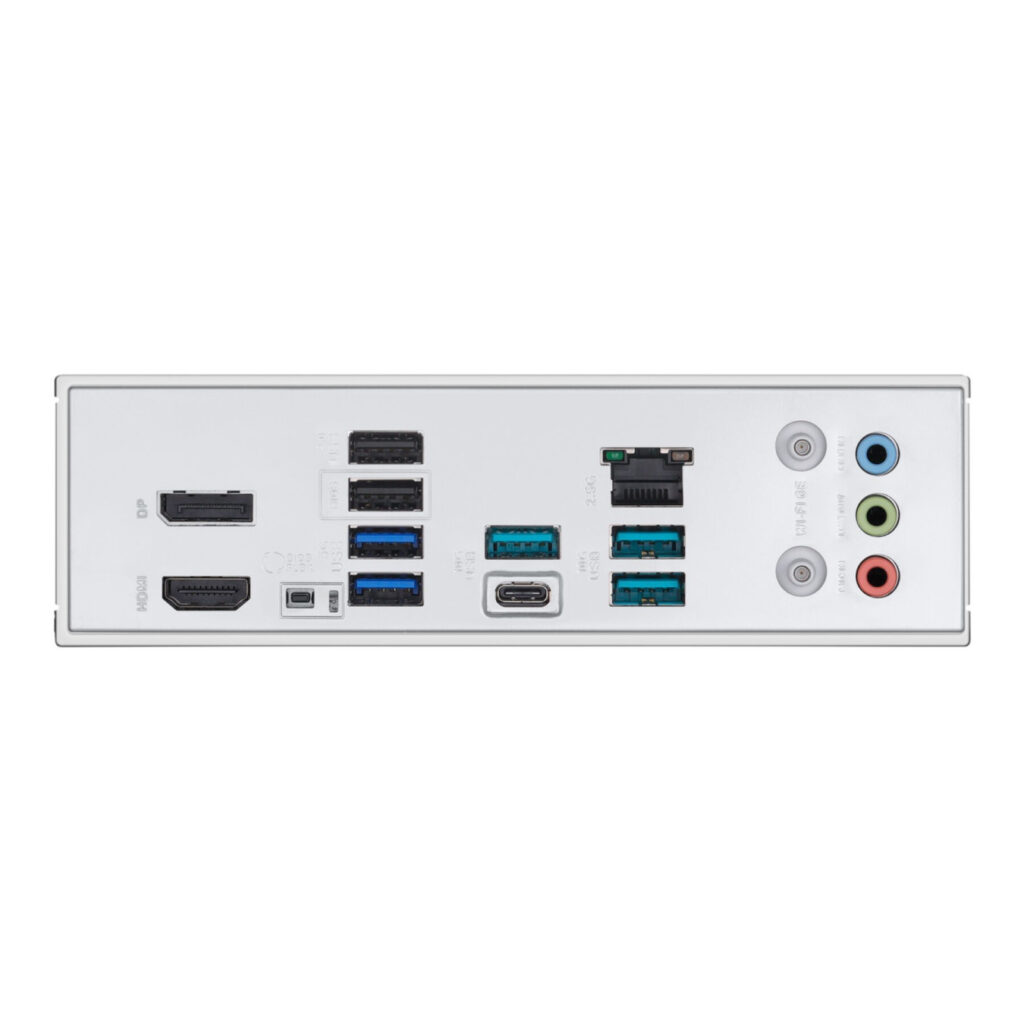

| Included Accessories | SATA cables, antenna, screws, I/O shield (pre-mounted) |
