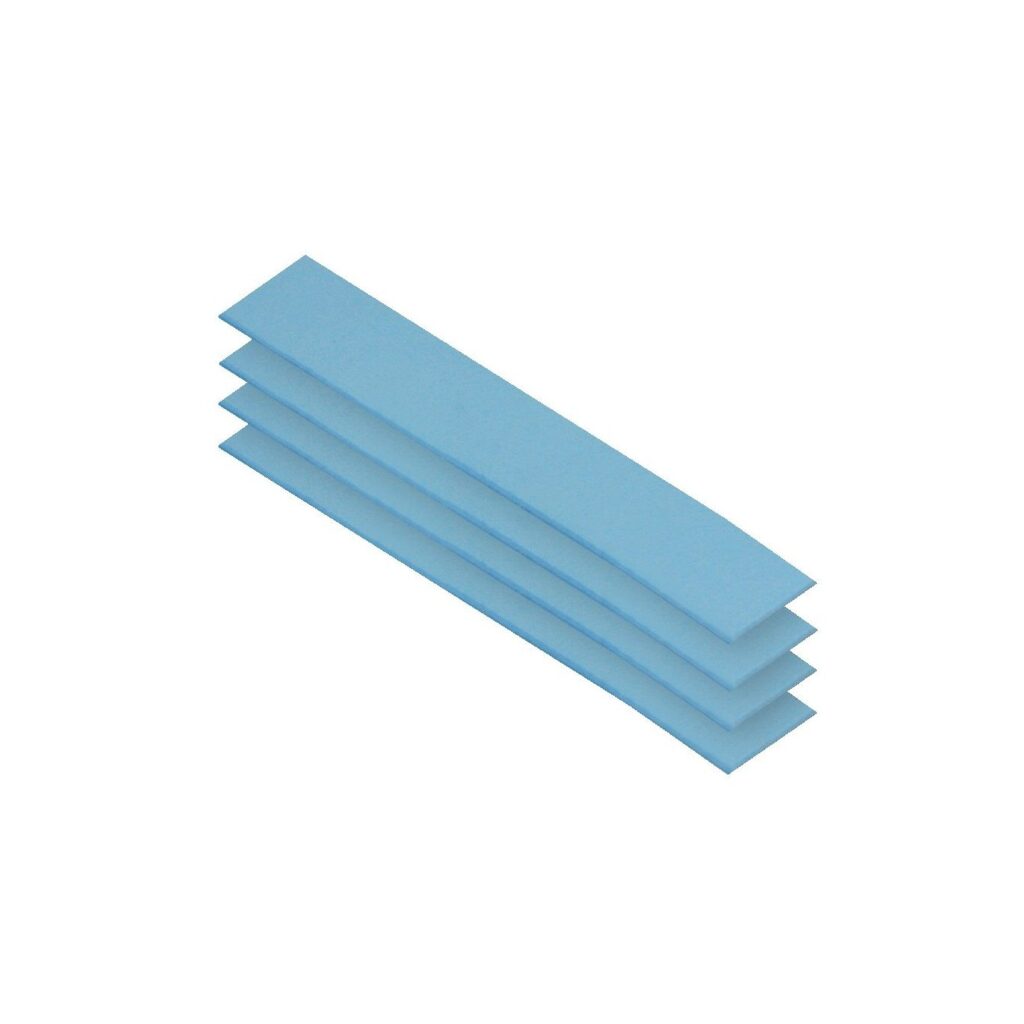

ARCTIC TP-3 Thermal Pad 120x20x1.0mm - 4 Pack
ARCTIC TP-3 120x20x1.0mm thermal pads (4-pack). Ultra-soft silicone-based with high conductivity. Compresses to fill gaps up to 0.2mm. Ideal for M.2, RAM, chipsets in PCs, laptops, GPUs.
Доступно через 10–14 рабочих дней : 85 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
High Performance — Very Soft
Based on silicone and special filler material, the ARCTIC TP-3 outperforms standard high-performance pads, especially for closely spaced chips with height differences due to manufacturing tolerances. Despite extremely low hardness (55 Shore OO), it delivers excellent thermal conductivity.
Versatile Gap Filler
The 1.0mm pads compress easily to bridge gaps up to 0.2mm while minimizing thermal resistance. Electrically insulating, non-adhesive, and easy to cut to size. Perfect for M.2 drives, RAM, chipsets, ICs in PCs, laptops, consoles, and graphics cards. Stackable without performance loss.
Safe & Reliable
- Electrically insulating & non-capacitive
- Heat-conducting & vibration-damping
- Operating temperature: -40~150°C
- UL 94 V-0 flammability rating
- Blue color, easy handling

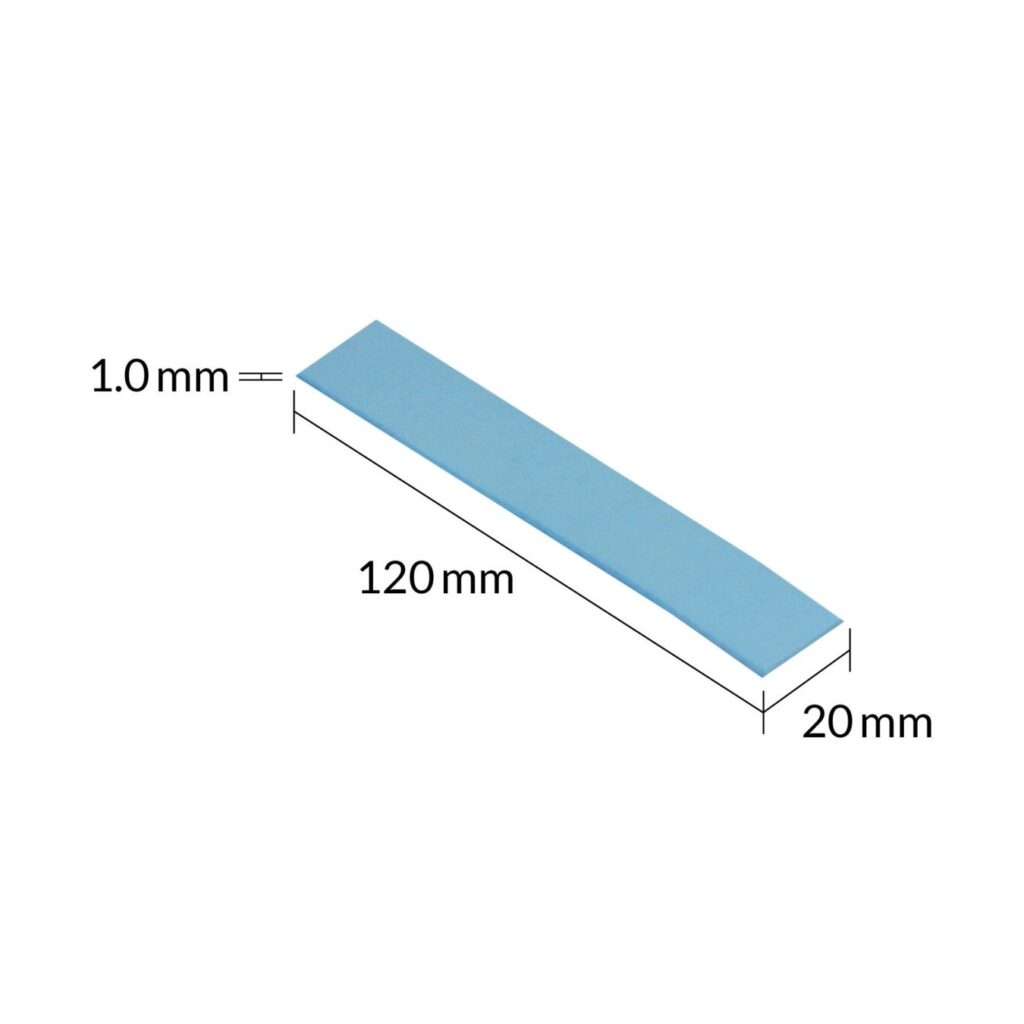

| Size | 120 x 20 x 1.0 mm (4 Pack) |
| Color | Blue |
| Hardness | 55 Shore OO |
| Continuous Use Temperature | -40~150 °C |
| Specific Gravity | 3.4 g/cm³ |
| Dielectric Constant @1MHz | 5.19 |
| Volume Resistance | 2.69 x 10^12 Ω-cm |
| Flammability Rating | UL 94 V-0 |
| Material | Silicone-based |
| Electrically Insulating | Yes |
