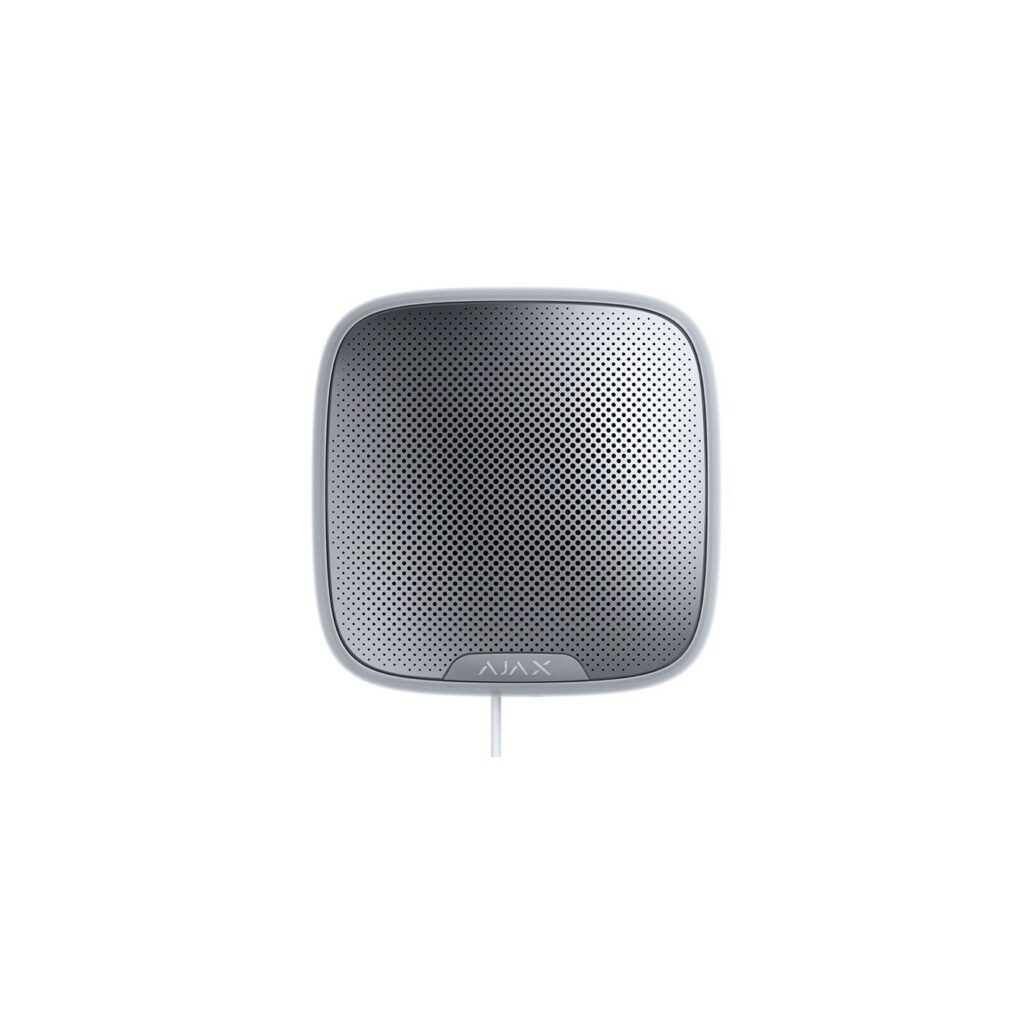

AJAX FIBRA StreetSiren - White, Requires License

• ** The FIBRA products can only be installed after receiving authorised certification directly from AJAX. Contact security@mstronics.com for more information on how to obtain the certification license
• StreetSiren Fibra is a wired siren of the Ajax system. Equipped with a LED frame and piezoelectric alarm indicator producing sound volume up to 113 dB. For both indoor and outdoor installation
• The siren is compatible with Hub Hybrid (2G) and Hub Hybrid (4G). Connection to other hubs, radio signal range extenders, ocBridge Plus, and uartBridge is not provided
• StreetSiren Fibra works as part of the Ajax system, exchanging data with the hub via the secure protocol of Fibra wired communication. The communication range is up to 2,000 m when connected via twisted pair U/UTP cat.5
• StreetSiren Fibra is part of the wired Fibra devices line. The installation, sale, and administration of these devices are performed only by accredited Ajax partners

Compatibility

• Compatible hub models : Hub Hybrid (2G) / Hub Hybrid (4G)

Communication

• Fibra communication technology : Proprietary wired communication technology. Fibra combines the reliability of wires with the freedom of radio connection. It features: Two-way communication / Advanced anti-sabotage / Instant notifications / Remote configuration via the app
• Bus connection: 4-core cable
• Encrypted communication
• Bus line length : up to 2,000 meters  / When using twisted pair U/UTP cat.5

Key features

• Alarm type : acoustic and LED / Buzzer and LED frame
• Alarm volume : from 85 to 113 dB at a distance of 1 m / Adjusted by PRO or user with admin rights in the Ajax app
• Alarm duration : from 3 s to 3 min / Adjusted by PRO or user with admin rights in the Ajax app
• Siren sound frequency : 3.5 ± 0.5 kHz
• Chime : The siren makes a special sound to notify that the opening detectors are triggered when the system is disarmed
• Events indication : Alerts / Entry/exit delays / Security mode / Security mode changing / After-alarm indication

Anti-sabotage protection

• Tampering alarm : Alerts of attempts to detach the detector from the surface or remove the mounting panel
• Protection against forgery : Device authentication

Power supply

• Fibra line power supply : 24 V⎓, up to 46 mW / The Siren is powered by the control panel

Enclosure

• Dimensions : 198.5 × 198.5 × 58 mm
• Weight : 575 g
• Operating temperature range : from −25°C to +60°C
• Operating humidity : up to 95%
• Protection class : IP54
