airMAX - 5 GHz, 90°, 17 dBi Sector Antenna
53.00 €
Ubiquiti airMax 5 GHz sector antenna for PtMP networks, 90° beam with 17 dBi gain and 2×2 dual polarity performance.
Доступно через 4–6 рабочих дней : 1 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The Ubiquiti airMax is a 5 GHz, 90°, 17 dBi antenna for sector coverage in Point-to-MultiPoint (PtMP) networks with 2×2 dual polarity performance.
| Typ | Antenna |
| Color | silber |
| EAN | 0810354020902 |
| Manufacturer no. | AM-5G17-90 |
| Execution | Sector Antenna |
| Antenna type | WLAN |
| Area of application | Outside |
| Antenna - reception frequency | 5.1 GHz - 5.85 GHz |
| WLAN - Art | (5 GHz) |
| More information | HPOL beamwidth: 137° (6 dB), VPOL beamwidth: 118° (6 dB), Gain: 15 - 16 dBi, Max. VSWR: 1.5:1, Polarization: Dual-Linear, Cross-Pole Isolation: 22 dB Min. |
| Notice | Compatible with Rocket Prism 5AC |

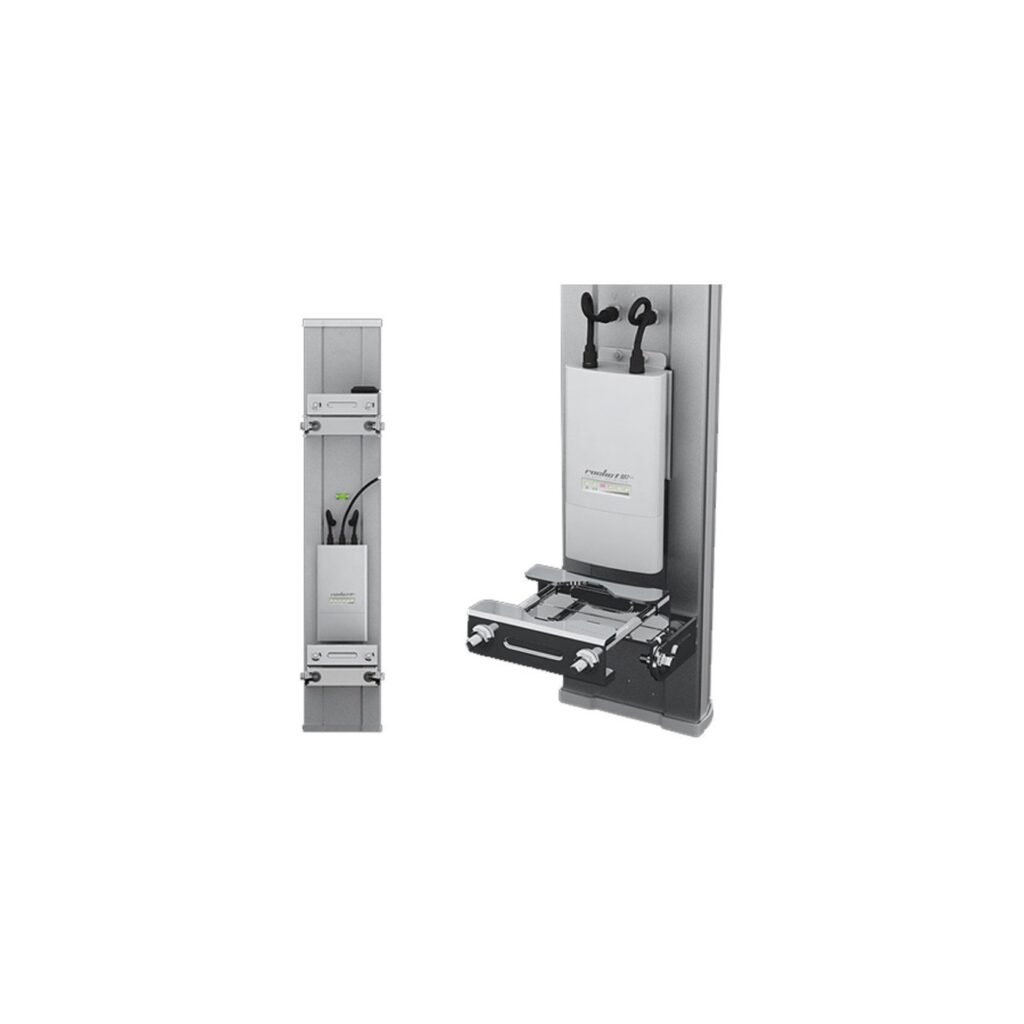

| Accessories - available | Universal Pole Mount, RocketM Mount, Weatherproof RF Jumpers |
| dimension | Width: 63mm x Height: 367mm x Depth/Length: 41mm |
| Weight | 1100 Gramm |
