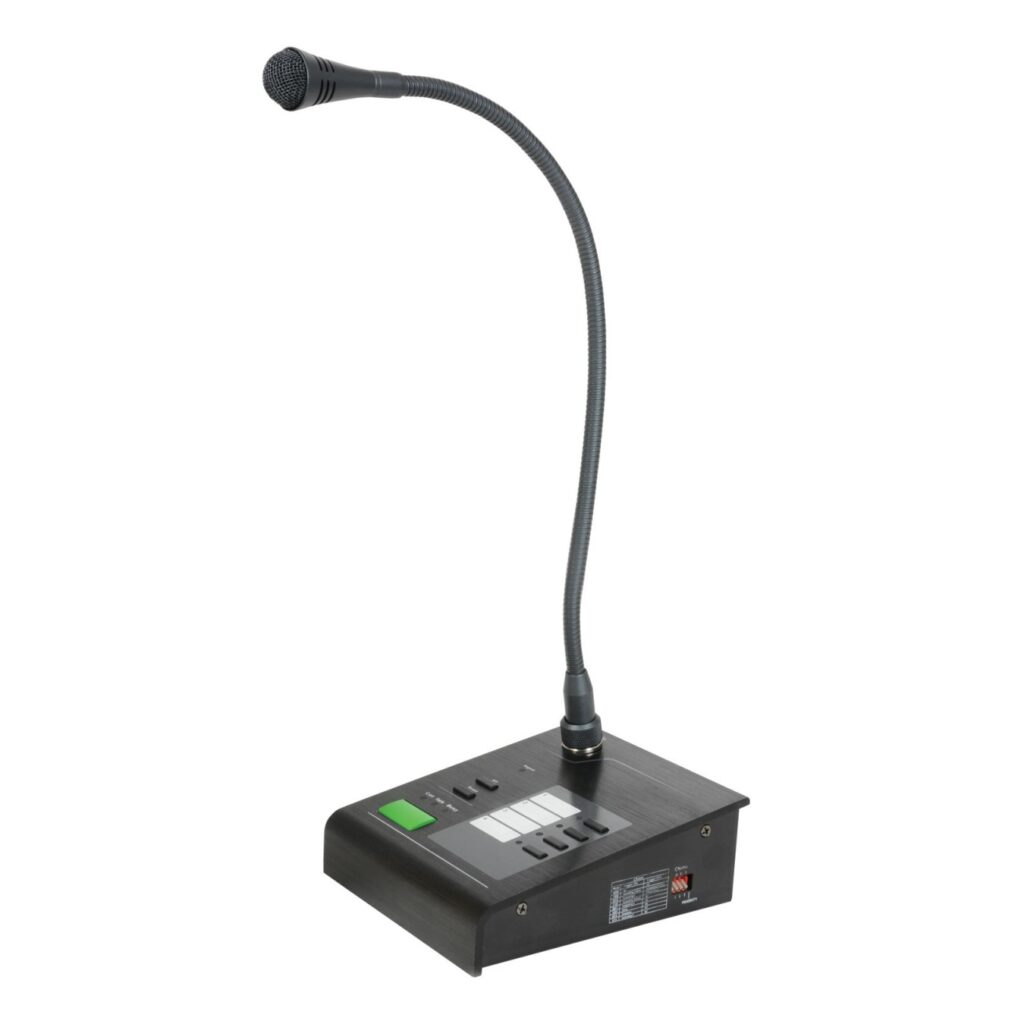

Adastra CS4 Call Station - 953.146UK - for RM244V and RM4460
165.00 €
Adastra CS4 Call Station compatible with RM244V and RM4460; supports 4-zone assignment, 8 chime settings, 3.5 mm aux input, and up to 1 km CAT5 wiring.
Доступно через 2–3 рабочих дней : 5 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
- For use with the RM244V amplifier (953.144UK) and RM4460 (953.446UK)
- Assignable to individual or all 4 zones
- 8 selectable chime settings
- 3.5mm aux input
- Up to 1km remote wiring over CAT5
- Supplied with 1m RJ45 patch lead
- Power supply 24Vdc, 500mA from RJ45 or optional adaptor
- Max. connection length 100m (CAT5 cable) or 1km with optional 24Vdc adaptor
- Capsule back electret condenser
- Polar pattern Cardioid

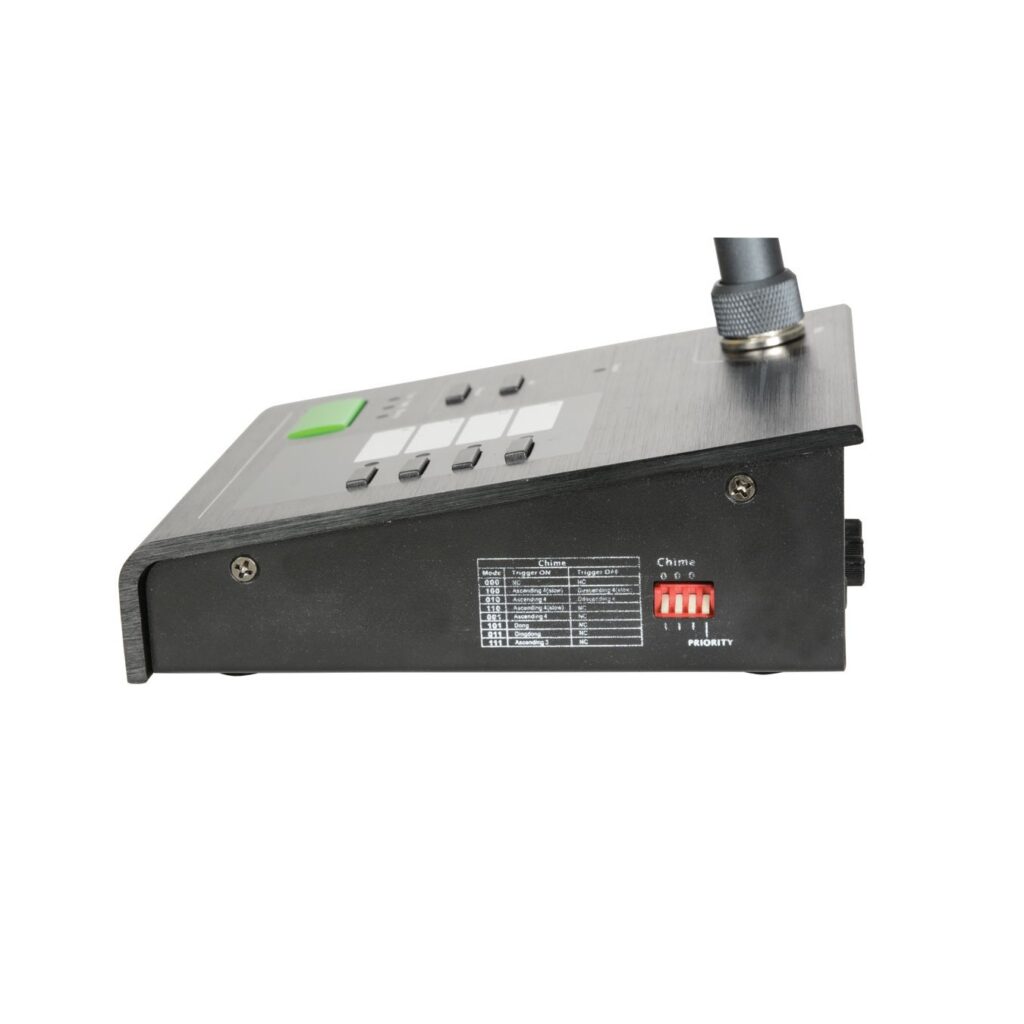

- Controls Aux/Mic/Chime levels, chime DIP switches, zone/page buttons

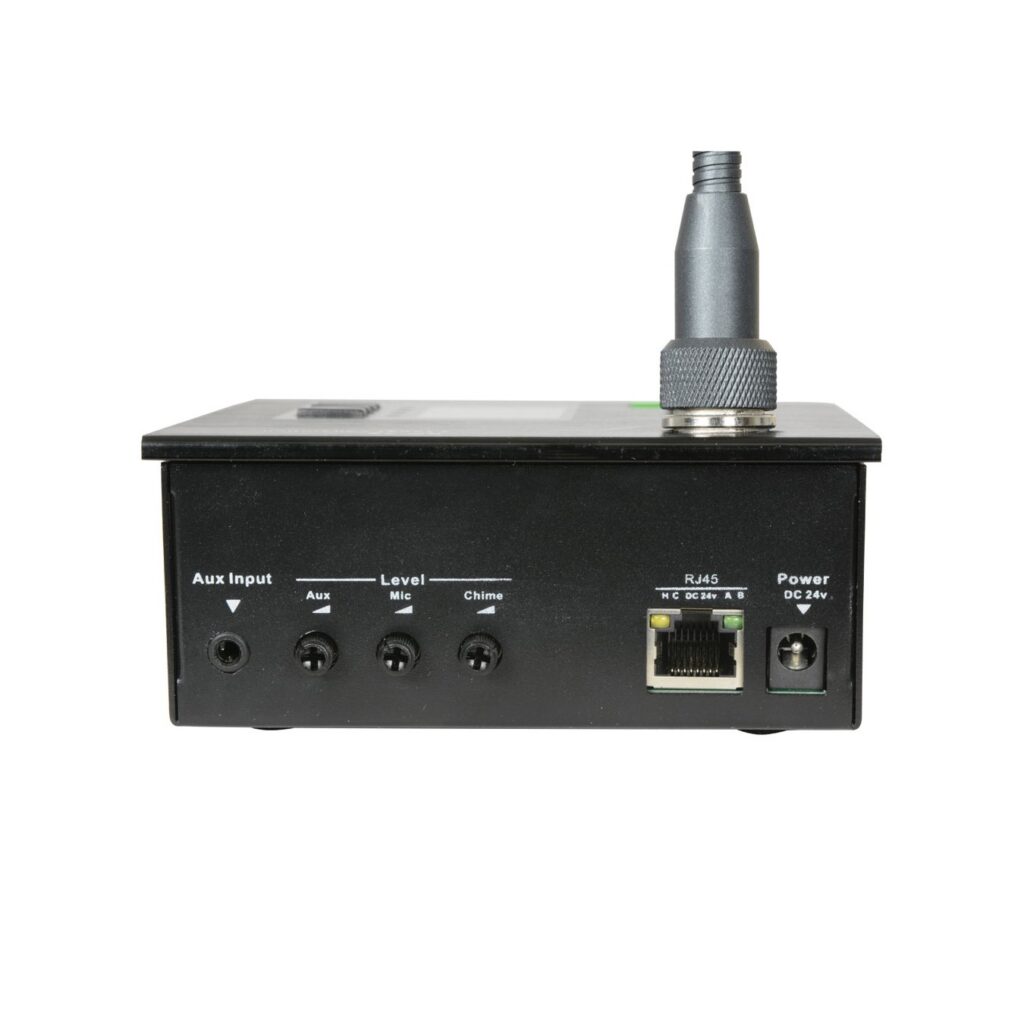

- Connectors RJ45 to amplifier, 24Vdc power jack, 3.5mm aux in
- Frequency response : -3dB 150Hz — 22kHz
- Input level Mic: -46dBV, Aux: -10dBV
- Input impedance Mic: 600 Ohms, Aux: 50k Ohms
- Output level 10dBV
- Output impedance : balanced 600 Ohms
- S/N ratio -60dB (all channels selected)
- Interface RS-485 control
- Zone assign 4 zones or all selectable
- Dimensions 460 x 140 x 115mm
- Weight 670g
| Type | Condenser |
| Chime | Yes |
