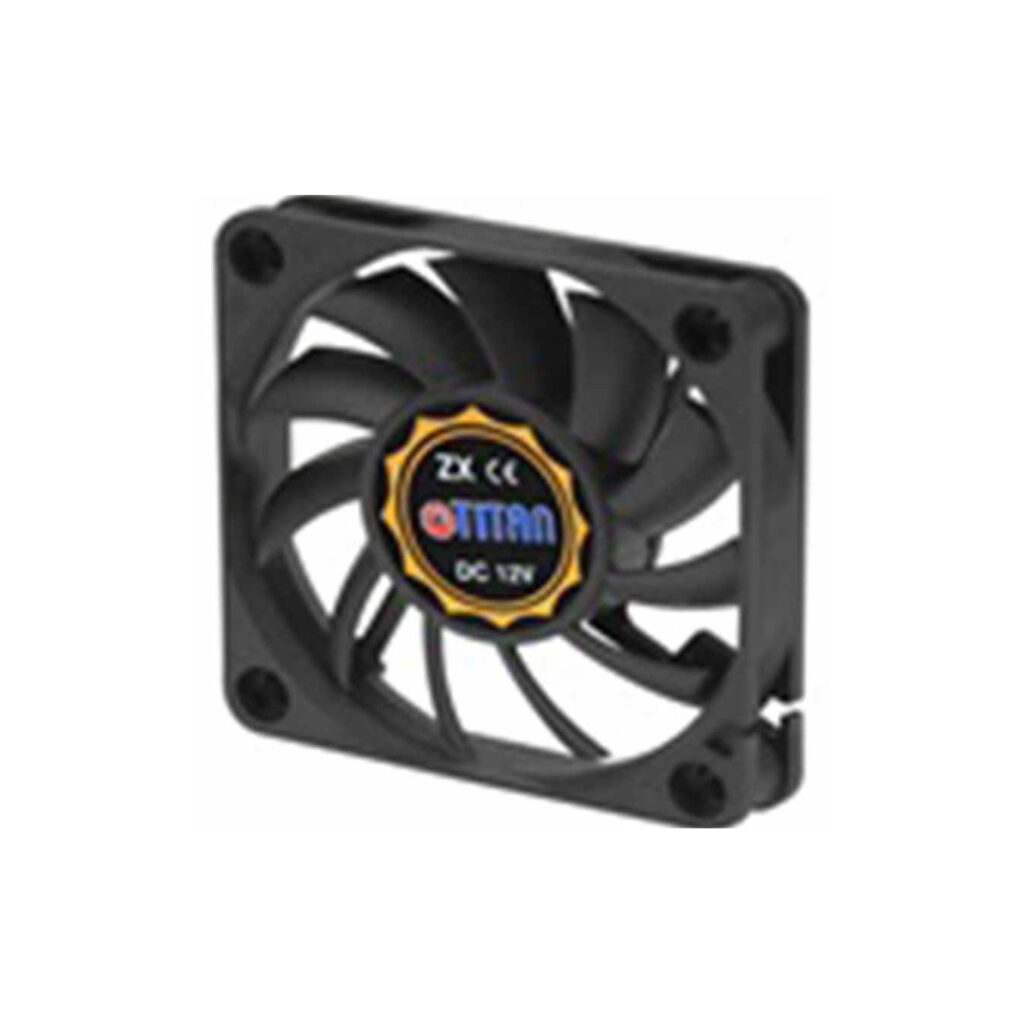

TITAN 33326L Fan 60x60x10mm 3600RPM Z-Axis Bearing
TITAN 33326L 60x60x10mm case fan with 3600 RPM speed,
Available in 2–5 business days : 13 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The TITAN 33326L is a compact 60x60x10mm DC cooling fan designed for efficient airflow in PC cases, servers, and industrial equipment. Operating at 3600 RPM, it delivers a maximum airflow of 25.5 m³/h (15 CFM) while maintaining low noise levels below 26 dBA, making it suitable for noise-sensitive builds.
Equipped with a Z-axis bearing for smooth, long-lasting operation and a 3-pin connector providing RPM tacho signal for motherboard monitoring. It uses a 12V Molex power connector compatible with standard mainboards and PSUs. The black plastic frame ensures reliable performance in various cooling applications.
- Dimensions: 60 x 60 x 10 mm
- Speed: 3600 RPM
- Airflow: 25.5 m³/h (15 CFM)
- Noise: <26 dBA
- Bearing: Z-axis
- Connector: 3-pin + Molex 12V
| Fan Dimension | 60 x 60 x 10 mm |
| Rated Voltage | 12 V DC |
| Rotational Speed | 3600 RPM |
| Maximum Air Flow | 25.5 m³/h (15 CFM) |
| Noise Level | <26 dBA |
| Bearing Type | Z-axis Bearing |
| Connector | 3-pin (Tacho) + 12V Molex |
| Rated Current | 0.12 A (estimated from series) |
| Power Consumption | 2.88 W (estimated from series) |
| Static Pressure | 0.09 Inch H₂O (from series) |
| Tacho Signal | Yes |
