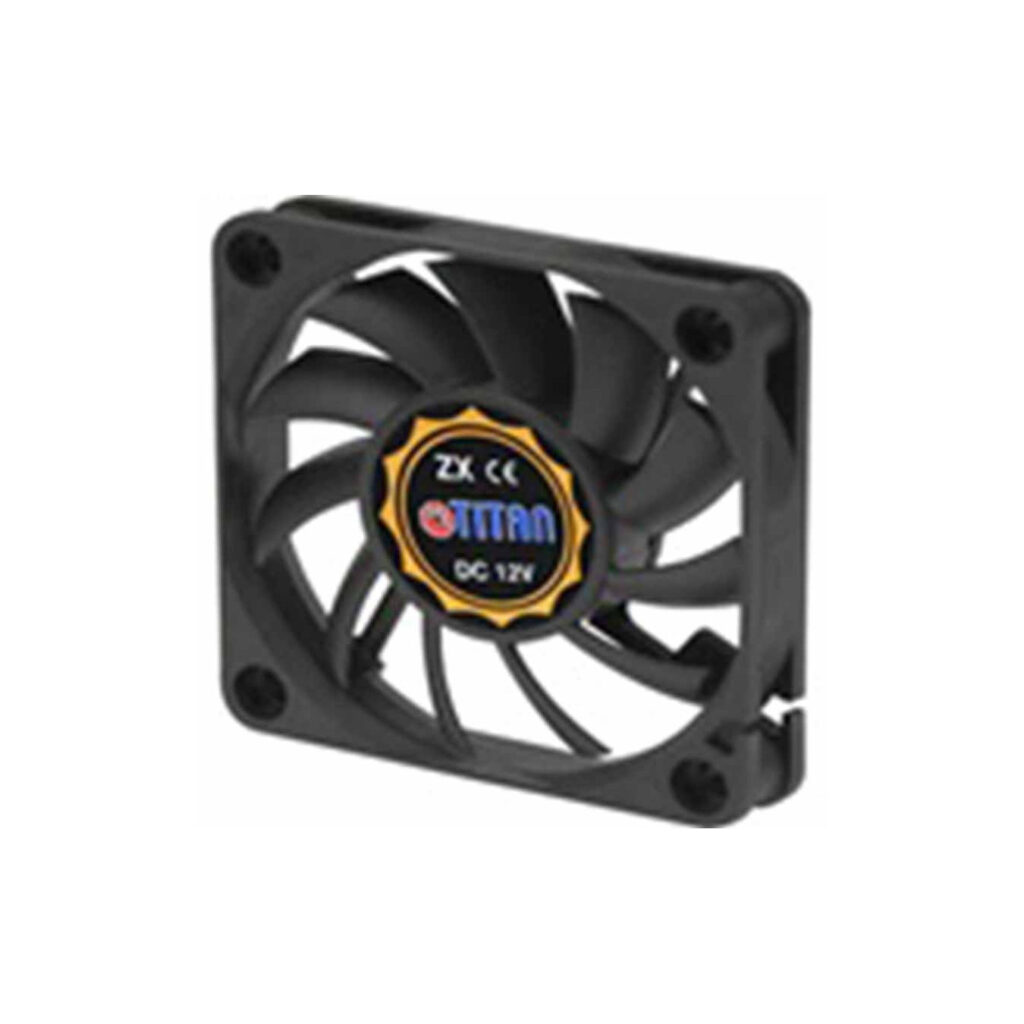

TITAN 33071Z TFD-7010M12Z 70x70x10mm 3pin Case Fan 3500RPM
TITAN 33071Z 70x70x10mm case fan with Z-axis bearing. 3500RPM speed, 21.33 CFM airflow,
Available in 2–5 business days : 14 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The TITAN 33071Z (TFD-7010M12Z) is a compact 70x70x10mm DC axial case fan designed for efficient cooling in PCs, servers, and industrial applications. Featuring a durable Z-axis bearing for smooth operation and longevity, it delivers strong performance at 3500 RPM with 21.33 CFM airflow and 0.08 inch-H2O static pressure while maintaining noise below 33 dBA.
Powered by 12V DC (0.25A, 3W), it uses a 3-pin connector for motherboard tachometer control and a Molex connector for power, ensuring easy integration into various systems. This high-speed fan excels in high-temperature environments, preventing overheating in tight spaces.
- Dimensions: 70 x 70 x 10 mm
- Speed: 3500 RPM
- Airflow: 21.33 CFM (36 m³/h)
- Noise: <33 dBA
- Connectors: 3-pin + Molex
- Bearing: Z-axis
| Model | 33071Z / TFD-7010M12Z |
| Fan Dimensions | 70 x 70 x 10 mm |
| Rated Voltage | 12 VDC |
| Rated Current | 0.25 A |
| Power Consumption | 3 W |
| Speed | 3500 RPM |
| Airflow | 21.33 CFM / 36 m³/h |
| Static Pressure | 0.08 inch-H2O |
| Noise Level | <33 dBA |
| Bearing Type | Z-axis |
| Connector | 3-pin + 12V Molex |
