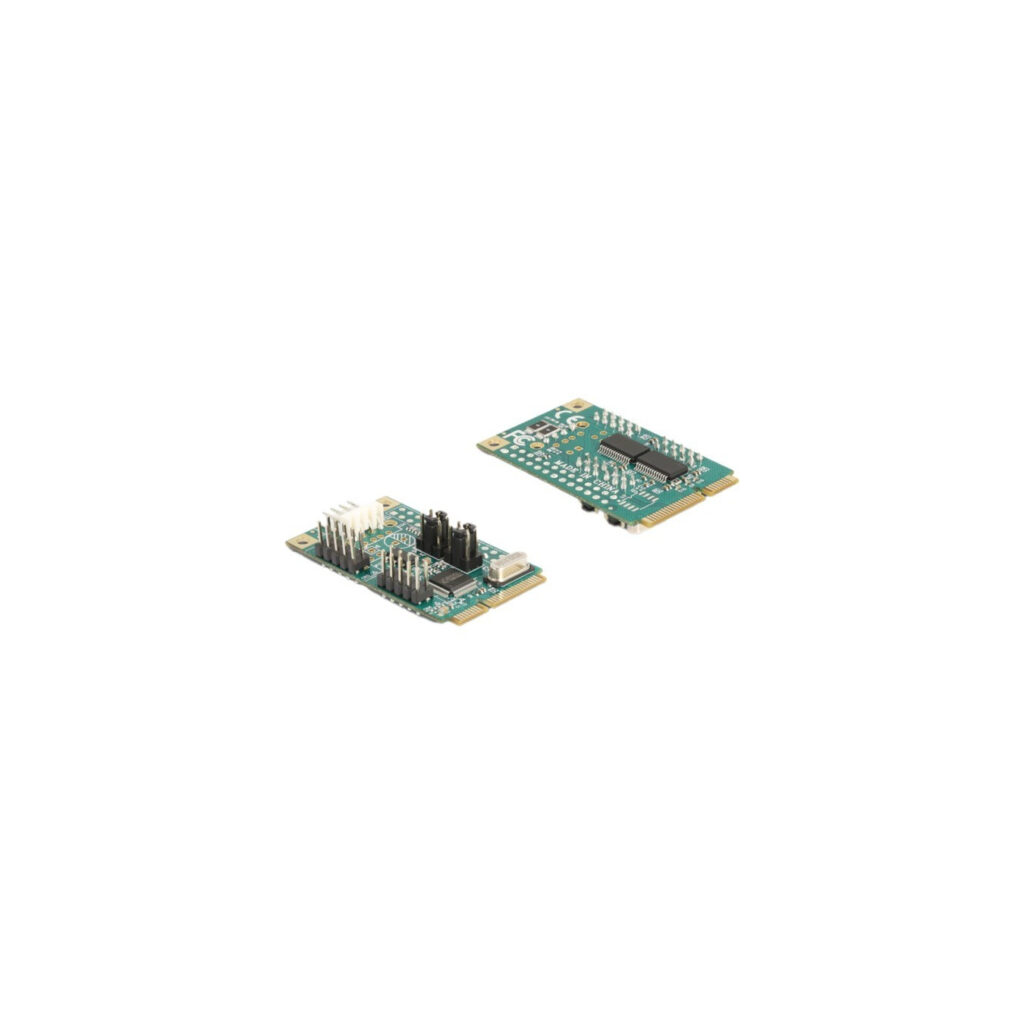

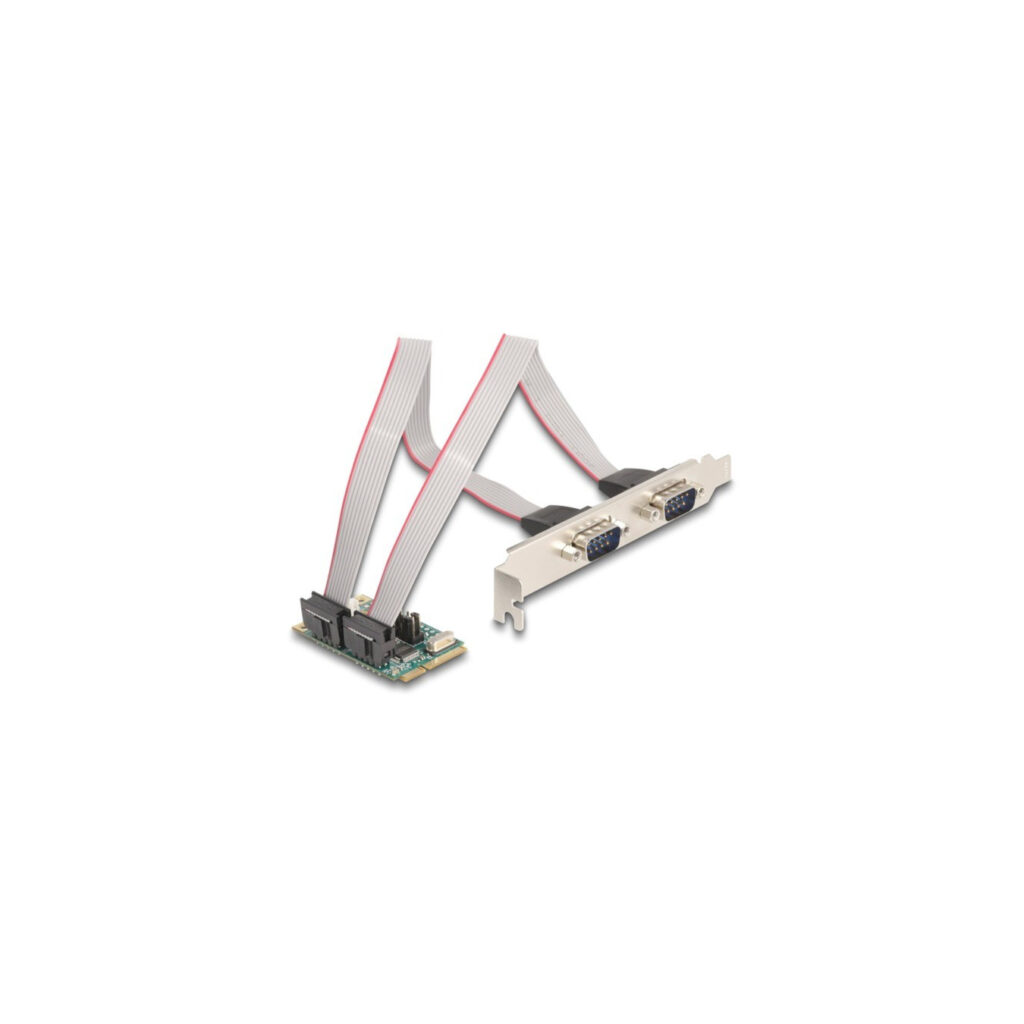

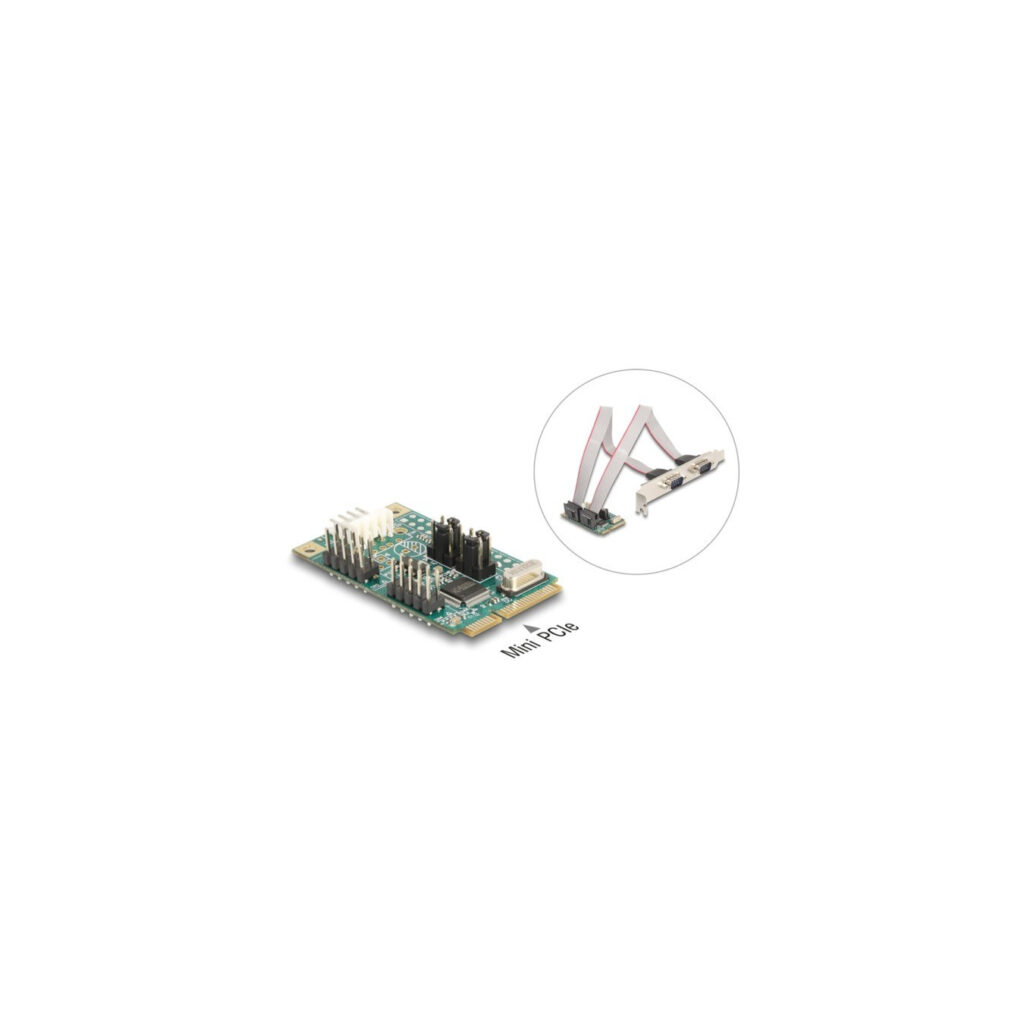

Mini PCIe I O PCIe, 2x serial RS-232, interface card
42.00 €
This Mini PCIe card from Delock expands your system with two additional RS-232 interfaces. This allows various serial devices such as printers, cash register systems and modems to …
Available in 6–10 business days : 55 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
This Mini PCIe card from Delock expands your system with two additional RS-232 interfaces. This allows various serial devices such as printers, cash register systems and modems to be connected to the computer.
| Typ | Interface card |
| EAN | 4043619952762 |
| Manufacturer no. | 95276 |
| slot | Mini-PCIe Version 1.2 |
| Chip | WCH382L |
| Operating System - Supported | Windows 10, Windows 11, Windows Server 2022 |
| Feature | Data transfer rate up to 460.8 Kbps, FIFO: 2 x 256 bytes, data bits: 5, 6, 7, 8, stop bits: 1, 2, parity bit: even, odd, none, marked, empty, flow control: none, hardware RTS / CTS, software, XON / XOFF, signals: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI/12V/5V, jumper for setting RI or 5 V / 12 V on pin 9, electrical power per port: max. 20 watts (5 V / 4 A), electrical power per port: max. 48 watts (12 V / 4 A), cable length including connections: approx. 25 cm |
| More information | Connected devices can optionally be supplied with a voltage of 5 V or 12 V. |

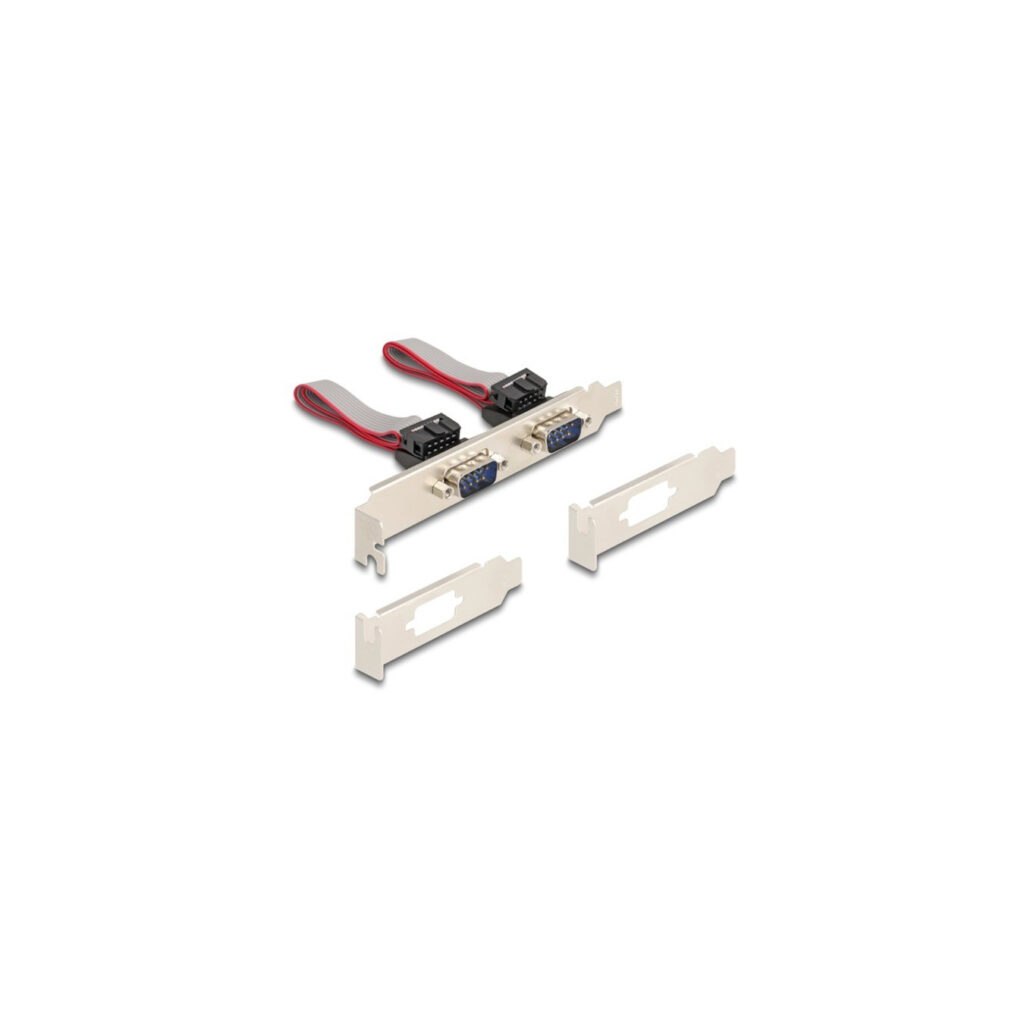

| Accessories - available | 2 serial connection cables, 1 x standard cover, 2 x low profile cover, operating instructions |
| Dimensions | Width: 51mm x Height: 30mm x Depth/Length: 10mm |
