PCI Express card to 2 x serial RS-232 high speed 921K, interface card
With the PCI Express card from Delock you can expand the PC with two external serial RS-232 ports. Devices such as: E.g. scanners, protocol converters, POS systems, infrared, IoT d…
Available in 6–10 business days : 300 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
With the PCI Express card from Delock you can expand the PC with two external serial RS-232 ports. Devices such as: E.g. scanners, protocol converters, POS systems, infrared, IoT devices etc. and different modes can be used. A power supply is optionally available at the connections. Using the low profile panels included in delivery, the PCI Express card can also be installed in a mini PC.
| Typ | Interface card |
| EAN | 4043619896417 |
| Manufacturer no. | 89641 |
| Controller Art | Serial |
| slot | PCIe x1 Version 2.0 |
| Chip | ASIX AX99100 |
| Operating System - Supported | Windows 7, Windows 8, Windows 10 |
| Low Profile | optional |
| Feature | External connections: 2x serial RS-232 DB9 connector, internal connections: 1x PCI Express x1, V2.0, compatible with 16C950 UART, adjustable voltage supply: Pin 1 / 9, maximum total power output 23 W, 5 V (max. 1 A) and 12 V (max. 1.5 A), supports Active State Power Management (ASPM), supports Direct Memory Access (DMA), modes: supported slow IrDA mode up to 115 Kbps, supports multi-drop 9-bit mode |
| More information | System requirements: Windows 7/7-64/8.1/8.1-64/10/10-64, PC with a free PCI Express slot |

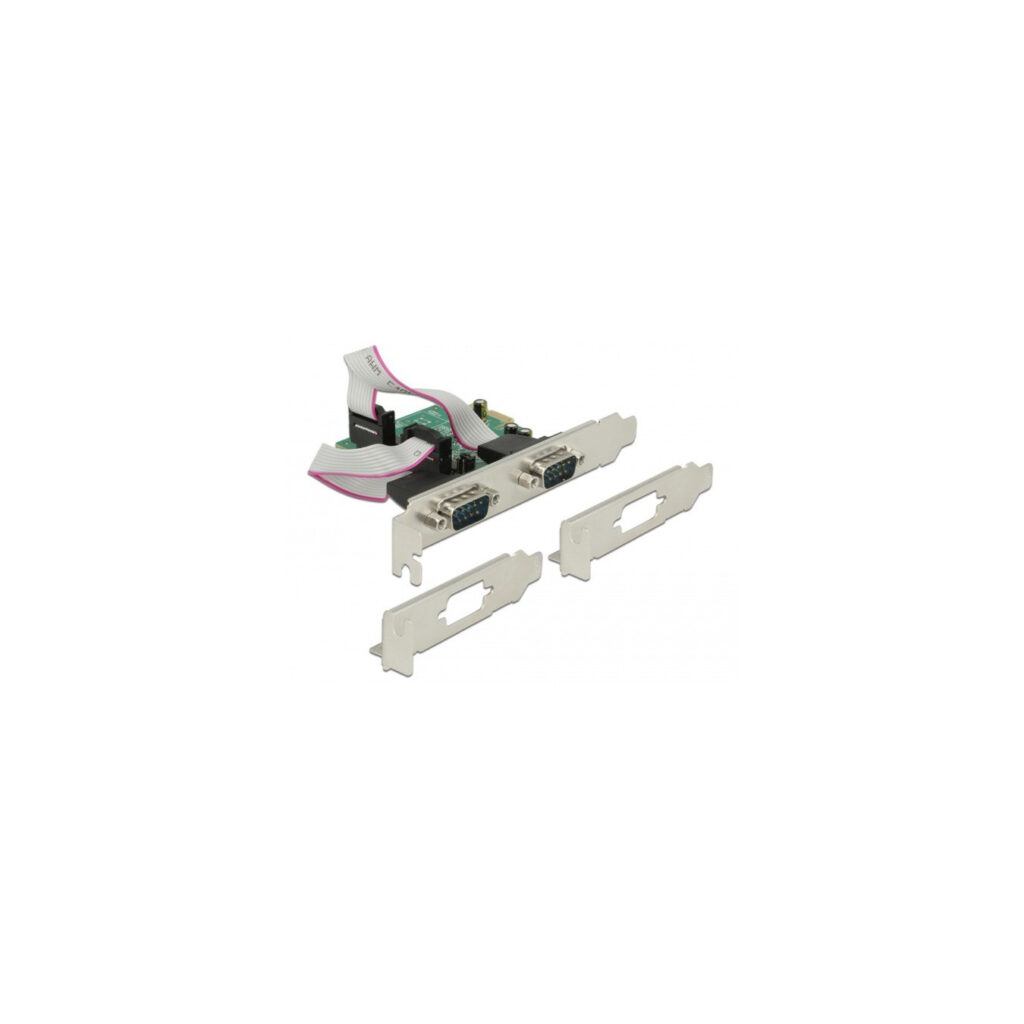

| Accessories - available | Operating instructions, driver CD, 2x low profile bezel |
| Dimensions | Width: 63mm x Height: 10mm x Depth/Length: 72mm |
| Weight | 150 Gramm |
