Converter Mini PCIe to M.2 Key B Slot + Micro SIM Slot Interface Card
49.50 €
Connects M.2 modules (2280/2260/2242/2230/3042/3030) with Key B or B+M via Mini PCIe; 1x micro SIM slot; max module height 1.5 mm.
Available in 6–10 business days : 100 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068

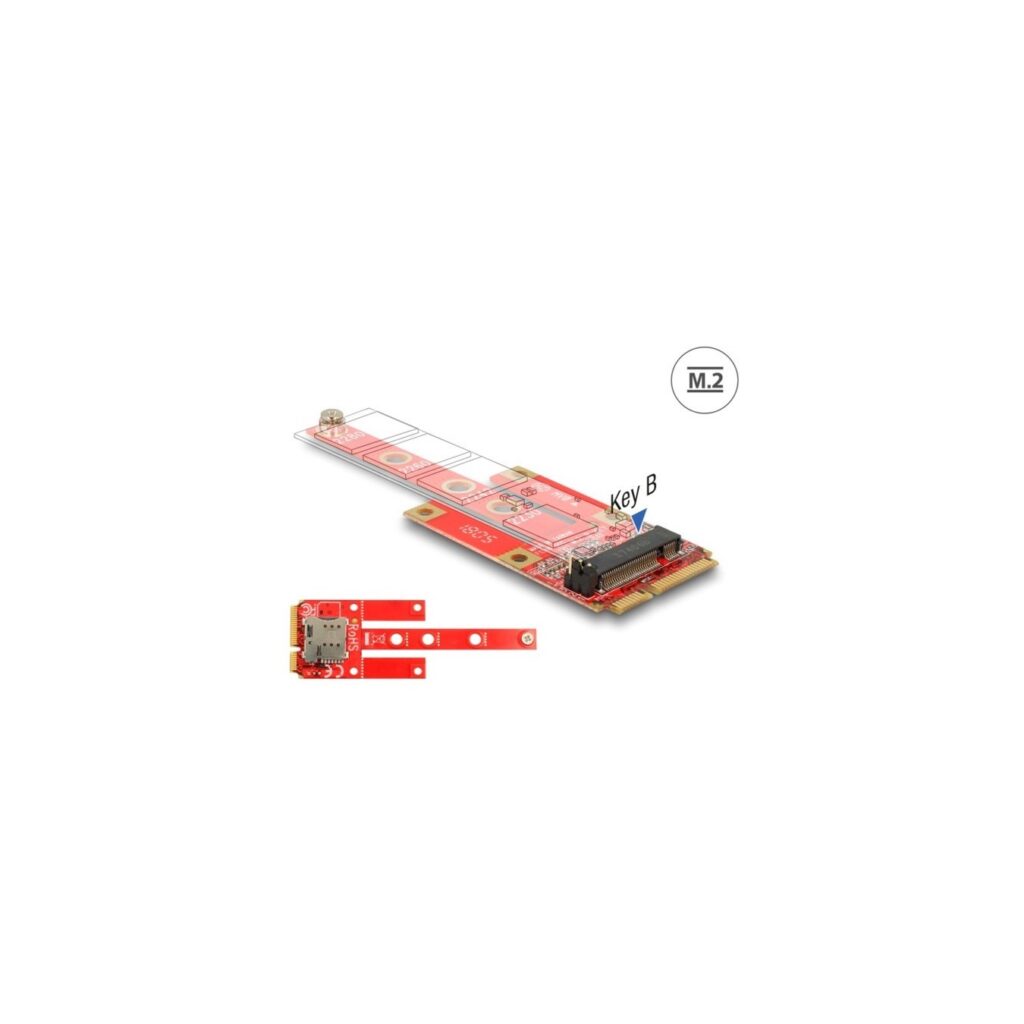

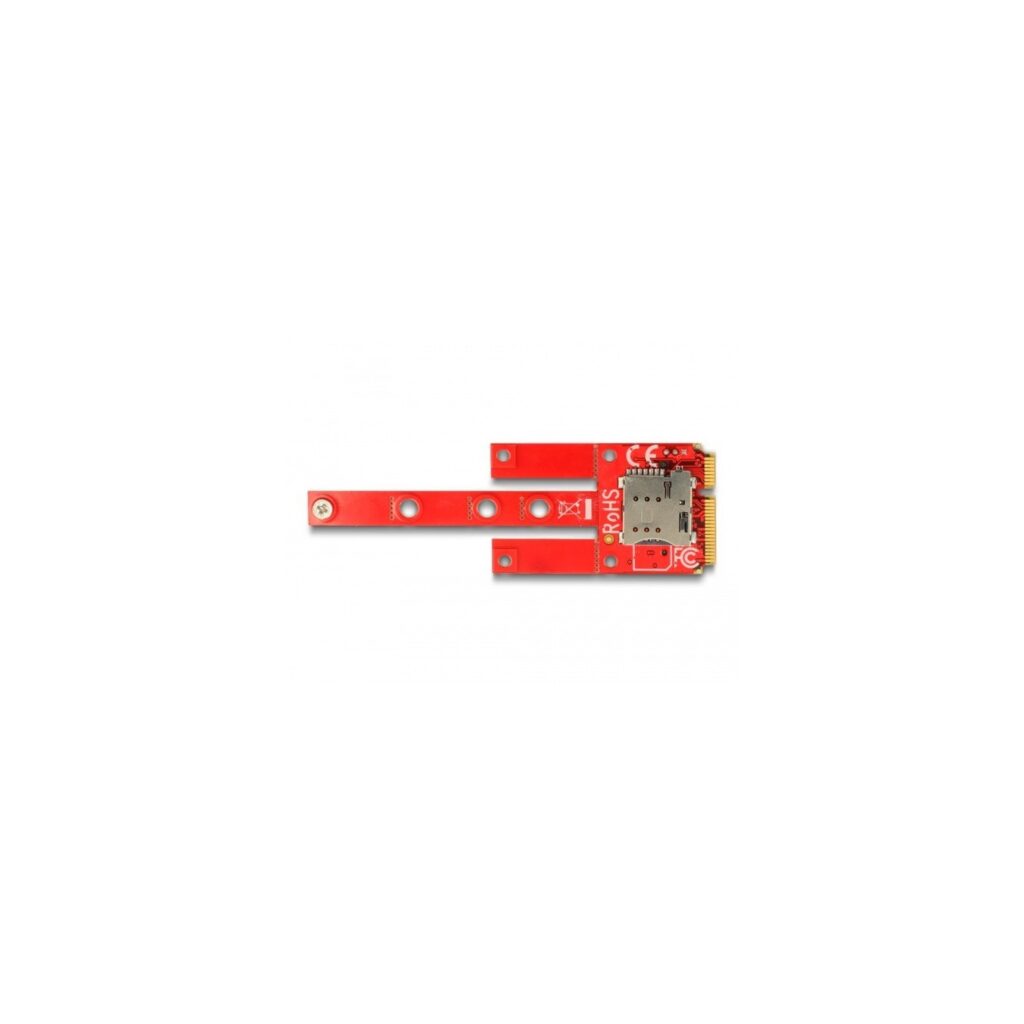

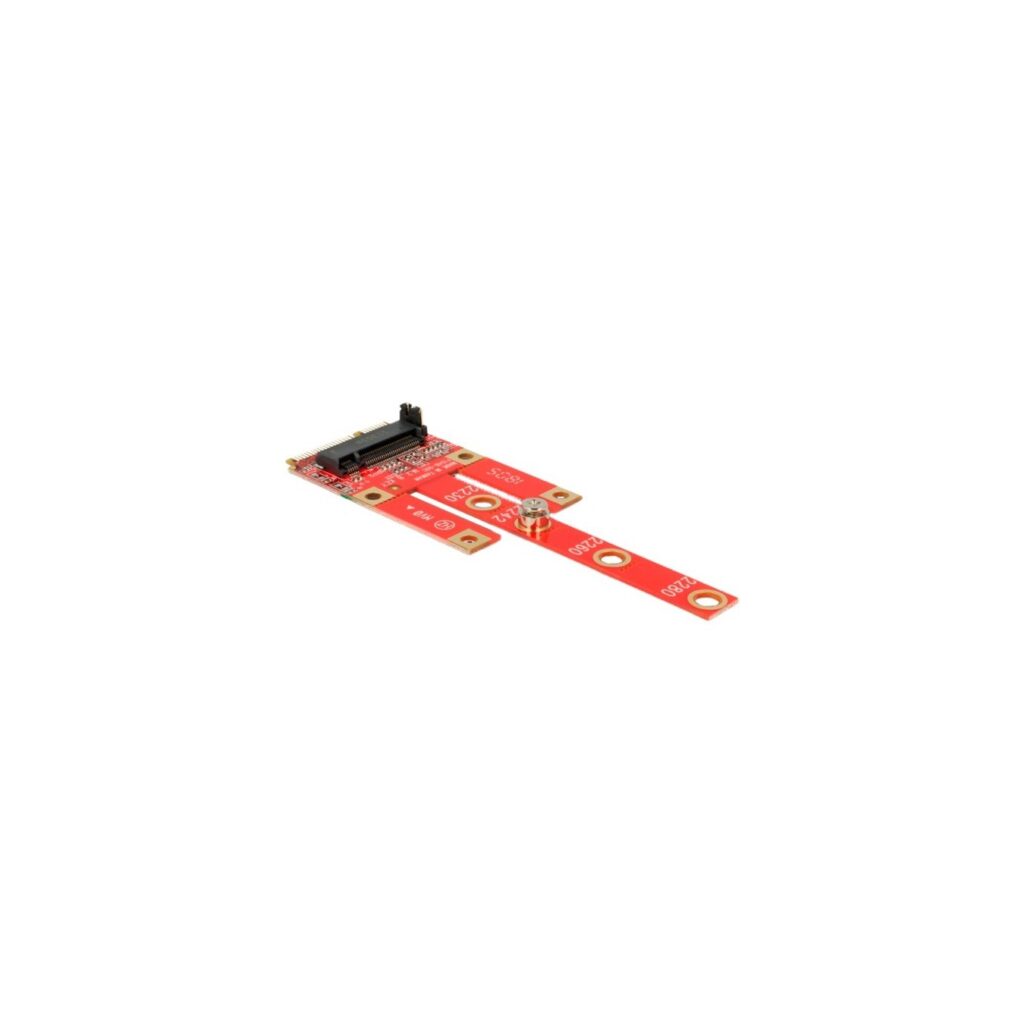

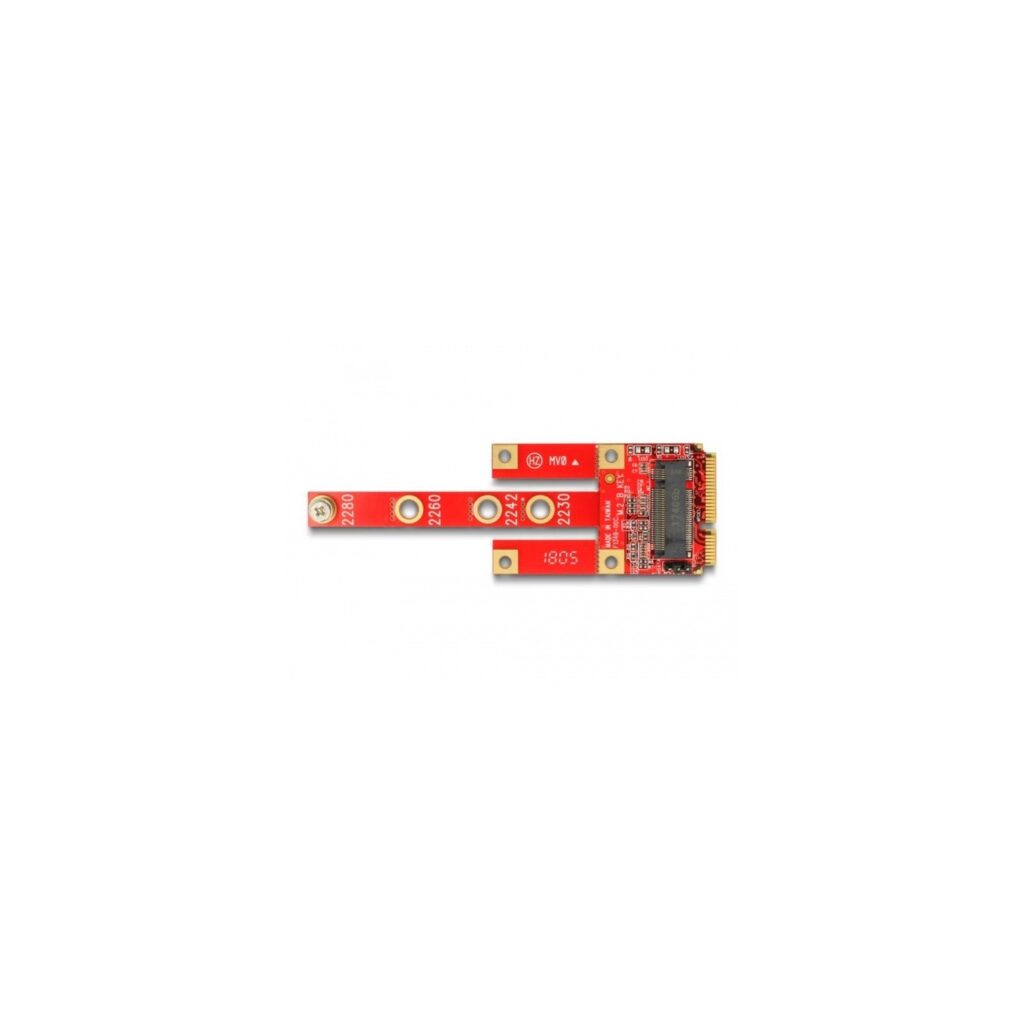

An M.2 module in 2280, 2260, 2242, 2230, 3042 or 3030 format can be connected to this converter from Delock. The Konveter is integrated into the system via the Mini PCIe interface. The adapter can be shortened using the predetermined breaking points. Modules with SATA, USB or PCIe (x1) signal transmission are supported. It is also possible to insert a Micro SIM card into the slot and use it with a corresponding M.2 module.
| Typ | Interface card |
| EAN | 4043619633845 |
| Manufacturer no. | 63384 |
| slot | Mini-PCIe |
| Operating System - Supported | Linux, Windows 10, Windows 11 |

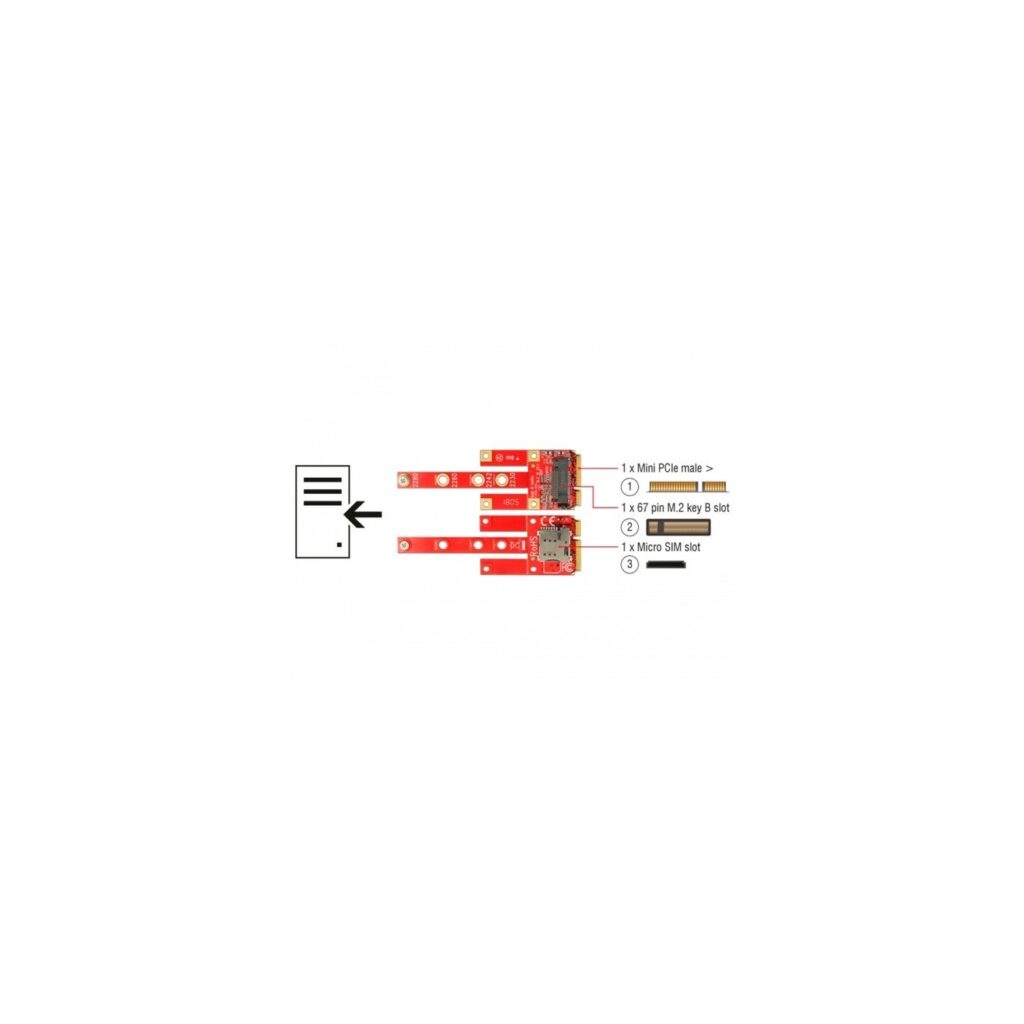

| Feature | Supports M.2 modules in format 2280, 2260, 2242, 2230, 3042 and 3030 with Key B or Key B+M on USB / PCIe / SATA basis | 1x micro SIM slot | Maximum height of the components on the module: 1.5 mm, use of modules equipped on both sides possible | Jumper for PCIe / USB or SATA module setting |

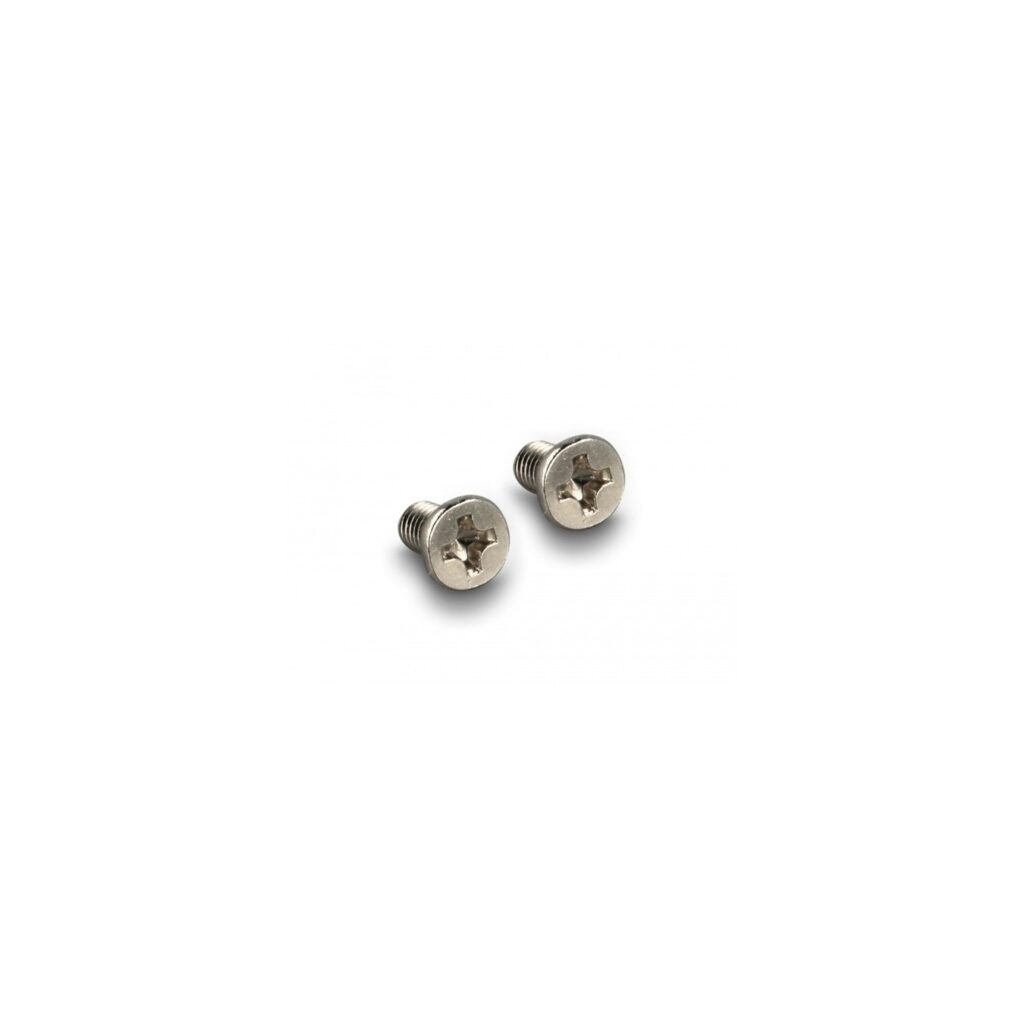

| Accessories - available | Screws, instruction manual |
