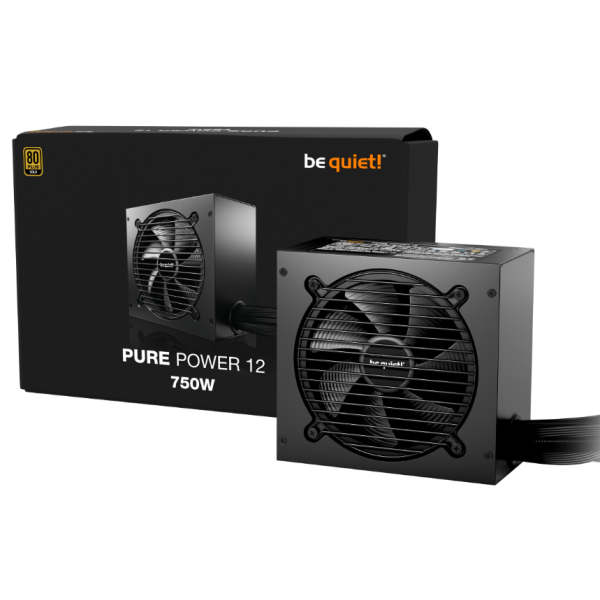

Power Supply Be quiet PURE POWER 12 750W BP003EU

PSU0232
€120.00
Tax included
Quantity
Product in stock

Type: ATX
Power: 750 Watt
Certificate: 80 plus Gold
Connectivity: Main (20+4), 1x P4+4 (CPU), 1x P8 (CPU), 1x 12VHPWR, 3x PCI-E 6+2 pin (GPU), 1x PATA, 6x SATA
Warranty: 10 Years

Specification

  • Pure Power 12 750W Exceptionally Silent Power Supply.
  • ATX 3.1 with full support for PCIe 5.1 GPUs. 80+ Gold Efficiency Certified.
  • AC Input: 100-240Vac, Current 10/5A, Frequency 50-60Hz.
  • DC Out: +3,3V max 20A, +5V max 20A, +12V max 62.5A, -12V max 0,3A, +5Vsb max 3A. Total Max Combine Power output 750W. Power Good signal 100-150 ms.
  • Efficiency: 80 Plus Gold Efficiency certification. 68.4% at 2% load, 88.5% at 10% load, 92.1% at 20% load, 92.8% at 50% load, 90.7% at 100% load.
  • Cables/Connectors: 1x ATX-Motherboard (20+4-pin), 1x P4+4 (CPU), 1x P8 (CPU), 1x 12VHPWR cable, 3x PCI-E 6+2 pin (GPU), 1x PATA, 6x SATA.
  • Fan: Silence-optimized Bequiet fan 120mm. Max fan speed 1800 rpm temperature dependent. dB(A) at 10% load: 8.7, dB(A) at 20% load: 8.7, dB(A) at 50% load: 8.8, dB(A) at 100% load: 22.5.
  • Protection: OCP (over current protection), OVP (over voltage protection), UVP (under Voltage protection), SCP (short circuit protection), OTP (over temperature protection), OPP (over power protection), SIP (surge & inrush protection).
  • Average life time: 100.000 Hours.
  • Safety Approvals: CE, CB, TUV, FCC, cTUVus, CU, UKCA.
  • Environmental directives: Energy Star 8.0, Erp, WEEE, RoHs, Triman.
  • Dimensions without cable: 160(L)x150(H)x86(W)mm.
  • Total Weight: 2.6 Kg.
  • Color: Black.
  • Warranty: 10 years.

Main Features

PSU Form Factor
ATX
PSU 80+ Certificate
Gold
PSU Power
750W
PSU Connectivity PCI-E 6 plus 2 pin
3
PSU Cable Managment
No
PSU Connectivity Main 20+4 pin
1
PSU Connectivity CPU 4 plus 4 pin
2
PSU Connectivity S-ATA
6
PSU Connectivity Molex
1
PSU Connectivity PCI-E 12+4 pin (12VHPWR)
Yes
