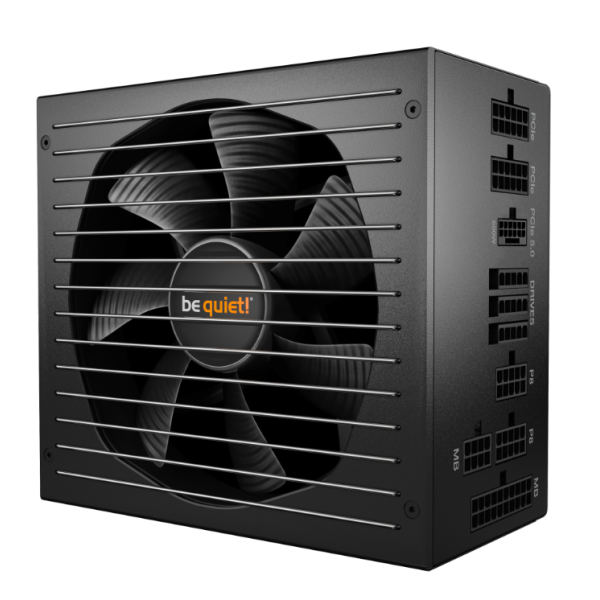

Power Supply Be Quiet 1500W STRAIGHT POWER 12 BN340

PSU0445
€272.00
Tax included
Quantity
Product not available for order
  • Type: ATX
  • Power: 1500 Watt
  • Certificate: 80+ Platinum
  • Connectivity: Main 20+4, CPU  1 x 8 pin ,1 x (4+4), 1x 12VHPWR ; 4 x PCI-E 6+2, 9 x S-ATA, 2 x  P-ATA
  • Warranty 5 Years

Specification

  • Straight Power 12 1500W Modular Power Supply.
  • Compliant ATX 3.0. Full support for PCI-E 5.0 GPUs and GPUs with 6+2 pin connector.
  • AC Input: Voltage 100-240V, Current 13/6.5A, Frequency 50-60Hz.
  • DC Out: +3,3V max 25A, +5V max 25A, +12V1 max 83.3A, -12V max 0,5A, +5Vsb max 3A. Total Combine Power output 1000W. Power Good signal 100-150 ms.
  • Efficiency: Platinum Energy 80 Plus certification. 64.0% at 2% load, 88,1% at 10% load, 92,2% at 20% load, 93,9% at 50% load, 91,8% at 100% load.
  • Cables/Connectors: 1x ATX-Motherboard (20+4-pin), 1x P8 (CPU), 1x P4+4 (CPU), 1x 12VHPWR, 4x PCI-E 6+2 pin (GPU), 2x PATA, 9x SATA.
  • Fan: Silent Wings 135mm. Exceptional silent fan. Max fan speed 2100 rpm temperature dependent.
  • Protection: OCP (over current protection), OVP (over voltage protection), UVP (under Voltage protection), SCP (short circuit protection), OTP (over temperature protection), OPP (over power protection), SIP (surge & inrush protection).
  • MTBF: >100.000 Hours.
  • Safety Approvals: CE, CB, TUV, FCC, cTUVus, RCM, BSMI, CU, CCC, UKCA, cRUus
  • Environmental directives: Energy Star 8.0, Erp, WEEE, RoHs, Triman.
  • Dimensions without cable: 160(L)x150(W)x86(H)mm.
  • Total Weight: 1.85Kg.
  • Color: Black.
  • Warranty: 10 years.

Main Features

PSU Form Factor
ATX
PSU 80+ Certificate
Platinum
PSU Power
1500W
PSU Connectivity PCI-E 6 plus 2 pin
4
PSU Cable Managment
Full Modular
PSU Connectivity Main 20+4 pin
1
PSU Connectivity CPU 4 plus 4 pin
2
PSU Connectivity S-ATA
9
PSU Connectivity Molex
2
PSU RGB
No
