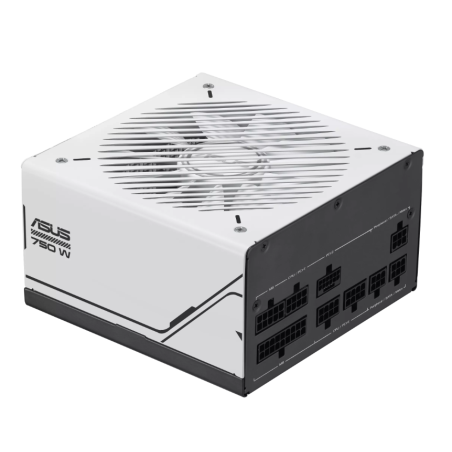

Power Supply 750W Asus PRIME AP-750G modular

26370
€117.00
Tax included
Quantity
Product in stock
    • Power: 750 Watt
    • ATX, active PFC
    • Full Modular
    • Connectors: 1 x 24 pin; 2 x CPU 4+4-pin; 1 x PCI-E 16-pin (both PSU & connector side); 3 x PCI-E 8-pin; 5 x SATA; 3 x Molex
    • 80 PLUS Gold certificate
    • Warranty 2 Years

Specification

Model: AP-750G

Intel Form Factor:ATX12V

PFC Type: Active PFC

ATX Standard: ATX 3.0

Dimensions: 150 x 150 x 86 mm

Efficiency: 80Plus Gold

Protection Features: OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials: ROHS

AC Input Range: 100-240Vac

DC Output Voltage: +3.3V +5V +12V -12V +5Vsb

Maximum Load: 20A20A62A 0.3A 2.5A

Combined Load: 110W 110W 744W 3.6W 12.5W

Total Output: 750W

Cable Connectors: MB 24/20-pin x 1/ CPU 4+4-pin x 2/ PCI-E 16-pin x 1 (both PSU & connector side)/ PCI-E 8-pin x 3/ SATA x 5/ PERIPHERAL x 3

Package Contents: Power Cord x 1

Motherboard Power Cable x 1 (610mm)/ CPU Cable x 2 (650mm)

PCI-E Gen 5 16-pin Cable x 1 (675mm)/ PCI-E (16-pin to 8-pin-8-pin) Cable x1 (675mm)

PCI-E 1-to-1 Cable x 1 (675mm)/ SATA 1-to-2 Cable x 1 (400+120mm)/ SATA 1-to-3 Cable x 1 (400+120+120mm)/ Peripheral 1-to-3 Cable x 1 (400+150+150mm)/ User Manual x 1

Weight: 1.466 kg (single PSU)

0dB Technology: No

Main Features

PSU Form Factor
ATX
PSU 80+ Certificate
Gold
PSU Power
750W
PSU Connectivity PCI-E 6 plus 2 pin
4
PSU Cable Managment
Full Modular

Specific References
