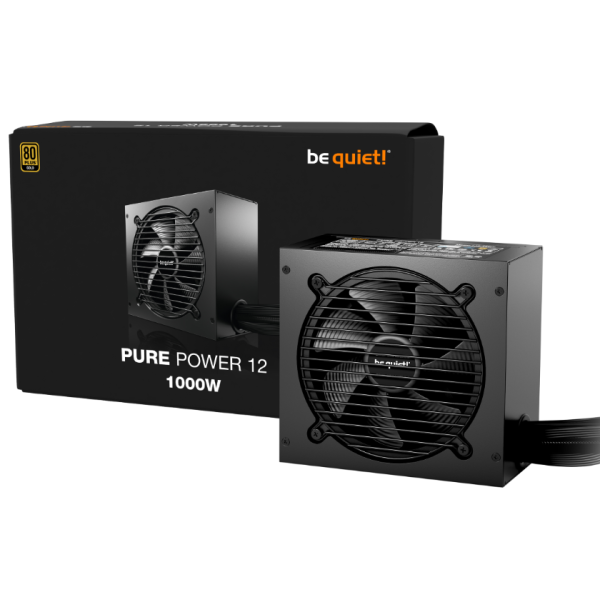

Power Supply Be quiet PURE POWER 12 1000W BP005EU

PSU0231
€168.00
Tax included
Quantity
Product in stock

Type: ATX
Power: 1000 Watt
Certificate: 80 plus Gold
Connectivity: Main (20+4), 1x P4+4 (CPU), 1x P8 (CPU), 1x 12VHPWR, 3x PCI-E 6+2 pin (GPU), 1x PATA, 6x SATA
Warranty: 10 Years

Specification

Pure Power 12 1000W Exceptionally Silent Power Supply.
ATX 3.1 with full support for PCIe 5.1 GPUs. 80+ Gold Efficiency Certified.
AC Input: 100-240Vac, Current 12/ 6A, Frequency 50-60Hz.
DC Out: +3,3V max 22A, +5V max 22A, +12V max 83.3A, -12V max 0,3A, +5Vsb max 3A. Total Max Combine Power output 1000W. Power Good signal 100-150 ms.
Efficiency: 80 Plus Gold Efficiency certification. 66.3% at 2% load, 89.2% at 10% load, 92.7% at 20% load, 92.9% at 50% load, 90.6% at 100% load.
Cables/Connectors:

  • 1x ATX-Motherboard (20+4-pin)
  • 1x P4+4, 1x P8 (CPU)
  • 1x 12VHPWR cable
  • 3x PCI-E 6+2 pin
  • 1x PATA
  • 6x SATA

Fan: Silence-optimized Bequiet fan 120mm. Max fan speed 2000 rpm temperature dependent. dB(A) at 10% load: 8.6, dB(A) at 20% load: 8.9, dB(A) at 50% load: 9, dB(A) at 100% load: 31.6.

Protection: OCP (over current protection), OVP (over voltage protection), UVP (under Voltage protection), SCP (short circuit protection), OTP (over temperature protection), OPP (over power protection), SIP (surge & inrush protection).
Average life time: 100.000 Hours.
Safety Approvals: CE, CB, TUV, FCC, cTUVus, CU, UKCA.
Environmental directives: Energy Star 8.0, Erp, WEEE, RoHs, Triman.
Dimensions without cable: 160(L)x150(H)x86(W)mm.
Total Weight: 2.8 Kg.
Color: Black.
Warranty: 10 years.

Main Features

PSU Form Factor
ATX
PSU 80+ Certificate
Gold
PSU Power
1000W
PSU Connectivity PCI-E 6 plus 2 pin
3
PSU Cable Managment
No
PSU Connectivity Main 20+4 pin
1
PSU Connectivity CPU 4 plus 4 pin
1
PSU Connectivity S-ATA
6
PSU Connectivity Molex
1
PSU Connectivity PCI-E 12+4 pin (12VHPWR)
Yes

Specific References
