| HARDWARE FEATURES |
| Ethernet Ports |
1x 10/100/1000 Mbps WAN Port,
4x 10/100/1000 Mbps LAN Port |
| Buttons |
WPS/Wi-Fi Button, Power On/Off Button, Reset Button |
| Antennas |
4 Fixed Omni Directional Antennas |
| External Power Supply |
12V/1A |
| Dimensions(WxDxH) |
215 x 117 x 32mm |
| WIRELESS FEATURES |
| Standards |
IEEE 802.11 ac/n/a 5 GHz, IEEE 802.11 n/b/g 2.4 GHz |
| Wireless |
1300 Mbps on 5 GHz + 600 Mbps on 2.4 GHz |
| Frequency |
2.4 GHz and 5 GHz |
| Reception Sensitivity |
5GHz:
11a 6Mbps:-98dBm, 11a 54Mbps:-78dBm
11ac VHT20_MCS0:-98dBm, 11ac VHT20_MCS8:-72dBm
11ac VHT40_MCS0:-92dBm, 11ac VHT40_MCS9:-68dBm
11ac VHT80_MCS0:-89dBm, 11ac VHT80_MCS9:-64dBm
2.4GHz:
11g 6Mbps:-97dBm, 11a 54Mbps:-77dBm
11n VHT20_MCS0:-97dBm, 11n VHT20_MCS8:-72dBm
11n VHT40_MCS0:-92dBm, 11n VHT40_MCS9:-67dBm |
| Wireless Functions |
Enable/Disable Wireless Radio, WMM |
| Wireless Security |
WPA, WPA2, WPA3 encryptions |
| SOFTWARE FEATURES |
| Quality of Service |
Device Prioritization |
| WAN Type |
Dynamic IP/Static IP/PPPoE(Dual Access)/PPTP(Dual Access)/L2TP(Dual Access) |
| DHCP |
Server, DHCP Client List, Address Reservation |
| Management |
Access Control, Local Management, Remote Management |
| Port Forwarding |
Port Forwarding, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
DynDns, NO-IP, TP-Link |
| Access Control |
Local Management Control, White List, Black List |
| Parental Controls |
URL Filtering, Time Controls |
| Firewall Security |
SPI Firewall, IP and MAC Address Binding |
| Protocols |
IPv4, IPv6 |
| Guest Network |
2.4 GHz Guest Network, 5 GHz Guest Network |
| OTHERS |
| Certification |
FCC, CE, RoHS |
| Package Contents |

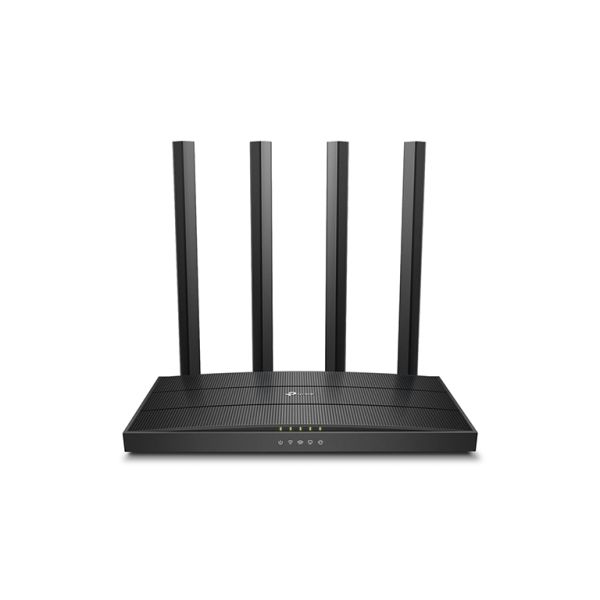

Wireless Router Archer C80
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide |
| System Requirements |
Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Cable or DSL Modem
Subscription with an internet service provider (for internet access) |
| Environment |
Operating Temperature: 0°C~40°C (32°F ~104°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
