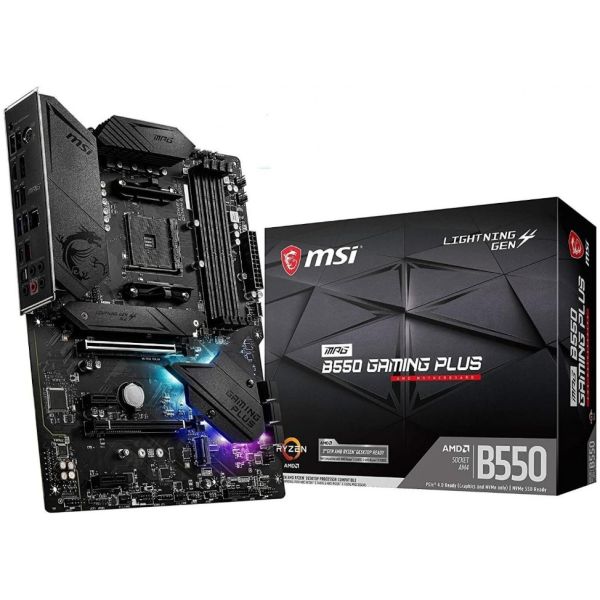

Motherboard MSi MPG B550 GAMING PLUS
  • Motherboard MSi MPG B550 GAMING PLUS
  • Motherboard MSi MPG B550 GAMING PLUS
  • Motherboard MSi MPG B550 GAMING PLUS
  • Motherboard MSi MPG B550 GAMING PLUS

Motherboard MSi MPG B550 GAMING PLUS

MOT0051
149,00 €
με ΦΠΑ
Ποσότητα
Available upon order 2-5 days
  • ATX Form Factor
  • Intel B550 Chipset
  • Socket AM4 (ryzen 3 gen, 4 Gen, 5 Gen)
  • RAM 4 x DDR4 up to 128 GB
  • 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1
  • HDMI, Display Port
  • Back Panel: 4x USB 2.0; USB 3.2 (1x Gen 2, Type C), (1 x Gen 2, Type A), (2 x Gen 1, Type A)

Specification

CPU Support Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
Chipset AMD® B550
MB Size ATX
Memory  4 DIMM DDR4 Sockets for ECC & non-ECC un-buffered DDR4 RAM up to 3200+ MHz by JEDEC or up to 4600+ MHz by A-XMP OC MODE. Max 64GB. Dual Channel architecture
VGA

1x Display Port (max. resolution of 4096x2160 @60H,

1x HDMI v2.1 (max. resolution of 4096x2160 @60Hz)
Slots 1x PCIe (x16) v4.0, 1x PCIe (x16) v3.0 2x PCIe (x1) v3.0
Storage 6x SATA3 6Gbps ports support RAID 0, RAID 1 and RAID 10, 1x M.2 slots (Key M), supports PCIe 4.0/3.0 x4, Supports SATA 6Gb/s, Supports 2242/ 2260/ 2280 storage devices
NIC 1x Realtek® 8111HN Gigabit LAN controller
Audio

Realtek® ALC892/ALC897 Codec

7.1-Channel High Definition Audio

Supports S/PDIF output
I/O 1x PS/2 Keyb/Mouse combo port, 1x HDMI, 1x Display Port, 4(+4int)x USB 2.0, 2(+2int) USB 3.2 Gen1, 1x RJ45 (LAN), 3 Audio jacks, 1x Front panel audio connector, 1x Clear CMOS jumper
Special Core boost, Lightning Gen 4 solution, M.2 Shield Frozr, 2oz Thickened Copper PCB, PCI-E Steel Armor, EZ Debug LED, Audio boost, DDR4 boost
Warranty 3 Years

Χαρακτηριστικά

USB Interface
USB Type C
Υποδοχές σύνδεσης
HDMI
Display Port
1
Υποδοχή CPU
AM4
Motherboard Form Factor
ATX
