PCIe x1 Card - 1x External USB-C PD 30W + 2x External USB 3.2 Gen 1, USB Controller
Delock PCIe x1 USB Controller adds two USB 3.2 Gen 1 ports and one USB-C port for external USB devices.
Available in 6–10 business days : 27 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
This PCI Express x1 card from Delock expands the PC with two external USB 3.2 Gen 1 ports and one USB-C port. Various USB devices, such as docking stations, card readers and external housings, can be connected to the card. All you need is a free PCIe x1 slot and a 6-pin power connector. Thanks to the included low profile bezel, the card can also be used in PC systems with a small form factor. The USB-C port supports power delivery with up to 30 watts, so that external devices such as smartphones, tablets or notebooks can be charged.
| Typ | USB-Controller |
| EAN | 4043619902293 |
| Manufacturer no. | 90229 |
| Controller Art | USB 3.2 (5 Gbit/s) |
| slot | PCIe x1 Version 2.0 |
| Chip | VIA VL805 |
| Protocol | USB 3.2 Gen 1 (5 Gbit/s) |
| Connections - external | 2x USB A, 1x USB C |
| Operating System - Supported | Linux, Windows 10, Windows 11 |

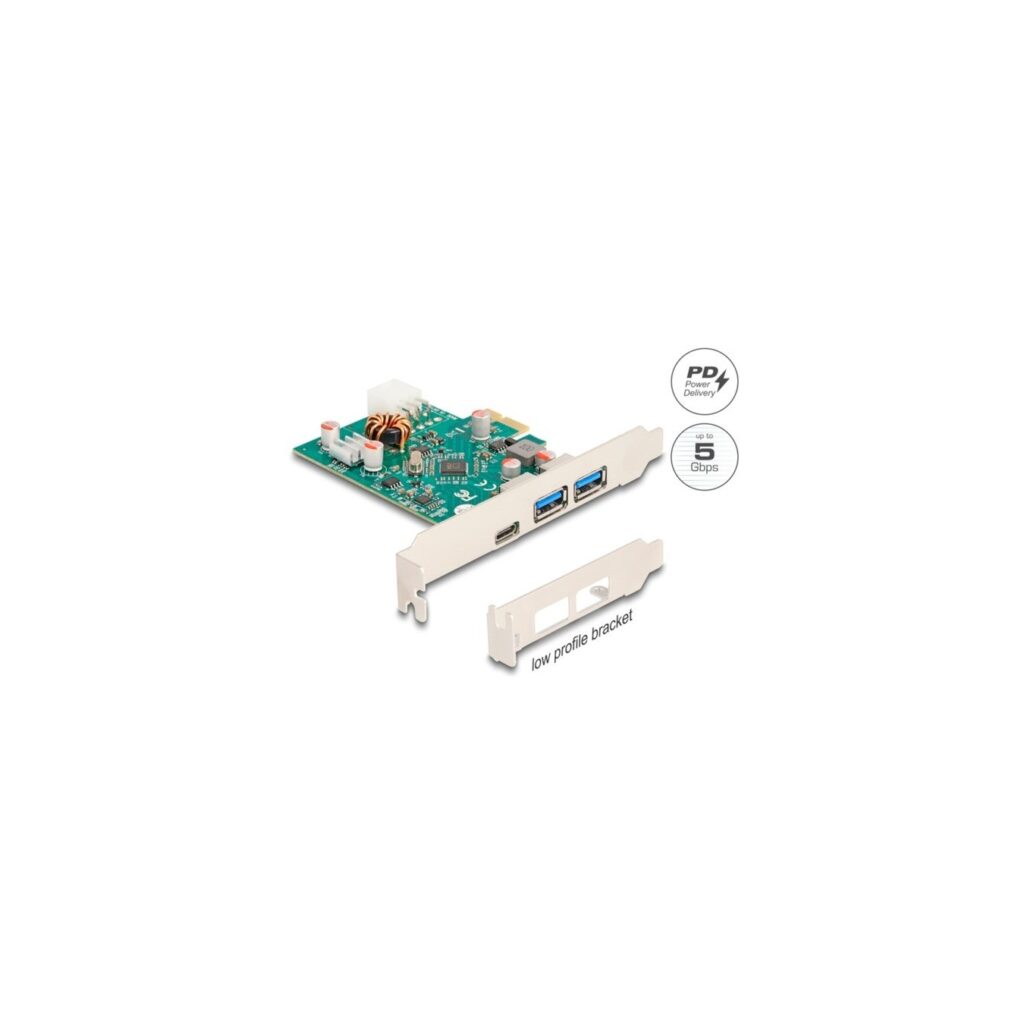

| Low Profile | optional |
| More information | Internal connections: 1x PCIe x1, 1x 6 pin power connector | Electrical power per port: USB Type-C: max. 30 watts (20 V / 1.5 A), USB Type-A: max. 4.5 watts (5 V / 0.9 A) | supports Linux with kernel 6.2 or higher |
| Accessories - available | Low profile bezel, instructions |
