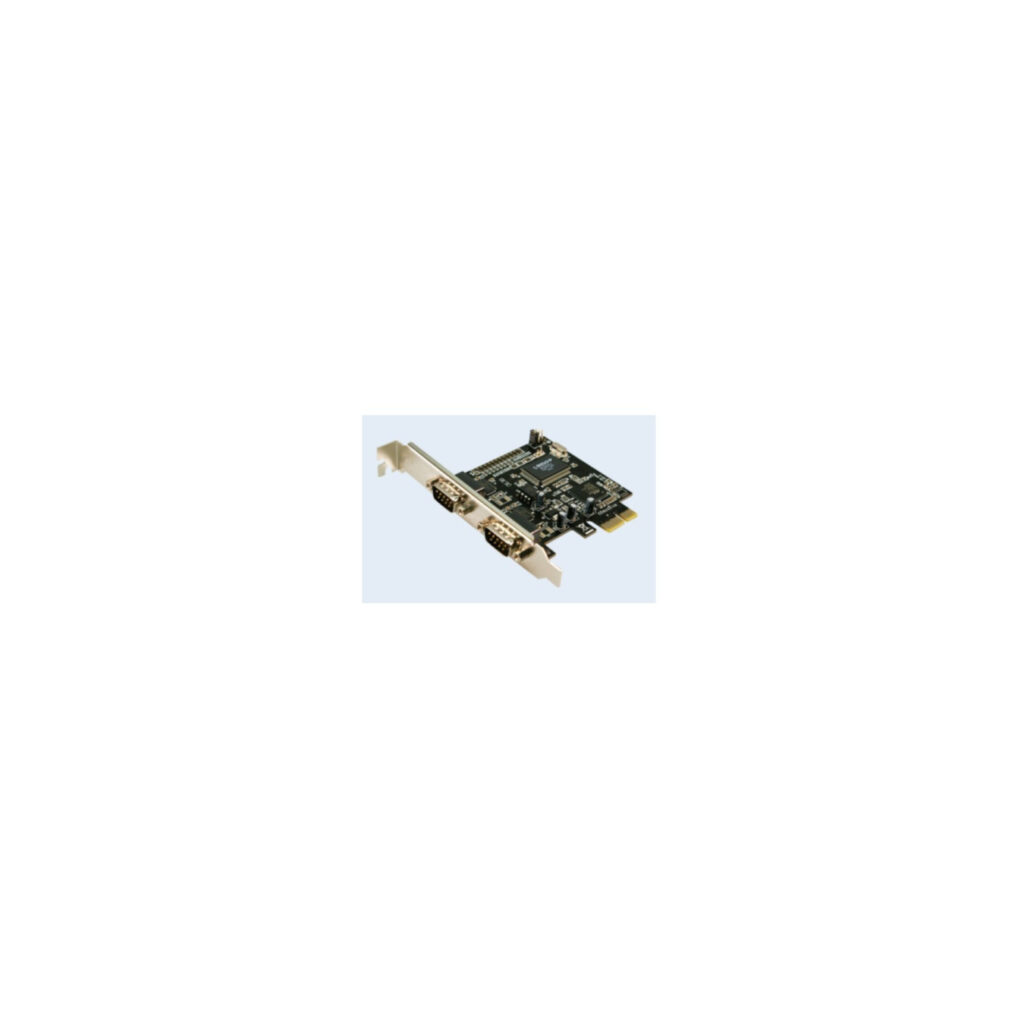

LogiLink PCI Express Serial Card PC0031 - 2x RS232 PCIe x1
LogiLink PC0031 is a PCIe x1 serial expansion card adding 2x RS232 ports for legacy devices. Plug & Play, 1 Mbit/s rate, 256-byte FIFO, supports Windows/Linux/DOS. Chipset: MOSCHIP MCS9922. Not Mac compatible.
Available in 2–5 business days : 36 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The LogiLink PC0031 PCI Express Serial Card expands your PC with two RS232 serial ports, ideal for connecting legacy devices like industrial equipment, modems, or older peripherals that require serial connectivity. Featuring a PCIe x1 interface, it ensures easy Plug & Play installation in modern systems without needing complex configuration.
Equipped with the MOSCHIP MCS9922 chipset, it supports 16C450/16C550 UART standards, hardware/software flow control, and a 256-byte FIFO buffer per port for reliable data transfer up to 1 Mbit/s. It complies with PCI Express 2.0 and PCI Power Management 1.2, including remote wakeup features. Includes low-profile brackets for versatile case compatibility and works with Windows, Linux, and DOS (drivers available).
- Ports: 2x RS232 DB9 external
- Interface: PCIe x1 single-lane
- Chipset: MOSCHIP MCS9922
- FIFO: 256-byte Tx/Rx
- Compatibility: Windows, Linux, DOS; no Mac
- Dimensions (card): 7.94 x 11.97 x 2.18 cm
- Operating Temp: 0-70°C
| Host interface | PCIe x1 |
| Serial ports quantity | 2 |
| Plug and Play | Yes |
| Harmonized System (HS) code | 84733020 |
| Data transfer rate | 1 Mbit/s |
| Connectivity technology | Wired |
| Mac compatibility | No |
| Chipset | MOSCHIP MCS9922 |
| UART compatibility | 16C450/16C550 |
| FIFO buffer | 256-byte Tx/Rx |
| PCI Express version | 2.0 |
| PCI Power Management | 1.2 |
| Remote wakeup | Yes |
| Operating systems | Windows, Linux, DOS |
| Operating temperature | 0-70°C |
| Operating humidity | 0-90% RH non-condensing |
| Card dimensions | 7.94 x 11.97 x 2.18 cm |
| Net weight | 47.2 g |
