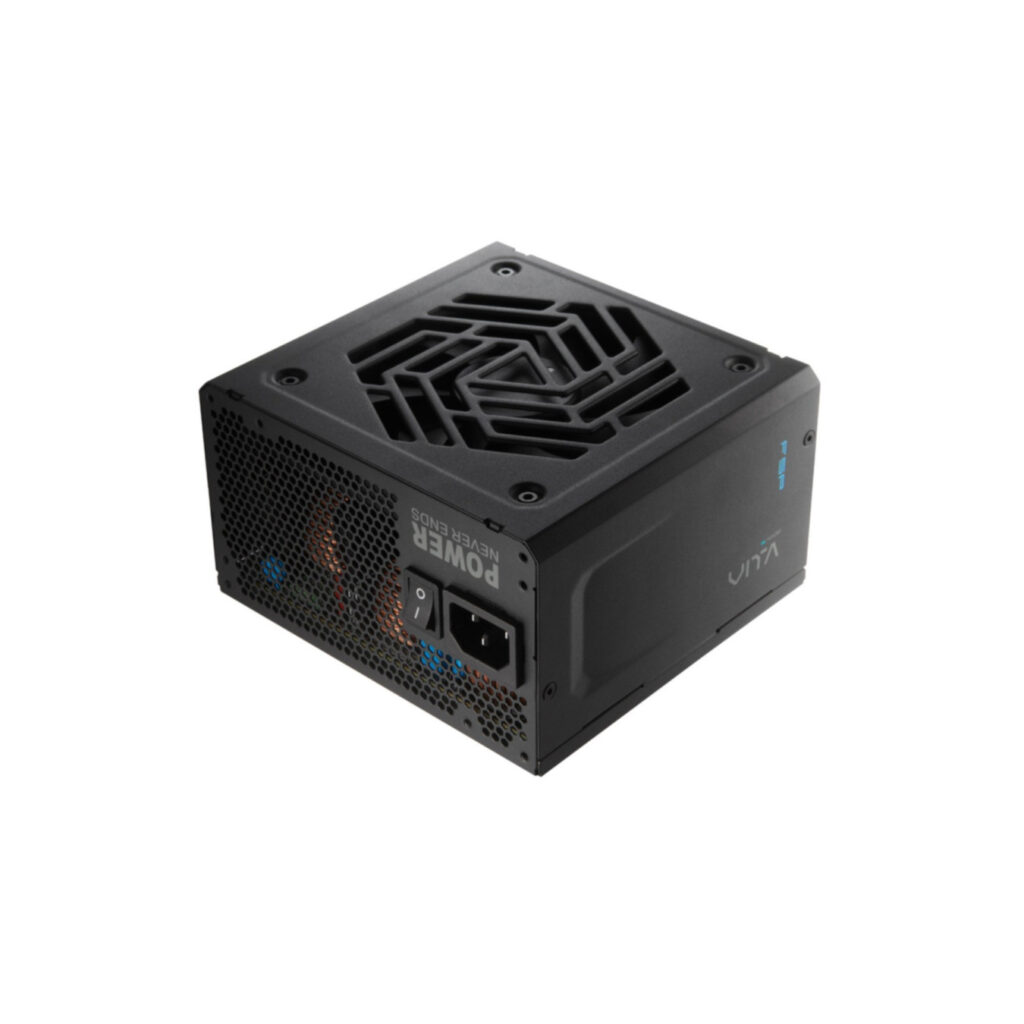

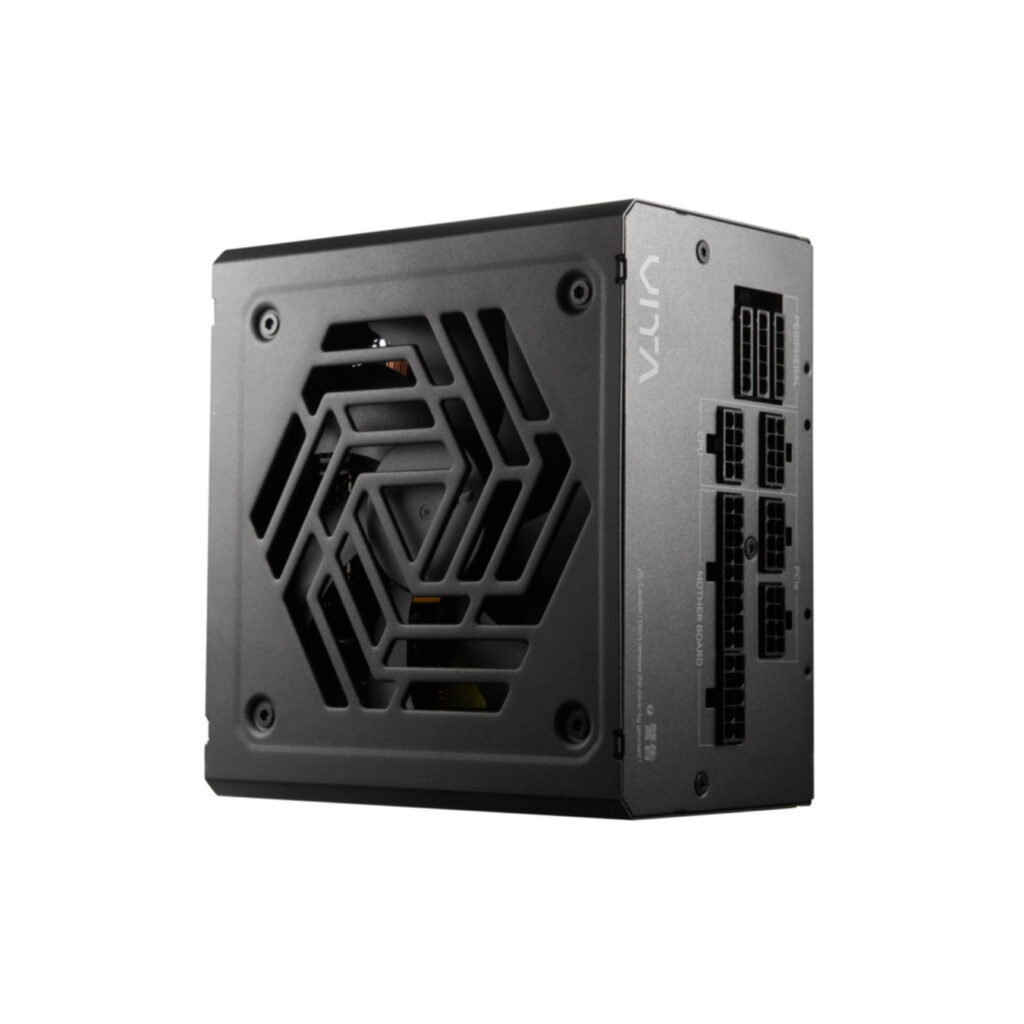

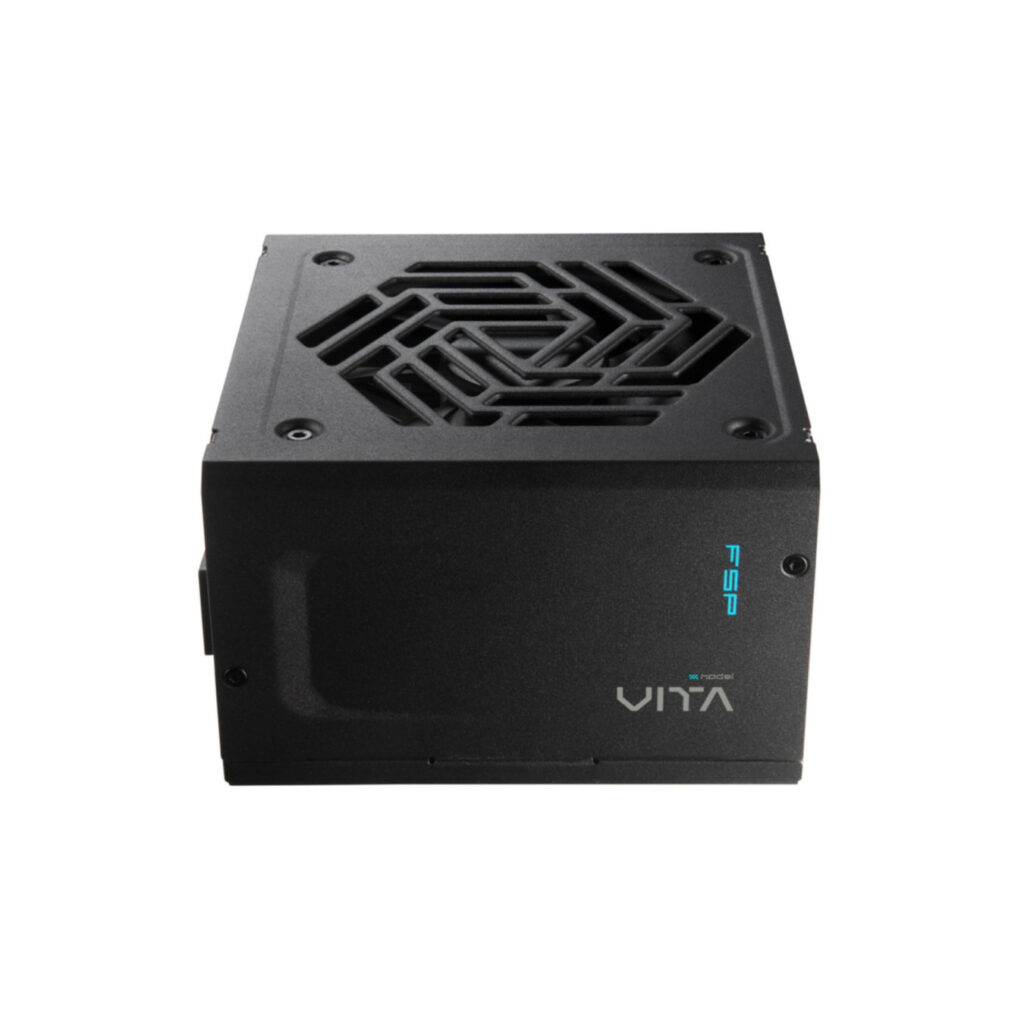

Fortron VITA-550BD - 550W ATX 3.1 Fully Modular PSU, 80 PLUS Bronze
550W ATX 3.1 fully modular PSU with 80 PLUS Bronze efficiency, single +12V rail (45.8A), 120mm sleeve fan, 105°C Japanese caps & black flat cables. Supports 200% excursion for modern GPUs.
Available in 6–10 business days : 58 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
ATX 3.1 Ready for Future-Proofing
The Fortron VITA-550BD follows ATX 3.1 standards, supporting 200% power excursions for peak stability with next-gen GPUs and CPUs. Delivers 550W total power via a powerful single +12V rail at 45.8A.
High Efficiency & Reliability
80 PLUS Bronze certified (≥88% at typical load) with active PFC, DC-DC design on +5V/3.3V rails, and 105°C Japanese bulk capacitors for harsh environments. Features comprehensive protections: OVP/OCP/OPP/OTP/SCP/UVP/SIP/NLO.
- Fully modular black flat cables for tidy builds
- Compact size: 140 x 150 x 86 mm
- 120mm sleeve bearing fan (HYB tech)

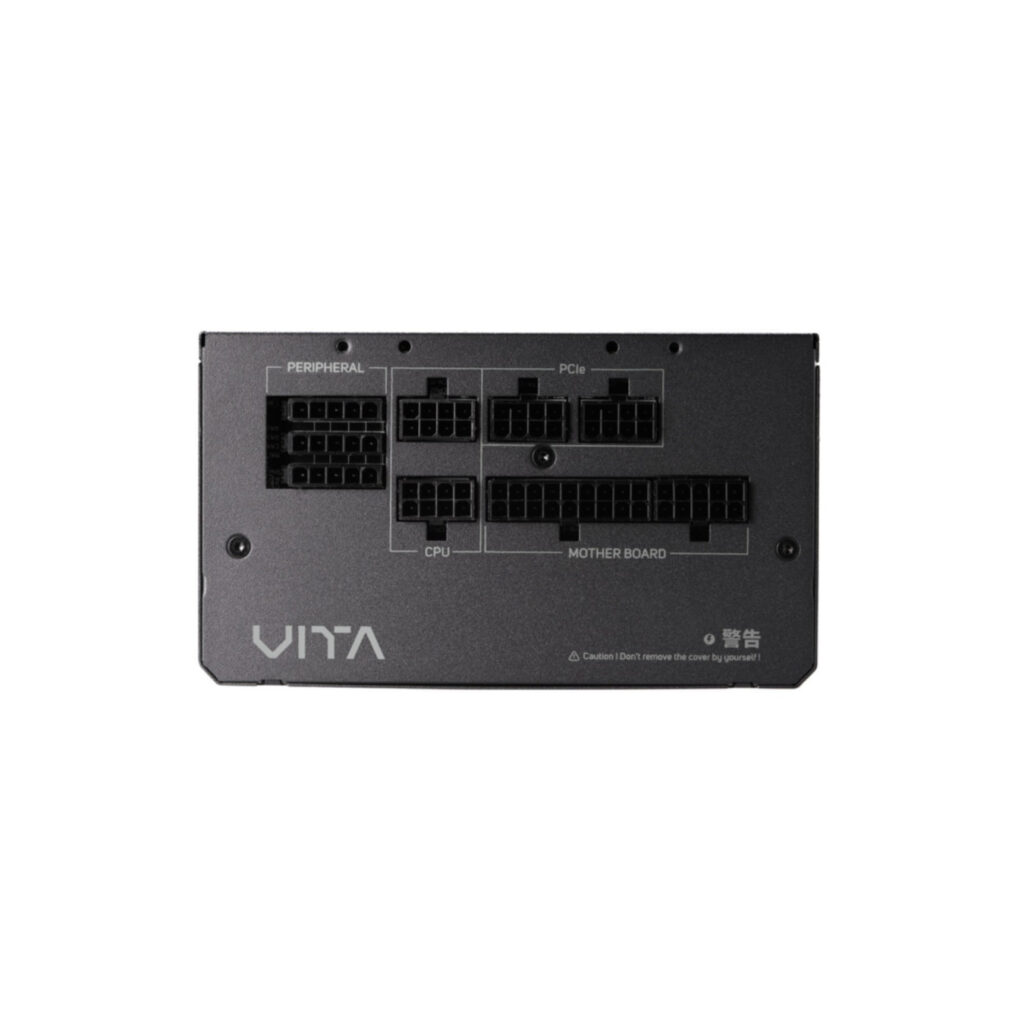

- Connectors: 20+4pin ATX, 4+4pin EPS, 4x 6+2pin PCIe, 8x SATA, 4x Molex
- 5-year warranty
| Total power | 550 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50-60 Hz |
| Input current | 4 A |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+12V) | 45.8 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 550 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Efficiency | ≥88% at typical load |
| 80 PLUS certification | 80 PLUS Bronze (230V EU) |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| EPS version | 2.92 |
| Cabling type | Fully Modular |
| Bearing technology | Sleeve (HYB) |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Power protection features | OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO |
| Motherboard power connector | 20+4 pin ATX |
| CPU power connector (4+4 pin) | Yes (1x) |
| PCI Express power connectors (6+2 pin) | 4 |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Warranty | 5 Years |
