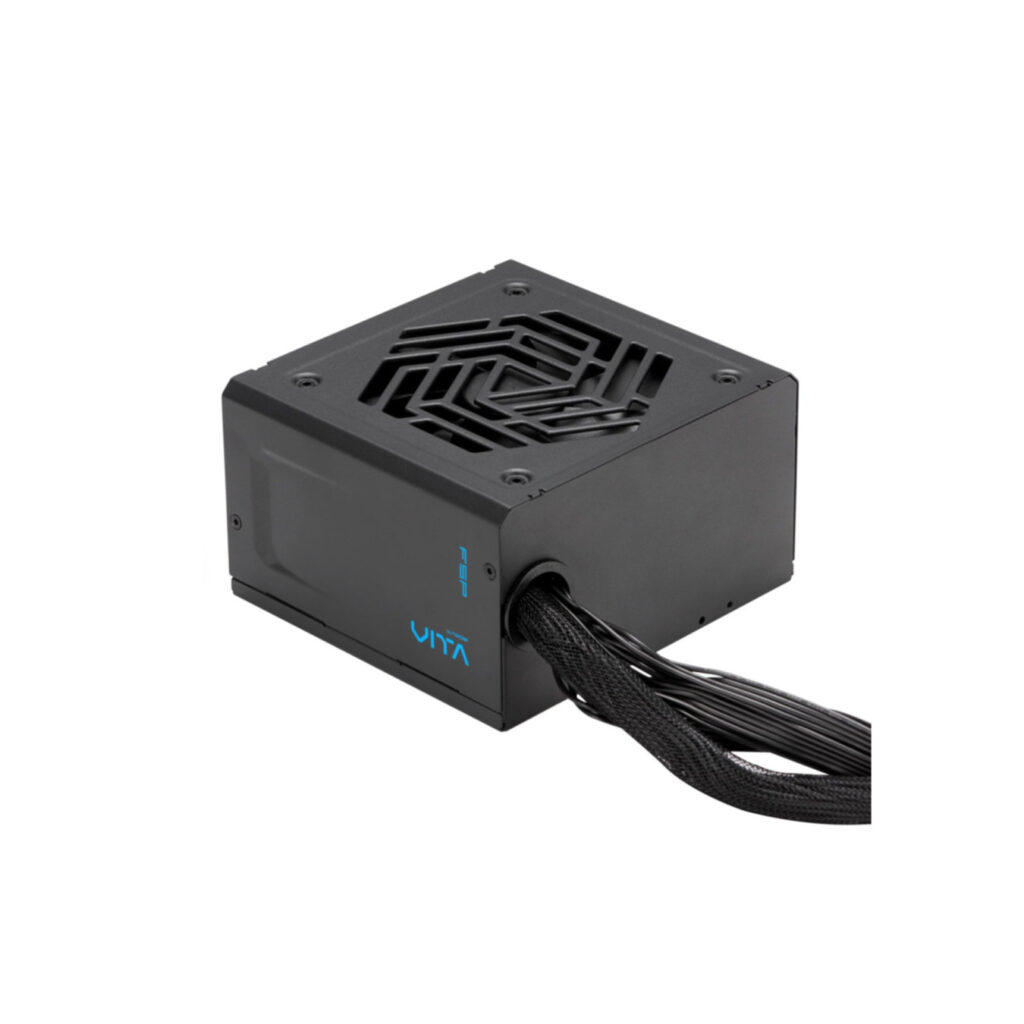

Fortron (FSP) Vita GD 550W PPA5506202 - 550W 80+ Gold ATX 3.1 Non-Modular
550W ATX 3.1 PSU with 80 PLUS Gold efficiency, single +12V rail (45.83A), HYB 120mm fan, black flat cables, 105°C Japanese caps. Compact 140mm depth for tight builds, full protections.
Available in 4–6 business days : 7 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
ATX 3.1 Ready for Future-Proofing
The Fortron FSP Vita GD 550W (PPA5506202) complies with ATX 3.1 standards, supporting 200% power excursions for modern GPUs and CPUs. Its single +12V rail delivers up to 550W stably.
Premium Build Quality
Features DC-to-DC design for stable +5V/+3.3V rails, black flat cables for easy routing, and a 105°C Japanese bulk capacitor for reliability in harsh conditions. Compact size (140 x 150 x 86 mm) fits small cases.
- 80 PLUS Gold certified (≥90% efficiency)
- 120mm HYB bearing fan for quiet cooling
- Full protections: OVP/OCP/OPP/OTP/SCP/UVP/SIP/NLO
- Connectors: 20+4pin ATX, 4+4pin EPS, 4x PCIe 6+2pin, 8x SATA, 4x Molex
- 5-year warranty
| Total power | 550 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50-60 Hz |
| Input current | 8-4 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 550 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 45.83 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | ≥90% at typical load |
| Power protection features | OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO |
| Motherboard power connector | 20+4 pin ATX |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Bearing technology | HYB |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 120 mm |
| Number of fans | 1 |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Warranty | 5 Years |
