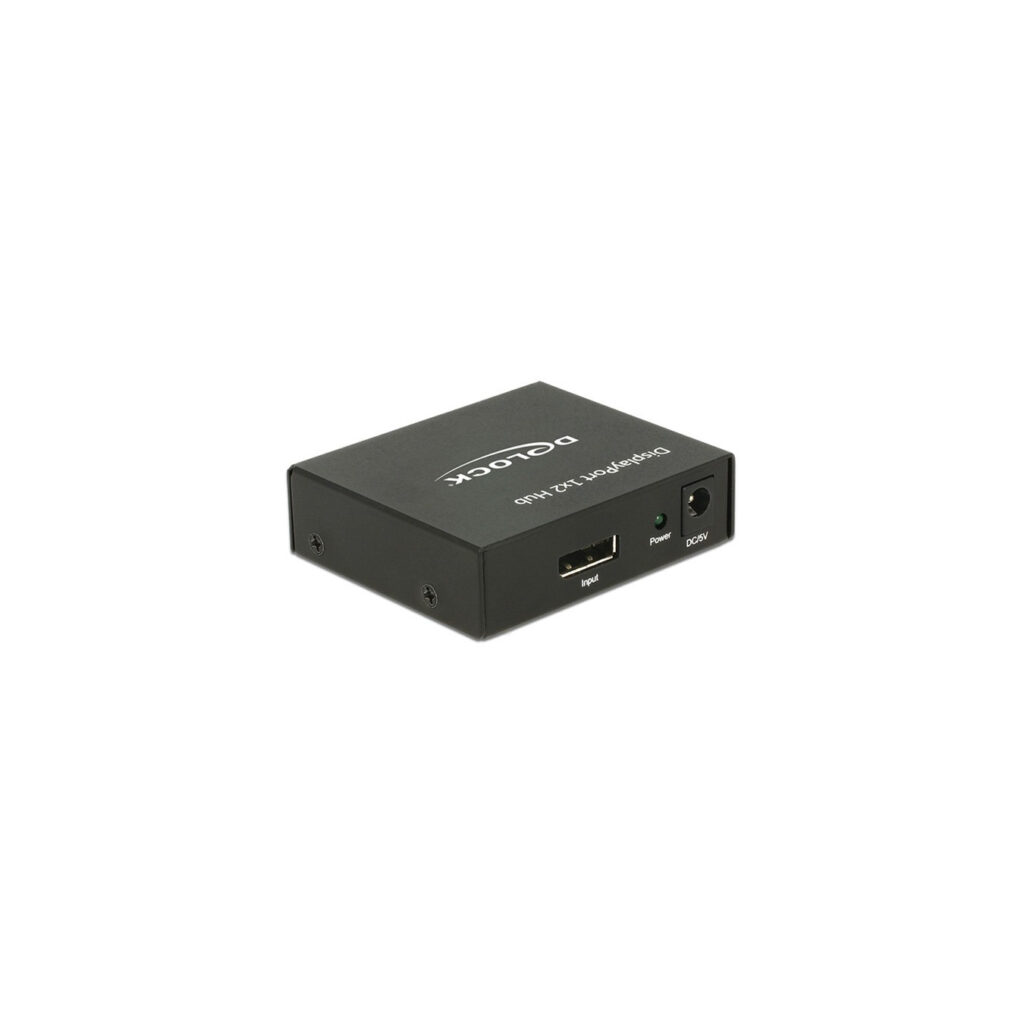

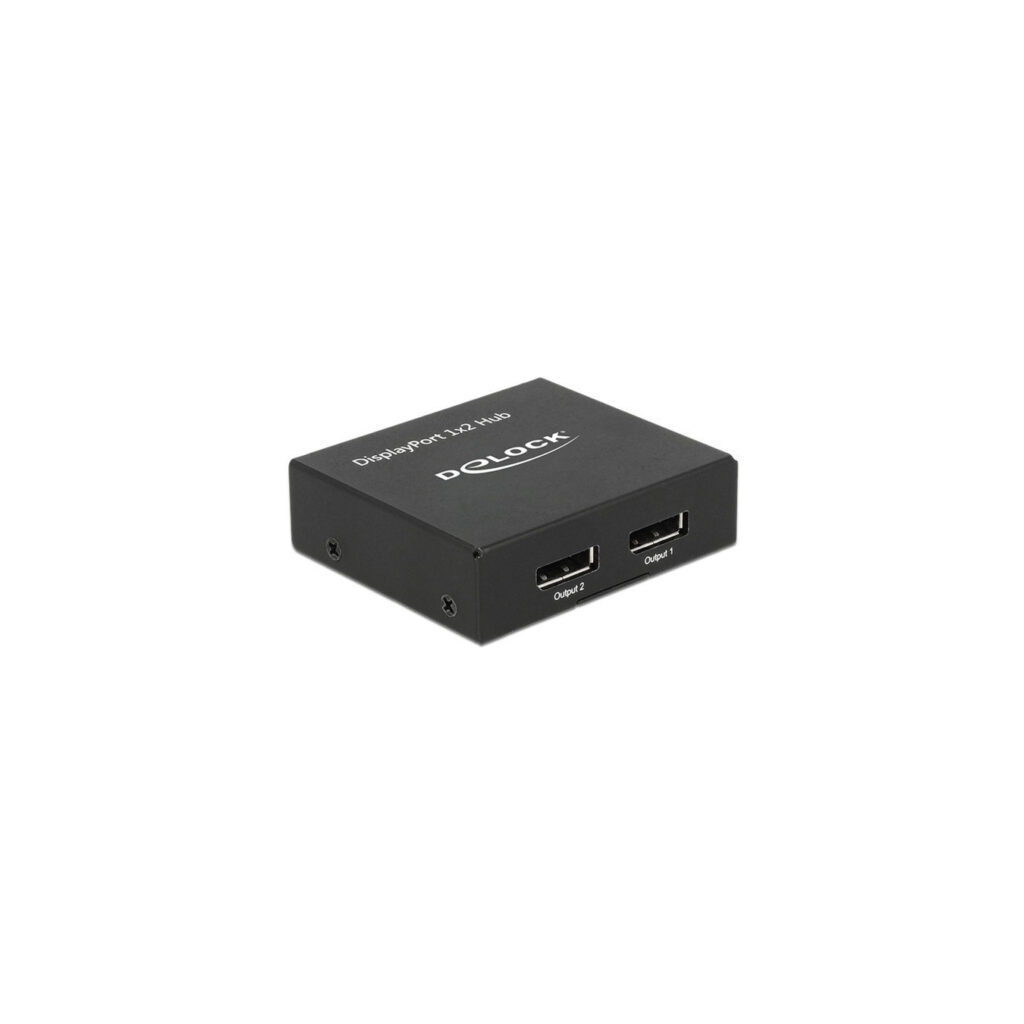

DisplayPort Splitter - 1.2 to 2x DisplayPort 4K
Delock 87691 DisplayPort splitter receives a DP signal from a PC or notebook and splits it to two displays.
Available in 6–10 business days : 64 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068

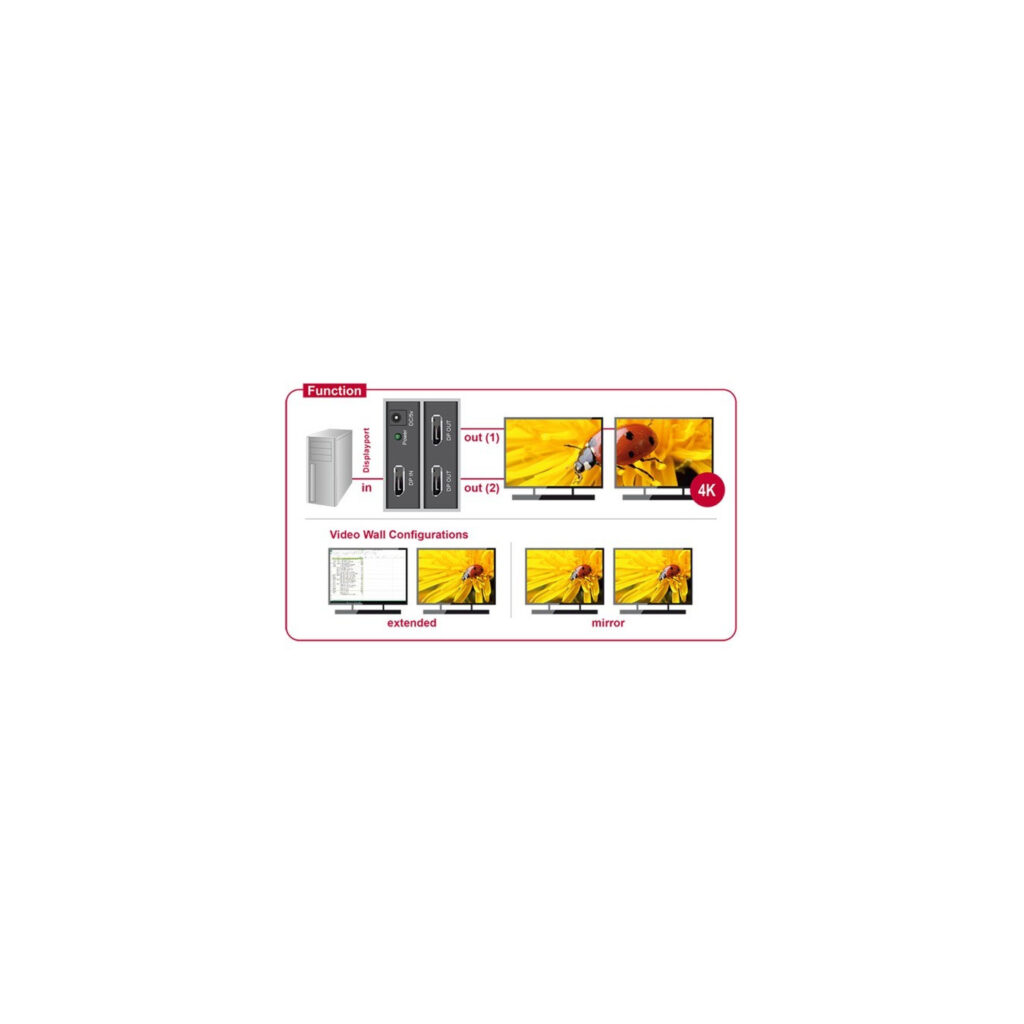

The splitter 87691 from Delock receives a DisplayPort signal from a PC or notebook and splits it between two connected screens. This means that two DisplayPort monitors can be operated on one DisplayPort connection. The two outputs are dual mode capable (DP++), so HDMI or DVI monitors can also be connected with appropriate adapters. The splitter is a Multi-Stream Transport (MST) hub and supports the extended desktop configuration of DisplayPort 1.2. When Mac OS is used, the same image is output (mirrored) on both ports, it is not possible to use both ports independently.
| Typ | DisplayPort Splitter |
| Color | schwarz |
| EAN | 4043619876914 |
| Manufacturer no. | 87691 |
| Manufactured in | China |
| Application example | For connecting 2 monitors to a DisplayPort socket |
| Area | Audio / Video |
| Connection - from | 1x DisplayPort (socket) |
| Video classification | Displayport 1.2a |
| taps | 3 |
| Characteristics | Adapter, extern |
| Feature | Active converter, single / multi-stream transport hub (SST / MST), transmission of audio and video signals, metal housing |

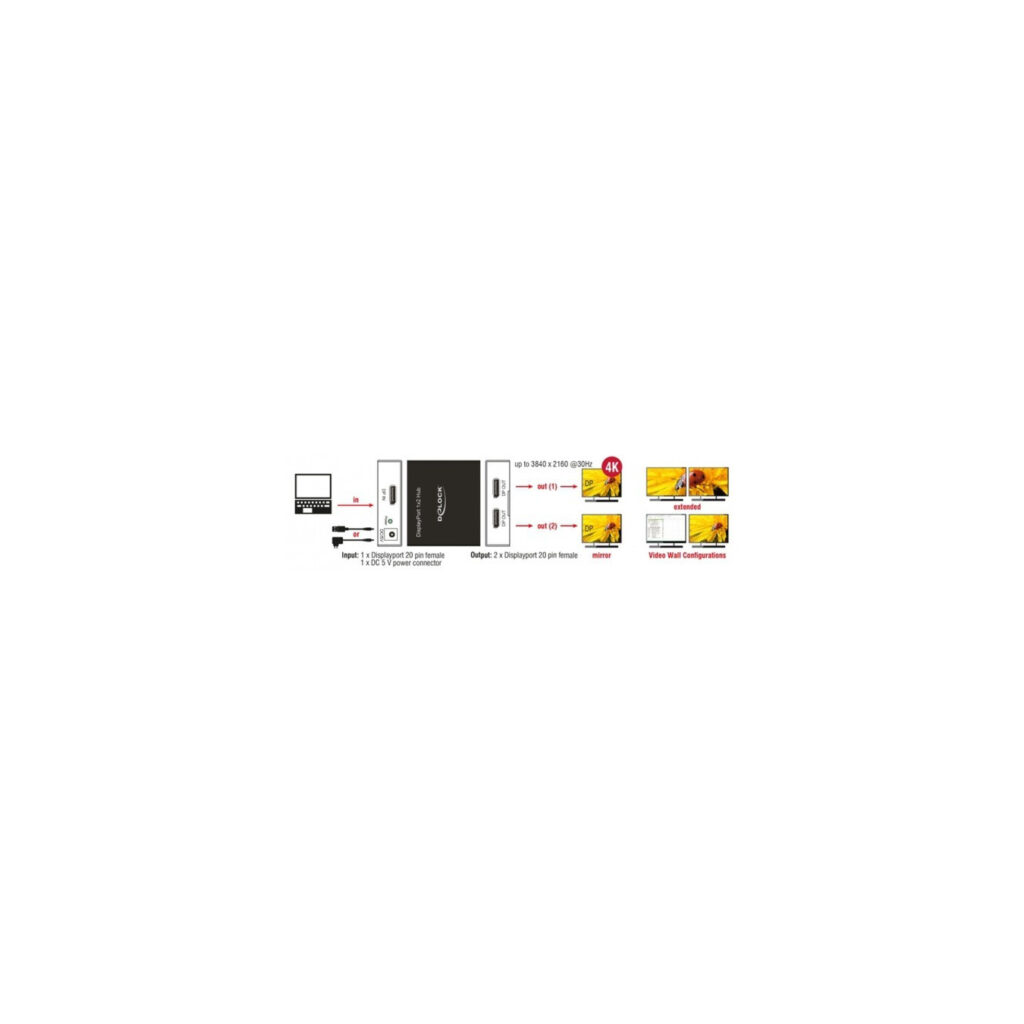

| More information | Chipset STDP4320, Features: Mirroring or Extending (Windows only), Max. Resolution: DisplayPort 1.1 or 1.2 Single Stream Transport (SST) up to 1,920 x 1,080 @ 60Hz (mirroring), DisplayPort 1.2 Multi-Stream Transport (MST): up to 2,560 x 1,440 @ 60Hz or 3,840 x 2,160 @ 30Hz (mirroring or expanding), depending on the system and connected hardware. DisplayPort output supports Dual Mode DP++, supports Eyefinity / Single Large Surface (SLS), audio input formats 7.1 channel with a sampling rate up to 192 kHz |

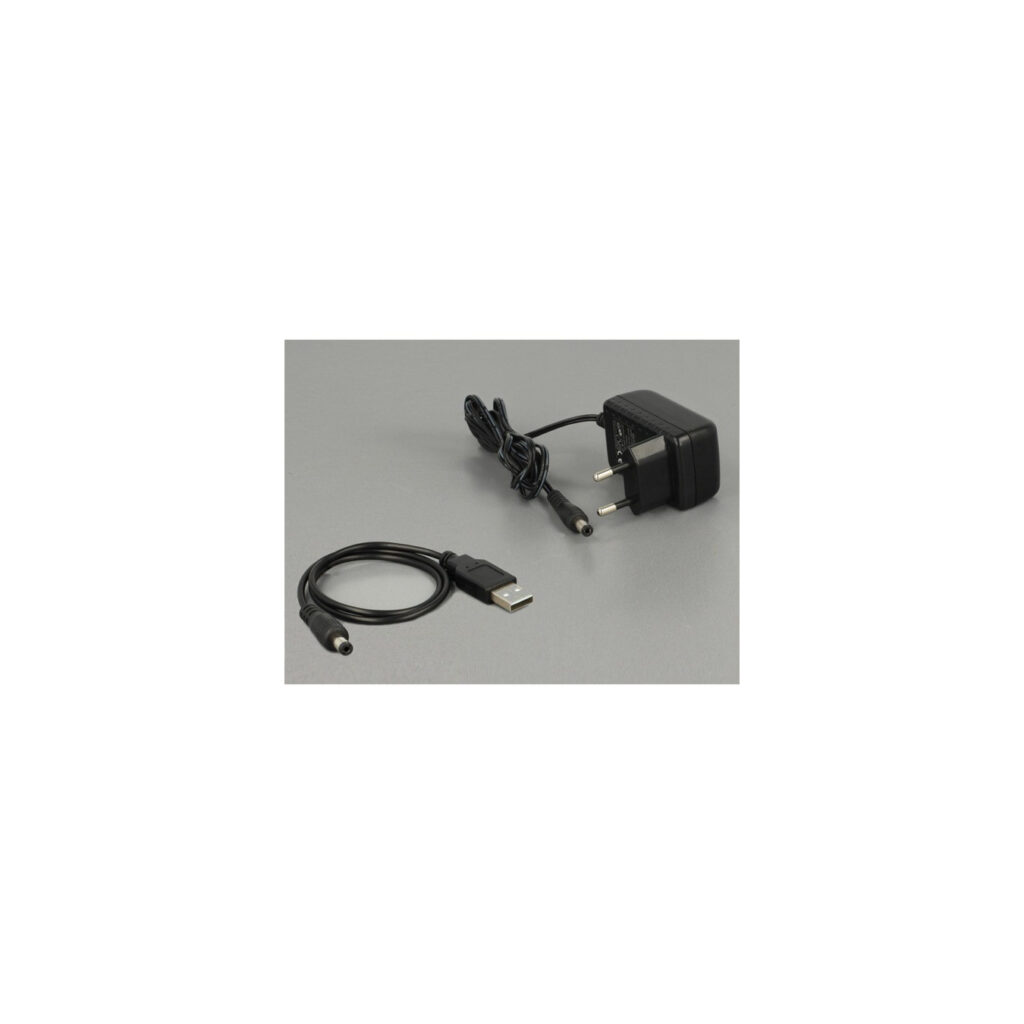

| Accessories - available | External power supply, operating instructions, USB power cable (length approx. 0.5m) |
| Dimensions | Width: 71mm x Height: 21mm x Depth/Length: 61mm |
