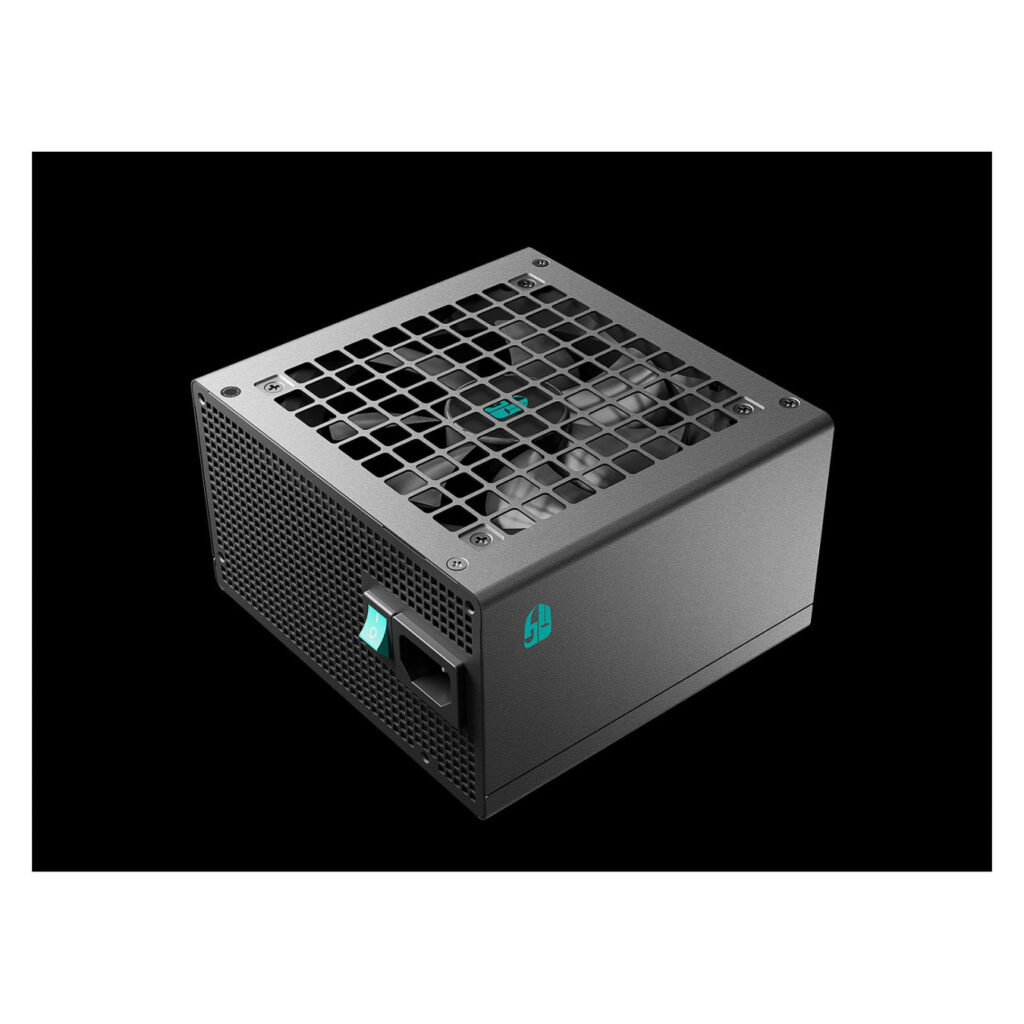

DeepCool PF500X 500W 80+ Bronze ATX PSU
DeepCool PF500X 500W 80 PLUS Bronze ATX PSU with 88% efficiency, active PFC, 120mm HYB fan. Features 2x PCIe 6+2pin, 1x EPS, full protections (OPP/OVP/OCP/SCP/OTP/UVP). Non-modular, black, for 200-240V. MTBF 40,000h.
Available in 4–6 business days : 29 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068

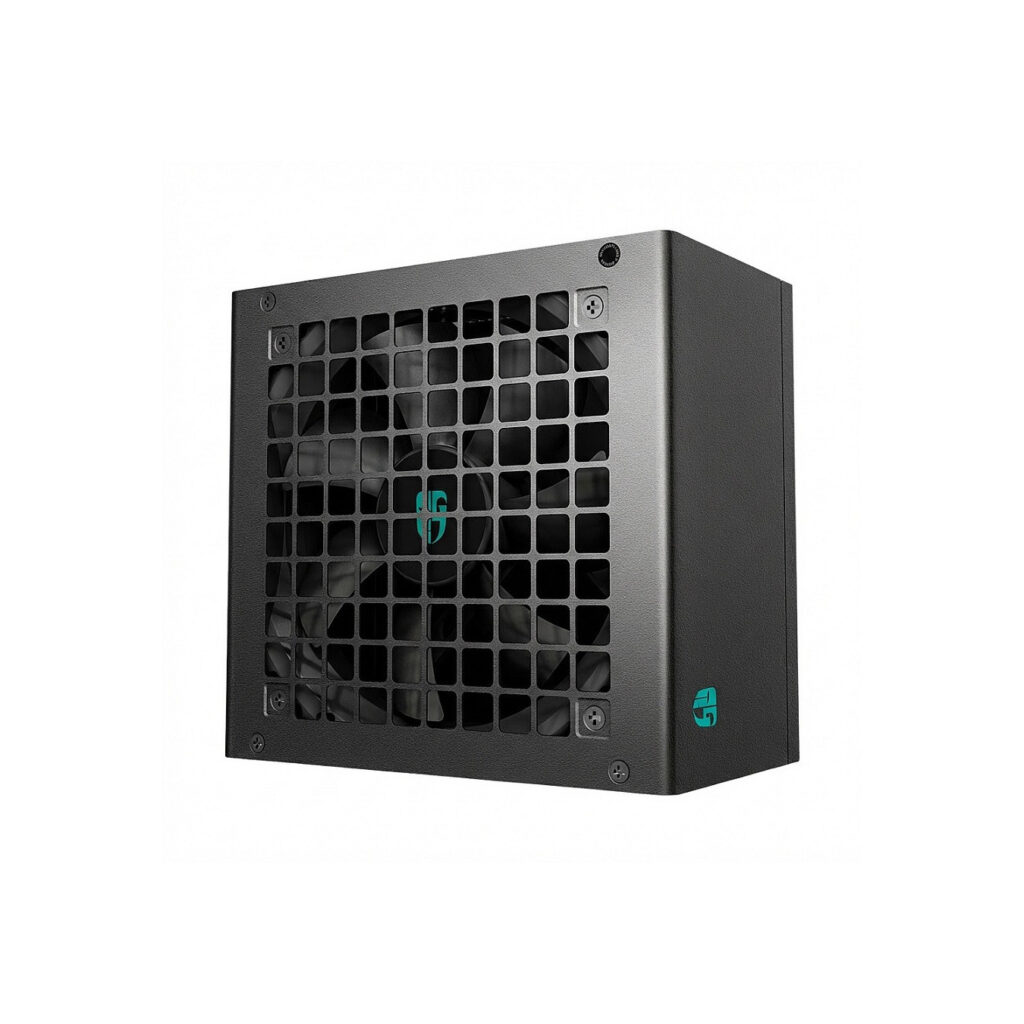

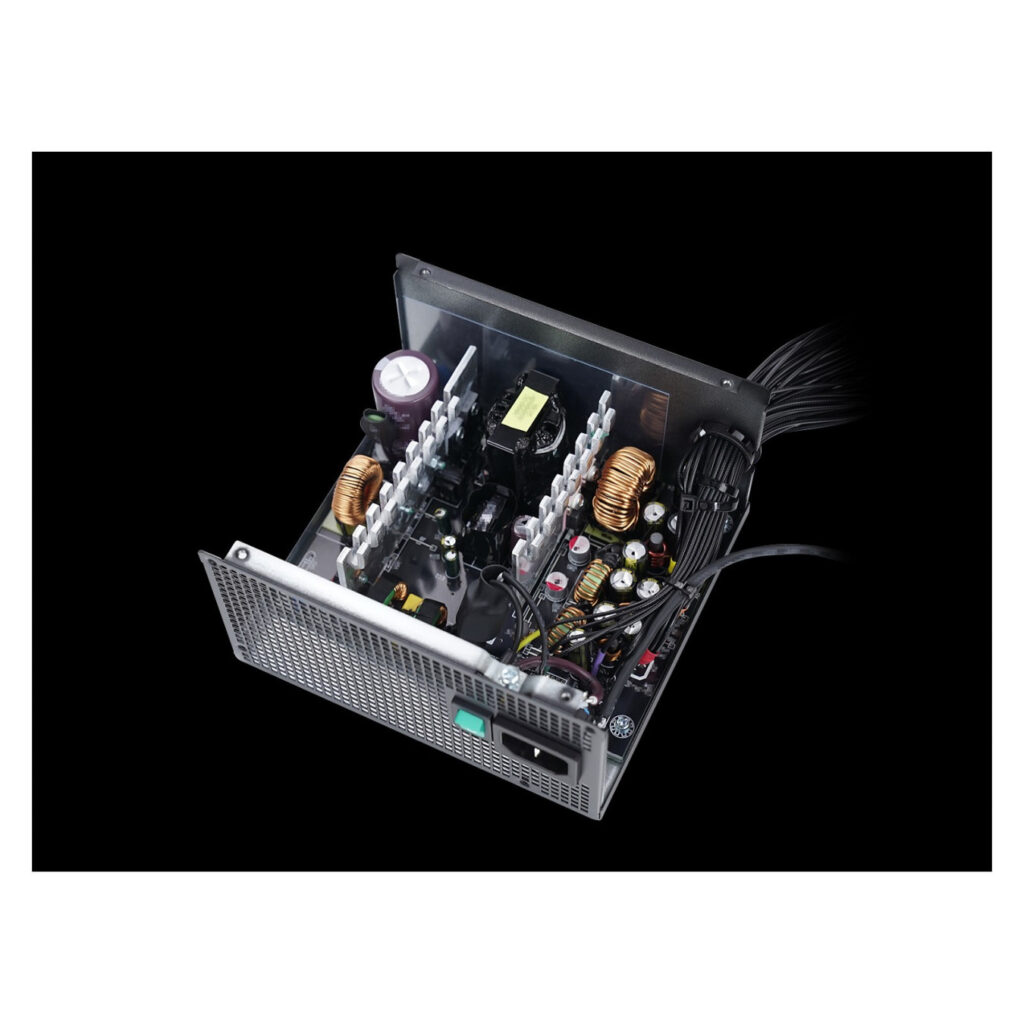

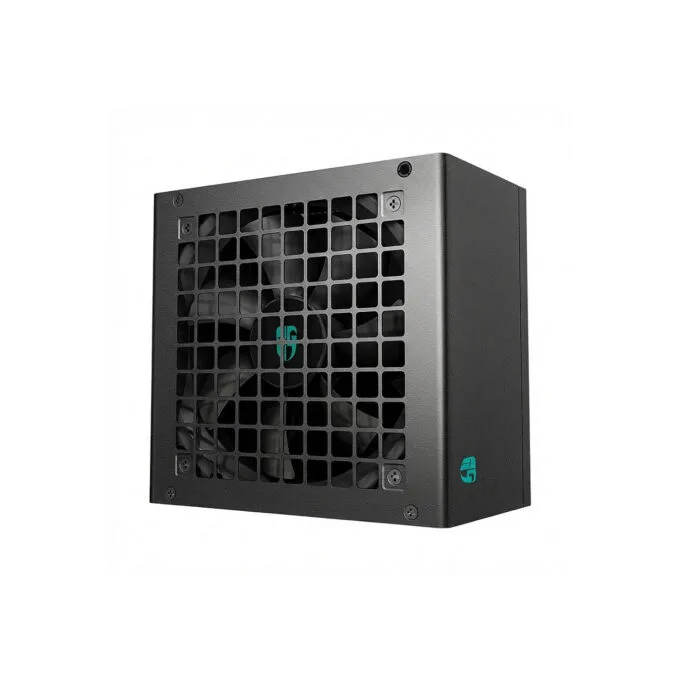

The DeepCool Gamer Storm PF500X is a reliable 500W ATX power supply certified 80 PLUS 230V EU Bronze, Cybenetics Bronze, Cybenetics A 230V, and PPLP 230V Bronze, delivering up to 88% efficiency at typical 50% load. It uses active PFC + DC-to-DC topology with Taiwanese and Japanese electrolytic capacitors for stable performance and longevity (MTBF 40,000 hours). Ideal for budget gaming PCs with GPUs up to ~180W TDP.

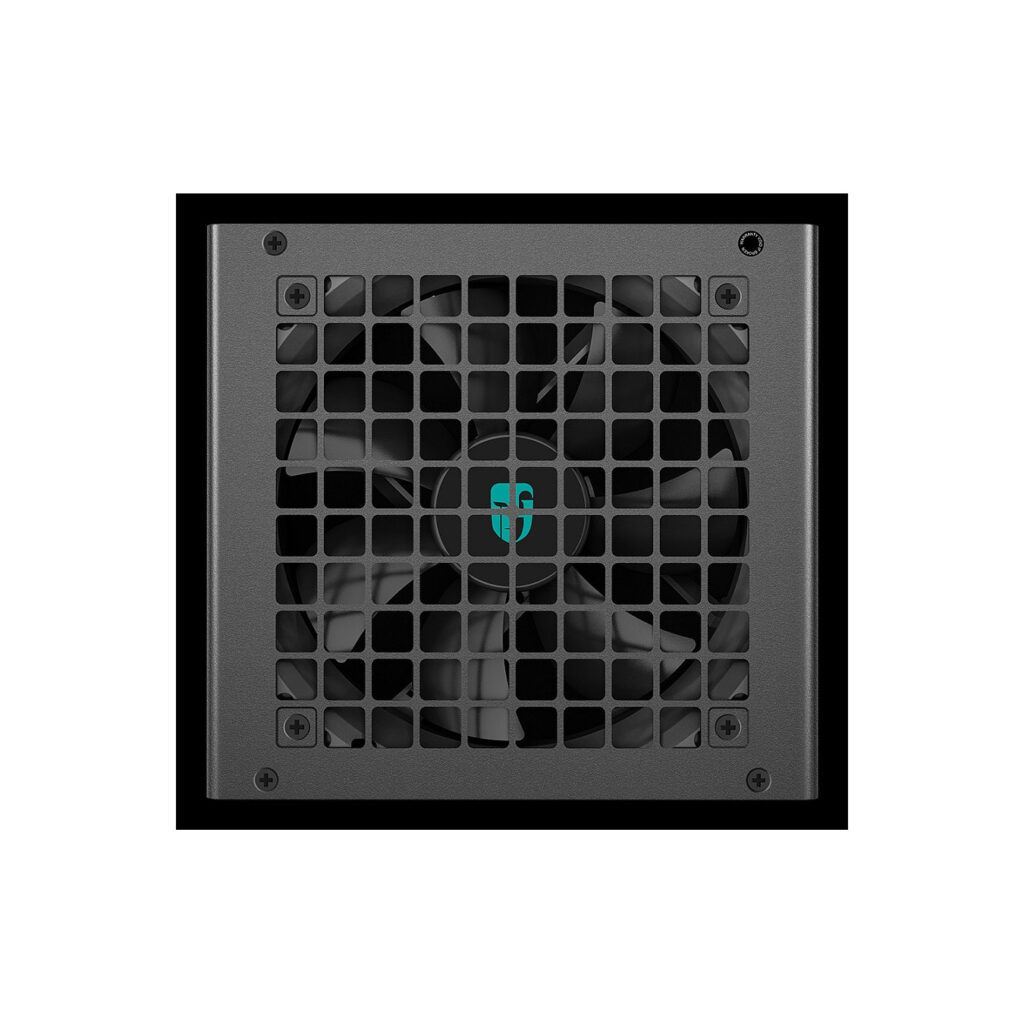

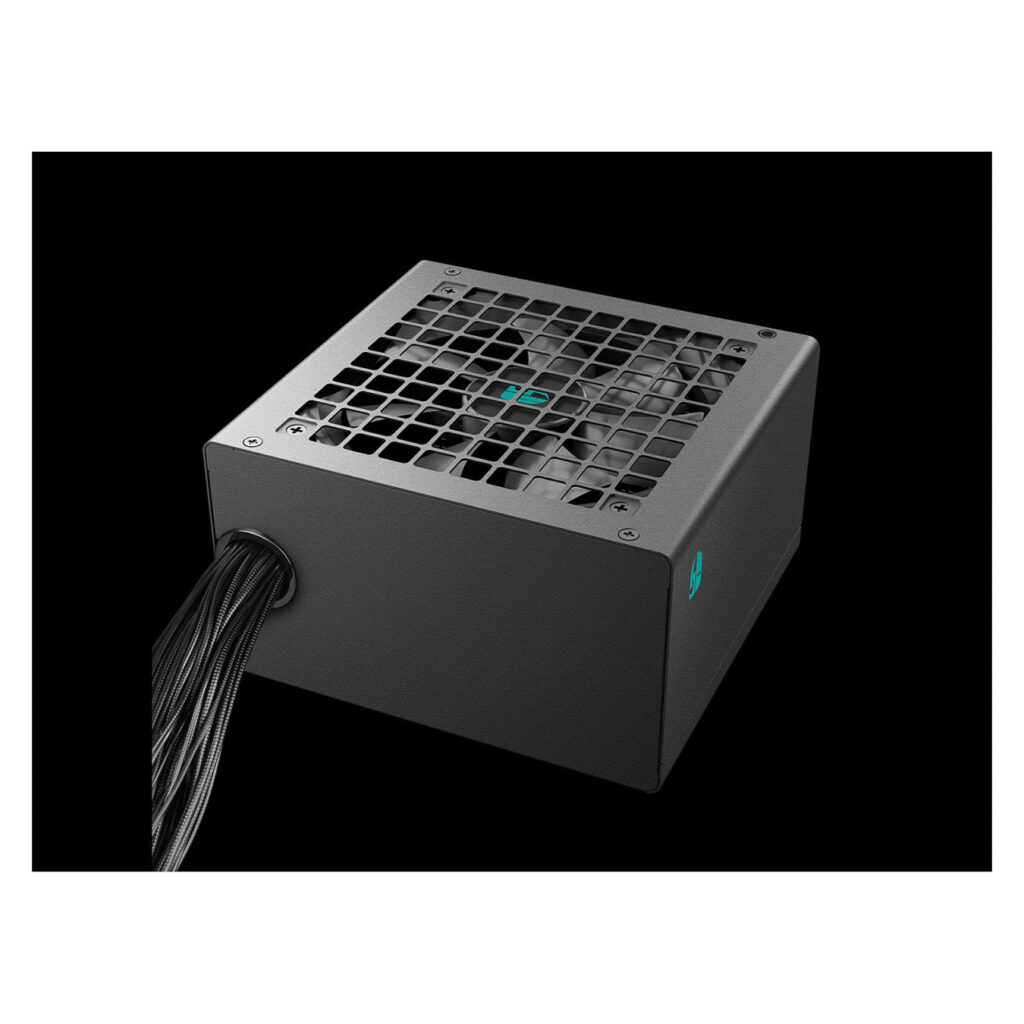

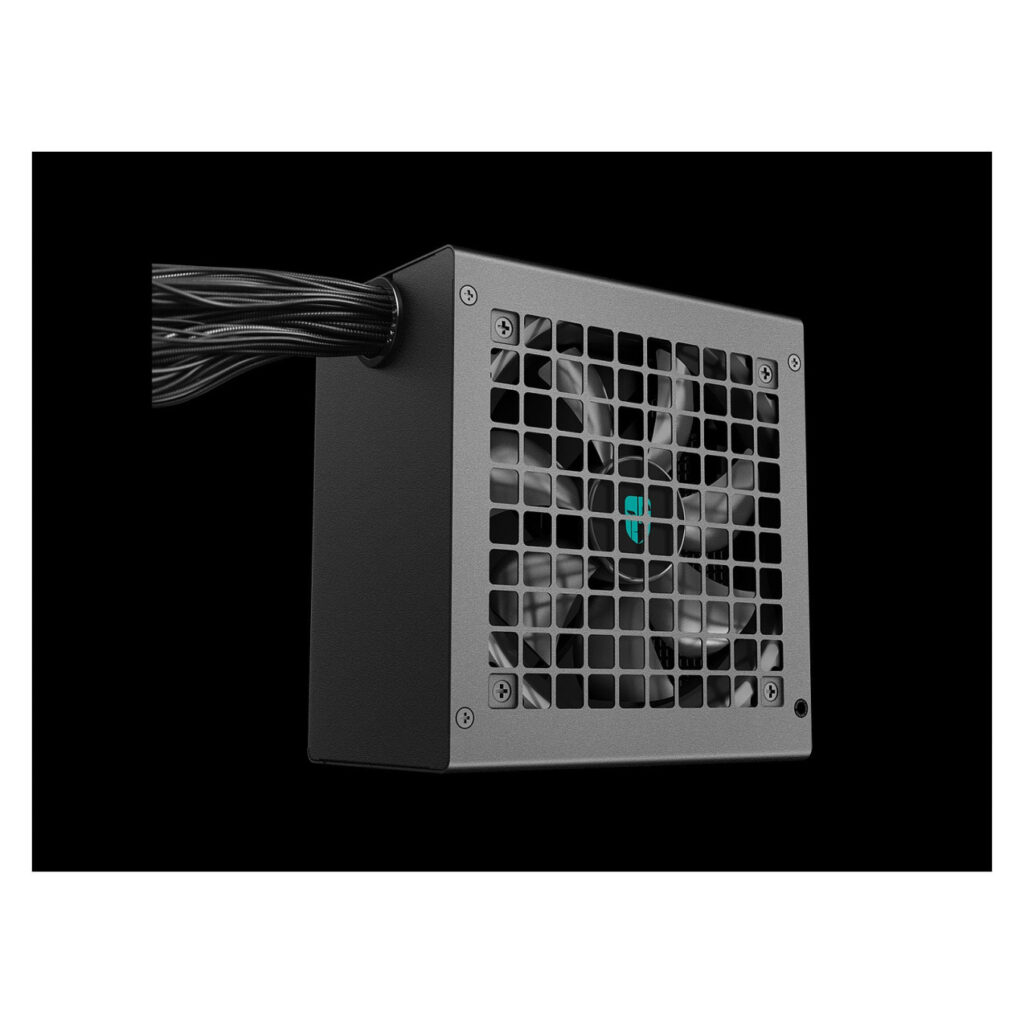

Equipped with a quiet 120mm HYB bearing fan (long-life hybrid), it operates from 0-40°C. Non-modular design includes essential cables: 20+4pin ATX (55cm), 4+4pin EPS CPU (62cm), 2x 6+2pin PCIe (55cm), 3x SATA, 1x Molex. Full protections: OPP, OVP, OCP, SCP, OTP, UVP, SIP, NLO. Input: 200-240V, 5A, 50-60Hz.
- ✅ 500W total power, +12V rail 41.6A (499.2W)
- ✅ Multiple Bronze efficiency certifications
- ✅ 2x PCIe 6+2pin for GPUs, 1x EPS for CPU
- ✅ Hold-up time ≥16ms at 75% load
- ✅ Regulatory: CE/TUV/CCC/RCM/KC, ErP 2014
| Total Power | 500 W |
| AC Input Voltage | 200-240 V |
| AC Input Frequency | 50-60 Hz |
| Input Current | 5 A |
| Power Factor Correction | Active PFC |
| Combined Power (+3.3V) | 100 W |
| Combined Power (+12V) | 499.2 W |
| Max Output Current (+3.3V) | 16 A |
| Max Output Current (+12V) | 41.6 A |
| Max Output Current (+5V) | 16 A |
| Max Output Current (-12V) | 0.3 A |
| Max Output Current (+5Vsb) | 3 A |
| Hold-up Time | ≥16 ms (75% Load) |
| Efficiency | ≥88% (50% Load) |
| Protections | OPP/OVP/OCP/SCP/OTP/UVP/SIP/NLO |
| Motherboard Connector | 20+4 pin ATX (55 cm) |
| CPU EPS Connector | 1x 4+4 pin (62 cm) |
| PCIe Connectors | 2x 6+2 pin (55 cm) |
| SATA Connectors | 3x (450, 600, 750 mm) |
| Molex Connectors | 1x 4-pin (900 mm) |
| Modularity | Non-modular |
| 80 Plus Certification | 80 PLUS 230V EU Bronze / Cybenetics Bronze / Cybenetics A 230V / PPLP 230V Bronze |
| PSU Form Factor | ATX (ATX12V v2.52) |
| Dimensions | 150 x 140 x 86 mm (W x D x H) |
| Fan Diameter | 120 mm |
| Fan Bearing | HYB (Hybrid) |
| Operation Temperature | 0-40 °C |
| MTBF | 40,000 hours |
| Product Color | Black |
