Deepcool Gamer Storm PF700X 700W 80 PLUS Bronze ATX Power Supply
Deepcool Gamer Storm PF700X delivers 700W of reliable power with 80 PLUS Bronze efficiency certification. Features Active PFC, DC-to-DC topology, 120mm long-life fan, and comprehensive protection circuits for stable PC operation.
Available in 4–6 business days : 1 piece
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The Deepcool Gamer Storm PF700X is a 700W ATX power supply designed for reliable and stable PC power delivery. With 80 PLUS Bronze certification, it achieves ≥88% efficiency under typical 50% load conditions, helping reduce energy consumption and heat generation. The unit features Active PFC (Power Factor Correction) and DC-to-DC topology for optimized power distribution across multiple voltage rails.

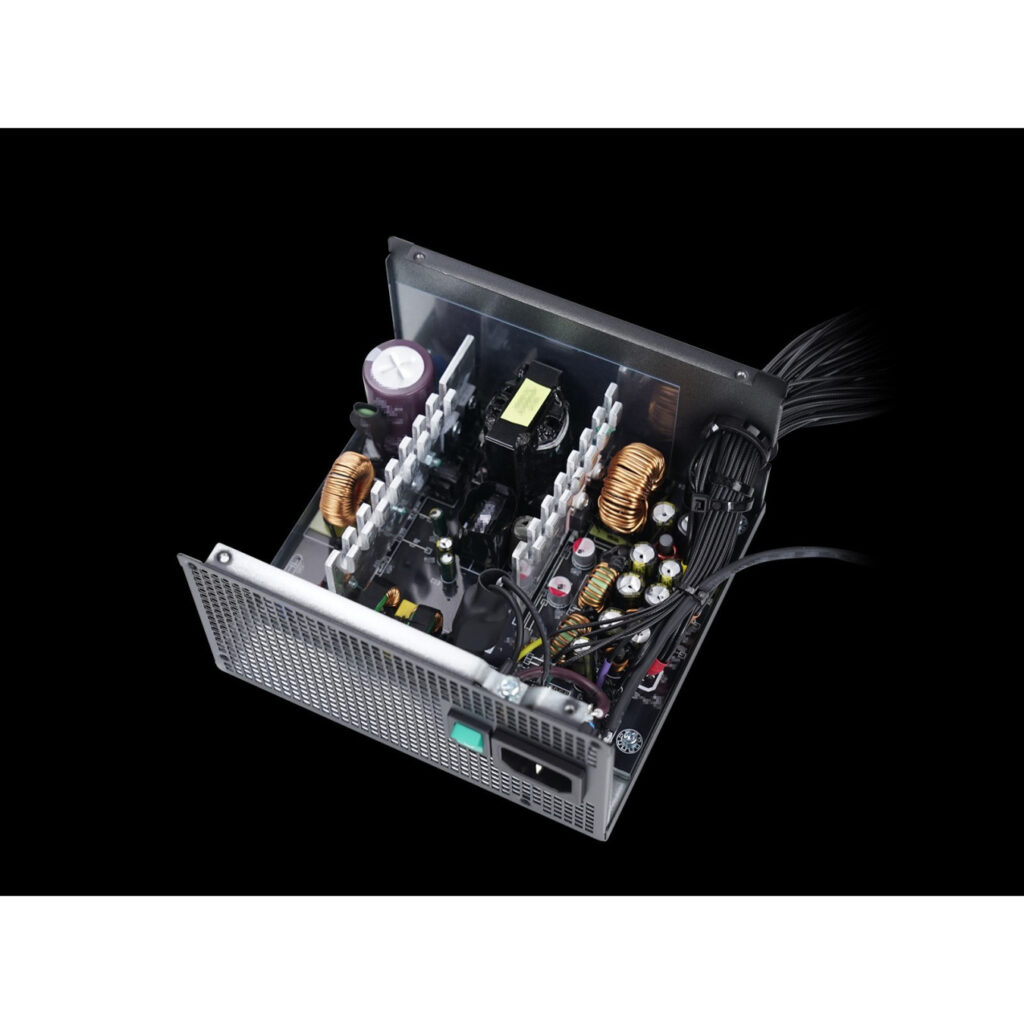

Built with high-quality components including Taiwanese and Japanese electrolytic capacitors, the PF700X incorporates a 120mm long-life HYB bearing fan that extends operational life by 30% compared to standard fans and supports continuous 24/7 operation in 40°C environments. The power supply includes comprehensive protection mechanisms: Over-Power Protection (OPP), Over-Voltage Protection (OVP), Over-Current Protection (OCP), Short-Circuit Protection (SCP), Over-Temperature Protection (OTP), Under-Voltage Protection (UVP), Surge & Inrush Protection (SIP), and No-Load Operation (NLO). With an MTBF rating of 40,000 hours and ATX12V V2.52 compliance, this non-modular PSU is ideal for budget-conscious builders seeking dependable power for mid-range gaming and productivity systems.
- 700W total output with 80 PLUS Bronze efficiency rating
- Active PFC and DC-to-DC converter topology
- 120mm long-life HYB bearing fan for extended durability
- Multiple protection circuits (OPP, OVP, OCP, SCP, OTP, UVP, SIP, NLO)
- Supports up to 58.3A on +12V rail for GPU and CPU power
- Non-modular cable design with standard ATX connectors
- 40,000 hours MTBF with 3-year warranty
| Type | ATX12V V2.52 |
| Total Output | 700W |
| AC Input Voltage | 200-240V |
| AC Input Frequency | 50-60Hz |
| AC Input Current | 5A |
| Efficiency Certification | 80 PLUS Bronze / CYBENETICS Bronze |
| Efficiency at 50% Load | ≥88% |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms (75% Load) |
| +3.3V Output (Max) | 110W / 18A |
| +5V Output (Max) | 110W / 18A |
| +12V Output (Max) | 699.6W / 58.3A |
| -12V Output (Max) | 3.6W / 0.3A |
| +5VSB Output (Max) | 15W / 3A |
| Protection Features | OPP, OVP, OCP, SCP, OTP, UVP, SIP, NLO |
| Fan Size | 120mm |
| Fan Bearing Type | Longlife HYB |
| Fan Placement | Top |
| Topology | Active PFC + DC-to-DC |
| Capacitors | Taiwanese + Japanese Electrolytic |
| Cable Type | Non-modular |
| Motherboard Connector | 20+4 pin ATX |
| CPU Power Connector | 1x 4+4 pin EPS/ATX12V |
| PCIe GPU Connectors | 2x 6+2 pin |
| SATA Connectors | 3x SATA |
| Molex Connectors | 1x 4-pin |
| Motherboard Cable Length | 55cm |
| CPU Cable Length | 62cm |
| PCIe Cable Length | 55cm |
| SATA Cable Length | 450/600/750mm |
| Molex Cable Length | 900mm |
| Operating Temperature | 0-40°C |
| MTBF | 40,000 hours |
| Dimensions (Unit) | 150 × 140 × 86mm (W × L × H) |
| Color | Black |
| Cooling Type | Active |
| Regulatory Certifications | CE, TÜV-RH, CCC, RCM, KC |
| Environmental Standards | WEEE, RoHS, Triman, ErP 2014 |
| Warranty | 3 years |
