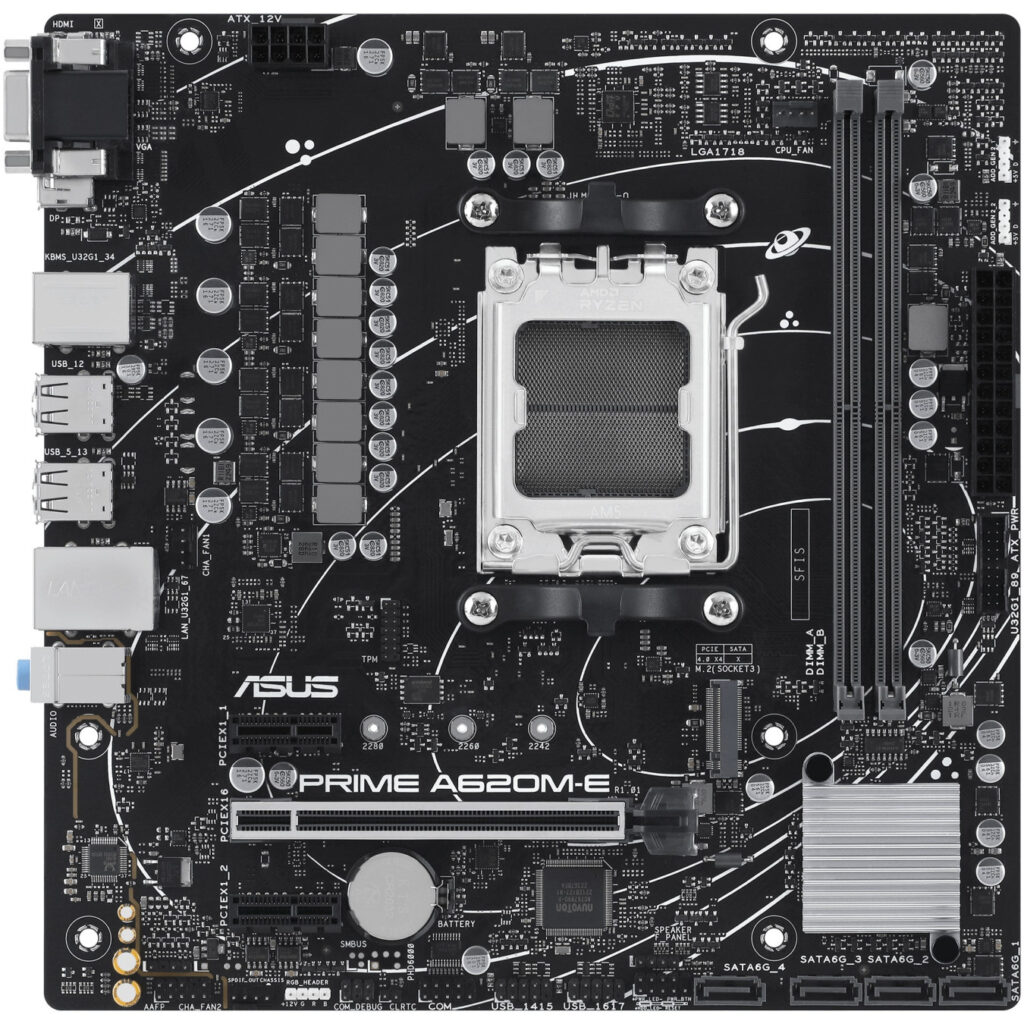

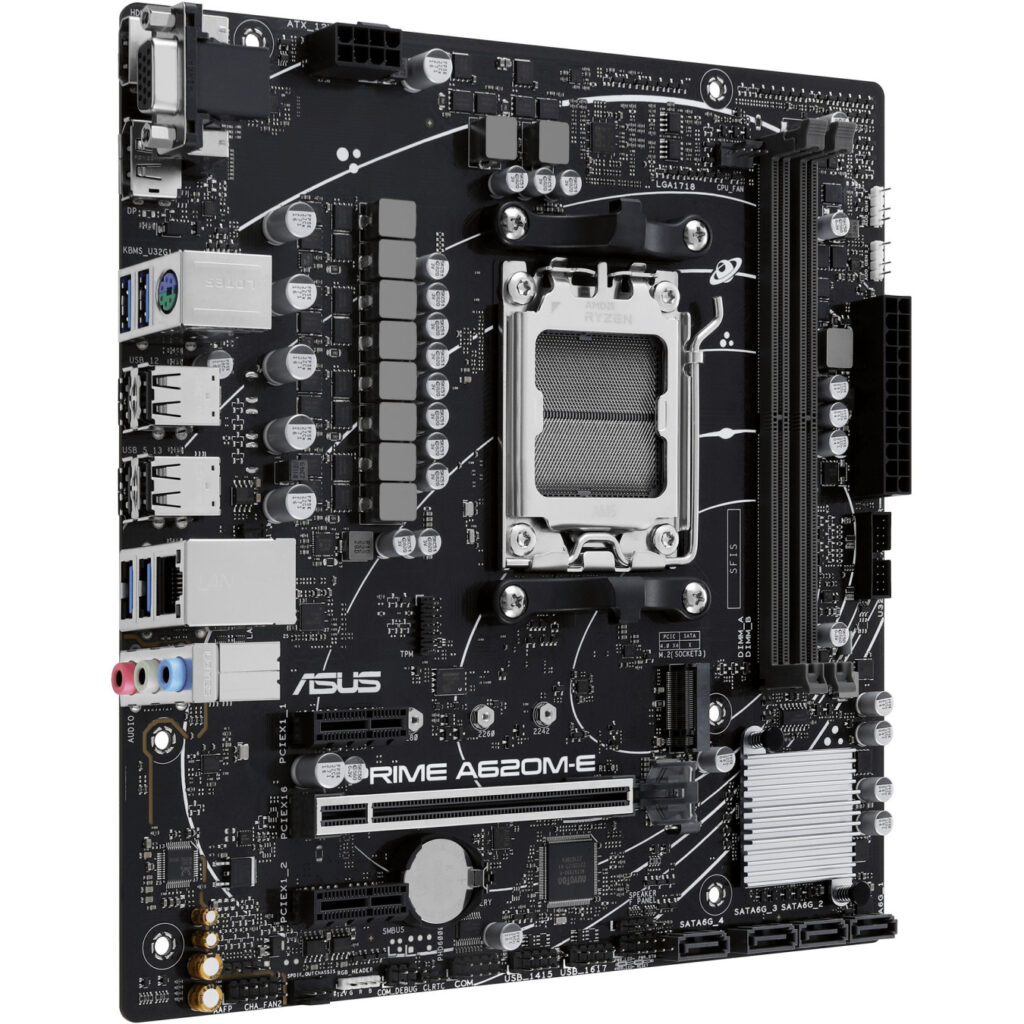

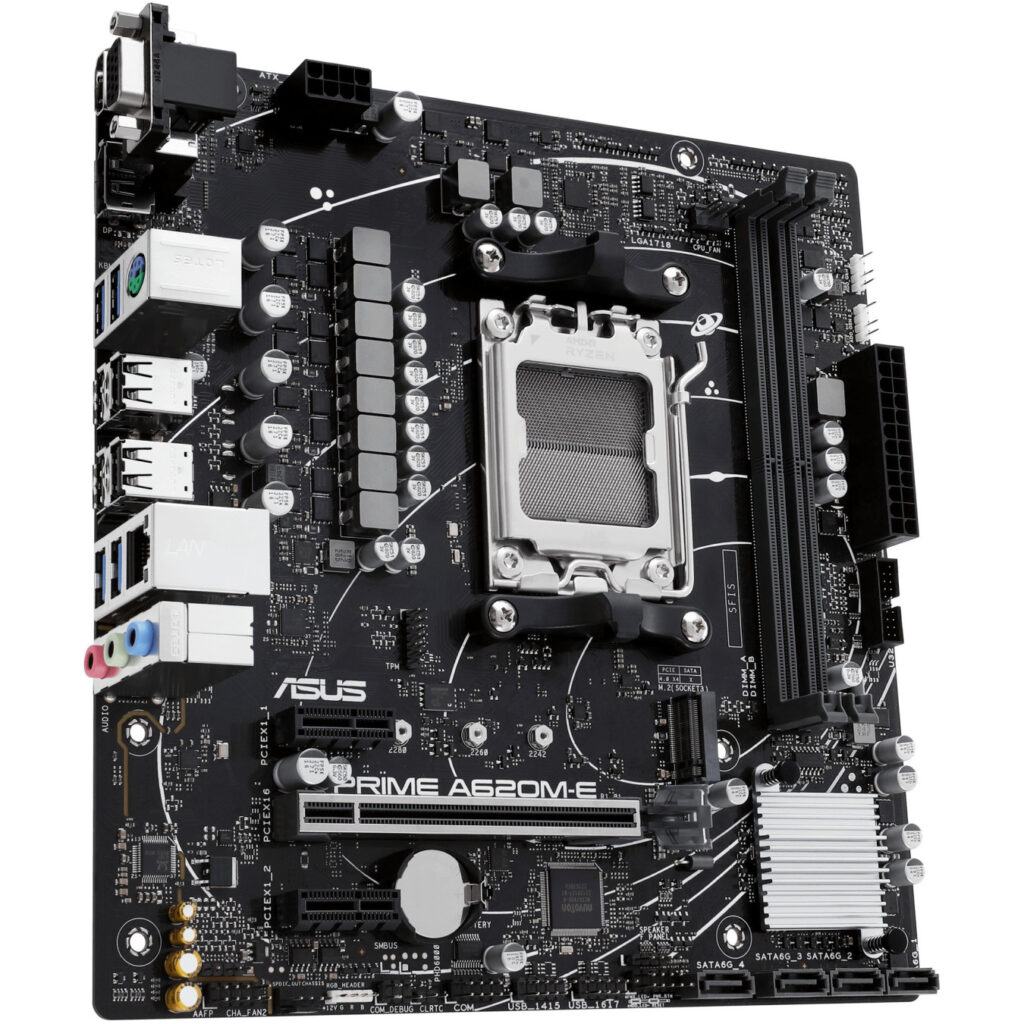

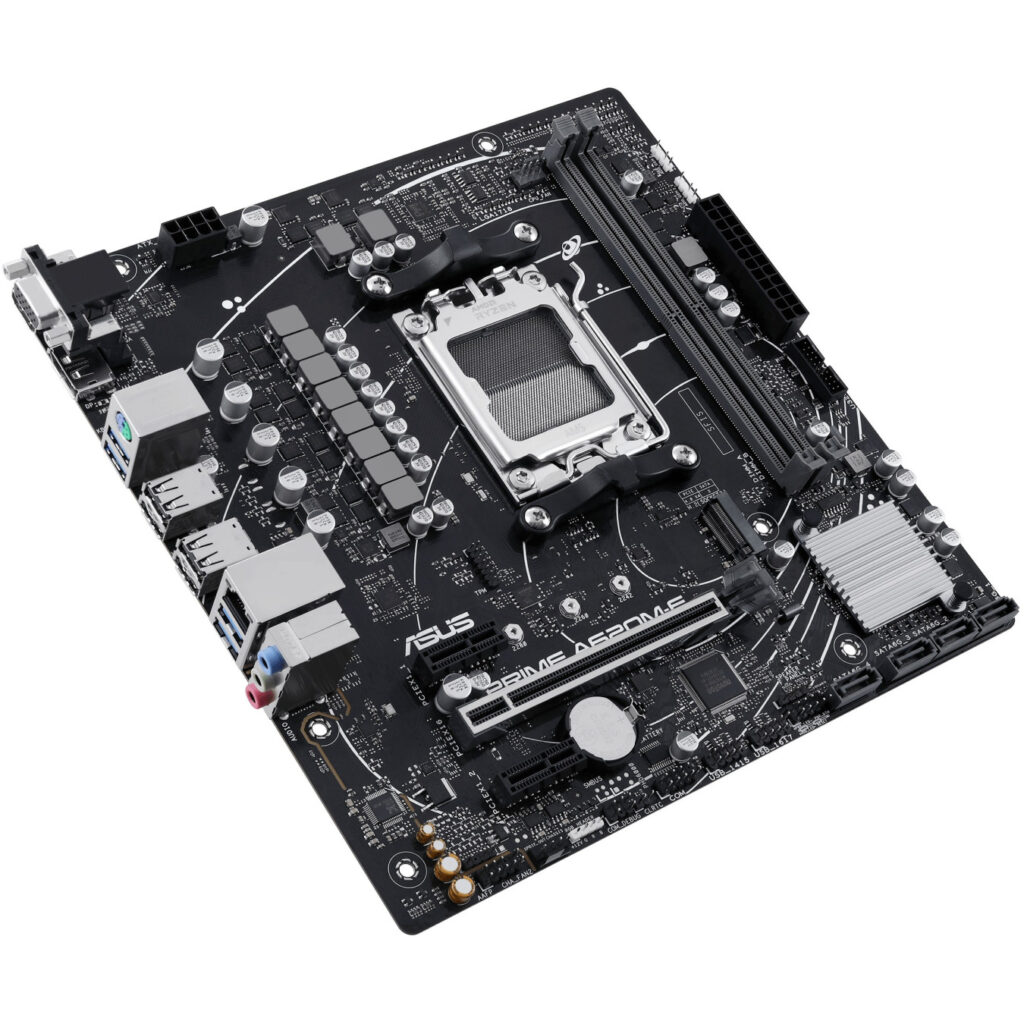

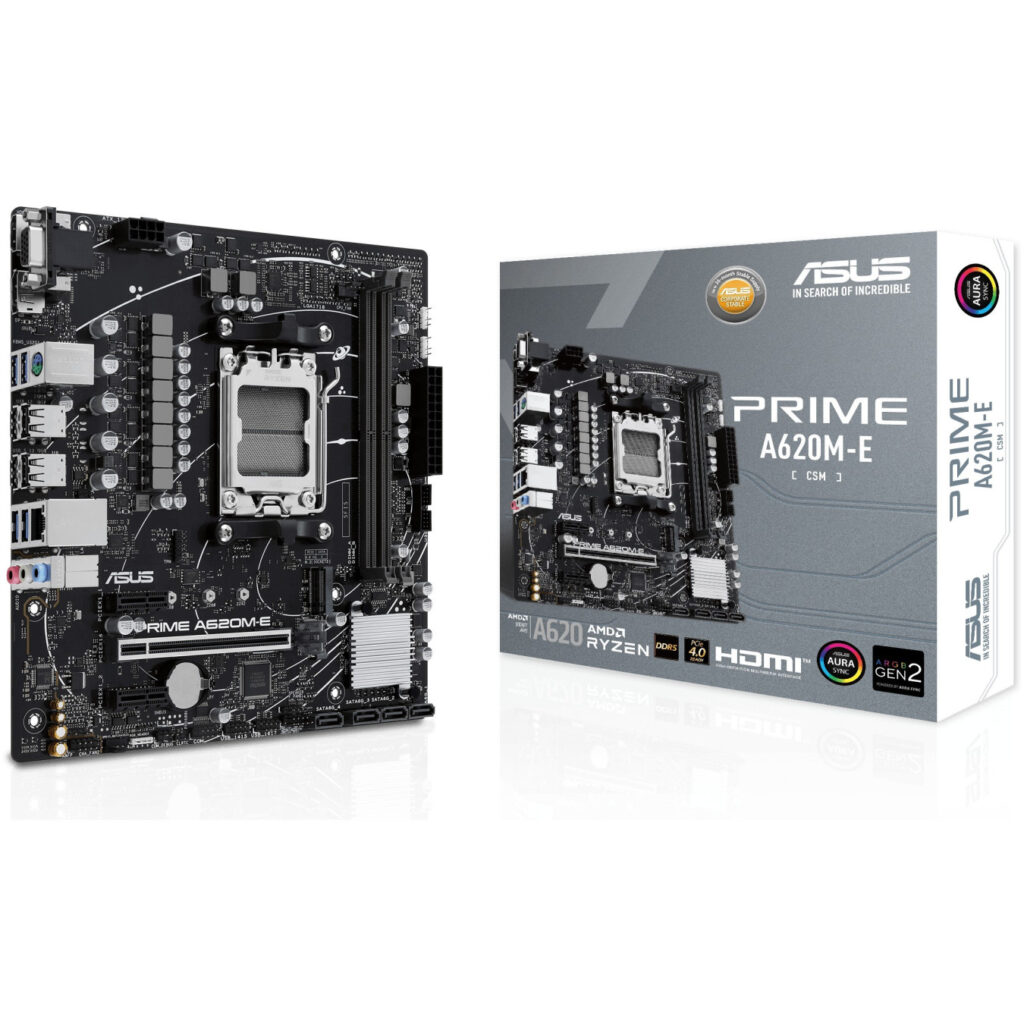

ASUS Prime A620M-E-CSM - mATX AM5 Motherboard - AMD A620, DDR5, 2x DIMM, Up to 96GB, PCIe 4.0, M.2, HDMI 2.1
ASUS PRIME A620M-E-CSM micro-ATX AM5 motherboard for Ryzen 7000; DDR5 (2 DIMM) up to 96GB, PCIe 4.0 x16, M.2 + 4x SATA III, HDMI 2.1, DP 1.4, Gigabit LAN.
Available in 6–10 business days : 12 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
ASUS PRIME A620M-E-CSM. Processor manufacturer: AMD. Processor socket: Socket AM5. Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM. Maximum internal memory: 96 GB. Memory slots type: DIMM. Supported storage drive interfaces: M.2. SATA III. Supported storage drive types: HDD & SSD. RAID levels: 0. 1. 10. Ethernet interface type: Gigabit Ethernet. Component for: PC. Motherboard form factor: micro ATX. Motherboard chipset family: AMD
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series |
| Supported processor sockets | Socket AM5 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 4800.5000.5200.5400.5600.5800.6000.6200.6400 MHz |
| Supported memory clock speed (max) | 6400 MHz |
| Maximum internal memory | 96 GB |
| Feature | User guide |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2. SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 5 |
| RAID levels | 0. 1. 10 |
| Parallel processing technology support | Not supported |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 2 |
| Number of COM connectors | 1 |

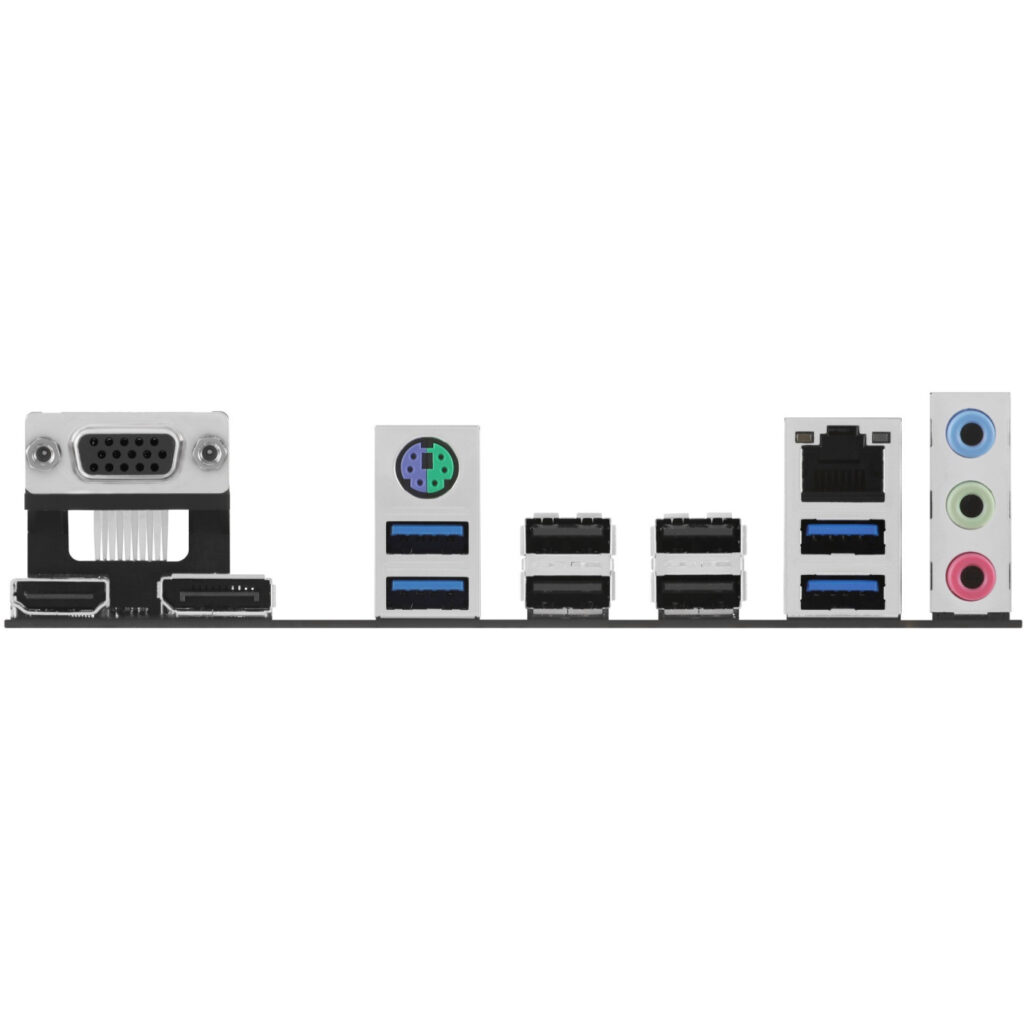

| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Motherboard chipset | AMD A620 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 10. Windows 11 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Package width | 260 mm |
| Package depth | 270 mm |
| Package height | 51.5 mm |
| Package weight | 940 g |
| Width | 226 mm |
| Depth | 221 mm |
| Cables included | SATA |
