ASUS PRIME B650-PLUS-CSM - AM5 ATX Motherboard, DDR5 128GB, PCIe 4.0, 2x M.2, 2.5Gb LAN, HDMI 2.1
ASUS PRIME B650-PLUS-CSM ATX AM5 motherboard for AMD Ryzen 7000 series. DDR5 up to 128GB (4 DIMM), PCIe 4.0, 2x M.2, 4x SATA III, 2.5Gb LAN, HDMI 2.1, USB-C Gen2 (rear).
Available in 6–10 business days : 7 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
ASUS PRIME B650-PLUS-CSM. Processor manufacturer: AMD. Processor socket: Socket AM5. Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM. Maximum internal memory: 128 GB. Memory slots type: DIMM. Supported storage drive interfaces: M.2. SATA III. Supported storage drive types: HDD & SSD. RAID levels: 0. 1. 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC. Motherboard form factor: ATX. Motherboard chipset family: AMD
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 4800.5000.5200.5400.5600.5800.6000.6200.6400 MHz |
| Maximum internal memory | 128 GB |
| Feature | Back-to-BIOS button |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2. SATA III |
| Number of HDDs supported | 4 |
| RAID levels | 0. 1. 10 |
| Parallel processing technology support | Not supported |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 3 |
| Number of COM connectors | 1 |
| Thunderbolt headers | 1 |

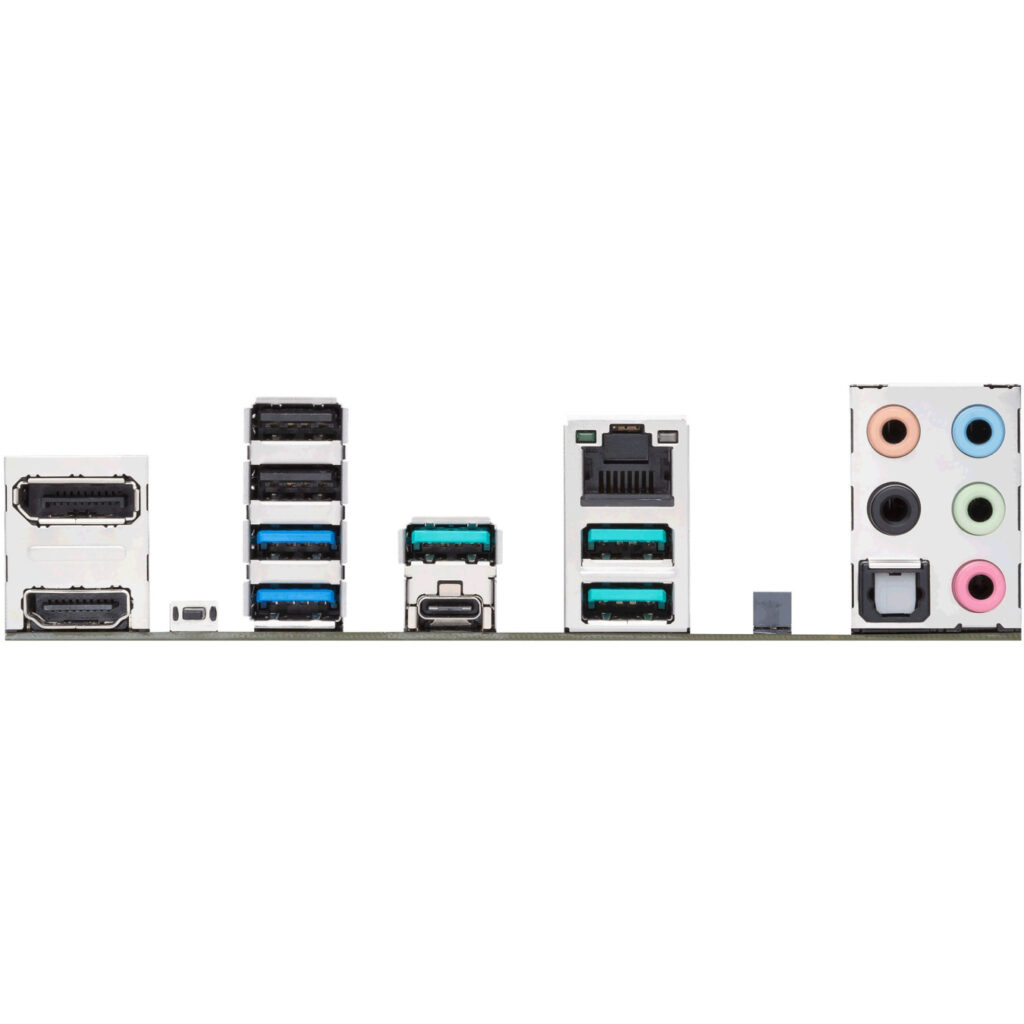

| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Motherboard chipset | AMD B650 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Windows operating systems supported | Windows 10. Windows 11 |
| PCI Express x1 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| Number of M.2 (M) slots | 2 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Package width | 373 mm |
| Package depth | 68 mm |
| Package height | 338 mm |
| Package weight | 1.35 kg |
| Width | 305 mm |
| Depth | 244 mm |
| Cables included | SATA |
| Number of M.2 (E) slots | 1 |
