- Full-Motion Mechanism: for the most optimized viewing position
- Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
- Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
- Leveling adjustments: allow TV to be perfectly positioned after hanging
- Cable Management: keeps everything organized
- Decorative Covers: for a more elegant look

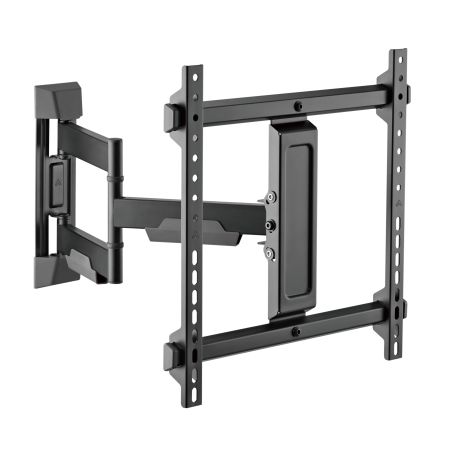

Product Category: Full-motion TV Wall Mount
Rank: Standard
Material: Steel,Plastic
Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet,VESA Panel THK=1.8mm cold-rolled sheet,Wall Plate THK=2.5mm pickling sheet (Bracket Arm THK=0.059" cold-rolled sheet,VESA Panel THK=0.071" cold-rolled sheet,Wall Plate THK=0.098" pickling sheet)
Pipe Size: 40x20x1.2mm Square Steel Tube (1.6"x0.79"x0.047" Square Steel Tube)
Surface Finish: Powder Coating
Color: Matte Black,Matte White
Dimensions: 511x462x430mm (20.1"x18.2"x16.9")
Fit Screen Size: 32"-70"
Fit Curved TV: Yes
Mounting Hole Pattern: VESA & Universal
VESA Compatible: 200x100,200x200,300x200,400x200,300x300,400x300,400x400
Max. Mounting Hole: 400x405
Weight Capacity: 40kg (88lbs)
Strength Tested: 3 Times Approved
Profile: 56~511mm (2.2"~20.1")
Tilt Range: +5°~-10°
Swivel Range: +90°~-90°
Screen Level: +3°~-3°
Screen Freely Tilting: Yes
Installation: Solid Wall,Single Stud
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
AV Component Shelf: No
Direction Indicator: Yes
Cable Management: Yes
Anti-theft: No
Bubble Level: Hook-on Bubble Level(Included in Components Package)
Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag
Silk Screen: Can be silkscreen printed
