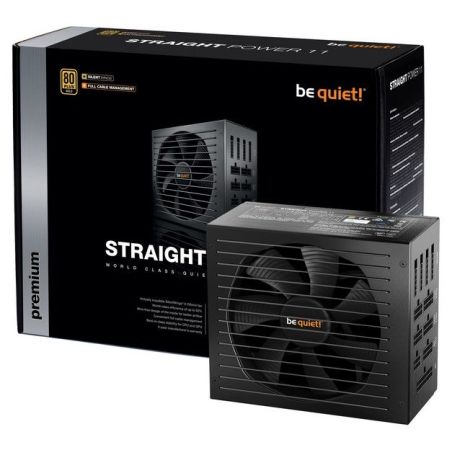

Power Supply 1000W STRAIGHT POWER 11 BN309
  • Power Supply 1000W STRAIGHT POWER 11 BN309
  • Power Supply 1000W STRAIGHT POWER 11 BN309
  • Power Supply 1000W STRAIGHT POWER 11 BN309
  • Power Supply 1000W STRAIGHT POWER 11 BN309

Power Supply 1000W STRAIGHT POWER 11 BN309

PSU0004
€236.00
Tax included
Quantity
Product not available for order
  • Power: 1000 W
  • PCI-E 6+2 Pin: 6
  • SATA connector: 10
  • 80 PLUS Platinum
  • Warranty 5 Years

Specification

  • 1000W Power Supply
  • Comforms ATX12V V2.52
  • AC Input: Voltage 100-240V, Current 12-6A, Frequency 50-60Hz
  • DC Out: +3,3V max 22A, +5V max 22A, +12V1 max 46A, +12V2 max 42A, -12V max 0,3A, +5Vsb max 3A
  • Total Combine Power 1000W
  • 93.0% Energy Efficiency (80+ Gold Certified). Active PFC
  • Connectors:
    • 1x ATX-Motherboard (20+4-pin)
    • 1x  P8 (CPU)
    • 1x P4+4 (CPU)
    • 6x PCI-e 6+2-pin (GPU)
    • 2x PATA 4-pin
    • 10x SATA 15-pin (HDD, Drives)
    • 1x FDD (Floppy)
  • Fan Type: Silence-optimized be quiet! fan with 120mm fan
  • OCP (over current protection), OVP (over Voltage protection), UVP (under Voltage protection), SCP (short circuit protection), OTP (over temperature protection), OPP (over power protection), SIP (Surge & Inrush Protection)
  • MTBF: 100.000 Hours
  • Safety Approvals: CE, CB, TUV, FCC, cRUus, cTUVus, RCM, BSMI, CCC
  • Dimesions without cable: 160(L)x150(W)x86(D)mm
  • Package Dimensions: 300(L)x220(W)x100(D)mm
  • Total weight: 1.89Kg
  • Color: Black
  • Warranty: 5 years

Main Features

PSU Form Factor
ATX
PSU 80+ Certificate
Platinum
PSU Power
1000W
PSU Connectivity PCI-E 6 plus 2 pin
6
PSU Cable Managment
Full Modular
PSU Connectivity Main 20+4 pin
1
PSU Connectivity CPU 4 plus 4 pin
1
PSU Connectivity S-ATA
10
PSU Connectivity Molex
2
PSU RGB
No
