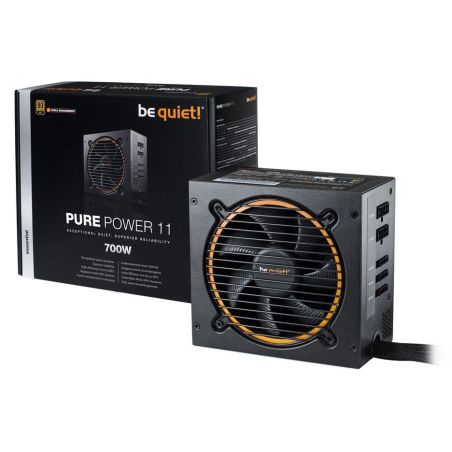

Be quiet Pure Power 11 700 watt BN295 80 plus
  • Be quiet Pure Power 11 700 watt BN295 80 plus
  • Be quiet Pure Power 11 700 watt BN295 80 plus
  • Be quiet Pure Power 11 700 watt BN295 80 plus

Be quiet Pure Power 11 700W BN295 80 plus

PSU0067
€112.00
Tax included
Quantity
Product not available for order
  • Power: 700W
  • PCI-E 6+2 Pin: 4
  • SATA connector: 6
  • 80 PLUS Certificate
  • Warranty 5 Years

Specification

700W Power Supply
Comforms ATX12V V2.4 and EPS 2.92 standard
AC Input: Voltage 100-240V, Current 8-5A, Frequency 50-60Hz
DC Out: +3,3V max 25A, +5V max 20A, +12V1 max 36A, +12V2 max 30A, -12V max 0,3A, +5Vsb max 3A
Total Combine Power 672W
92% Energy Efficiency (80+ Gold Certified). Active PFC
Connectors:

  • 1x ATX-Motherboard (20+4-pin)
  • 1x P4+4 (CPU)
  • 4x PCI-e 6+2-pin (GPU)
  • 3x PATA 4-pin
  • 6x SATA 15-pin (HDD, Drives)
  • 1x FDD (Floppy)


Fan Type: Silence-optimized be quiet! fan with 120mm fan
OCP (over current protection), OVP (over Voltage protection), UVP (under Voltage protection), SCP (short circuit protection), OTP (over temperature protection), OPP (over power protection)
MTBF: 100.000 Hours
Safety Approvals: CE, CB, TUV, FCC, cTUVus, RCM, CU, BSMI, CCC
Dimesions without cable: 150(L)x150(W)x86(D)mm
Package Dimensions: 240(L)x210(W)x96(D)mm
Total weight: 2.11Kg
Color: Black
Warranty: 5 years

Main Features

PSU Form Factor
ATX
PSU 80+ Certificate
Gold
PSU Power
700W
PSU Connectivity PCI-E 6 plus 2 pin
4
PSU Cable Managment
Semi Modular
PSU Connectivity Main 20+4 pin
1
PSU Connectivity CPU 4 plus 4 pin
1
PSU Connectivity S-ATA
6
PSU Connectivity Molex
3
