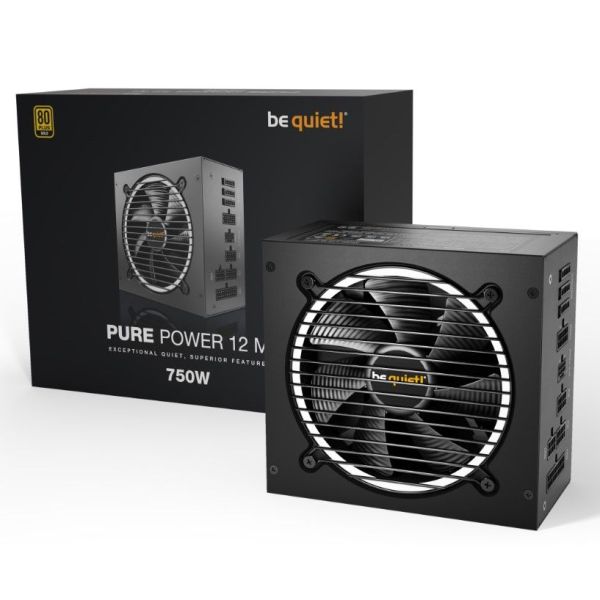

Power Supply Be quiet Pure Power 12 M 750W BN343

PSU0054
€140.00
Tax included
Quantity
Product not available for order
  • Power: 750W
  • 1x PCIe 5.0 12VHPWR
  • 2 x 6+2 pin PCIe
  • SATA connector: 5
  • Full Modular cables
  • 80 PLUS Gold Certificate
  • Warranty 10 Years

Specification

  • Pure Power 12 750W Modular Power Supply.
  • Compliant ATX 3.0, EPS 2.92 standard. Full support for PCI-E 5.0 GPUs and GPUs with 6+2 pin connector.
  • AC Input: Voltage 100-240V, Current 10/5A, Frequency 50-60Hz.
  • DC Out: +3,3V max 20A, +5V max 20A, +12V1 max 36A, +12V2 max 32A, -12V max 0,3A, +5Vsb max 3A. Total Combine Power output 750W. Power Good signal 100-150 ms.
  • Efficiency: Gold Energy 80 Plus certification. 86,6% at 10% load, 91,5% at 20% load, 92,6% at 50% load, 90,6% at 100% load.
  • Cables/Connectors: 1x ATX-Motherboard (20+4-pin), 1x P8 (CPU), 1x P4+4 (CPU), 1x PCIe 5.0 12VHPWR, 2x PCI-E 6+2 pin (GPU), 5x SATA, 2x PATA,
  • Fan: Exceptionally Silent fan 120mm. Max fan speed 1800 rpm temperature dependent.
  • Protection: OCP (over current protection), OVP (over voltage protection), UVP (under Voltage protection), SCP (short circuit protection), OTP (over temperature protection), OPP (over power protection), SIP (surge & inrush protection).
  • MTBF: 100.000 Hours.
  • Safety Approvals: CE, CB, TUV, FCC, cTUVus, RCM, BSMI, CU, CCC, UKCA.
  • Environmental directives: Energy Star 8.0, Erp, WEEE, RoHs, Triman.
  • Dimensions without cable: 160(L)x150(W)x86(D)mm.
  • Total Weight: 1.69Kg.
  • Color: Black.
  • Warranty: 10 years.

Main Features

PSU Form Factor
ATX
PSU 80+ Certificate
Gold
PSU Power
750W
PSU Connectivity PCI-E 6 plus 2 pin
2
PSU Cable Managment
Full Modular
PSU Connectivity Main 20+4 pin
1
PSU Connectivity CPU 4 plus 4 pin
1
PSU Connectivity S-ATA
5
PSU Connectivity Molex
2
