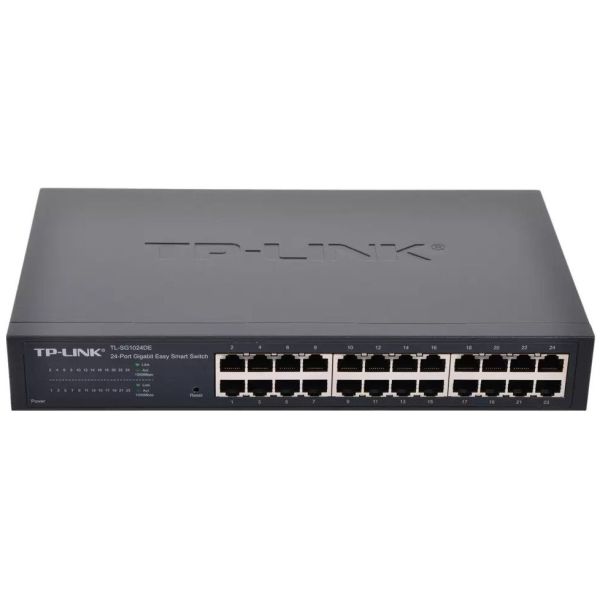

TP-LINK SWITCH 24PORTS GIGABIT LAN PORTS, EASY SMART, QOS, L2, VLAN
  • TP-LINK SWITCH 24PORTS GIGABIT LAN PORTS, EASY SMART, QOS, L2, VLAN
  • TP-LINK SWITCH 24PORTS GIGABIT LAN PORTS, EASY SMART, QOS, L2, VLAN
  • TP-LINK SWITCH 24PORTS GIGABIT LAN PORTS, EASY SMART, QOS, L2, VLAN

TP-LINK SWITCH 24 PORTS GIGABIT LAN PORTS, EASY SMART, QOS, L2, VLAN,

TP-Link
SWI0033
€129.00
Tax included
Quantity
Available upon order 2-5 days

Switch 24 ports 10/100/1000Mbps RJ45

L2 Features: IGMP Snooping V1/V2/V3; Static Link Aggregation; Port Mirroring; Cable Diagnostics; Loop Prevention

Rack Mountable

Warranty:Life time

Specification

·        HARDWARE FEATURES

Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Interface

24 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity

Fanless

Physical Security Lock

No

Power Supply

100-240VAC, 50/60Hz

Dimensions ( W x D x H )

11.6*7.1*1.7 in. (294*180*44 mm)

Mounting

Rack Mountable

Max Power Consumption

14.19W (220V/50Hz)

Max Heat Dissipation

48.39 BTU/h

PERFORMANCE

Switching Capacity

48Gbps

Packet Forwarding Rate

35.7Mpps

MAC Address Table

8K

Packet Buffer Memory

4.1Mbit

Jumbo Frame

10KB

SOFTWARE FEATURES

Quality of Service

Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control

L2 Features

IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention

VLAN

Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN

Transmission Method

Store-And-Forward

OTHERS

Certification

FCC, CE, RoHS

Package Contents

TL-SG1024DE, Power Cord, Installation Guide, Resource CD, Rackmount Kit, Rubber Feet

System Requirements

Microsoft® Windows® for running Utility

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
