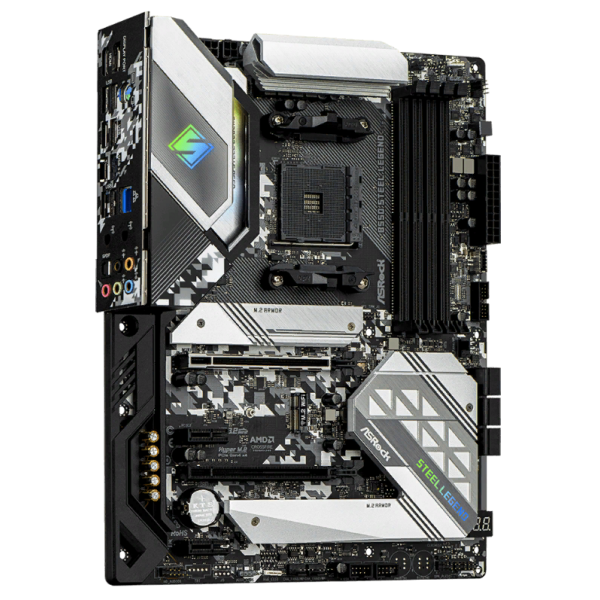

Motherboard Asrock B550 steel legend AM4 socket

MOT0053
€190.00
Tax included
Quantity
Product not available for order
  • ATX Form Factor
  • Intel B550 Chipset
  • Socket AM4 (Supports CPU Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series)
  • RAM 4 x DDR4 up to 128 GB
  • 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1, 1 M.2 Key E for WiFi
  • HDMI, Display Port

Specification

CPU Support Supports AMD Ryzen™ 5000 & 3000 Series desktop processors
Chipset AMD® B550
MB Size ATX
Memory

 AMD Ryzen series CPUs (Vermeer) and CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC

AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC

AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC

AMD Ryzen series APUs (Picasso) support DDR4 3333+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC
VGA
VGA Out

Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU

DirectX 12, Pixel Shader 5.0

Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers

Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz

Supports DisplayPort 1.4 with max. resolution up to 5K (5120x2880)@120Hz

Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)

Supports HDR (High Dynamic Range) with HDMI 2.1

Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports
Slots 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
Storage 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
USB ports 2 USB 3.2 Gen2 (Rear Type A+C), 8 USB 3.2 Gen1 (4 Front, 4 Rear)
NIC 1x Realtek® 8111HN Gigabit LAN controller
Audio

7.1 Channel HD Audio

- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
I/O

- 2 x Antenna Mounting Points

- 1 x PS/2 Mouse/Keyboard Port

- 1 x HDMI Port

- 1 x DisplayPort 1.4

- 1 x Optical SPDIF Out Port- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)

- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)

- 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)

- 2 x USB 2.0 Ports (Supports ESD Protection)

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

- 1 x Clear CMOS Button
Special
Warranty 3 Years

Main Features

USB Interface
USB Type C
Monitor connection
HDMI
Display Port
1
CPU Socket
AM4
Motherboard Form Factor
m-ATX (micro ATX)

Specific References
