Arduino Due Board - AT91SAM3X8E, 512KB Flash - A000056
62.00 €
Arduino Due without headers is a 32-bit AT91SAM3X8E board with 84 MHz clock, 512 KB Flash, 96 KB SRAM, and 3.3 V logic for advanced embedded development.
Το προϊόν δεν είναι διαθέσιμο
Αυτό το προϊόν δεν είναι διαθέσιμο αυτή τη στιγμή. Μπορούμε να σας προτείνουμε εναλλακτικές ή να προσπαθήσουμε να το βρούμε για εσάς. Καλέστε μας στο 22 270068 ή email [email protected].

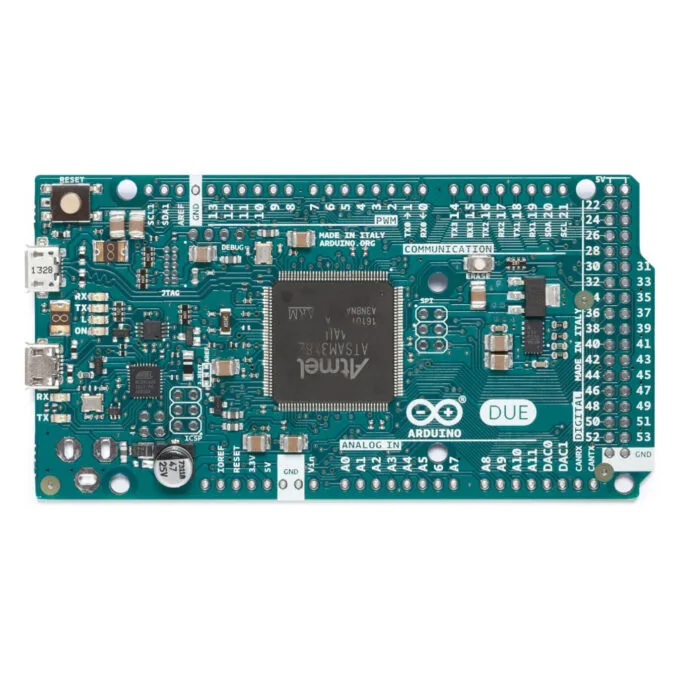

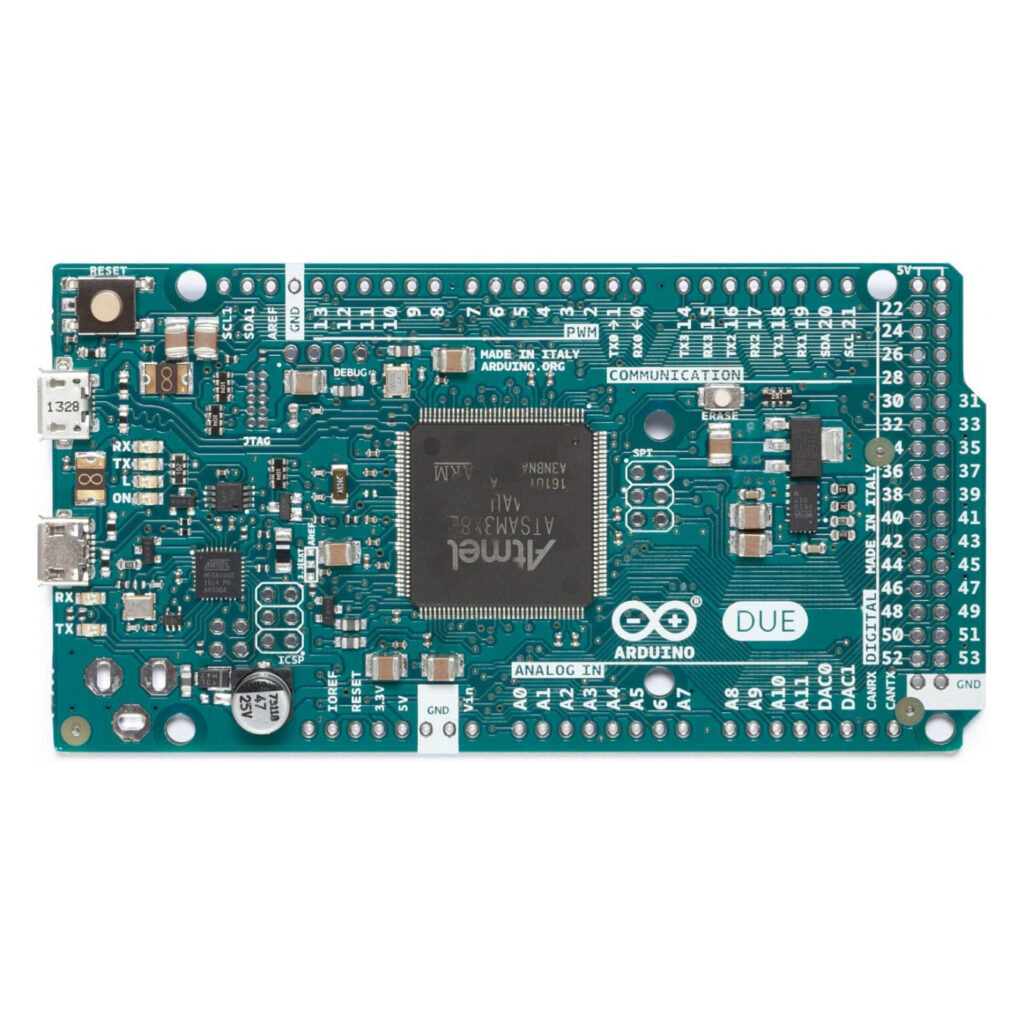

Arduino Due is a 32-bit microcontroller board based on the AT91SAM3X8E ARM Cortex-M3, designed for advanced embedded projects that need more memory and I/O than classic 8-bit boards.
This without-headers version is intended for custom integration and soldered connections, while still providing 84 MHz performance, 3.3 V logic, USB OTG support, and a full set of Arduino-compatible headers on the board outline.
Key details:
- AT91SAM3X8E microcontroller with 84 MHz clock
- 512 KB Flash and 96 KB SRAM
- 3.3 V operating voltage with 6-16 V input limits
- Without headers variant for custom builds
| Type | Microcontroller board |
| Manufacturer | Arduino |
| Model | Due |
| MPN | A000056 |
| Microcontroller | AT91SAM3X8E |
| Clock Speed | 84 MHz |
| Operating Voltage | 3.3 V |
| Input Voltage (limits) | 6-16 V |
| Flash Memory | 512 KB |
| SRAM | 96 KB |
| Digital I/O Pins | 54 |
| Analog Input Pins | 12 |
| Analog Output Pins | 2 DAC |
| USB | USB OTG capable |
| Board Size | 101.52 x 53.3 mm |
| Weight | 36 g |
| Variant | Without headers |
