Adastra AS 100V Multi Zoner A6 Volume+Switch 6x30W - 952.476UK - A6 Volume+Switch 6x30W

SKU:
Μάρκα: Adastra
Barcode:
139.00 €

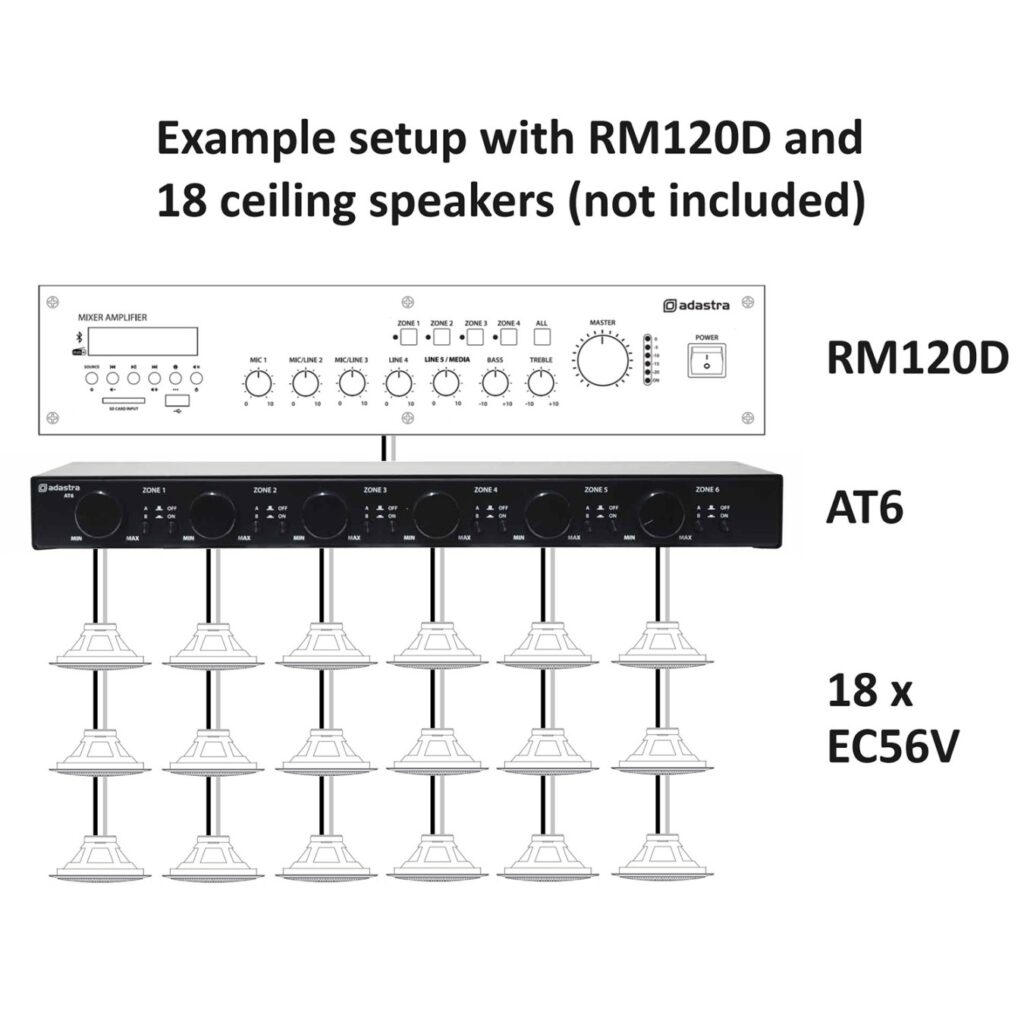

Connect an AT6 to one or two 100V amplifiers to provide a 6-zone volume and source solution for multi-room installations.

Available in 2–3 business days : 5 τεμάχιο

For any questions about this item, availability, or delivery times, please contact us at 22 270068

  • Connect an AT6 to one or two 100V amplifiers to provide a 6-zone volume and source solution for multi-room installations.
  • Housed in a 1U rackmount enclosure, the AT6 has six output channels, which can feed up to 30W to one or more 100V speakers.
  • Each channel has a rotary volume switch, on/off switch and an A/B source switch.
  • When connecting 2 amplifier outputs to the AT6, one amplifier becomes input A and the other input B, so that each channel can have an independent choice of audio source and output level.
  • 24V terminals can be connected to an emergency control panel for global muting.
  • A completely passive and cost-effective add-on to convert single output amplifiers into a flexible zoning system.
  • Choice of 2 amplifier sources to each zone
  • Rotary output volume switch for each zone
  • Passive operation, no power supply required
  • 1U 19″ rack-mountable
  • Power handling 30W max. per output zone
  • Channel controls 11 position volume attenuator, A/B source switch, On/Off switch
  • Connections 24V mute terminals
  • 482 x 160 x 43mm
  • Weight
  • 2.39kg
