Adastra - UA60 - 100V Compact Amplifer Mixer 60W 953.186UK

SKU:
Μάρκα: Adastra
Barcode:
159.50 €

100V mixer-amplifier with a 5-input mixer in a half-width 1U housing; 3 switchable mic/line inputs, RCA line input, and a 3.5mm AUX input with front-panel volume controls.

Available in 2–3 business days : 5 τεμάχιο

For any questions about this item, availability, or delivery times, please contact us at 22 270068

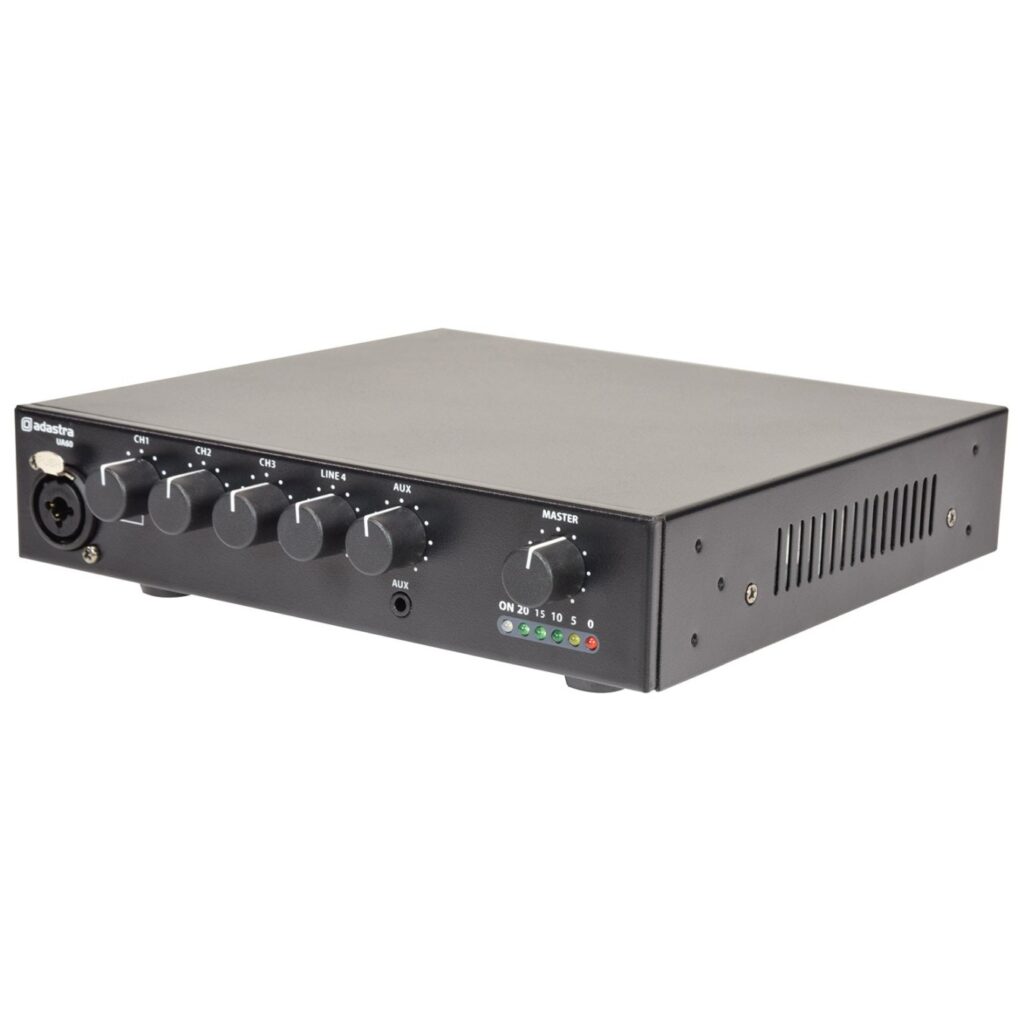

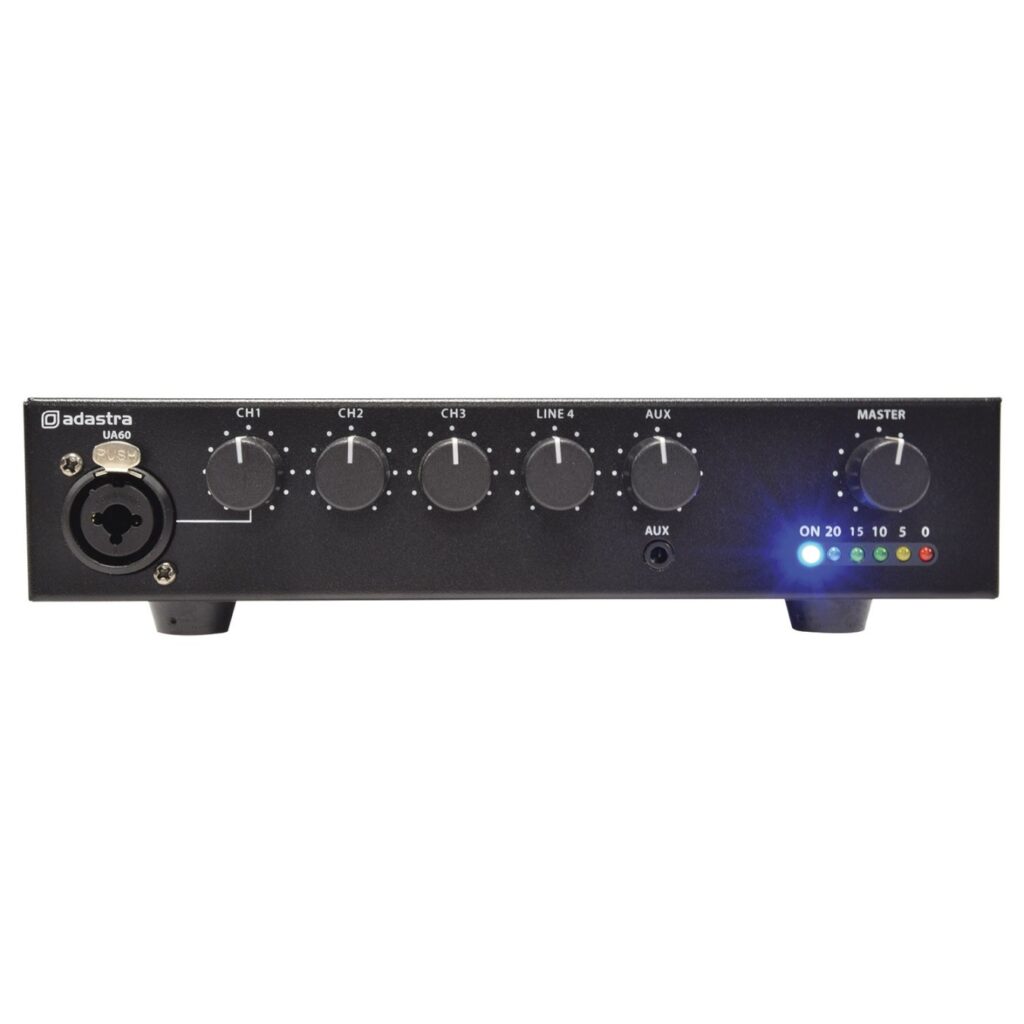

100V mixer-amplifier with a 5-input mixer in a half width 1U housing. 3 switchable mic/line inputs, an RCA line input and a 3.5mm Aux input are governed by front panel volume controls and a Master output control. Mono output to either 100V line or 8 ohms speaker load is connected via a removable screw terminal connector on the rear panel. Supplied with rack-mounting hardware which can be configured to mount a single unit against a wall or under a worktop. Designed as a versatile solution for small to medium PA installations.

  • Supplied with hardware for rack-mounting 2 units
  • 5 input channels
  • 24V fire alarm mute contacts
  • 100V line or 8 Ohms operation
  • Switchable +20V phantom power CH1
  • Power supply: 170-264Vac, 50Hz (IEC)
  • Amplifier : construction: Class D + transformer output
  • Inputs: Mic/line (combo), 2 x mic/line (6.3mm), line (RCA), aux (3.5mm)
  • Phantom power: +20V CH1 (XLR or rear terminals)
  • Line output: 2 x RCA (mono)

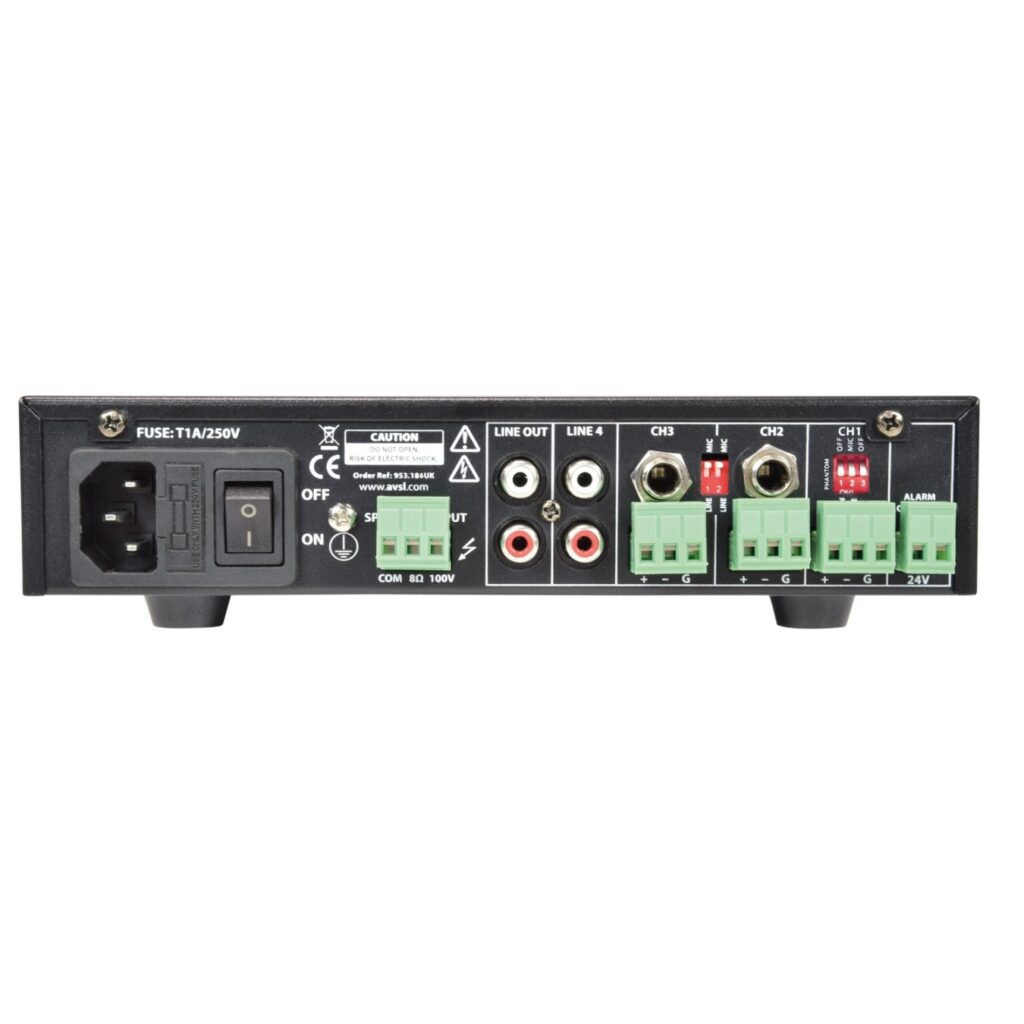

  • Speaker output: Euroblock terminals: 100V / 8 Ohms / Com
  • Mute: 24V relay contacts
  • THD<0.4% @ 1kHz
  • Input impedance: 1k Ohms (mic/line)
  • Input sensitivity: -10dB (line), -45dB (mic)
  • SNR: 80dB (line), 75dB (mic)
  • Frequency response: 100Hz – 18kHz
  • Output power : rms 60W
  • Dimensions : 269 x 210 x 44mm
  • Weight: 2.47kg
