Wechselrahmen 1x 3.5-inch SATA HDD in 5.25-inch Bay sw
Delock 5.25-inch mobile rack for 1x 3.5-inch SATA HDD. Fits in standard PC bay, supports hot swap, 6Gb/s transfer, 2 cooling fans, key lock, NSS connector for drive protection, and vibration dampening. Includes cables and keys.
Available in 6–10 business days : 56 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068

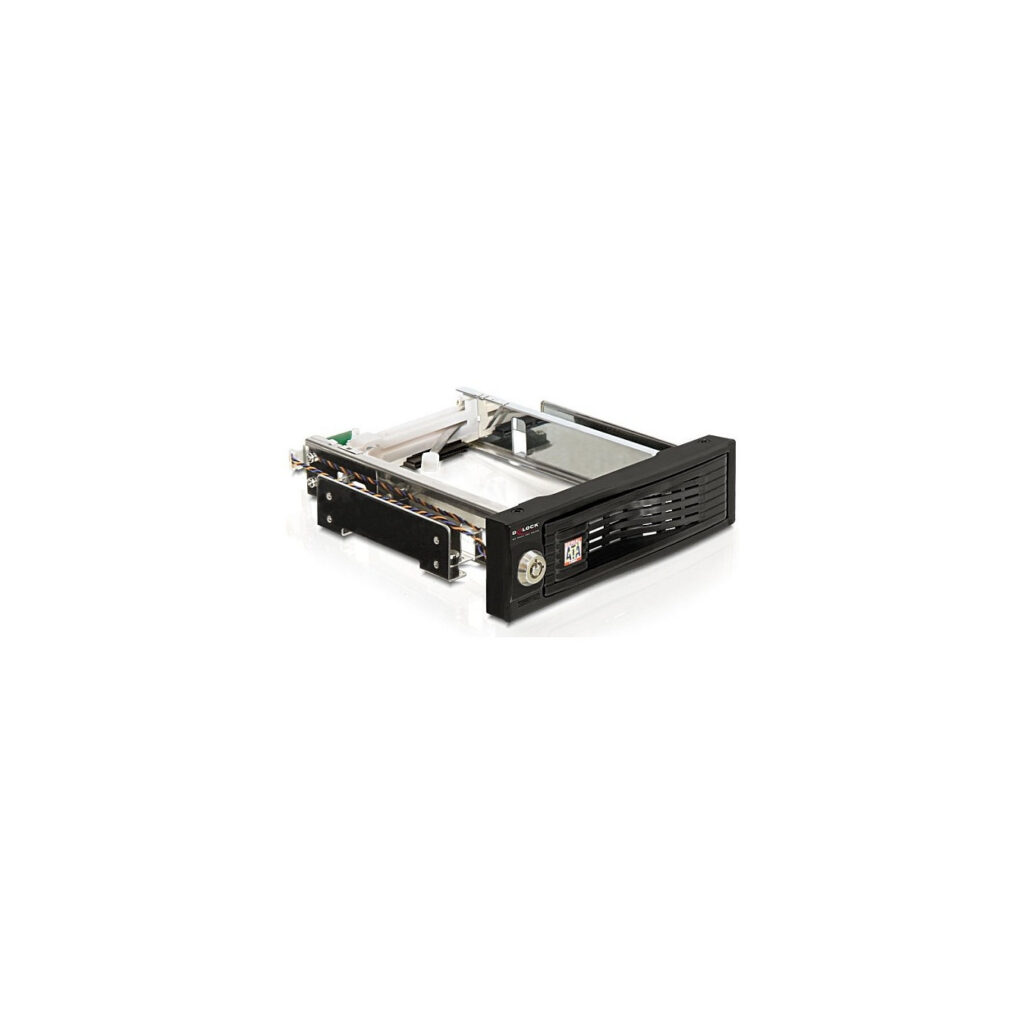

This Delock Wechselrahmen allows installation of a single 3.5-inch SATA HDD into a standard 5.25-inch PC bay, enabling quick drive swapping without powering down the system.
Key features include two integrated bottom fans for optimal cooling, vibration protection to safeguard the HDD, mechanical spring stabilization, and a control board that automatically powers off the drive when the tray opens. It supports SATA speeds up to 6Gb/s, hot swap functionality, and uses a special NSS SATA connector to prevent wear on the drive’s port during frequent changes. A key lock and status LEDs ensure secure operation.
OS-independent with no drivers needed. Fits any desktop PC with a free 5.25-inch bay, SATA port, and power connector.
- Compatible with all 3.5-inch SATA HDDs up to 6Gb/s

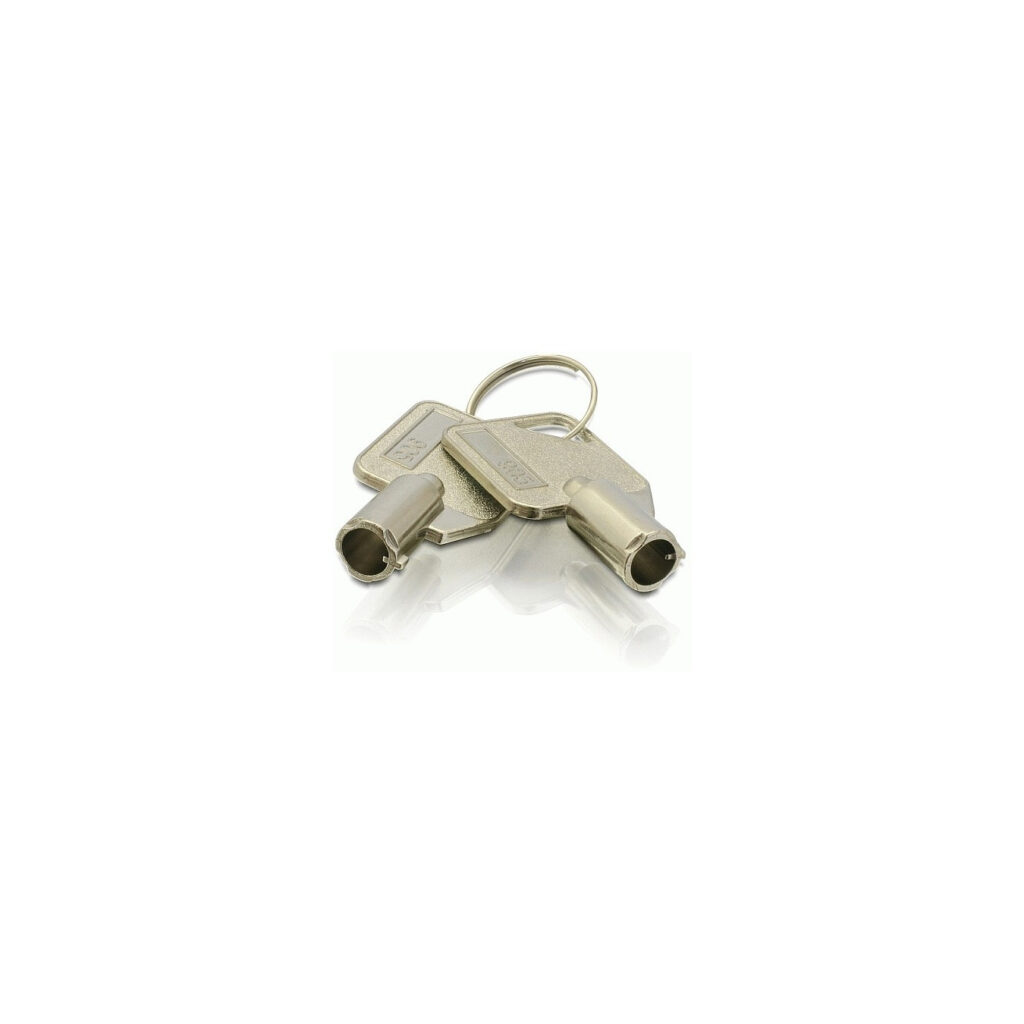

- Includes SATA data cable, SATA power cable, 2 keys, screws, manual
- Black color, key lock, 2x status LEDs
| Size (Imperial) | 8.89 cm (3.5-inch) |
| Type | Mobile Rack |
| Product Color | Black |
| Tariff Number (HS) | 84733080 |
| Supported Drive Size | 1 x 3.5-inch SATA HDD |
| Bay Size | 5.25-inch |
| Data Transfer Rate | Up to 6 Gb/s |
| Fans | 2 integrated |
| Lock | Key lock |
| LED Indicators | 2 x Status LED |
| Hot Swap | Yes |
| Internal Connectors | 1 x SATA 22-pin NSS socket |
| External Connectors | 1 x SATA 22-pin plug |
| Vibration Protection | Yes |
| OS Independent | Yes, no drivers needed |
