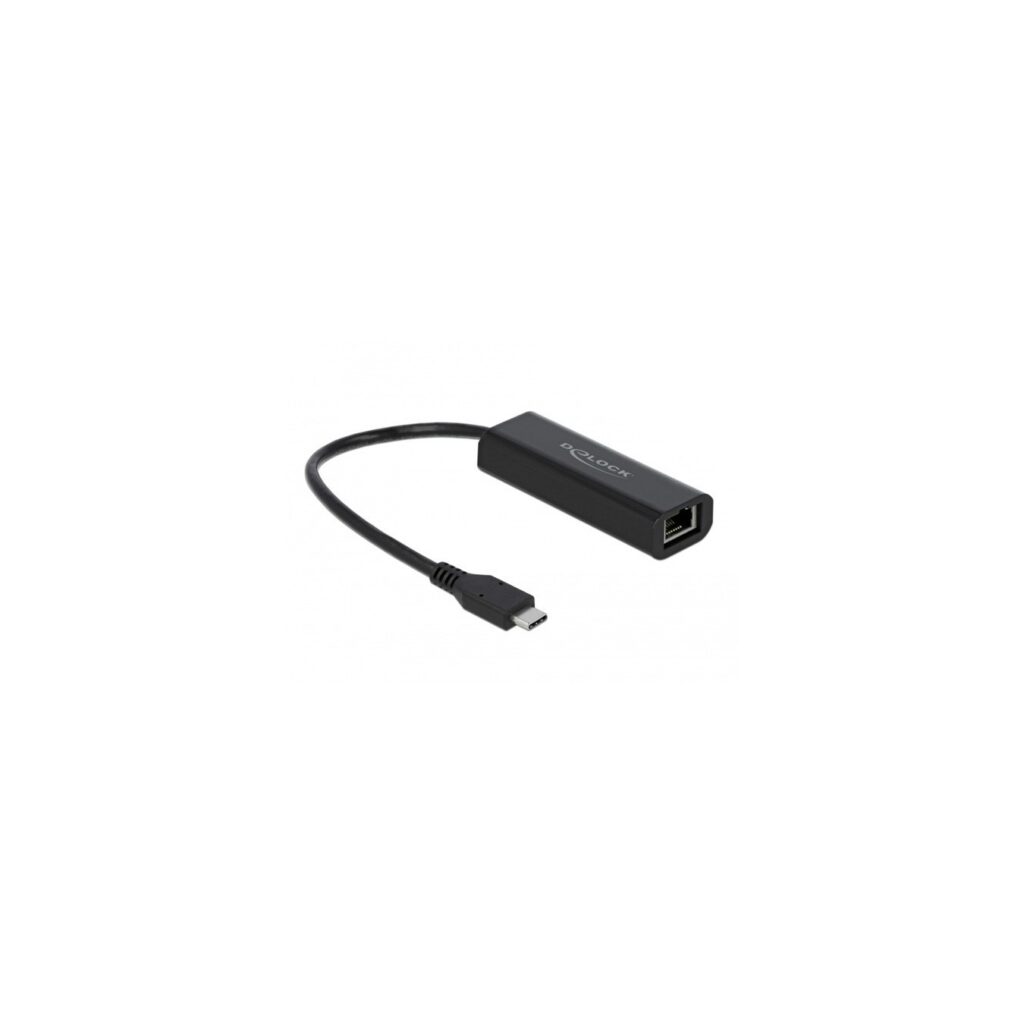

USB Adapter - USB-C Plug to RJ-45 Socket
55.50 €
Delock 66298 USB-C to Ethernet adapter adds a network interface via USB-C; Thunderbolt 3 compatible, with LED indicator and USB bus power.
Available in 6–10 business days : 100 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The 66298 adapter from Delock expands a PC or notebook to include a network interface via the USB-C port. The adapter can also be operated on a Thunderbolt 3 interface. Modern services and new technologies require higher bandwidths. NBASE-T technology enables speeds of 1 Gbps and 2.5 Gbps with conventional network cables, automatically setting the best possible transmission rate.
| Typ | Adapter |
| Color | schwarz |
| EAN | 4043619662982 |
| Manufacturer no. | 66298 |
| Manufactured in | China |
| Application example | To connect a notebook to the cable network |
| Area | network |
| Connection - from | 1x USB-C (Stecker) |
| Protocol | USB 3.2 Gen 1 (5 Gbit/s) |
| taps | 2 |
| Characteristics | external, USB C connector can be used on both sides |
| Feature | LED indicator for connection and activity, USB bus power |
| More information | Chipset: Realtek RTL8156, data transfer rates: Fast Ethernet up to 100 Mbps (Half/Full Duplex), Gigabit Ethernet up to 1,000 Mbps (Half/Full Duplex), NBASE-T with up to 2.5 Gbps (Half/Full Duplex), compatible with: IEEE 802.3u: 100BASE-TX, IEEE 802.3ab: 1000BASE-T, IEEE 802.3bz: 2.5GBASE-T, supports Auto MDI-X (automatic detection of standard or crossover network cable), supports IEEE 802.1Q Virtual LAN (VLAN), supports full duplex with IEEE 802.3x flow control and half duplex operation with back-pressure flow control, supports 9k jumbo frames |
| Notice | System requirements: Linux Kernel 4.2 or higher, Mac OS 10.14 or higher, Windows 7 / 7-64 / 8.1 / 8.1-64 / 10 / 10-64. The designation USB 3.2 Gen 1 corresponds to the previous designations USB 3.1 Gen 1 / USB 3.0. |
| Accessories - available | Instruction manual |
| Dimensions | Width: 25mm x Height: 11mm x Depth/Length: 75mm |
| Cable length | 15 cm |
| Weight | 62 Gramm |
