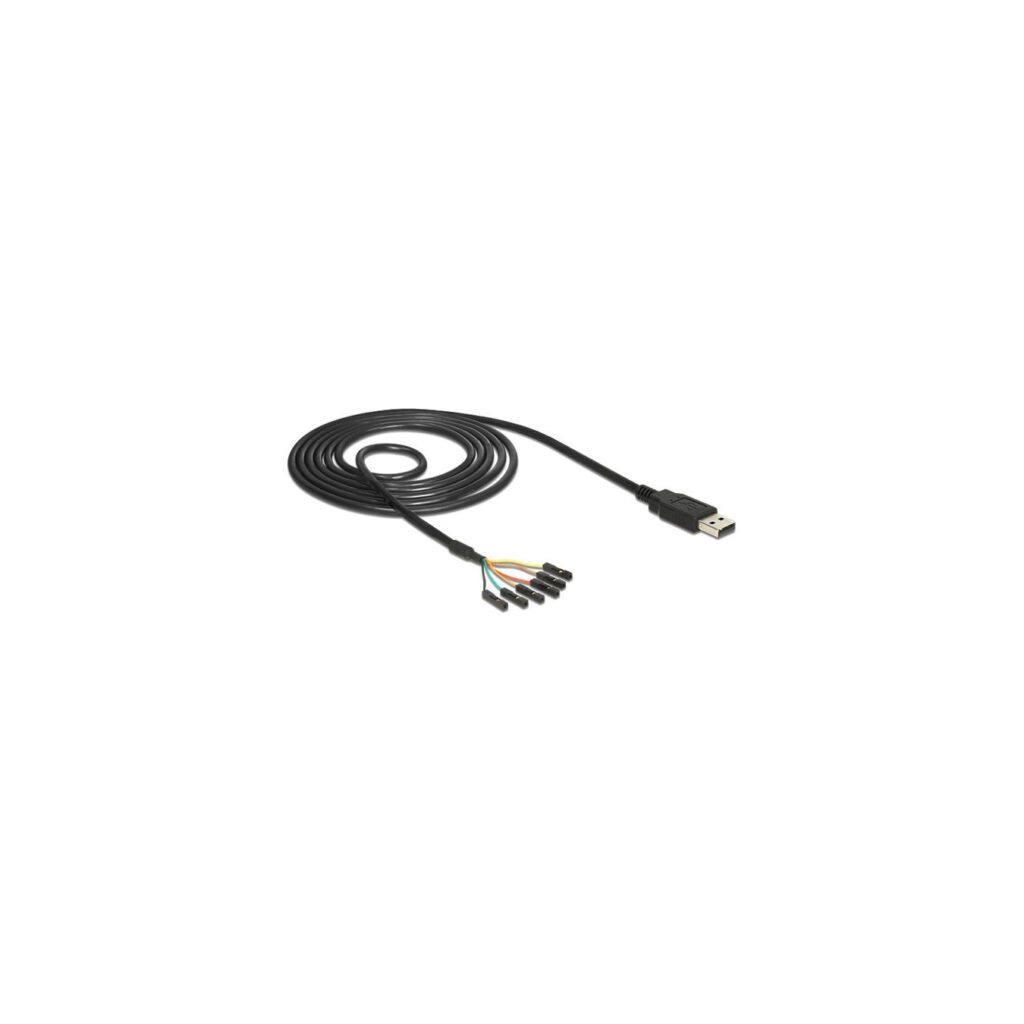

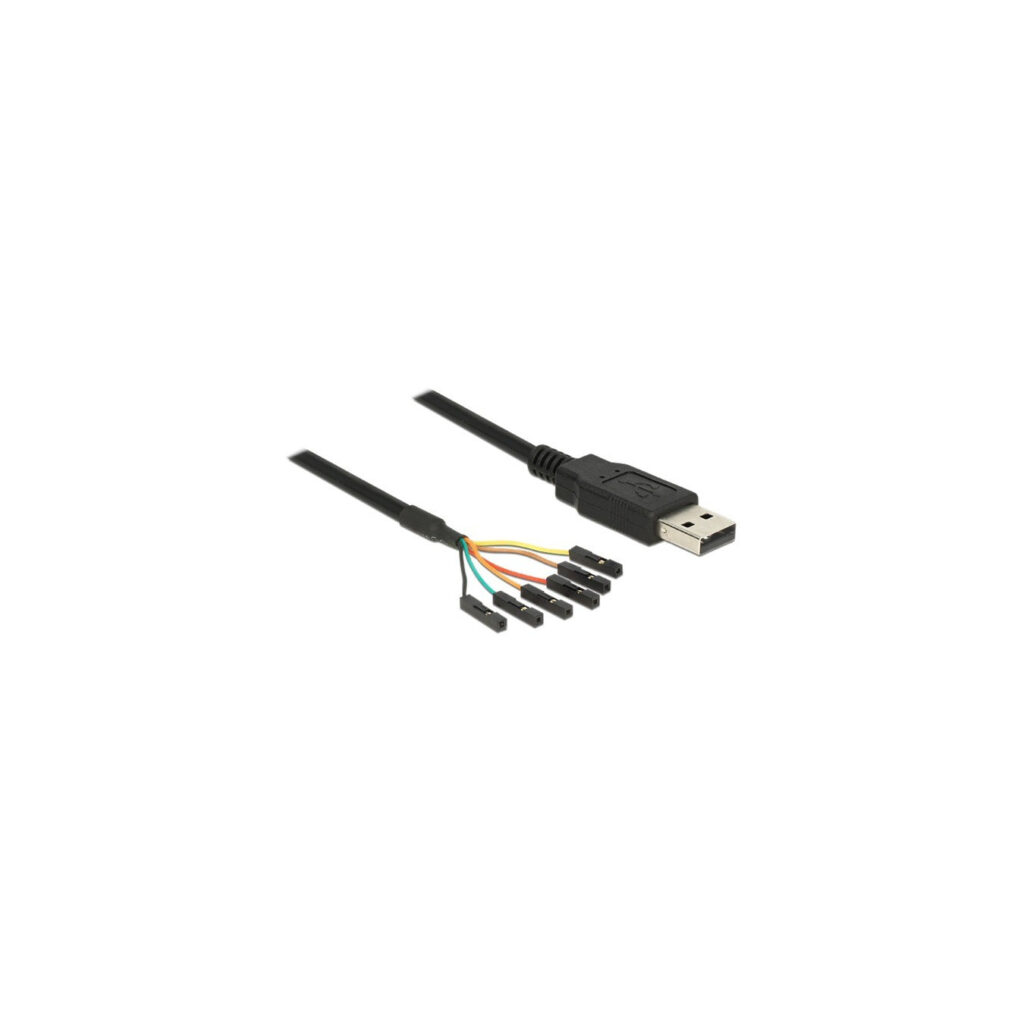

USB 2.0 converter, USB-A male to serial TTL 6 pin header socket individually
The USB TTL cable 83787 from Delock is particularly suitable for industrial applications due to its large temperature range. It supports virtual COM ports and optionally allows dir…
Available in 6–10 business days : 500 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The USB TTL cable 83787 from Delock is particularly suitable for industrial applications due to its large temperature range. It supports virtual COM ports and optionally allows direct access to the interface. The converter is versatile and compatible with the standard systems Windows, Linux and MAC and is also suitable for use in embedded systems, controllers, field programmable gate arrays, MCUs, dongles, etc.
| Typ | Converter |
| Color | schwarz |
| EAN | 4043619837878 |
| Manufacturer no. | 83787 |
| Manufactured in | China |
| Area | Data transfer |
| Connection - from | 1x USB-A (Stecker) |
| Protocol | USB 2.0 |
| Cable cross section | 26 AWG |
| More information | Chipset: FTDI 232RL, temperature range: -20 °C to +80 °C, idle current: 70 uA, converter: 5 V / 15 mA (VCC, GND), compatible with UHCI / OHCI / EHCI controllers, LVTTL 3.3 V (data) / 4 mA or HighLevel 12 mA, data rate 300 baud - 3 megabaud, Data Bits: 7 or 8, Stop Bits: 1 or 2, Parity: None, Space, Even, Odd, Mark, Flow Control: Software XON / XOFF or Hardware RTS / CTS, FIFO: 128 Byte - RX 256 Byte - TX |
| Notice | Pinbelegung: 1. GND, 2. CTS, 3. VCC, 4. TXD, 5. RXD, 6. RTS |
| Cable length | 1,8 Meter |
