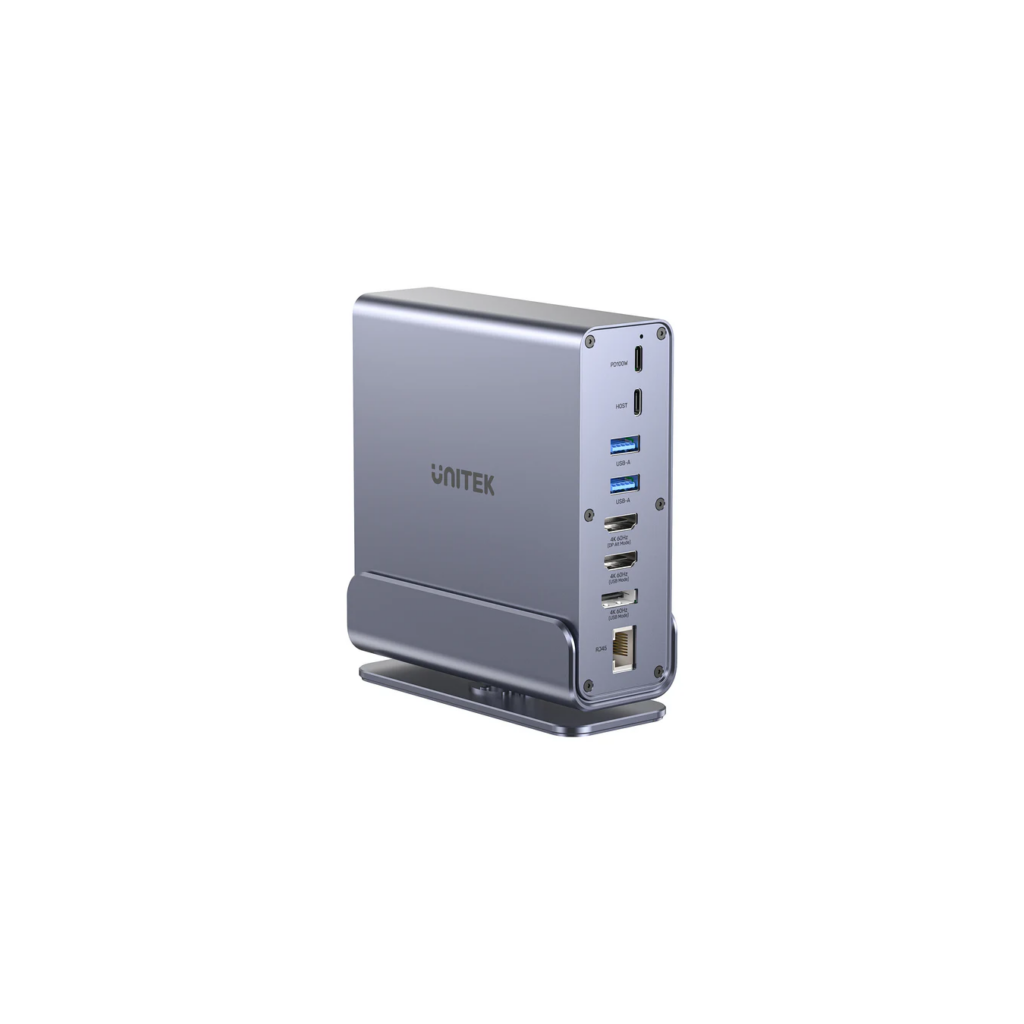

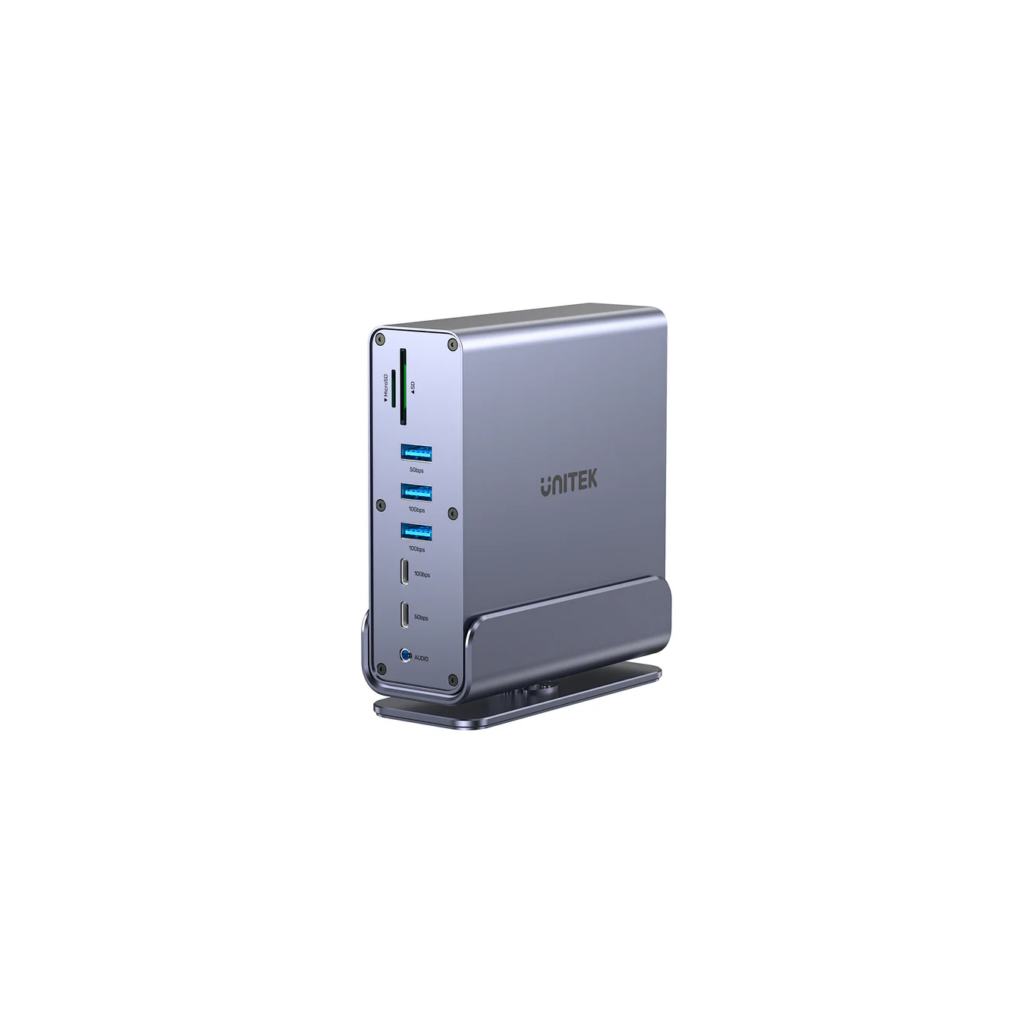

Unitek D1135A 15in1 USB-C Hub - Triple 4K M1 MacBook PD100W
15-in-1 USB-C hub with DisplayLink tech supports Mac M1-M3 triple 4K@60Hz displays via MST, 100W PD charging, Gigabit Ethernet, dual SD readers, multiple USB ports up to 10Gbps.
Available in 2–3 business days : 5 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Elevate productivity with the Unitek D1135A USB-C DisplayLink Triple 4K Docking Station. Overcomes MacBook M1-M3 limitations for up to 3x 4K@60Hz monitors (2x HDMI, 1x DP) using MST mode.
Features 100W PD charging, ultrafast USB ports (3x 10Gbps, 2x 5Gbps, 2x 480Mbps), Gigabit Ethernet (10/100/1000Mbps), SD/MicroSD 2.0 readers (single slot each), and 3.5mm audio jack. Compatible with USB4, Thunderbolt 3/4, USB-C/A hosts.
Dimensions: 121.8 x 137.9 x 49.3mm. Requires DisplayLink driver download. USB-A hosts support dual monitors only.

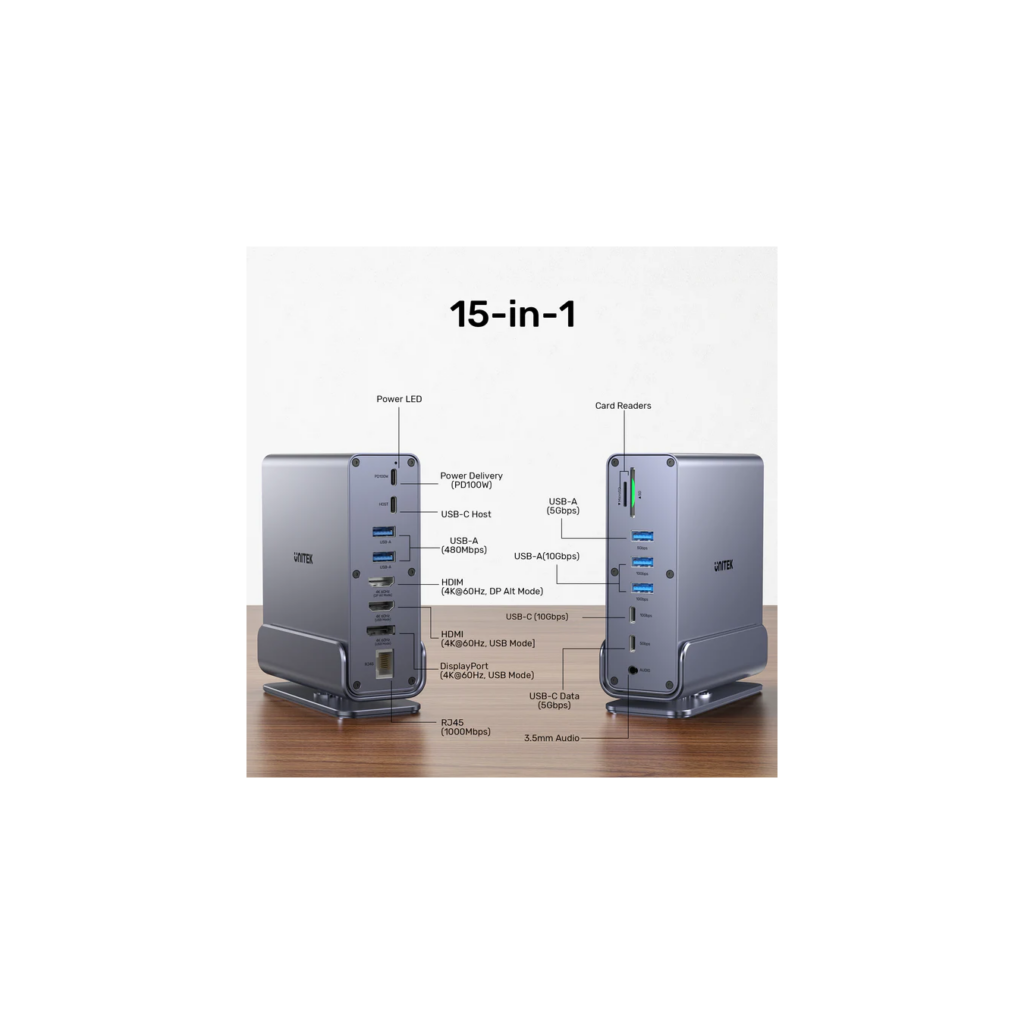

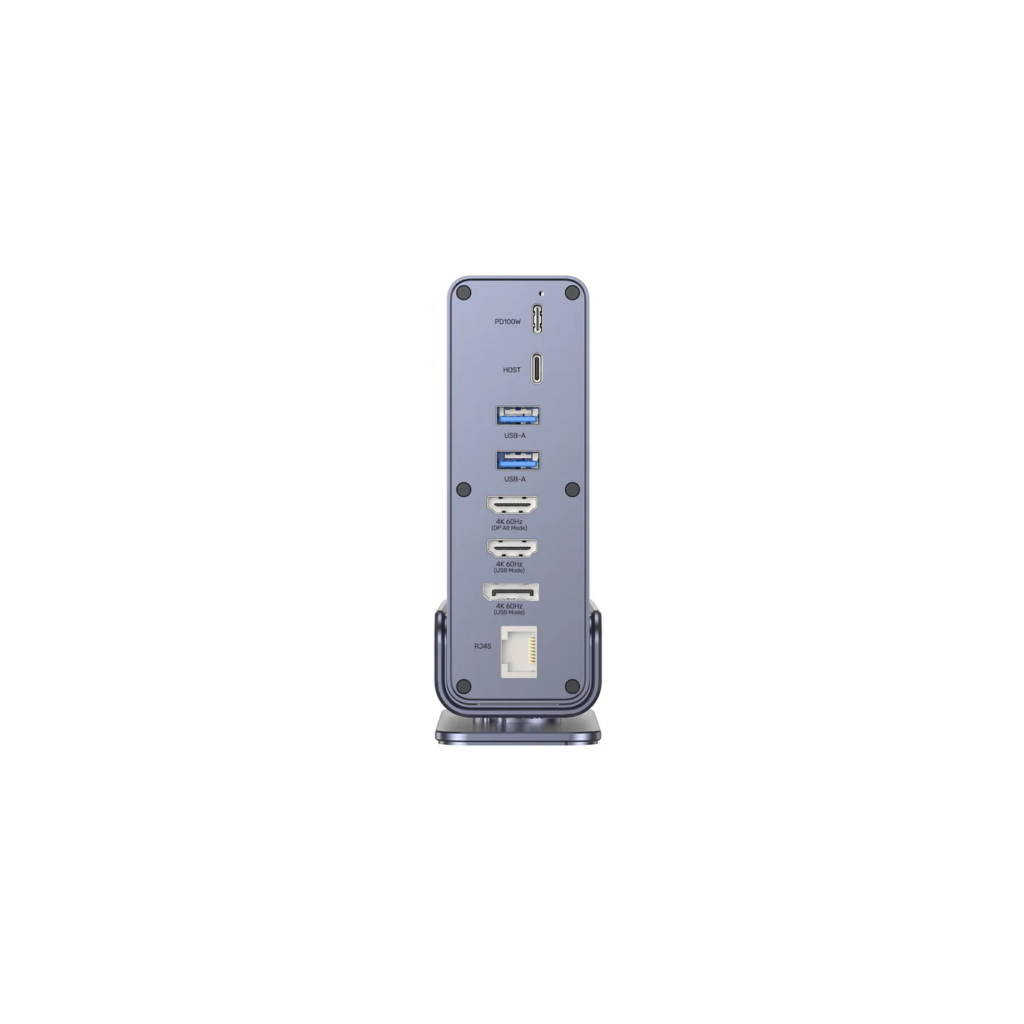

- Triple 4K@60Hz MST: 2x HDMI, 1x DP

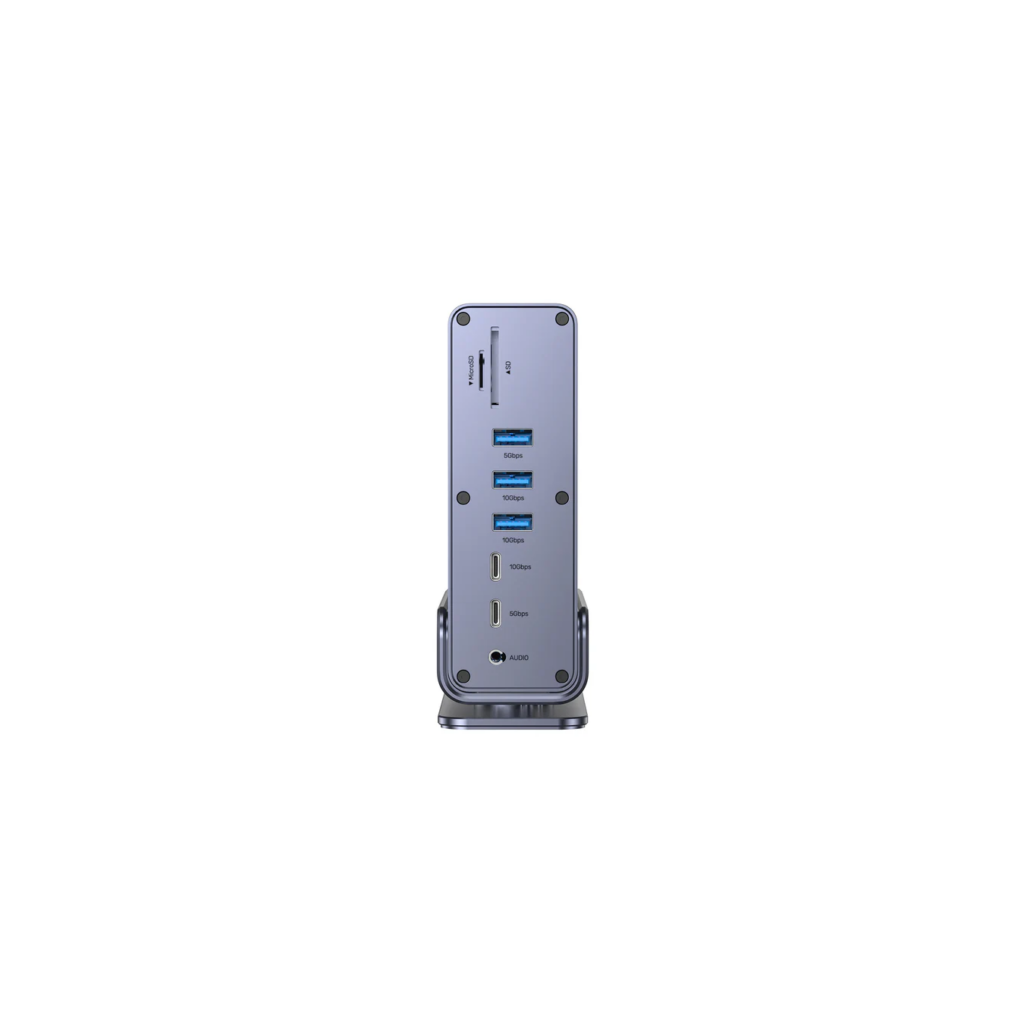

- USB: 2x A 10Gbps, 1x A 5Gbps, 2x A 480Mbps, 1x C 10Gbps, 1x C 5Gbps
- Power: 100W PD input
- Network: RJ45 1Gbps
- Other: Dual card readers, audio jack
| Model | D1135A |
| USB Type | Type C |
| Upstream | USB-C 10Gbps (with USB-A adapter) |
| USB Ports | 7 total (5 USB-A/C data + 1 PD + 1 upstream equiv) |

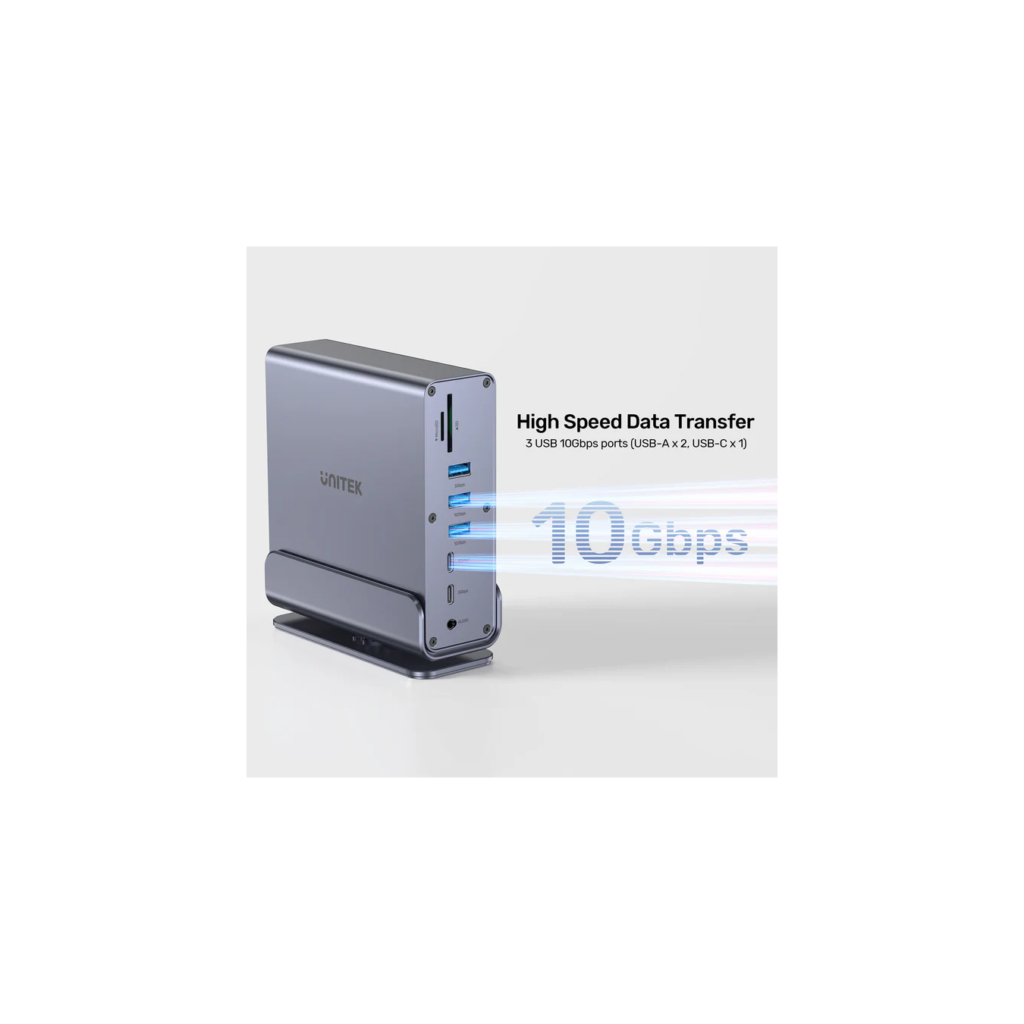

| USB Speeds | 3x 10Gbps (1C/2A), 2x 5Gbps (1C/1A), 2x 480Mbps (2A) |
| HDMI Ports | 2 (4K@60Hz) |
| DisplayPort | 1 (4K@60Hz) |
| Max PD Output | 100W |
| MST Function | Yes (DisplayLink) |

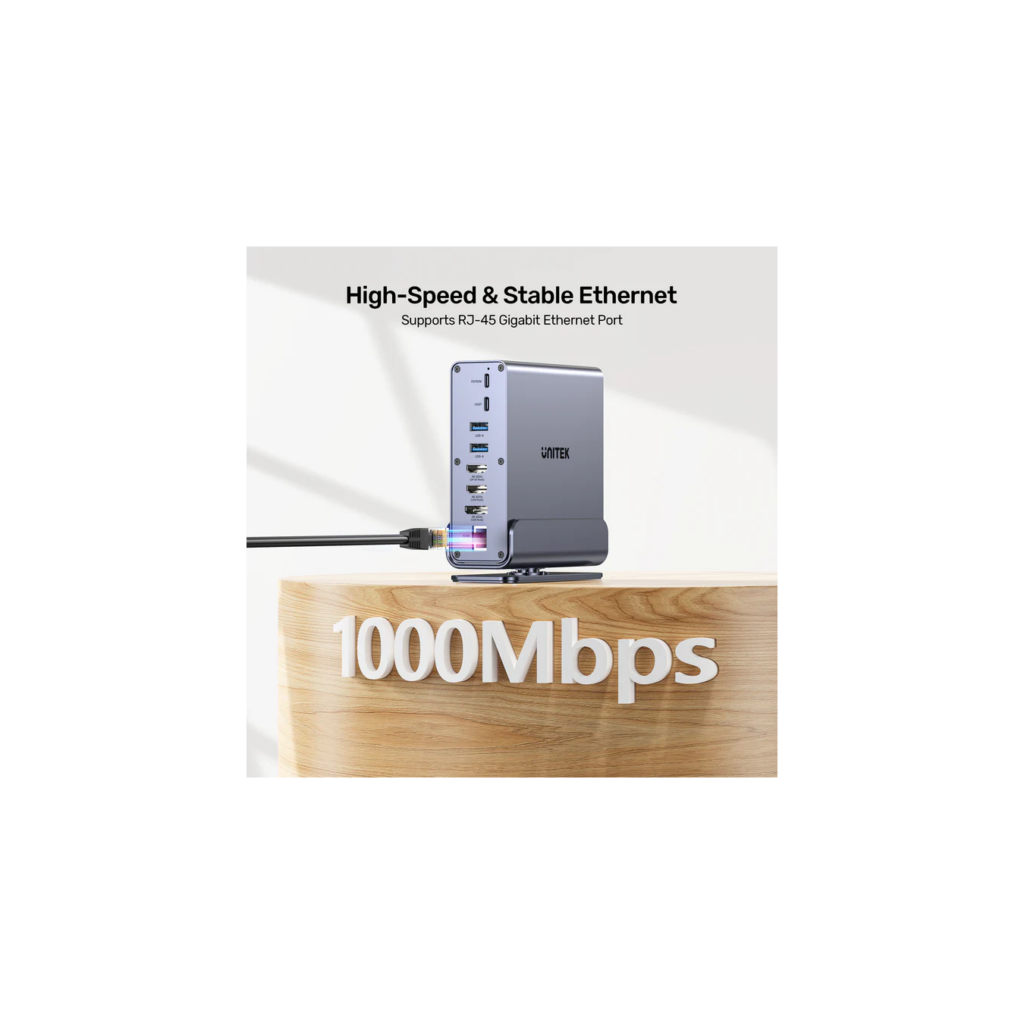

| Ethernet | RJ45 Gigabit (10/100/1000Mbps) |
| Card Readers | SD 2.0 x1, microSD 2.0 x1 (single reading) |
| Audio | 3.5mm Mic/Headphone jack |

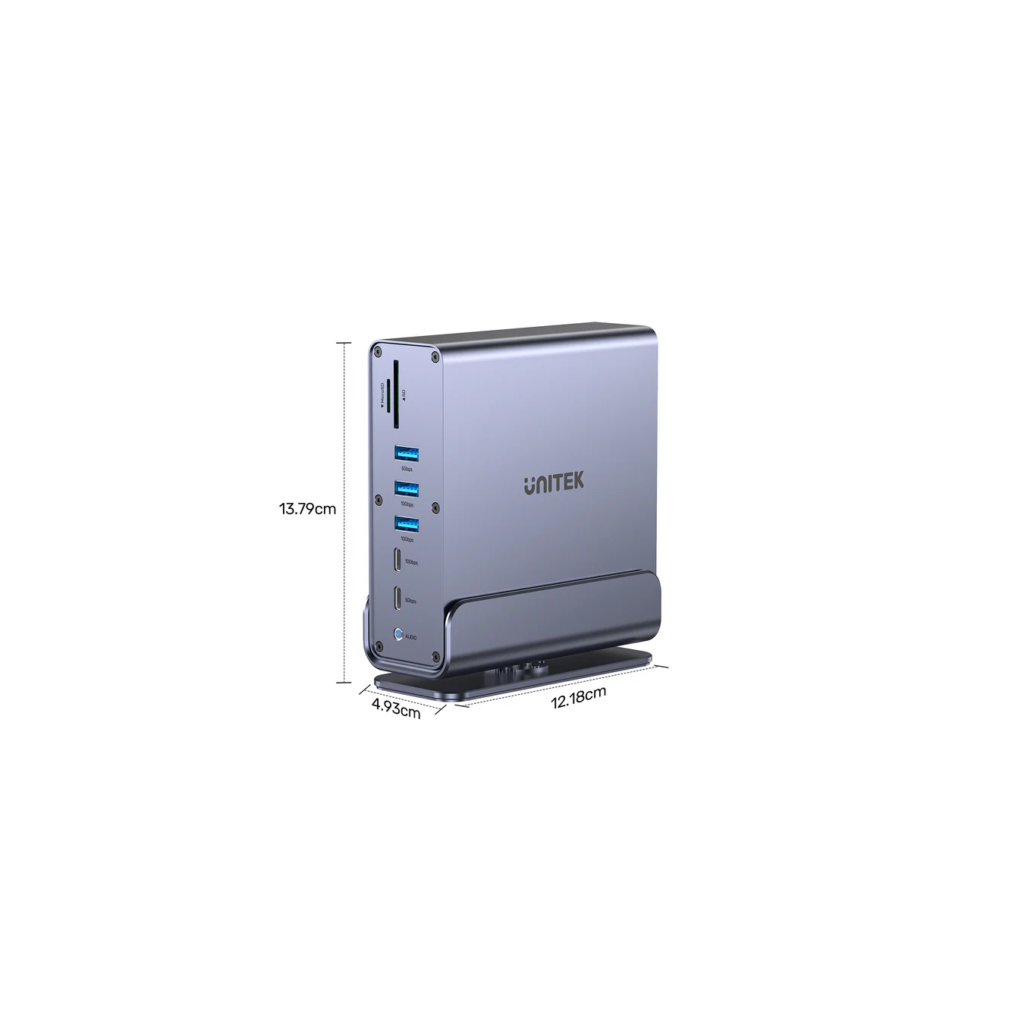

| Dimensions | 121.8 x 137.9 x 49.3 mm |
| Material | Aluminum Alloy / Space Grey |
| Compatibility | USB4, Thunderbolt 3/4, USB-C, USB-A; Win10/11, macOS 10.6+, Linux 3.x |

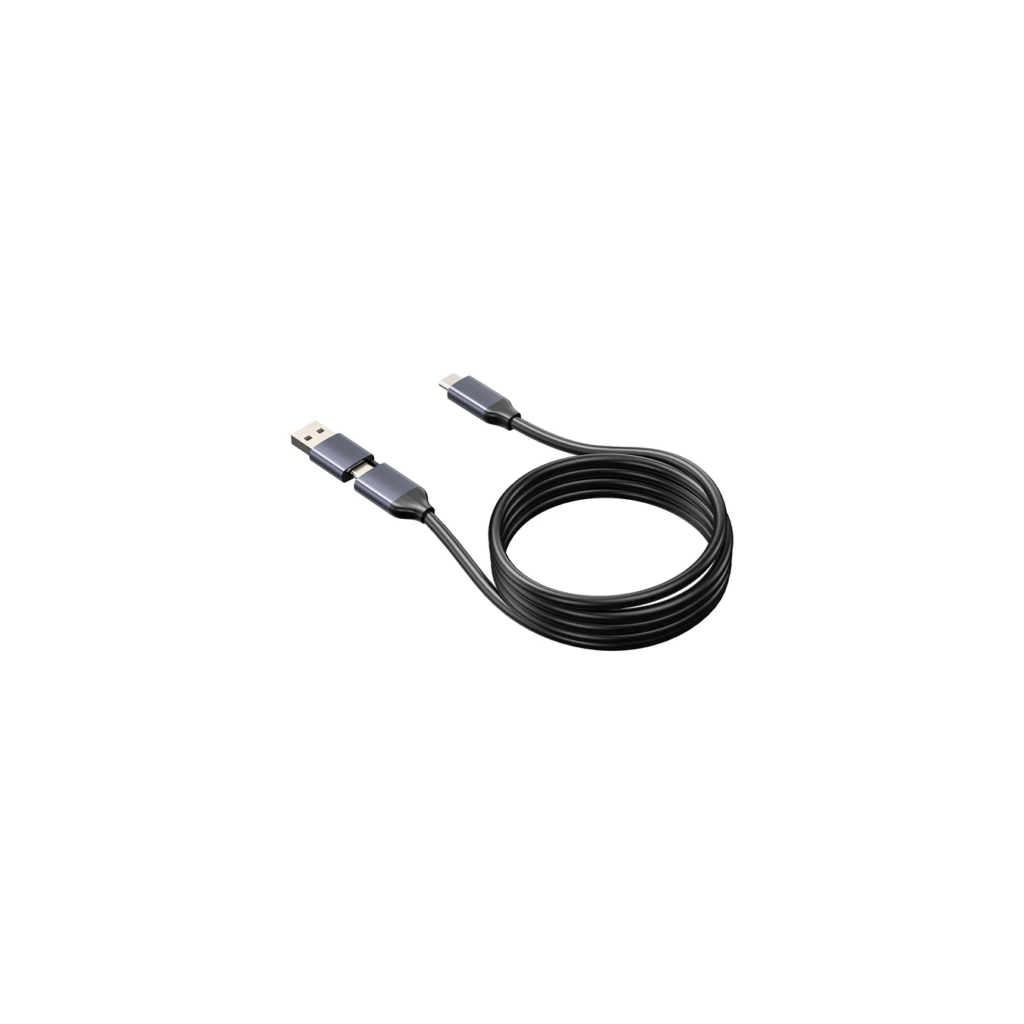

| Cable Length | 100cm USB-C to C |

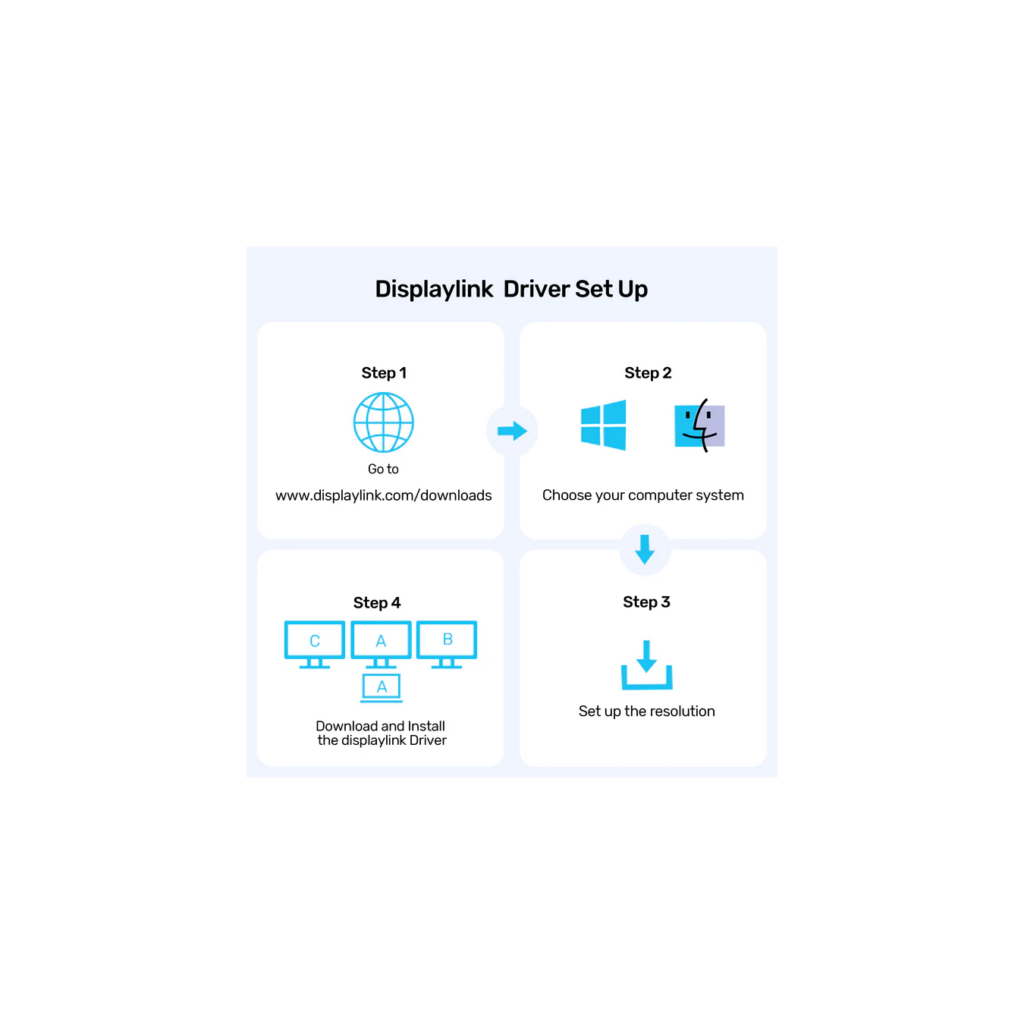

| Driver | DisplayLink required |
