Ubiquiti UniFi UMA-D Antenna - UMA-D - White, Dual‑Band 2.4/5 GHz, Directional, 15 dBi
Directional dual‑band antenna for UniFi UAP‑AC‑M. 2.4–2.5 & 5.1–5.9 GHz, 10 dBi (2.4 GHz) / 15 dBi (5 GHz), RP‑SMA, wall or pole mount, indoor/outdoor.
Available in 6–10 business days : 100 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068

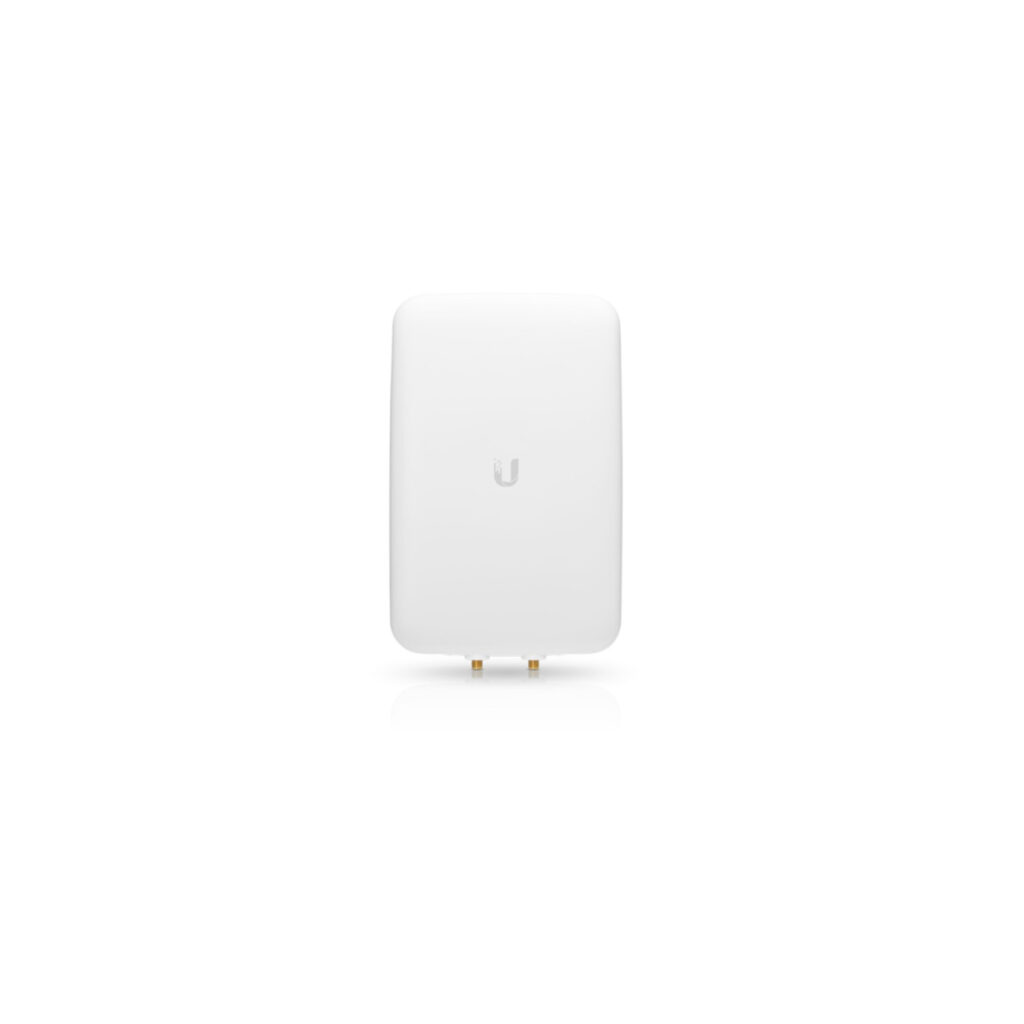

The UniFi Antenna, model UMA-D, is an optional mesh antenna designed to work with the UniFi® AC Mesh AP, model UAP-AC-M. With dual-band support, the UMA-D expands range coverage and provides customized pattern shaping. It is available in single- and five-packs.
Antenna Features
Optimized for 802.11ac, the UMA-D offers a high efficiency directional radiation pattern with dual polarity.
Weather-Resistant Enclosure
Encased in UV-stabilized plastic, the UMA-D can be used indoors or outdoors.
Versatile Mounting

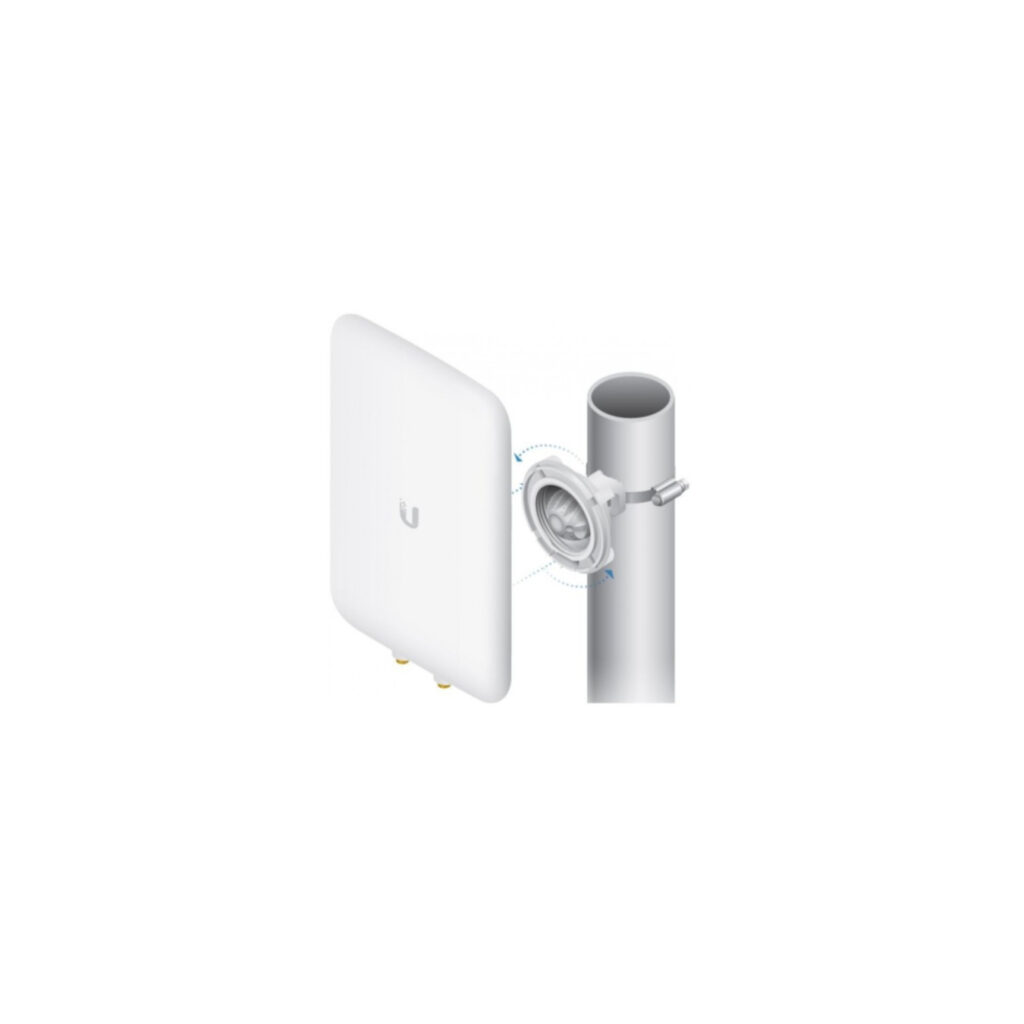

The UMA-D has a ball joint mount designed for precise aiming and can be mounted on a pole or wall.
Compatibility
The UMA-D is a connectorized antenna that is compatible with the UAP-AC-M.
| Frequency band | 2.4 - 2.5, 5.1 - 5.9 GHz |
| Networking standards | IEEE 802.11ac |
| Antenna gain (2.4 GHz) | 10 dBi |
| Antenna gain (5 GHz) | 15 dBi |
| Horizontal beam width (2.4 GHz) | 90° |
| Vertical beam width (2.4 GHz) | 90° |
| Horizontal beam width (5 GHz) | 45° |
| Vertical beam width (5 GHz) | 45° |
| Antenna gain level (max) | 15 dBi |
| Antenna type | Directional antenna |
| Antenna connector type | RP-SMA |
| Polarization | Dual polarization |
| Voltage Standing Wave Ratio (VSWR) | 2:1 |
| Product colour | White |
| Housing material | Plastic |
| Mounting | Wall/Pole |
| Purpose | Indoor & outdoor |
| Compatible products | UAP-AC-M |
| Width | 128 mm |
| Depth | 32.5 mm |
| Height | 201.3 mm |
| Weight | 480 g |
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
| Harmonized System (HS) code | 85177100 |
